DESCRIPTION

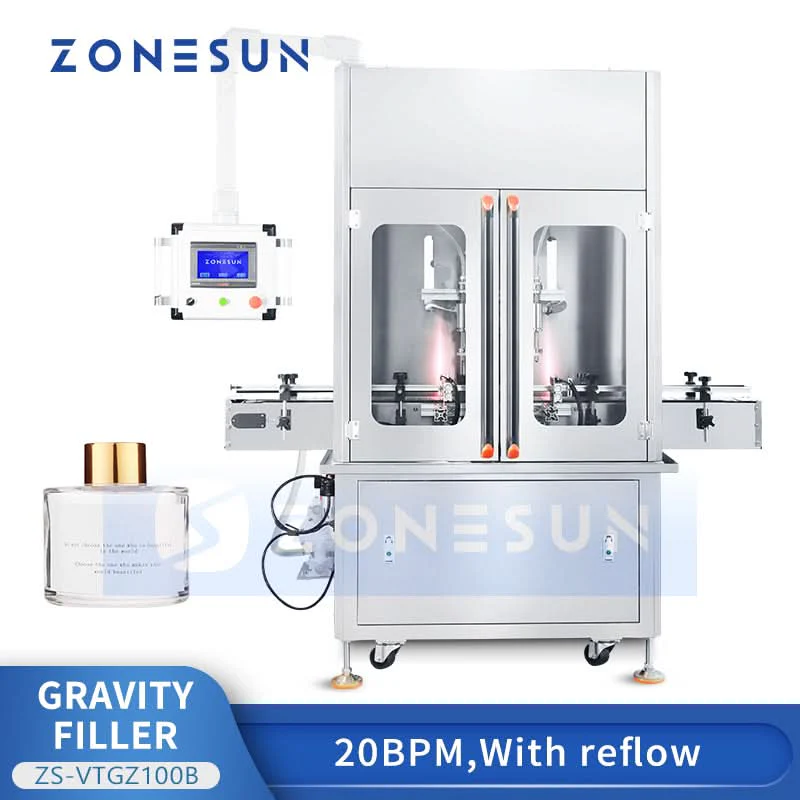

Boost your perfume production efficiency with our advanced Gravity Perfume Filling Machine with Suction Function. Designed for precision and reliability, this machine utilizes a gravity-based filling system combined with a PLC-controlled interface for effortless operation. Equipped with up to 4 diving heads and an intelligent suction mechanism, it minimizes dripping and ensures accurate filling for delicate liquids like perfumes. The integrated upper tank and level sensor provide a steady, consistent liquid supply, enabling seamless production. Perfect for small to medium-scale operations, this machine streamlines your packaging process while maintaining superior filling accuracy.

PARAMETER
Model: ZS-VTGZ100B
Machine voltage: 110/220V 50-60HZ 250W
Quantity of filling nozzle: 4
Working capacity: About 15-20BPM(based on 500ml liquid)
Air pressure: 0.4-0.6MPA
Suitable filling volume: 50-5000ml
Suitable bottle height: 120-280mm
Suitable bottle opening mouth: 20-35mm
Tank size: 100L
Machine size: About1900*1100*2050mm

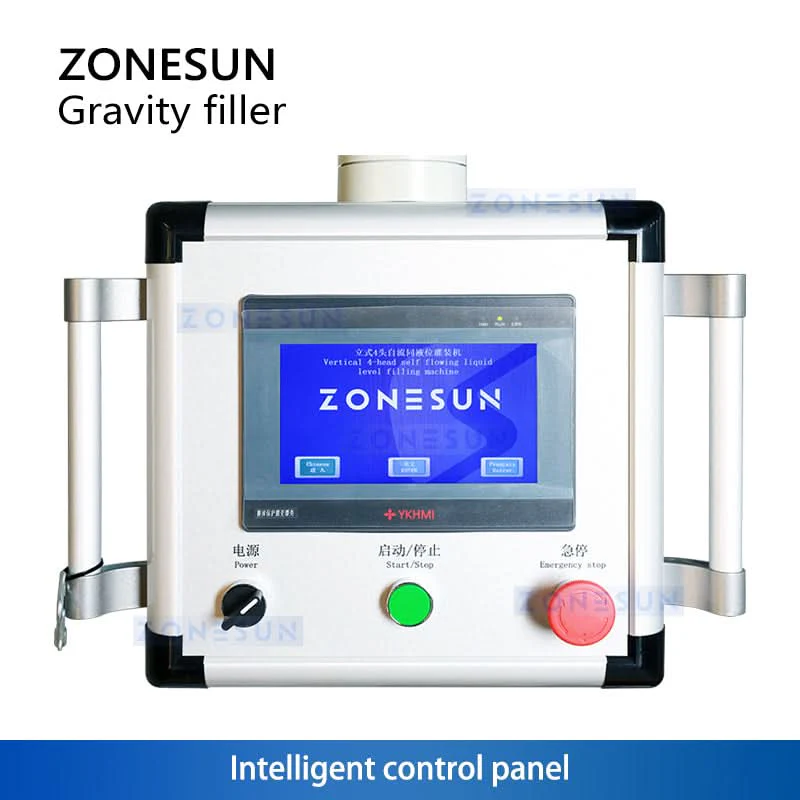

INTELLIGENT CONTROL PANEL
Touch screen operation, easy to set and modify parameters, simple operation.

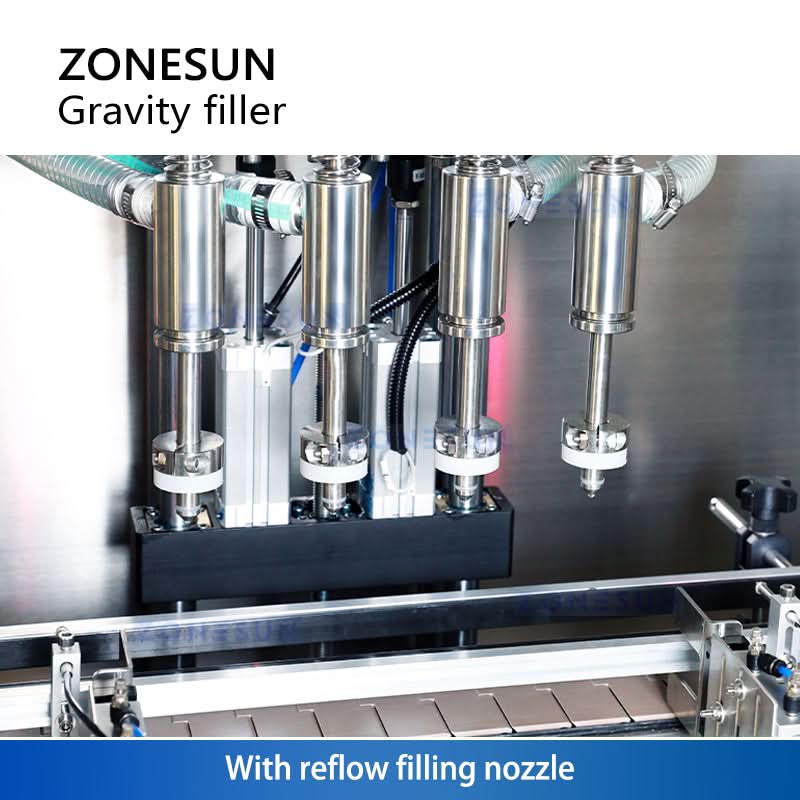

WITH REFLOW FILLING NOZZLE
Four filling nozzles with reflow function to prevent liquid overflow and leakage.

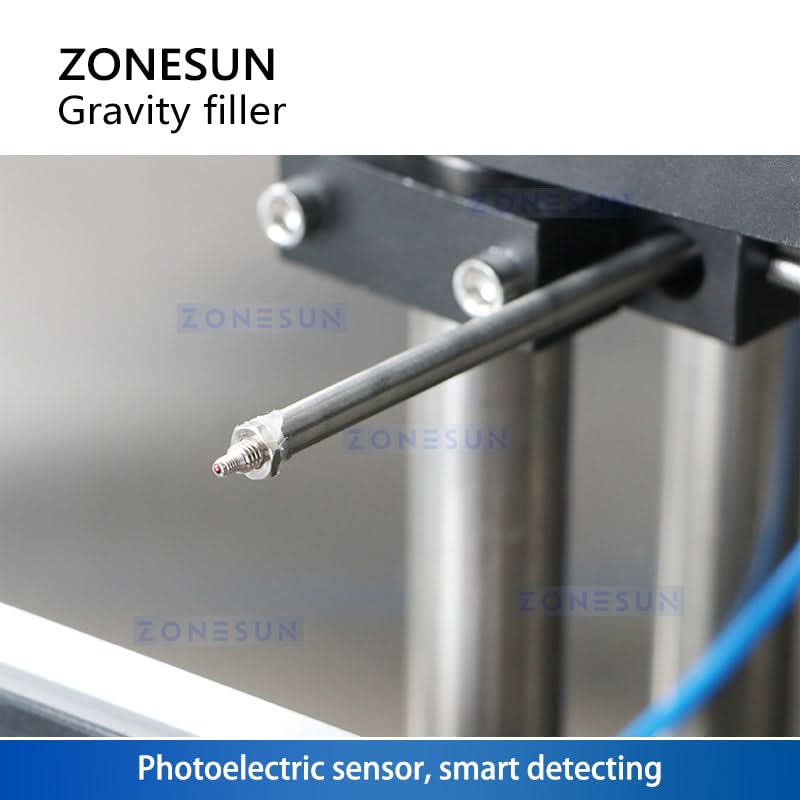

The electric eye is often integrated into automated filling lines, allowing for seamless operation without the need for manual intervention. This streamlines the production process and reduces the reliance on human operators.

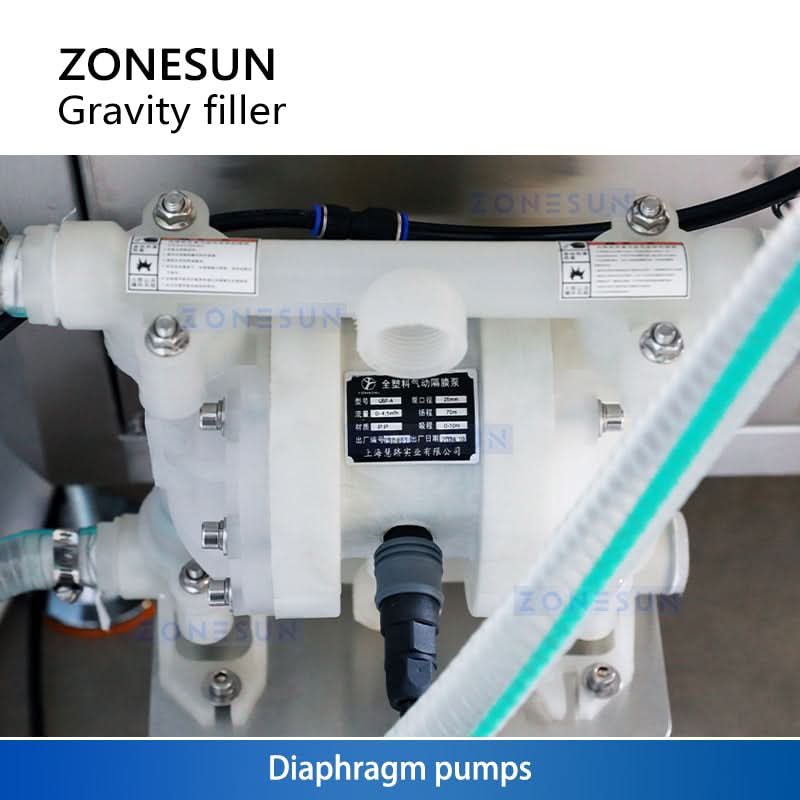

DIAPHRAGM PUMPS
Capable of handling corrosive liquids and liquids containing solid particles, automatic loading and filling.

WITH DUST COVER
The integrated dust cover can prevent dust and moisture, ensuring that the machine operates in a clean environment.
