Zonesun ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

Product image 1
1 / 8
+3

Zonesun ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

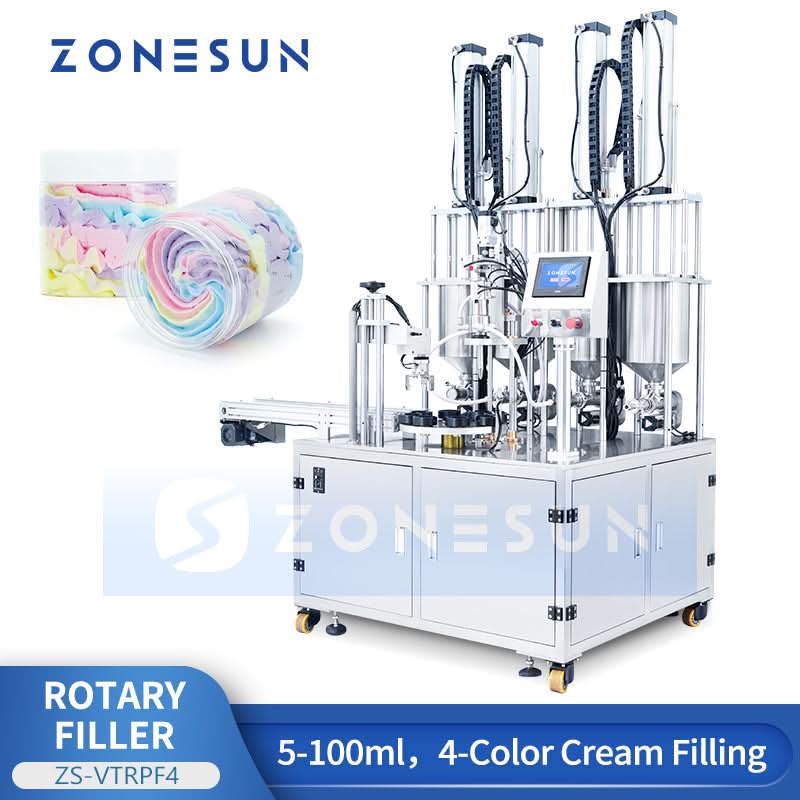

The ZONESUN ZS-VTRPF4 is an automatic rotary 4-color filling machine designed to fill multi-color creams evenly into bottles or jars. With four rotary filling heads, it is ideal for producing cosmetic creams, whipped body butters, and colorful food pastes. Suitable for 5–100ml filling, this machine is widely used in cosmetics, food, and daily chemical industries.

PARAMETER

Model: ZS-VTRPF4
Powder Supply: 220V/50Hz
Total Power: 4 Kw
Air Pressure: 0.5-0.6 Mpa
Filling Accuracy: ≤0.5%
Filling Pump: Lobe Pump + Piston Pump
Suitable for bottle height: 30-120mm
Suitable for bottle diameter: OD15-100mm
Filling range: 5-100ml
Stainless steel hopper volume: 22L*4
Filling Capacity: 960 bottles/hour (depending on the volume and material)
Machine Size: 1870(L)*1100(W)*2500(H)mm

ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

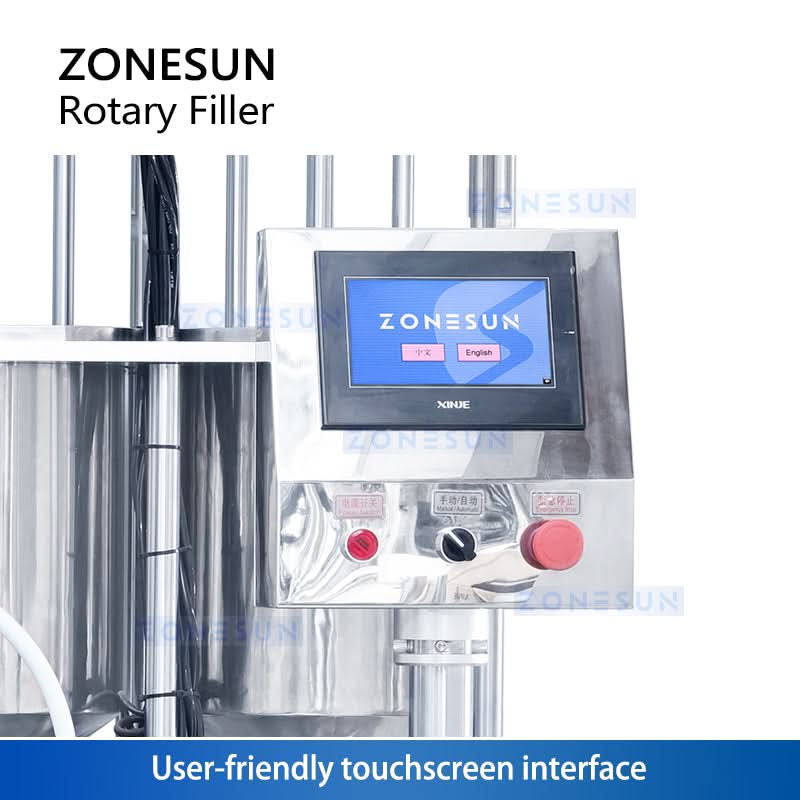

CONTROL PANEL: Equipped with a PLC and touchscreen interface for intuitive, user-friendly operation.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

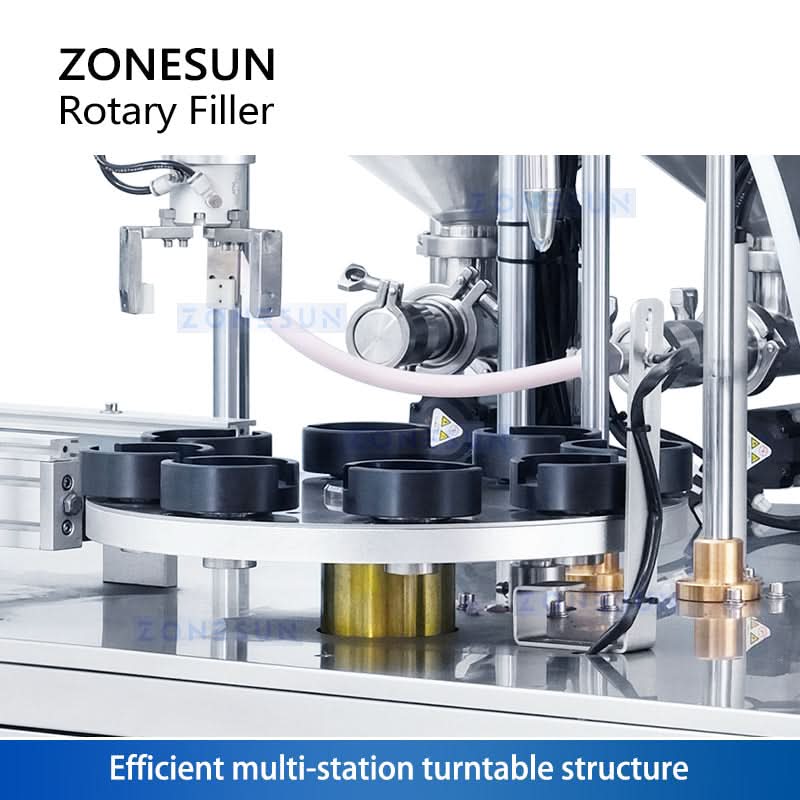

TURNTABLE: Automatic multi-station filling with customizable molds to suit various bottle types. Easy to change over.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

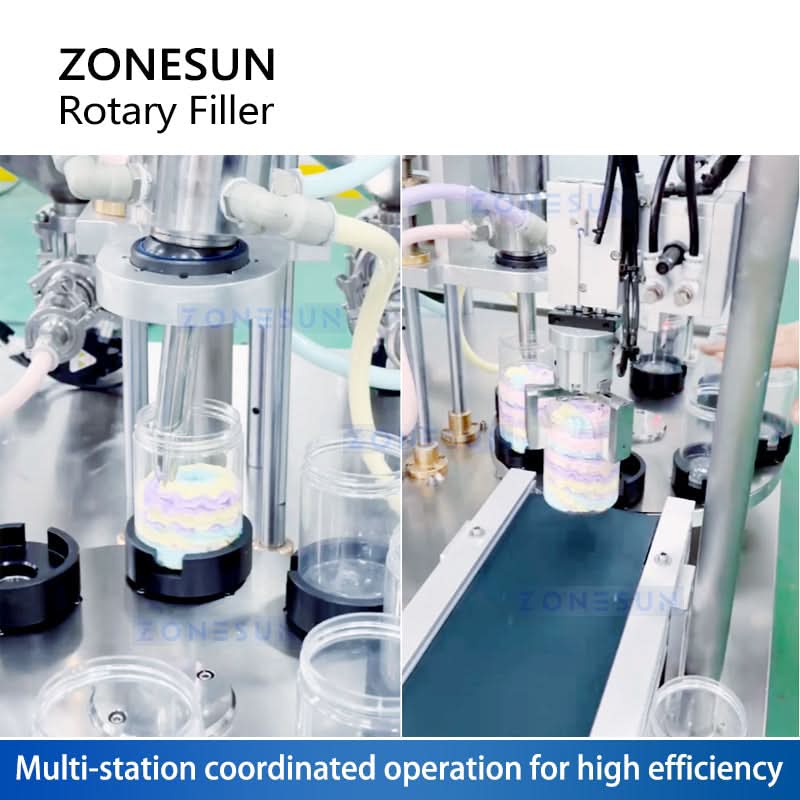

FILLING OUTPUT SYSTEM: The spiral filling head evenly distributes four colored materials into the bottle, while the pneumatic gripper automatically removes the filled bottle, ensuring high efficiency.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

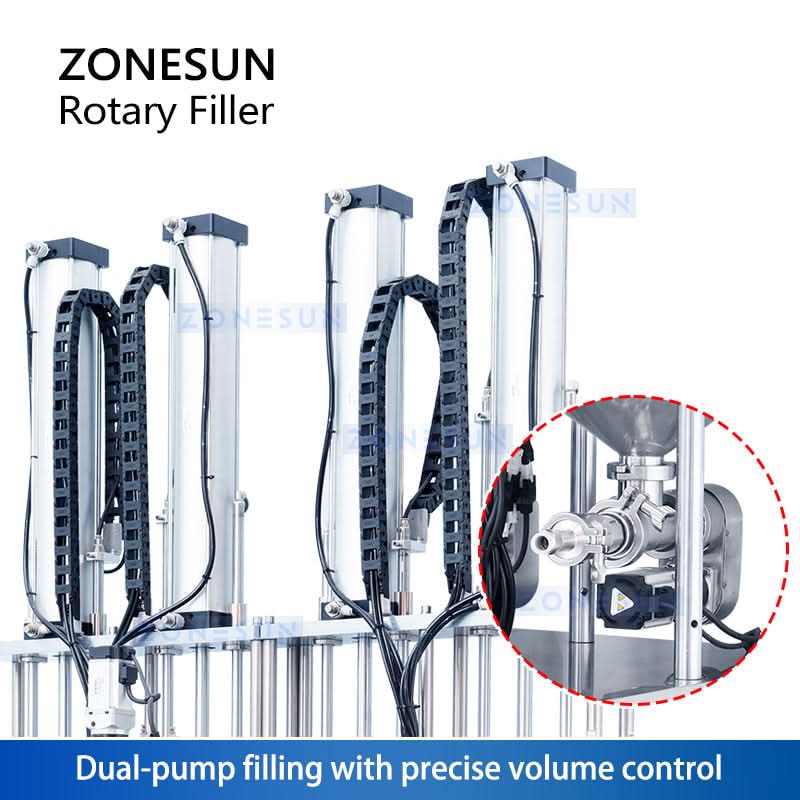

PUMP: Uses both piston and lobe pumps for flexible, accurate filling. Easy to clean and quick to change colors.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml

The ZONESUN ZS-VTRPF4 is an automatic rotary 4-color filling machine designed to fill multi-color creams evenly into bottles or jars. With four rotary filling heads, it is ideal for producing cosmetic creams, whipped body butters, and colorful food pastes. Suitable for 5–100ml filling, this machine is widely used in cosmetics, food, and daily chemical industries.

PARAMETER

Model: ZS-VTRPF4
Powder Supply: 220V/50Hz
Total Power: 4 Kw
Air Pressure: 0.5-0.6 Mpa
Filling Accuracy: ≤0.5%
Filling Pump: Lobe Pump + Piston Pump
Suitable for bottle height: 30-120mm
Suitable for bottle diameter: OD15-100mm
Filling range: 5-100ml
Stainless steel hopper volume: 22L*4
Filling Capacity: 960 bottles/hour (depending on the volume and material)
Machine Size: 1870(L)*1100(W)*2500(H)mm

ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
CONTROL PANEL: Equipped with a PLC and touchscreen interface for intuitive, user-friendly operation.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
TURNTABLE: Automatic multi-station filling with customizable molds to suit various bottle types. Easy to change over.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
FILLING OUTPUT SYSTEM: The spiral filling head evenly distributes four colored materials into the bottle, while the pneumatic gripper automatically removes the filled bottle, ensuring high efficiency.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
PUMP: Uses both piston and lobe pumps for flexible, accurate filling. Easy to clean and quick to change colors.
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
ZONESUN ZS-VTRPF4 Automatic Cream Filling Machine 4-Color Rotary Cosmetic Filler 5–100ml
