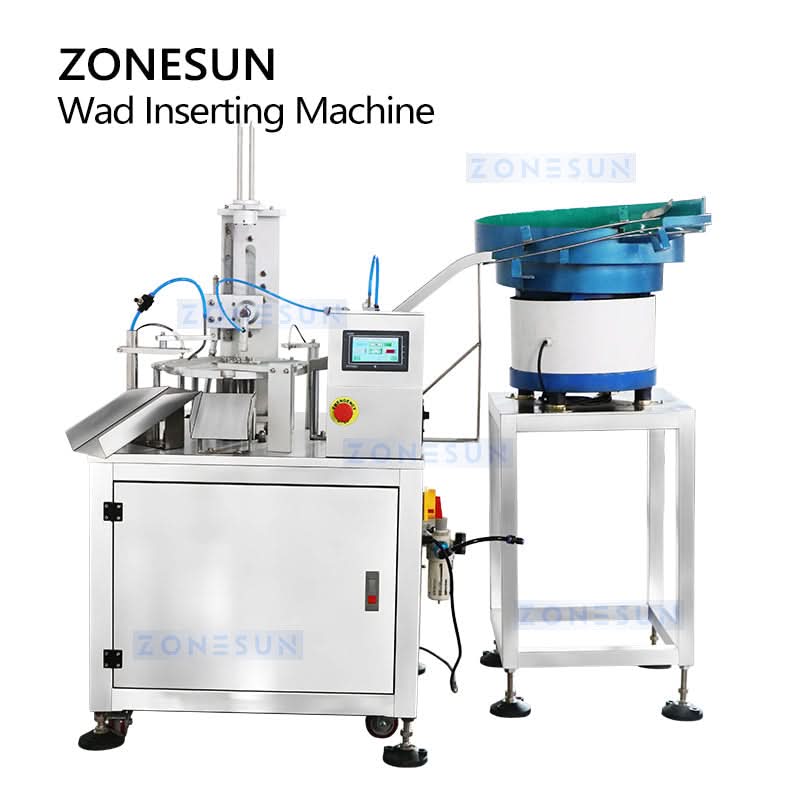

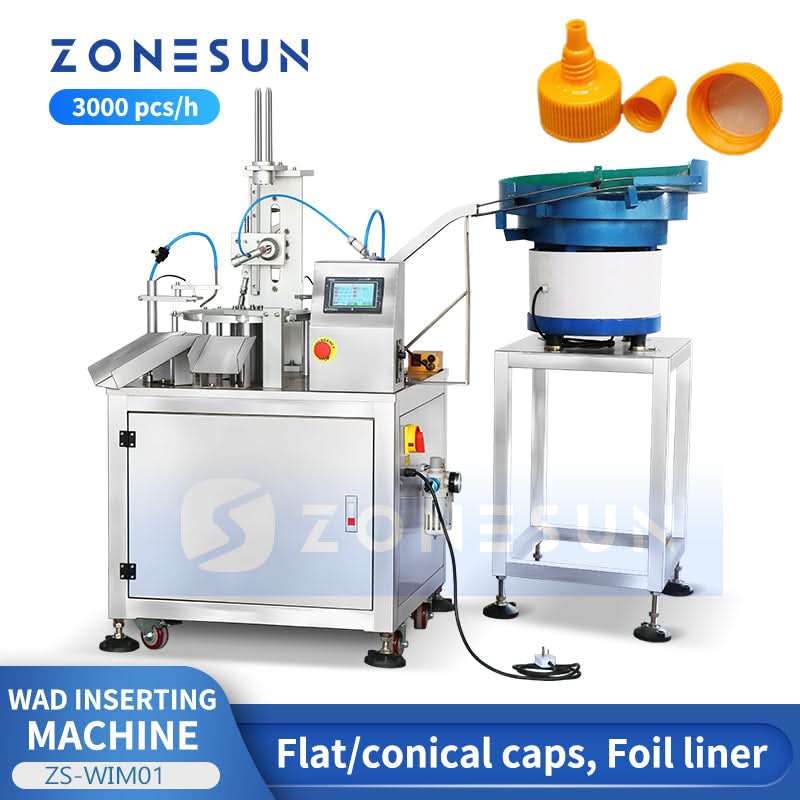

ZONESUN ZS-WIM01 Induction Wad Inserter for Bottle Caps
The ZONESUN ZS-WIM01 is a precision-engineered machine designed for inserting induction seal wads into plastic bottle caps. Featuring a rotary indexer with a star wheel, it ensures accurate cap positioning, while the vacuum head reliably picks and places precut liners. Suitable for both flat and conical caps, this system delivers high-speed productivity and consistent results for industrial packaging operations.
Parameter Specification
Machine Model ZS-WIM01
Voltage 110V / 220V, 50–60 Hz
Power Approx. 2.6 kW
Working Speed Approx. 3000 pcs/hour
Machine Size Approx. 1500 × 800 × 1300 mm
Machine Weight Approx. 300 kg
Cap Feeder Size Approx. 1520 × 750 × 1180 mm
Cap Feeder Weight Approx. 102 kg
PRODUCT DETAILS

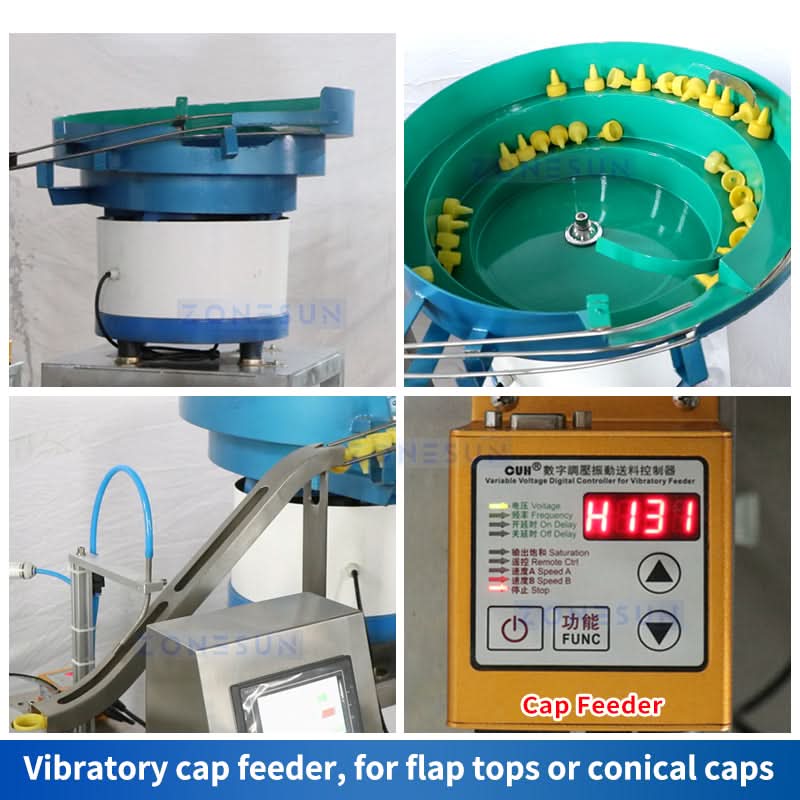

FEEDING
Vibratory cap feeder, customizable for flap tops and conical caps.

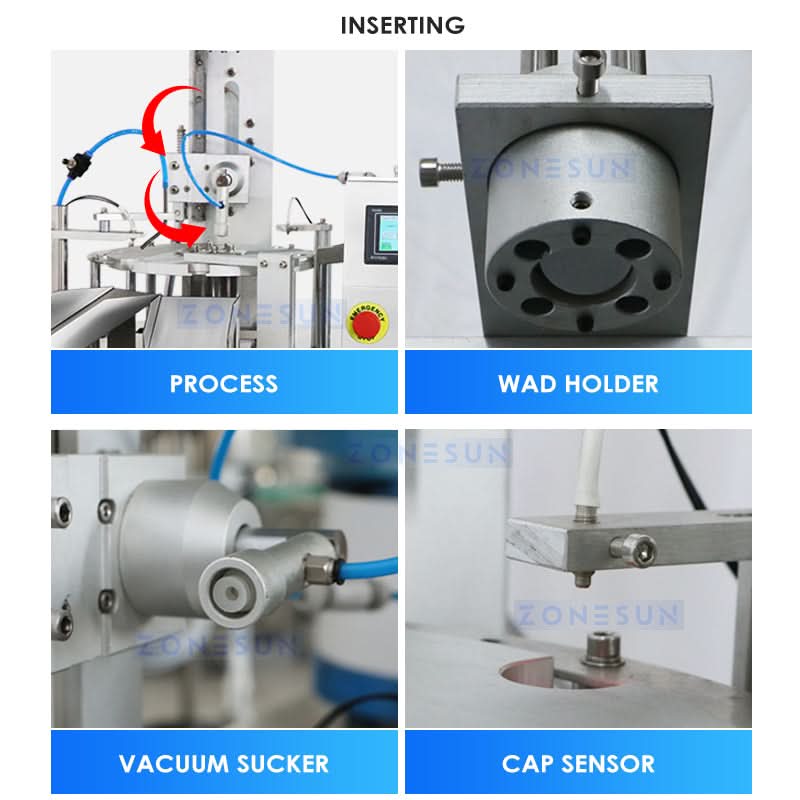

INSERTING
It uses a vacuum flipping head to suck the wad and insert it into the cap.

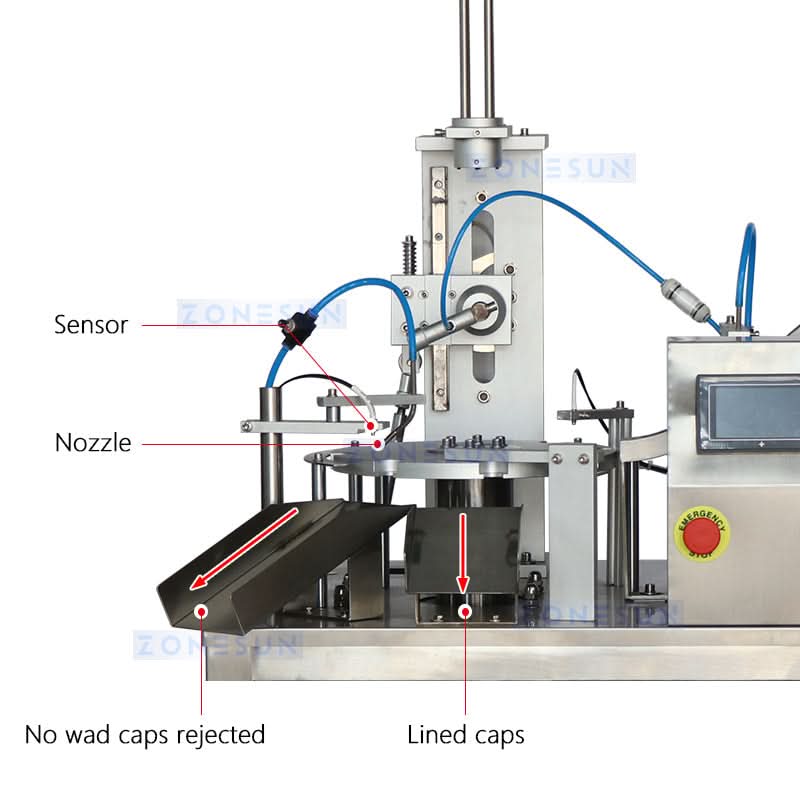

DETECTING
Automatically sense and reject no wad caps,
2 lanes for discharging.
CONTROL PANEL
PLC controls, no complex parameter needs to be set.
It needs an extra compressor which is sold separately.
The ZONESUN ZS-WIM01 is a precision-engineered machine designed for inserting induction seal wads into plastic bottle caps. Featuring a rotary indexer with a star wheel, it ensures accurate cap positioning, while the vacuum head reliably picks and places precut liners. Suitable for both flat and conical caps, this system delivers high-speed productivity and consistent results for industrial packaging operations.
Parameter Specification
Machine Model ZS-WIM01
Voltage 110V / 220V, 50–60 Hz
Power Approx. 2.6 kW
Working Speed Approx. 3000 pcs/hour
Machine Size Approx. 1500 × 800 × 1300 mm
Machine Weight Approx. 300 kg
Cap Feeder Size Approx. 1520 × 750 × 1180 mm
Cap Feeder Weight Approx. 102 kg
PRODUCT DETAILS
FEEDING
Vibratory cap feeder, customizable for flap tops and conical caps.
INSERTING
It uses a vacuum flipping head to suck the wad and insert it into the cap.
DETECTING
Automatically sense and reject no wad caps,
2 lanes for discharging.
CONTROL PANEL
PLC controls, no complex parameter needs to be set.
It needs an extra compressor which is sold separately.
Original: $6,899.00
-70%$6,899.00
$2,069.70Description
The ZONESUN ZS-WIM01 is a precision-engineered machine designed for inserting induction seal wads into plastic bottle caps. Featuring a rotary indexer with a star wheel, it ensures accurate cap positioning, while the vacuum head reliably picks and places precut liners. Suitable for both flat and conical caps, this system delivers high-speed productivity and consistent results for industrial packaging operations.
Parameter Specification
Machine Model ZS-WIM01
Voltage 110V / 220V, 50–60 Hz
Power Approx. 2.6 kW
Working Speed Approx. 3000 pcs/hour
Machine Size Approx. 1500 × 800 × 1300 mm
Machine Weight Approx. 300 kg
Cap Feeder Size Approx. 1520 × 750 × 1180 mm
Cap Feeder Weight Approx. 102 kg
PRODUCT DETAILS
FEEDING
Vibratory cap feeder, customizable for flap tops and conical caps.
INSERTING
It uses a vacuum flipping head to suck the wad and insert it into the cap.
DETECTING
Automatically sense and reject no wad caps,
2 lanes for discharging.
CONTROL PANEL
PLC controls, no complex parameter needs to be set.
It needs an extra compressor which is sold separately.
