Zonesun ZS-XG16D1 Wine Bottle Corking Machine with Automatic Cap Feed
Application

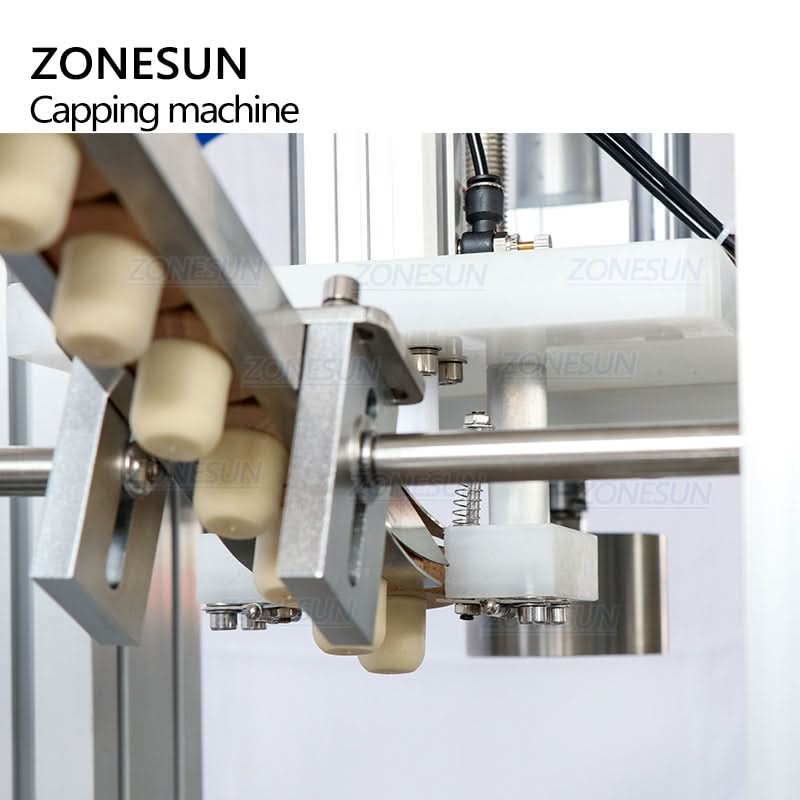

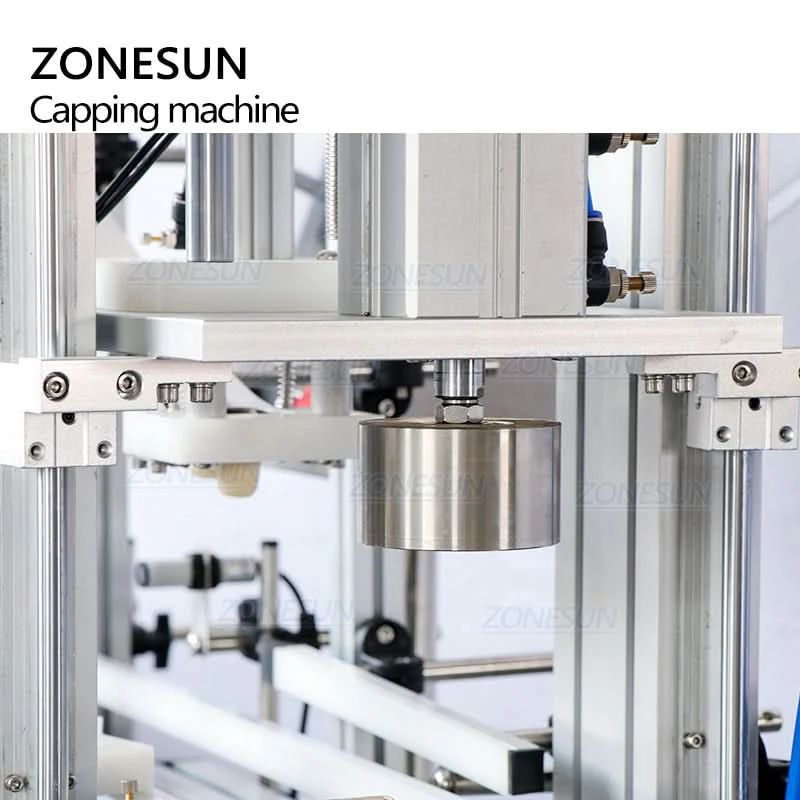

The ZS-XG16D1 automatic capping machine is purpose-built for corking wine bottles with precision and consistency. Its integrated guide rail system ensures smooth cap feeding and alignment, while automated operation boosts production efficiency. This unit seamlessly integrates with filling and labeling systems, offering a full packaging solution for wineries and beverage producers seeking quality, speed, and reliability.
Parameter
Machine Model ZS-XG16D1
Working Voltage AC220V/110V 50–60Hz
Bottle Height 30–300 mm
Bottle Cap Diameter 18–70 mm
Bottle Diameter 30–100 mm
Working Speed 20–60 bottles/min (based on bottle and cap size)
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Conveyor Dimensions 115 mm (W) × 1020 mm (L)
Machine Size Approx. 680 × 680 × 1730 mm
Machine Weight Approx. 112.5 kg
Package Size Approx. 770 × 1650 × 1970 mm
Package Weight Approx. 180 kg
Application
The ZS-XG16D1 automatic capping machine is purpose-built for corking wine bottles with precision and consistency. Its integrated guide rail system ensures smooth cap feeding and alignment, while automated operation boosts production efficiency. This unit seamlessly integrates with filling and labeling systems, offering a full packaging solution for wineries and beverage producers seeking quality, speed, and reliability.
Parameter
Machine Model ZS-XG16D1
Working Voltage AC220V/110V 50–60Hz
Bottle Height 30–300 mm
Bottle Cap Diameter 18–70 mm
Bottle Diameter 30–100 mm
Working Speed 20–60 bottles/min (based on bottle and cap size)
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Conveyor Dimensions 115 mm (W) × 1020 mm (L)
Machine Size Approx. 680 × 680 × 1730 mm
Machine Weight Approx. 112.5 kg
Package Size Approx. 770 × 1650 × 1970 mm
Package Weight Approx. 180 kg
Original: $4,299.00
-70%$4,299.00
$1,289.70Description
Application
The ZS-XG16D1 automatic capping machine is purpose-built for corking wine bottles with precision and consistency. Its integrated guide rail system ensures smooth cap feeding and alignment, while automated operation boosts production efficiency. This unit seamlessly integrates with filling and labeling systems, offering a full packaging solution for wineries and beverage producers seeking quality, speed, and reliability.
Parameter
Machine Model ZS-XG16D1
Working Voltage AC220V/110V 50–60Hz
Bottle Height 30–300 mm
Bottle Cap Diameter 18–70 mm
Bottle Diameter 30–100 mm
Working Speed 20–60 bottles/min (based on bottle and cap size)
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm
Conveyor Dimensions 115 mm (W) × 1020 mm (L)
Machine Size Approx. 680 × 680 × 1730 mm
Machine Weight Approx. 112.5 kg
Package Size Approx. 770 × 1650 × 1970 mm
Package Weight Approx. 180 kg
