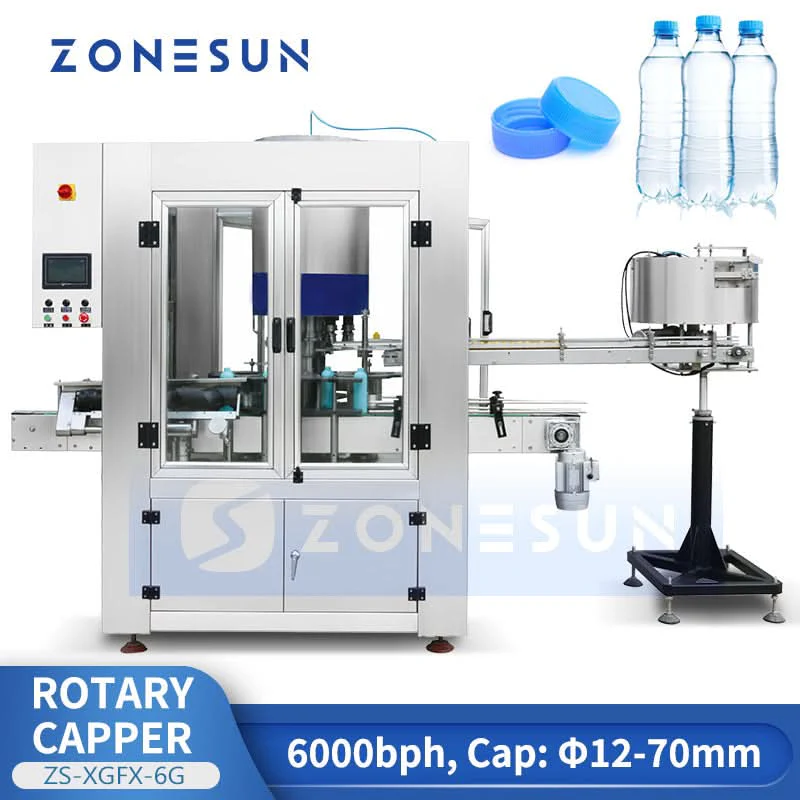

ZONESUN ZS-XGFX-6G Rotary Screw-on Bottle Capping Machine High Speed
The ZS-XGFX-6G is a high-speed rotary screw-on capping machine engineered for efficient bottle sealing in large-scale production lines. Its rotary turret system ensures precise cap placement while maintaining continuous bottle flow. Integrated with auger separation and star wheel mechanisms, it streamlines bottle feeding, capping, and discharge. Ideal for food, beverage, and chemical packaging, this machine delivers consistent performance and supports integration with external cap unscramblers for automated workflows.
Parameter Specification
Model ZS-XGFX-6G
Capacity ≤6000 bottles per hour
Applicable Caps Screw-on caps: Φ12–70 mm
Applicable Bottles Φ35–96 mm
Air Pressure 0.5–0.7 MPa
Power 3.5 kW
Voltage 220V, 50Hz
Weight 1500 kg
Machine Dimensions 3500 × 1350 × 2300 mm (L × W × H)
PRODUCT DETAILS
AUGER SEPARATOR
The auger separator is located at the beginning of the machine's production line and is responsible for separating the bottles from each other and feeding them onto the infeed star wheel. It consists of a motor-driven auger screw that rotates inside a tube.

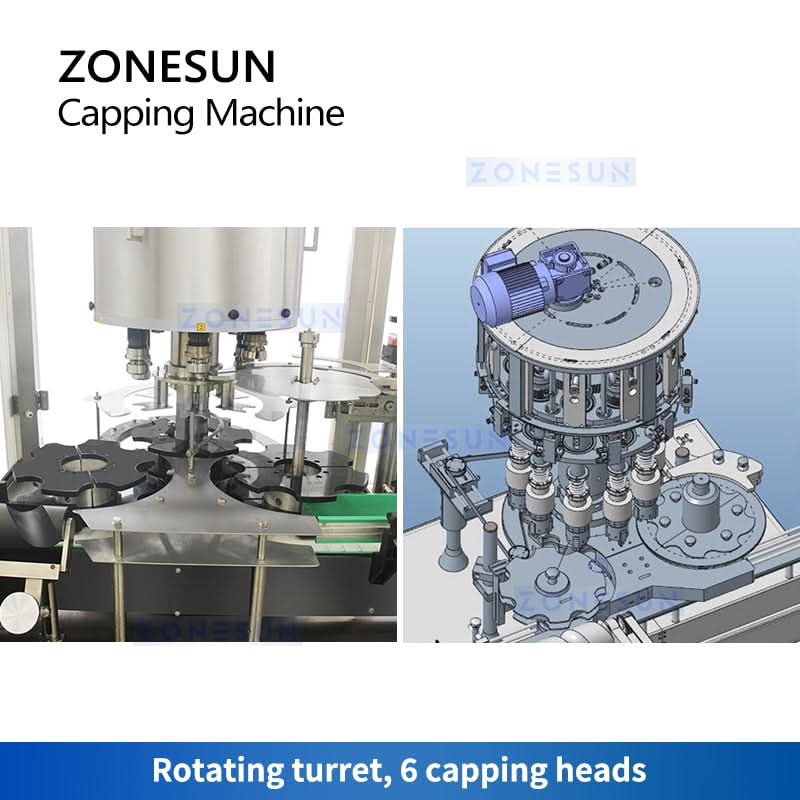

CAPPING
The rotary turret is the core of the machine and is responsible for holding the bottles in place while the capping heads screw the caps onto them. The capping heads are fitted with gripping mechanisms that hold onto the caps and rotate them as they screw onto the bottles. The turret is designed to move the bottles through the capping heads quickly and accurately, ensuring that each bottle is capped securely and with the same level of tightness.

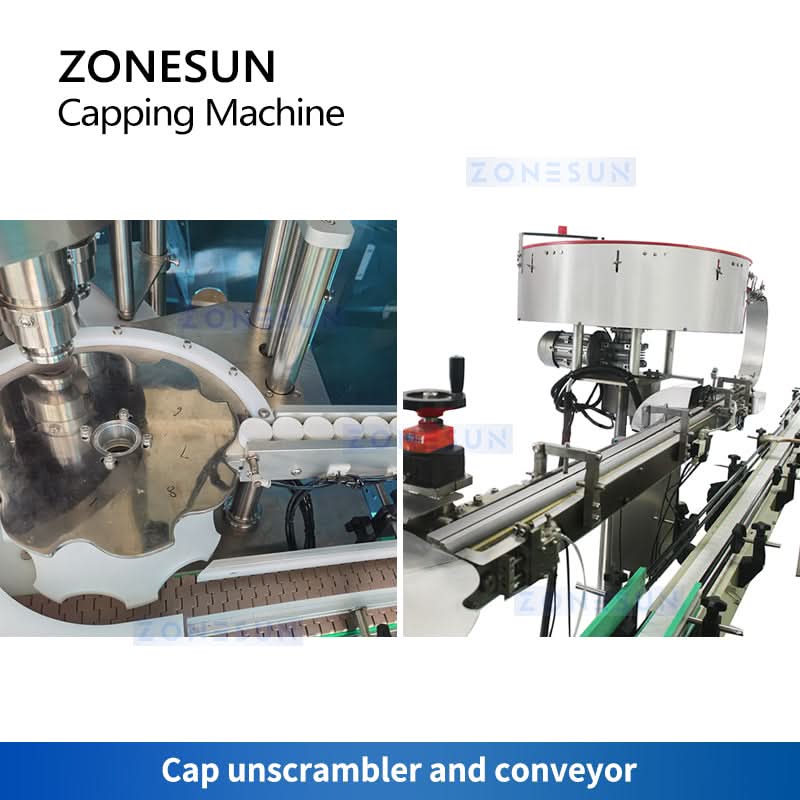

CAP FEEDING
The cap unscrambler is responsible for sorting and orienting the caps and feeding them onto the cap conveyor. Once the caps are on the conveyor, they move towards the star wheel, which is designed to hold and support the caps in an upright position. The star wheel moves the caps towards the capping heads as they pass through the rotary turret.
COMPONENTS
It uses components from well-known brands, as these components are often reliable and of high quality. These components can help ensure that the machine operates smoothly and efficiently, with minimal downtime.
