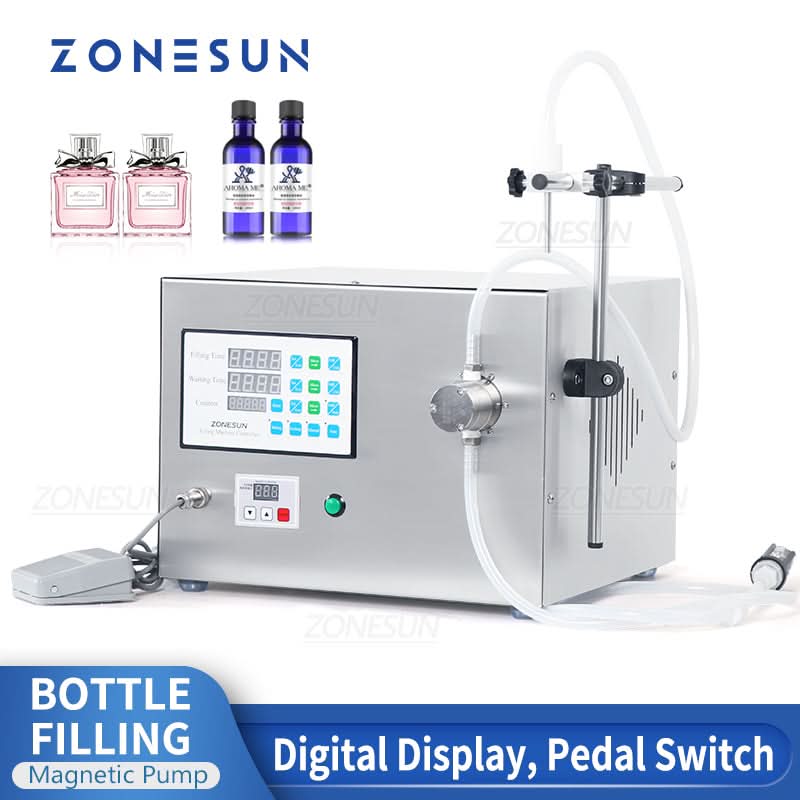

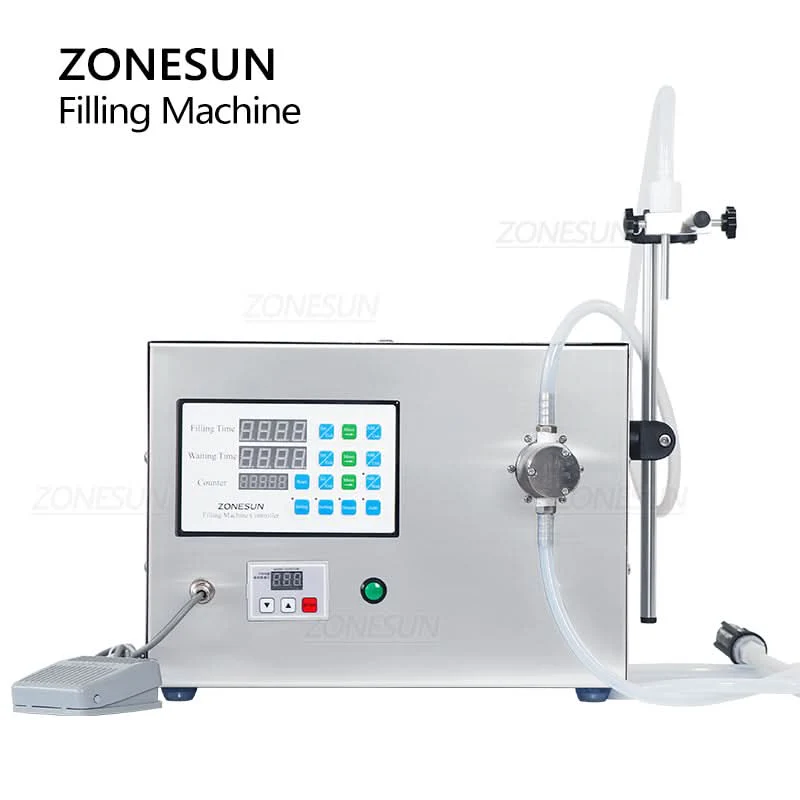

ZONESUN ZS-YTMP1S Semi-Auto Liquid Filler for Juice Perfume Essential Oil

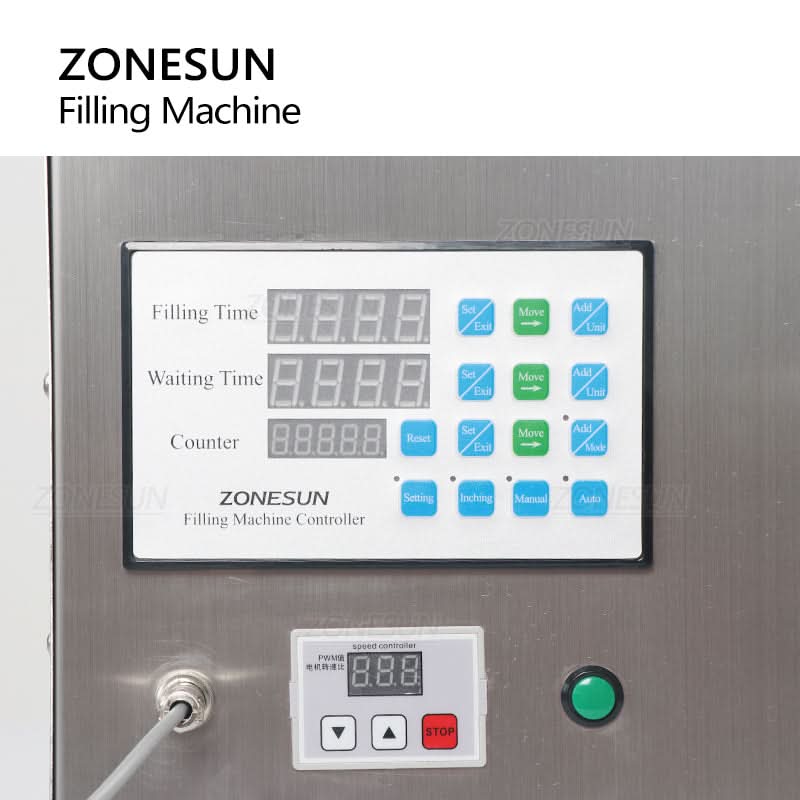

The ZONESUN ZS-YTMP1S Semi-Auto Liquid Filling Machine is designed for precision filling of low-viscosity liquids such as essential oils, juice, perfume, and beverages. Equipped with a 316L stainless steel magnetic pump, it delivers high temperature resistance and exceptional accuracy. The intuitive digital control panel allows easy adjustment of filling and pause times, while the dual working modes—automatic and pedal—offer flexible operation. Compact and efficient, this filler is ideal for small-scale production in chemical, cosmetic, and food industries.
Parameter Specification
Machine Model ZS-YTMP1S
Voltage/Power AC 220V/110V, 50W

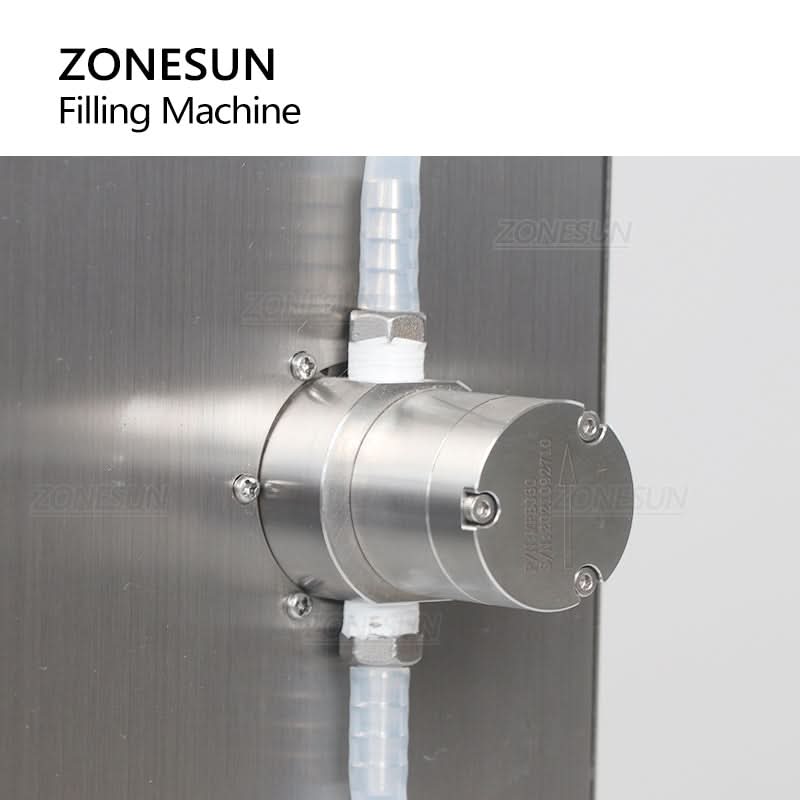

Pump Type 316L Stainless Steel Magnetic Pump
Max Flow Rate 4L/min or 6L/min
Max Suction Distance Up to 2 meters
Accuracy ±0.5% (depending on product density)
Anti-dripping Function Available
Memory Function Available

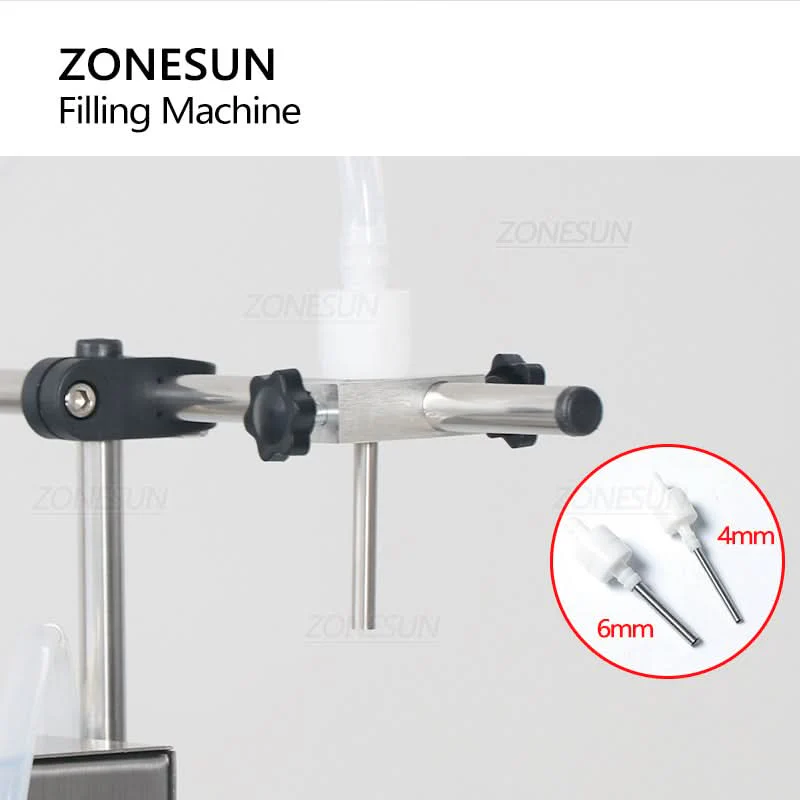

Filling Nozzle (OD) 4mm and 6mm
Net Weight Approx. 6.8kg
Gross Weight Approx. 8.2kg
Machine Dimensions Approx. 350 × 300 × 265mm
Package Dimensions Approx. 470 × 415 × 310mm
The ZONESUN ZS-YTMP1S Semi-Auto Liquid Filling Machine is designed for precision filling of low-viscosity liquids such as essential oils, juice, perfume, and beverages. Equipped with a 316L stainless steel magnetic pump, it delivers high temperature resistance and exceptional accuracy. The intuitive digital control panel allows easy adjustment of filling and pause times, while the dual working modes—automatic and pedal—offer flexible operation. Compact and efficient, this filler is ideal for small-scale production in chemical, cosmetic, and food industries.
Parameter Specification
Machine Model ZS-YTMP1S
Voltage/Power AC 220V/110V, 50W
Pump Type 316L Stainless Steel Magnetic Pump
Max Flow Rate 4L/min or 6L/min
Max Suction Distance Up to 2 meters
Accuracy ±0.5% (depending on product density)
Anti-dripping Function Available
Memory Function Available
Filling Nozzle (OD) 4mm and 6mm
Net Weight Approx. 6.8kg
Gross Weight Approx. 8.2kg
Machine Dimensions Approx. 350 × 300 × 265mm
Package Dimensions Approx. 470 × 415 × 310mm
Original: $230.00
-70%$230.00
$69.00Description
The ZONESUN ZS-YTMP1S Semi-Auto Liquid Filling Machine is designed for precision filling of low-viscosity liquids such as essential oils, juice, perfume, and beverages. Equipped with a 316L stainless steel magnetic pump, it delivers high temperature resistance and exceptional accuracy. The intuitive digital control panel allows easy adjustment of filling and pause times, while the dual working modes—automatic and pedal—offer flexible operation. Compact and efficient, this filler is ideal for small-scale production in chemical, cosmetic, and food industries.
Parameter Specification
Machine Model ZS-YTMP1S
Voltage/Power AC 220V/110V, 50W
Pump Type 316L Stainless Steel Magnetic Pump
Max Flow Rate 4L/min or 6L/min
Max Suction Distance Up to 2 meters
Accuracy ±0.5% (depending on product density)
Anti-dripping Function Available
Memory Function Available
Filling Nozzle (OD) 4mm and 6mm
Net Weight Approx. 6.8kg
Gross Weight Approx. 8.2kg
Machine Dimensions Approx. 350 × 300 × 265mm
Package Dimensions Approx. 470 × 415 × 310mm
