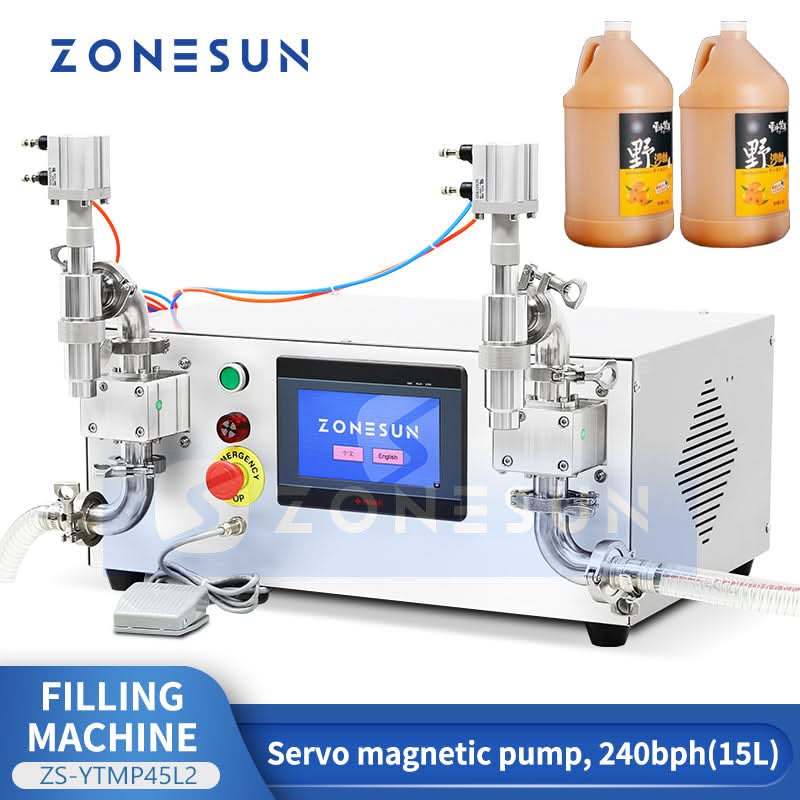

ZONESUN ZS-YTMP45L2 Semi Automatic Magnetic Pump Dual Head Bucket Filling Machine

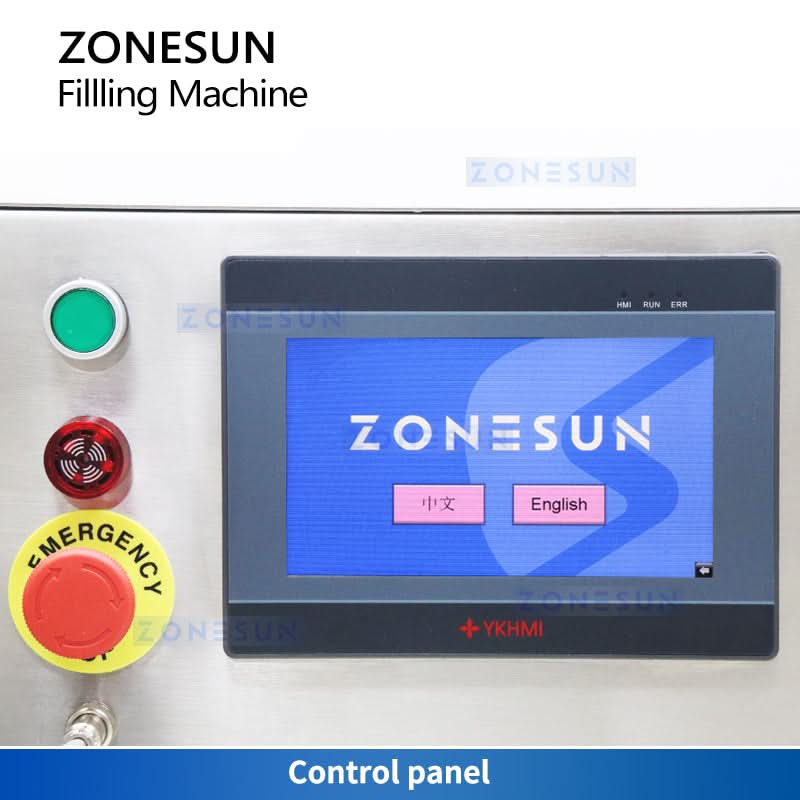

Introducing our powerful tabletop filling machine, designed for efficient and precise filling of large containers. Equipped with two servo motor-driven magnetic pumps, this machine delivers a high flow rate of up to 45L/min, ensuring rapid filling. The dual pneumatic filling heads provide accurate and consistent filling, while the user-friendly touchscreen interface allows for easy control and multi-speed settings. Directly set the desired filling volume for effortless operation. Ideal for filling buckets and other large containers, our tabletop filling machine is a reliable and versatile solution for your production needs.
Parameter
Model ZS-YTMP45L2
Machine Voltage 110/220V, 50–60Hz, 1600W

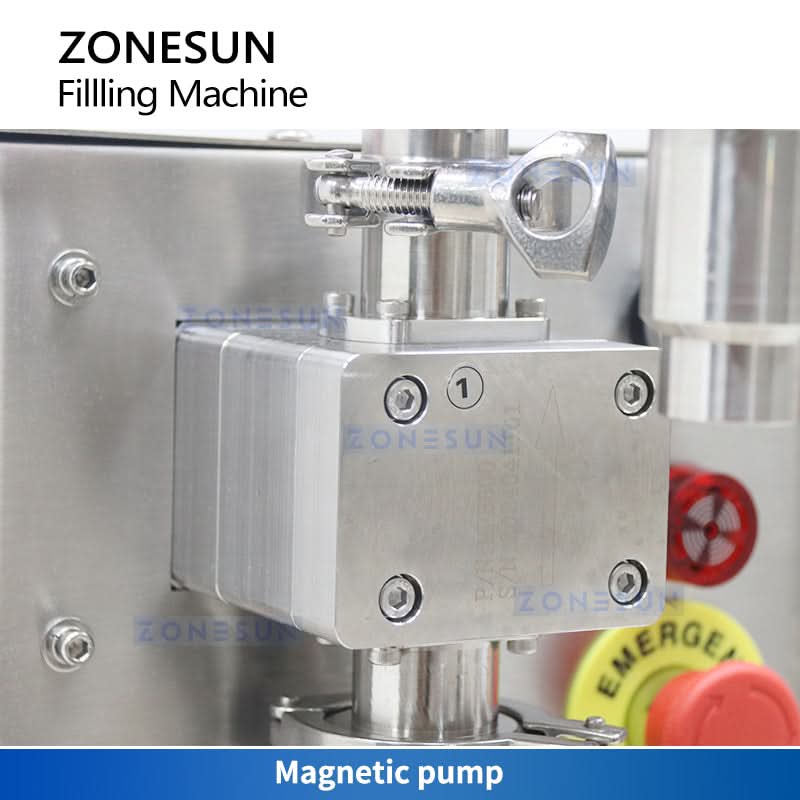

Filling Pump Servo motor driven magnetic pump
Liquid Viscosity Range 0.2–12,000 cps
Maximum Flow Rate 45 L/min
Recommended Filling Range 5–30 L
Filling Accuracy 0.2%–1%
Working Speed 240 bottles/hour (based on 15L per bottle)

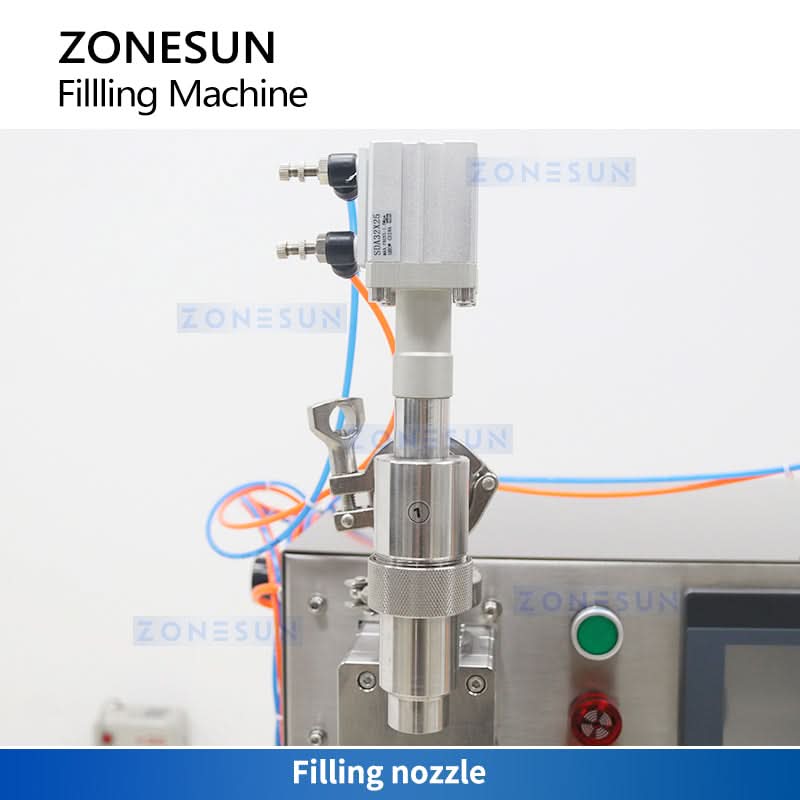

Filling Head Anti-dripping, OD 25 mm, ID 23 mm
Other sizes available
Machine Dimensions 603 × 576 × 465 mm
Packing Size 670 × 580 × 630 mm
Gross Weight 77 kg
Introducing our powerful tabletop filling machine, designed for efficient and precise filling of large containers. Equipped with two servo motor-driven magnetic pumps, this machine delivers a high flow rate of up to 45L/min, ensuring rapid filling. The dual pneumatic filling heads provide accurate and consistent filling, while the user-friendly touchscreen interface allows for easy control and multi-speed settings. Directly set the desired filling volume for effortless operation. Ideal for filling buckets and other large containers, our tabletop filling machine is a reliable and versatile solution for your production needs.
Parameter
Model ZS-YTMP45L2
Machine Voltage 110/220V, 50–60Hz, 1600W
Filling Pump Servo motor driven magnetic pump
Liquid Viscosity Range 0.2–12,000 cps
Maximum Flow Rate 45 L/min
Recommended Filling Range 5–30 L
Filling Accuracy 0.2%–1%
Working Speed 240 bottles/hour (based on 15L per bottle)
Filling Head Anti-dripping, OD 25 mm, ID 23 mm
Other sizes available
Machine Dimensions 603 × 576 × 465 mm
Packing Size 670 × 580 × 630 mm
Gross Weight 77 kg
Original: $3,299.00
-70%$3,299.00
$989.70Description
Introducing our powerful tabletop filling machine, designed for efficient and precise filling of large containers. Equipped with two servo motor-driven magnetic pumps, this machine delivers a high flow rate of up to 45L/min, ensuring rapid filling. The dual pneumatic filling heads provide accurate and consistent filling, while the user-friendly touchscreen interface allows for easy control and multi-speed settings. Directly set the desired filling volume for effortless operation. Ideal for filling buckets and other large containers, our tabletop filling machine is a reliable and versatile solution for your production needs.
Parameter
Model ZS-YTMP45L2
Machine Voltage 110/220V, 50–60Hz, 1600W
Filling Pump Servo motor driven magnetic pump
Liquid Viscosity Range 0.2–12,000 cps
Maximum Flow Rate 45 L/min
Recommended Filling Range 5–30 L
Filling Accuracy 0.2%–1%
Working Speed 240 bottles/hour (based on 15L per bottle)
Filling Head Anti-dripping, OD 25 mm, ID 23 mm
Other sizes available
Machine Dimensions 603 × 576 × 465 mm
Packing Size 670 × 580 × 630 mm
Gross Weight 77 kg
