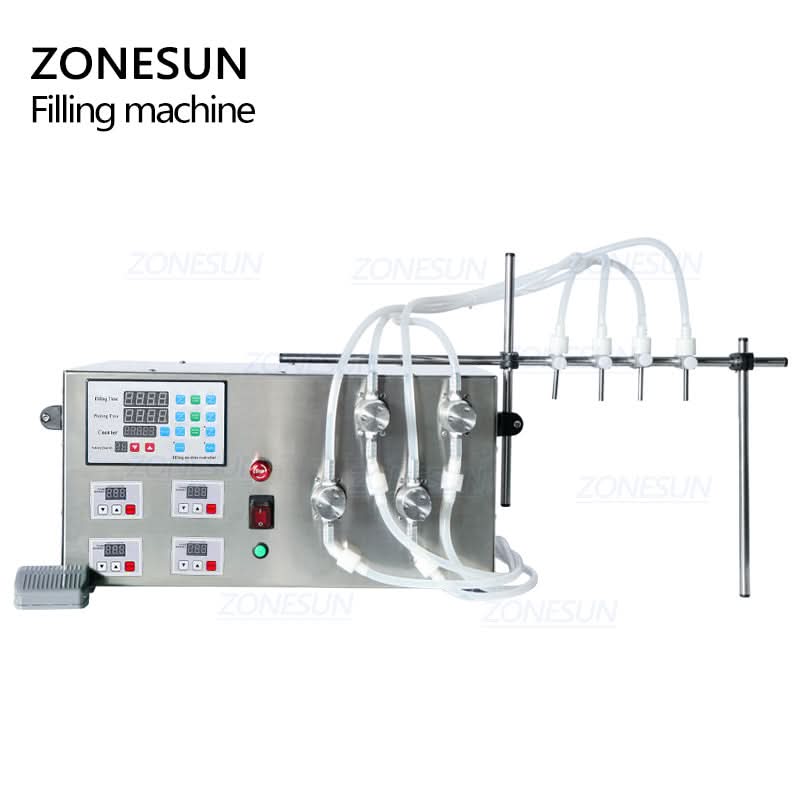

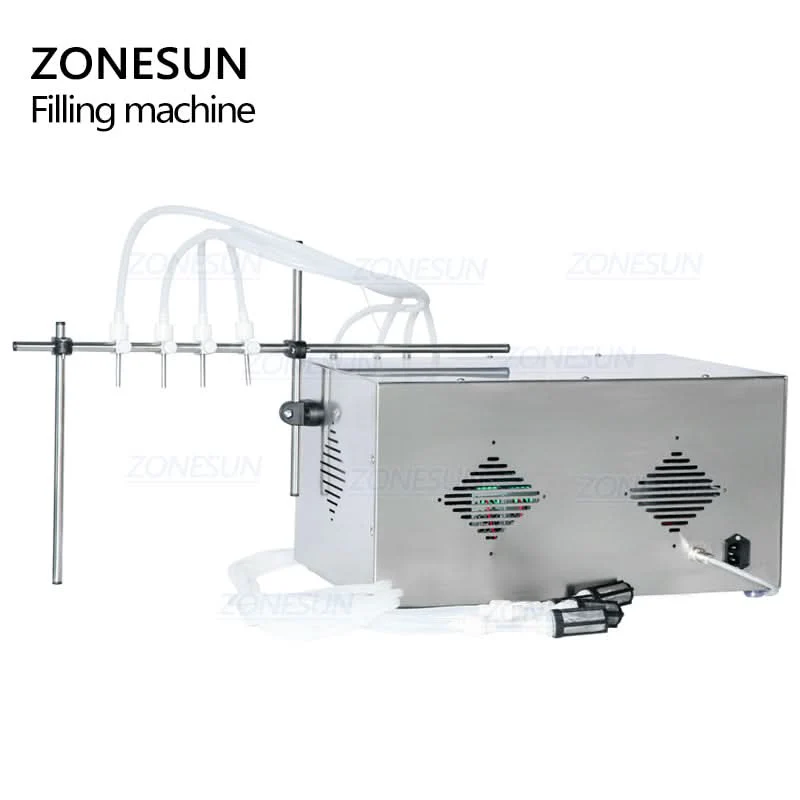

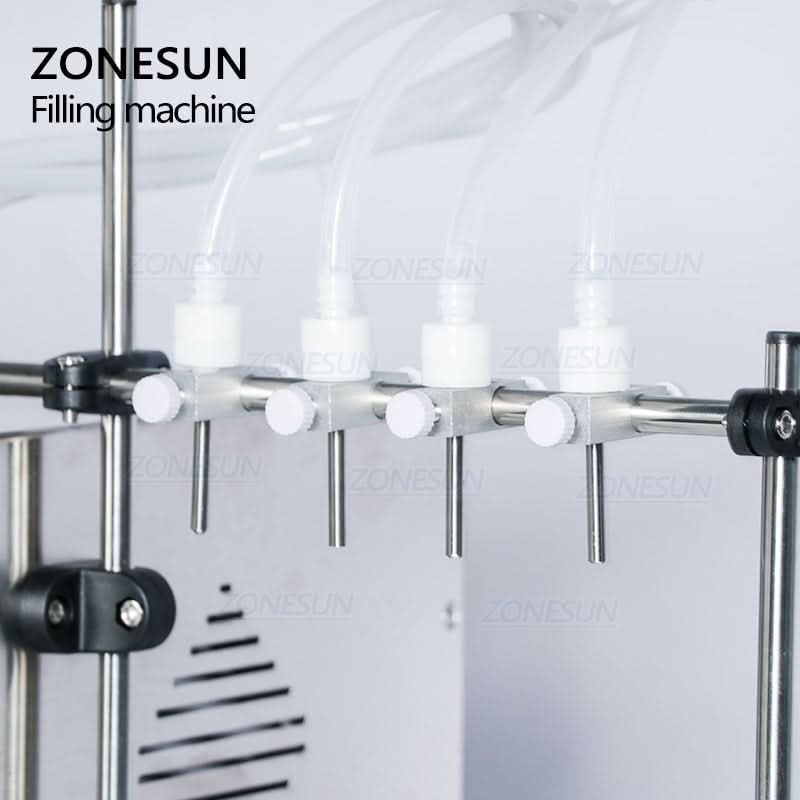

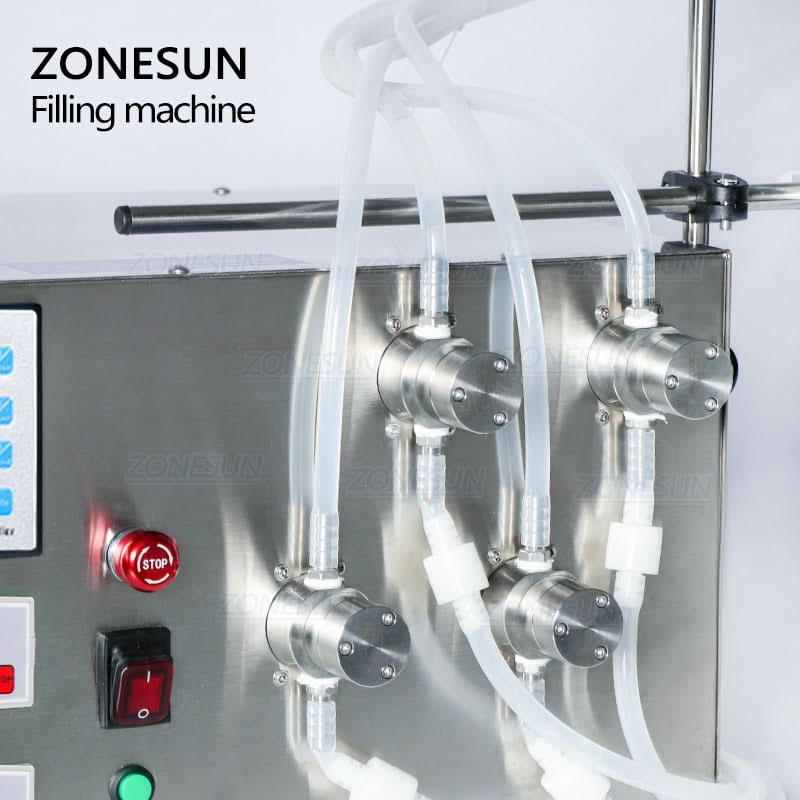

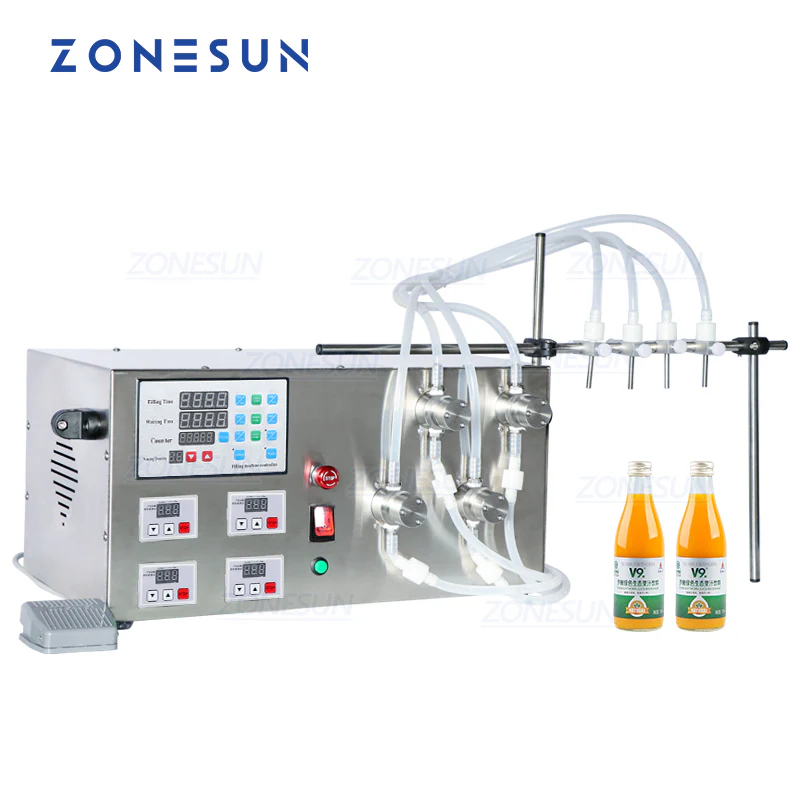

The ZS-YTMP4S is a compact yet powerful magnetic pump liquid filling machine designed for precise, efficient, and flexible bottle-filling tasks. With four adjustable-speed nozzles, dual operating modes (automatic and manual), and user-friendly controls like emergency stop and inching button, it’s ideal for small production workshops and labs. Its compatibility with a range of low-viscosity liquids such as essential oils, ink, and beverages makes it a versatile choice for industries including cosmetics, pharmaceuticals, and food & drink. Safety features and memory functions ensure smooth, repeatable operations with minimal waste.

Parameter
Machine Model ZS-YTMP4S
Voltage / Power AC 220V / 110V, 100W
Pump Material 316 Stainless Steel
Recommended Filling Range ≤ 1000 ml/bottle (within 10s)
Maximum Flow Rate 6 L/min × 4 channels
Maximum Suction Distance 2 meters
Anti-leaking Function Available
Memory Function Available
Filling Nozzle OD Size 4 mm and 6 mm
Net / Gross Weight Approx. 15.5 kg / 23 kg
Machine Dimensions Approx. 550 × 315 × 260 mm
Package Dimensions Approx. 615 × 435 × 315 mm
