Elevate your perfume bottling process with our precision pneumatic vacuum filling machine. Designed for efficient and consistent filling of glass bottles with fragrances and other liquids, this machine boasts a capacity of 600 bottles per hour (BPH). Its all-pneumatic design ensures reliable operation and simple maintenance, while the convenient foot pedal control streamlines your workflow. The adjustable filling nozzle guarantees precise and uniform liquid levels in every bottle, minimizing waste and maximizing product quality. Experience effortless and accurate filling for your high-value products.

Parameter Specification
Model ZS-YTZL500Q
Power Supply Voltage 220V / 110V, 50–60Hz
Machine Power 1.8 kW
Working Air Pressure 0.4–0.6 MPa
Filling Speed 5–10 bottles/min
Filling Accuracy ±1%

  Filling nozzle

Vacuum filling technology is used to maintain the liquid level within the required range. If the liquid exceeds the set level, the machine will automatically withdraw the excess liquid.

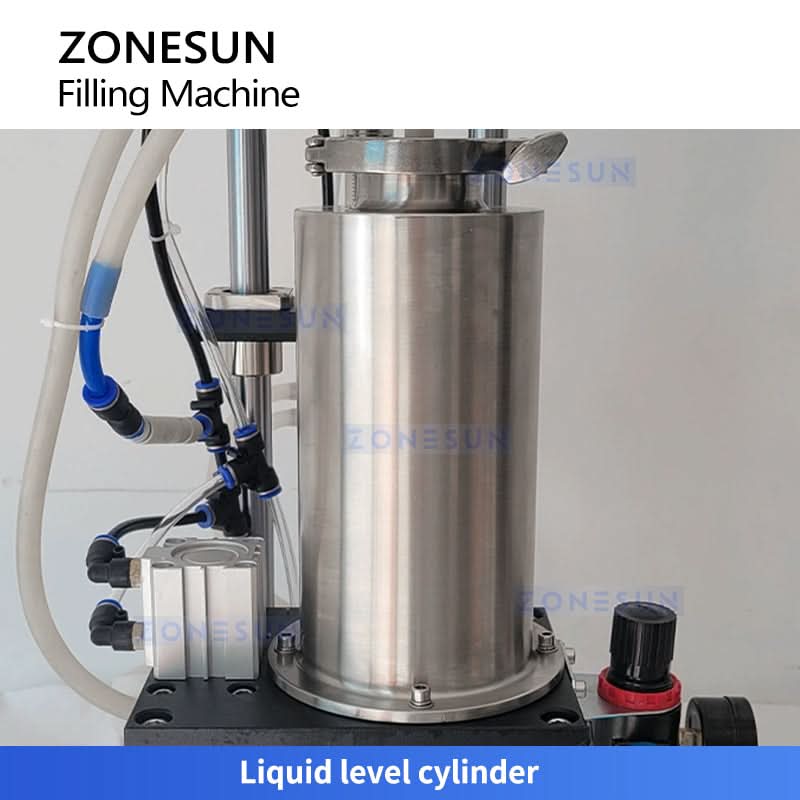

 Liquid level cylinder

Large capacity storage cylinder to accommodate retracted liquid. Ensure that no liquid is lost during the filling process.

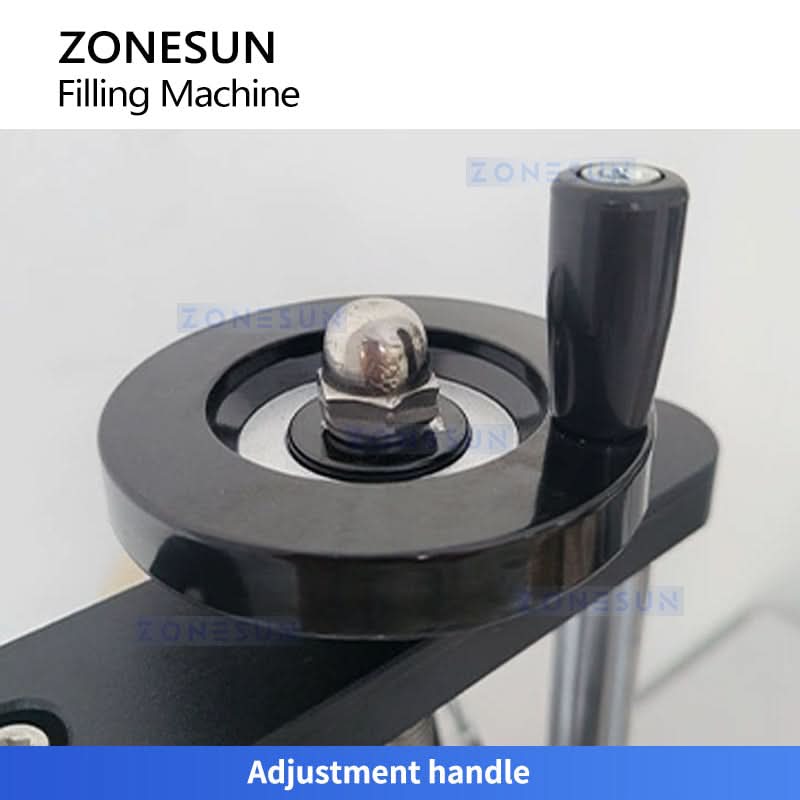

 Adjustment handle

The height can be easily modified to accommodate different bottle sizes.

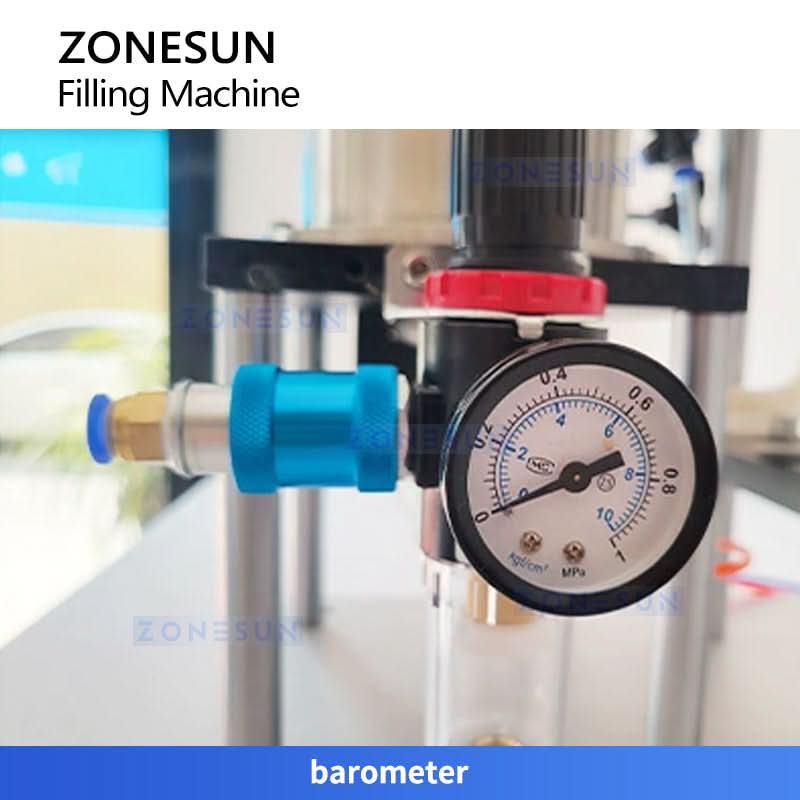

barometer

It can monitor air pressure in real time and be used in conjunction with an air compressor, which must be purchased separately.

Fixed bottle clamp

Bottle clamps hold bottles in place during filling and prevent bottles from tipping over.
