ZONESUN ZS-ZH15 Automatic Airplane Box Folding Machine Intelligent Cartoning Packing Machine

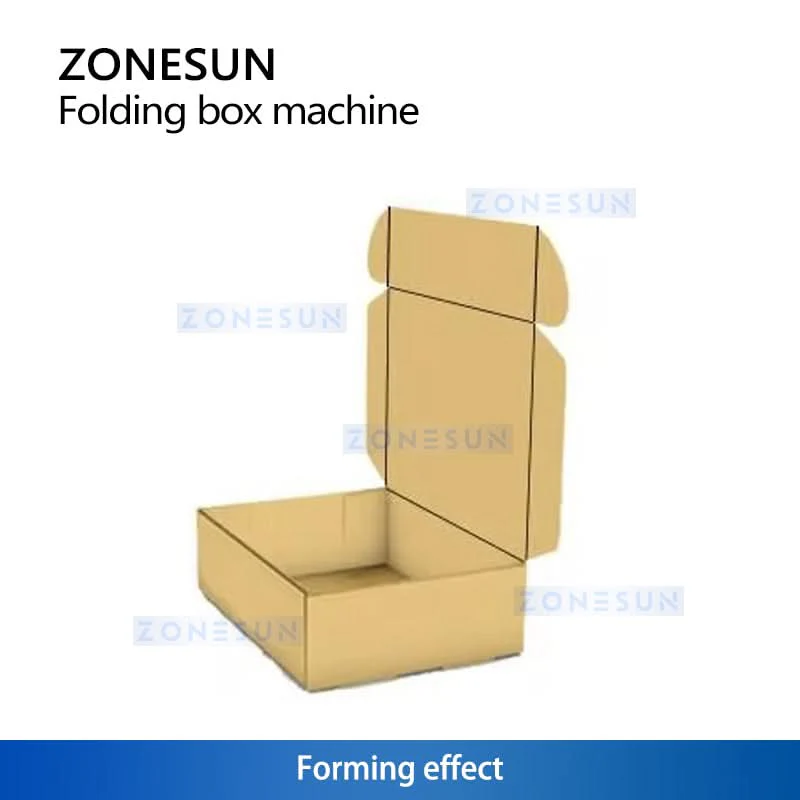

The carton folding machine is an intelligent, customizable, and efficient solution for automated packaging. It features a robotic arm that automatically grabs the unfolded box and transfers it into the stamping and forming mechanism. This mechanism performs a one-step stamping and forming process to shape the boxes. Additionally, the machine includes a folding page mechanism that completes the folded page in a single step. These advanced features ensure high efficiency and precision in the packaging process.
| Parameter | ZS-ZH15 (Buckle on both sides) | ZS-ZH15T (Three side buckle) |
|---|---|---|
| Conveyor Speed | 45–70 pcs/min/lane | 45–70 pcs/min/lane |
| Carton Size (mm) | L170–270 × W120–170 × H30–60 mm | L170–270 × W120–170 × H30–60 mm |
| Power Supply | 380V, 60Hz, 2 kW | 380V, 60Hz, 2 kW |
| Air Pressure | 600 NL/min, 0.6–0.8 MPa | 700 NL/min, 0.6–0.8 MPa |
| Machine Dimension | L1800 × W1400 × H1780 mm | L2000 × W1500 × H1780 mm |
| Machine Weight | 580 kg | 680 kg |
The carton folding machine is an intelligent, customizable, and efficient solution for automated packaging. It features a robotic arm that automatically grabs the unfolded box and transfers it into the stamping and forming mechanism. This mechanism performs a one-step stamping and forming process to shape the boxes. Additionally, the machine includes a folding page mechanism that completes the folded page in a single step. These advanced features ensure high efficiency and precision in the packaging process.
| Parameter | ZS-ZH15 (Buckle on both sides) | ZS-ZH15T (Three side buckle) |
|---|---|---|
| Conveyor Speed | 45–70 pcs/min/lane | 45–70 pcs/min/lane |
| Carton Size (mm) | L170–270 × W120–170 × H30–60 mm | L170–270 × W120–170 × H30–60 mm |
| Power Supply | 380V, 60Hz, 2 kW | 380V, 60Hz, 2 kW |
| Air Pressure | 600 NL/min, 0.6–0.8 MPa | 700 NL/min, 0.6–0.8 MPa |
| Machine Dimension | L1800 × W1400 × H1780 mm | L2000 × W1500 × H1780 mm |
| Machine Weight | 580 kg | 680 kg |
