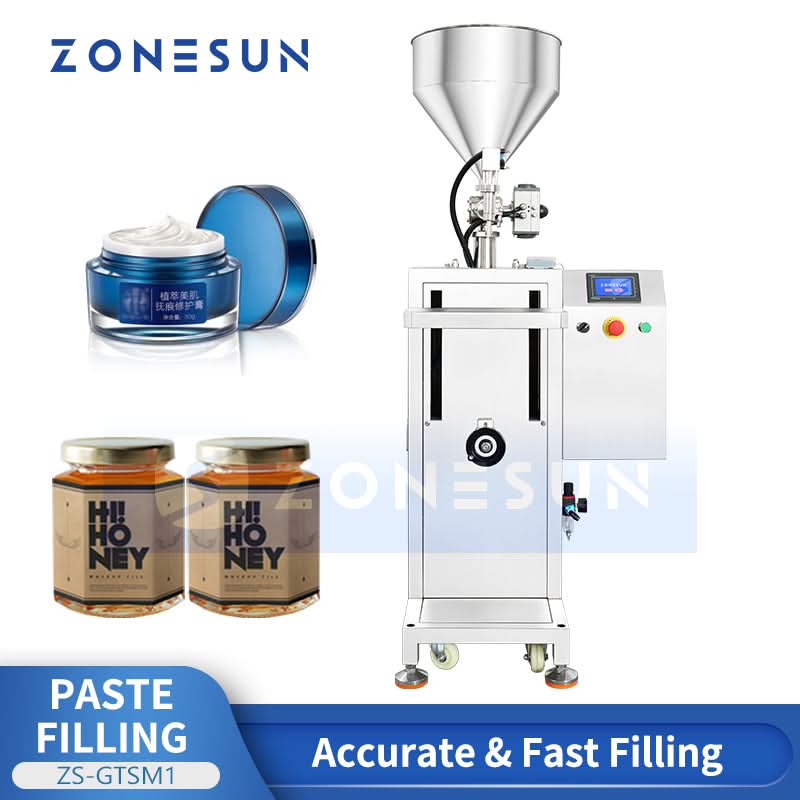

ZONESUN ZS-GTSM1 Servo Paste Filling Machine for Honey & Ketchup

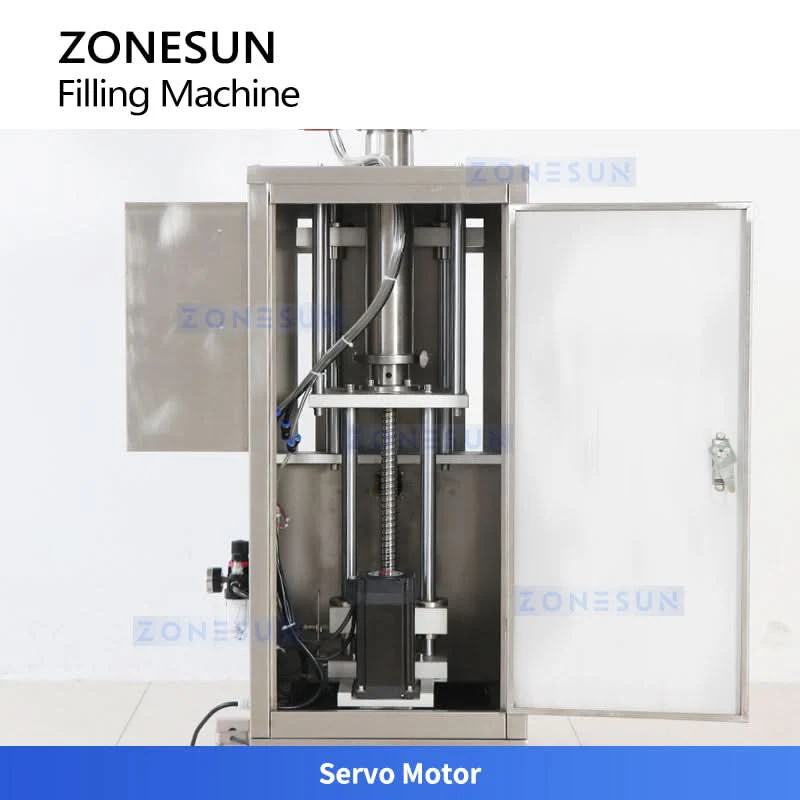

The ZONESUN ZS-GTSM1 is a semi-automatic paste filling machine powered by a servo motor for enhanced precision and control. Designed for high-viscosity products, it allows easy adjustment of filling volume and speed via a user-friendly interface. Its rotor pump system ensures smooth and consistent flow, making it ideal for filling honey, glue, syrup, ketchup, and other thick liquids. Widely used in food, cosmetics, and daily chemical industries, this machine offers reliable performance and clean operation for small to medium-scale production.
Parameter Specification
Model ZS-GTSM1
Voltage 220/110V, 50/60Hz
Power About 950W
Filling Accuracy ≤ ±0.5%
Filling Speed About 10–25 bottles/min (depends on bottle size and liquid)
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000ml
Equipped Air Pressure 0.4–0.6 MPa
Air Consumption ≥ 0.1m³/min
Machine Size About 580 × 590 × 1590mm
Machine Weight About 92kg
Package Size About 700 × 1520 × 700mm
Package Weight About 116kg
The ZONESUN ZS-GTSM1 is a semi-automatic paste filling machine powered by a servo motor for enhanced precision and control. Designed for high-viscosity products, it allows easy adjustment of filling volume and speed via a user-friendly interface. Its rotor pump system ensures smooth and consistent flow, making it ideal for filling honey, glue, syrup, ketchup, and other thick liquids. Widely used in food, cosmetics, and daily chemical industries, this machine offers reliable performance and clean operation for small to medium-scale production.
Parameter Specification
Model ZS-GTSM1
Voltage 220/110V, 50/60Hz
Power About 950W
Filling Accuracy ≤ ±0.5%
Filling Speed About 10–25 bottles/min (depends on bottle size and liquid)
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000ml
Equipped Air Pressure 0.4–0.6 MPa
Air Consumption ≥ 0.1m³/min
Machine Size About 580 × 590 × 1590mm
Machine Weight About 92kg
Package Size About 700 × 1520 × 700mm
Package Weight About 116kg
Original: $2,599.00
-70%$2,599.00
$779.70Description
The ZONESUN ZS-GTSM1 is a semi-automatic paste filling machine powered by a servo motor for enhanced precision and control. Designed for high-viscosity products, it allows easy adjustment of filling volume and speed via a user-friendly interface. Its rotor pump system ensures smooth and consistent flow, making it ideal for filling honey, glue, syrup, ketchup, and other thick liquids. Widely used in food, cosmetics, and daily chemical industries, this machine offers reliable performance and clean operation for small to medium-scale production.
Parameter Specification
Model ZS-GTSM1
Voltage 220/110V, 50/60Hz
Power About 950W
Filling Accuracy ≤ ±0.5%
Filling Speed About 10–25 bottles/min (depends on bottle size and liquid)
Filling Volume 5–100 / 10–300 / 50–500 / 100–1000ml
Equipped Air Pressure 0.4–0.6 MPa
Air Consumption ≥ 0.1m³/min
Machine Size About 580 × 590 × 1590mm
Machine Weight About 92kg
Package Size About 700 × 1520 × 700mm
Package Weight About 116kg
