ZONESUN ZS-TB200R Automatic Wrap Around Round Bottle Labeling Machine
The ZONESUN ZS-TB200R is a high-performance automatic labeling machine designed for cylindrical containers such as bottles, vials, cans, and canisters. Featuring an application belt system, it eliminates the need for format sets, enabling ultra-fast setup and seamless operation. Capable of labeling up to 150 products per minute, it supports partial, full wrap-around, and overlap labeling styles. With adjustable compatibility for bottle diameters from 30–100 mm and label sizes up to 130 mm wide, the TB200R offers precision, speed, and versatility for modern packaging lines.
PARAMETER
|
Machine Model |
ZS-TB200R |
|
|
Voltage |
220V/110V 50-60Hz |
|
|
Power |
1200W |
|
|
Labeling Speed |
About 40-150 bottles/min (Depending on bottles and label size) |
|
|
Suitable Bottle Diameter |
30-100mm |
|
|
Suitable Bottle Height |
30-200mm |
|
|
Label Size |
15-130mm(W)*15-300mm(L) |
|
|
Label Roll Inner Diameter |
Φ76mm |
|
|
Label Roll Outer Diameter |
Φ350mm |
|
|
Machine Size |
About 2005*860*1355mm |
|
|
Machine Weight |
About 200kg |
|
|
Configuration |
||
|
Component |
Brand |
Origin |
|
PLC |
Siemens |
Germany |
|
Control Panel |
INOVANCE/Siemens |
China/Germany |
|
Label Sensor |
SICK |
Germany |
|
Inverter |
Coreken |
Guangzhou, China |
PRODUCT DETAILS
CONTROL PANEL
PLC, color touchscreen (HMI), no complex parameters need to be set.
Components from famous brands around the world.

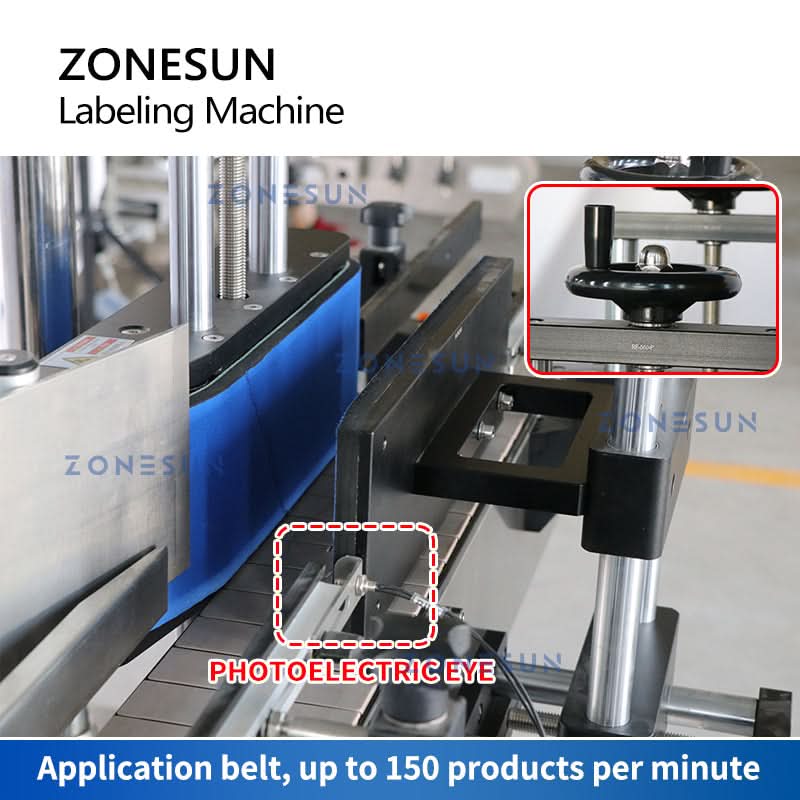

LABELING
Designed with an application belt, it does not require any format sets. This means both extremely short setup times and impressive performance of up to 150 products per minute.

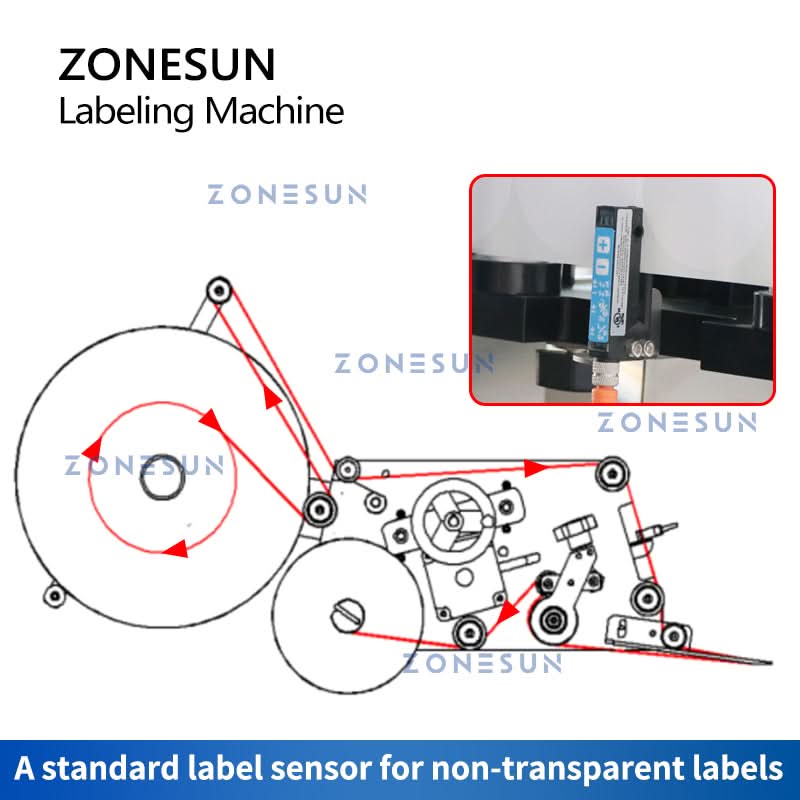

FEEDING
A standard label sensor for non-transparent labels is installed.
A special label sensor for transparent labels is available as an option.
A coder is available as an option.

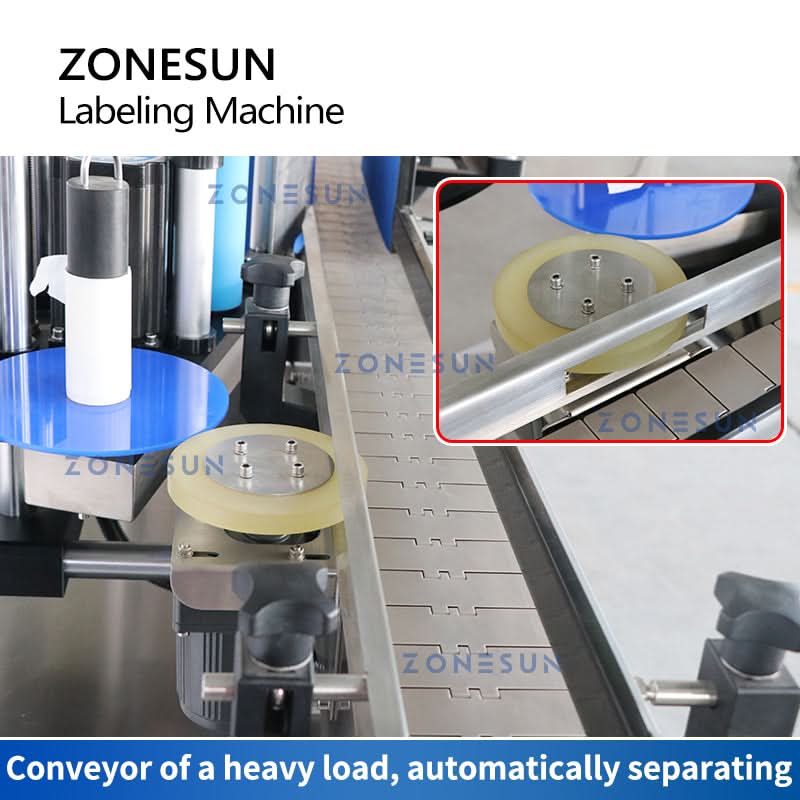

TRANSPORTING
High-quality conveyor of a heavy load.
Automatically separate the bottle
