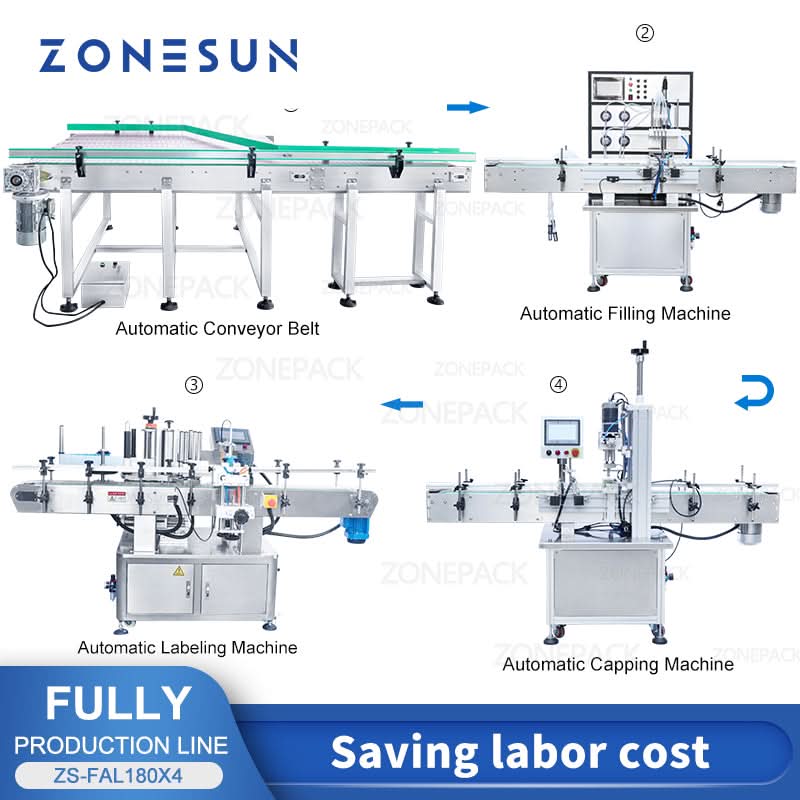

The ZONESUN ZS-FAL180X4 automatic production line is an integrated solution for high-efficiency packaging operations. It includes a bottle unscrambler, filling system, capping unit, and labeling machine—streamlined to handle liquids for daily chemicals, personal care items, and health products. Designed to boost productivity and minimize labor, it delivers consistent, precise performance across multiple bottle sizes and product types.

PARAMETER
Specification Details
Machine Model ZS-CB190 bottle unscrambling conveyor
Machine Power 1.5KW
Conveyor Size 1760 × 1425 mm + 960 × 190.5 mm
Conveyor Width 190.5 mm (single track)
Working Speed 0–20 m/min
Package Size Approx. 2050 × 1720 × 720 mm
Package Weight Approx. 276 kg

Machine Model	ZS-VTMP80C
Power Supply	220V-50HZ/110V-60HZ
Machine Power	2000W
Machine Pump	316 Stainless Steel Magnetic Pump
Suitable Bottle Size	φ20-160mm H30-300mm
Max Flow Rate	6000ml/min	7500ml/min	12000ml/min
Filling Accuracy	≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water)
Filling Speed	20-50 pcs/min	20-50 pcs/min	25-60 pcs/min
Size of Air Compressor Connector	φ8mm
Net weight/Gross weight	About 114.5kg/195.5kg
Packing size	About 2000*820*1580mm

•


Specification Details
Machine Model ZS-XG16
Working Voltage AC220V / 110V, 50–60Hz
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size & shape)
Working Pressure 0.4–0.6 MPa
Machine Size Approx. 1930 × 740 × 1600 mm
Packing Size Approx. 2000 × 820 × 1760 mm
Net/Gross Weight Approx. 113 kg / 192.5 kg

Model ZS-TB260 Labeling Machine
Power Supply AC 220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm<br>Height: 15–150 mm
Label Roll Inner Diameter φ76 mm
Label Roll Outer Diameter φ350 mm
Conveyor Size 1950 mm (L) × 100 mm (W)
Machine Size Approx. 2000 × 1400 × 1300 mm
Packing Size Approx. 2110 × 1040 × 1400 mm
Net/Gross Weight Approx. 223.5 kg / 280 kg
