Zonesun Automatic Production Line Pneumatic Bottle Filling Capping Labeling Machine

Product image 1
1 / 6
+1

Zonesun Automatic Production Line Pneumatic Bottle Filling Capping Labeling Machine



Description

This small production line has the function of unscrambling, filling, capping, labeling and sorting bottles, improving work efficiency. With chain conveyor, it has a large loading capacity, enabling it to transport heavy products steadily and smoothly. The pneumatic filling machine can be used for thicker liquid like gel. The production line can be widely used in pharmaceutical, cosmetic, beverage industries. Help to improve work efficiency.

Notice

This machine can be customized according to customers' need. If you need, please feel free to contact us. Thank you!

Specification

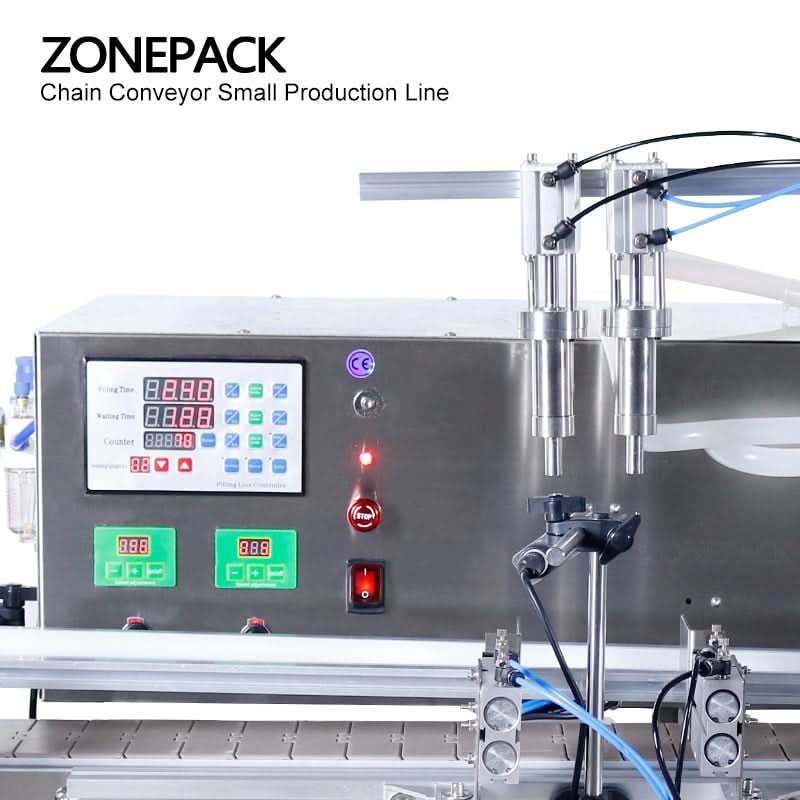

Filling Machine
Machine Model ZS-DTDP20-2
Voltage 110V / 220V, 50–60Hz
Power 500W × 2
Filling Nozzle 2 Nozzles
Max Flow Velocity 20L/min (each nozzle, based on water)
Working Speed 20–25 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1%
Bottle Height <220mm (customizable)
Nozzle Diameter OD 8mm
Conveyor Size 115mm (W) × 1090mm (L)
Air Compressor Connector Size OD 8mm
Customization Options Available

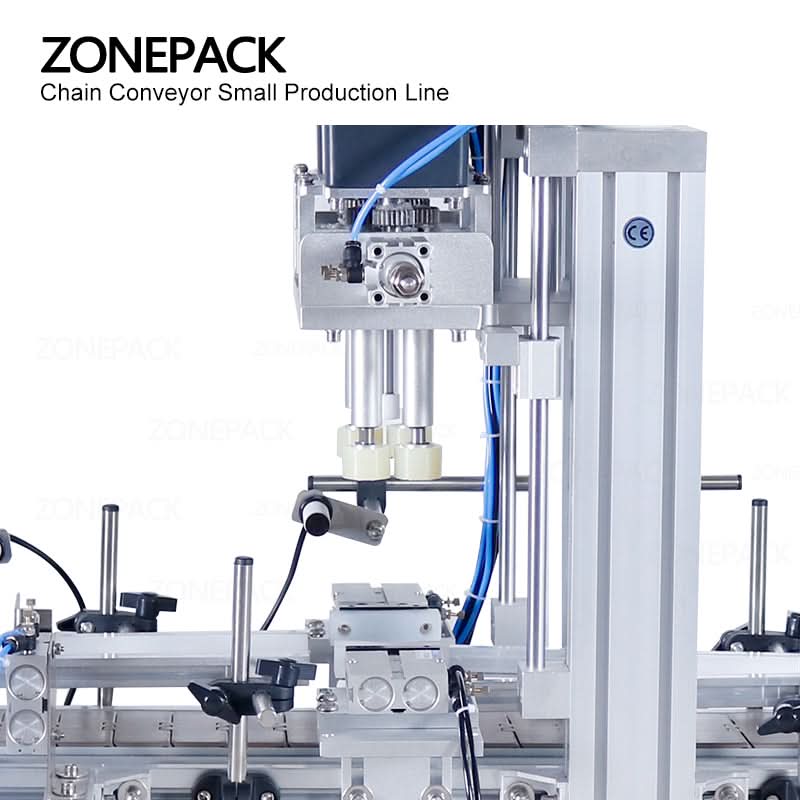

Capping Machine
Voltage AC 220V / 110V, 50–60Hz
Air Pressure 0.4–0.6MPa
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Conveyor Size 115mm (W) × 1140mm (L)
Air Compressor Connector Size OD 8mm
Customization Available
