ZONESUN ZS-FS009U Automatic Ultrasonic Tube Filling Sealing Machine

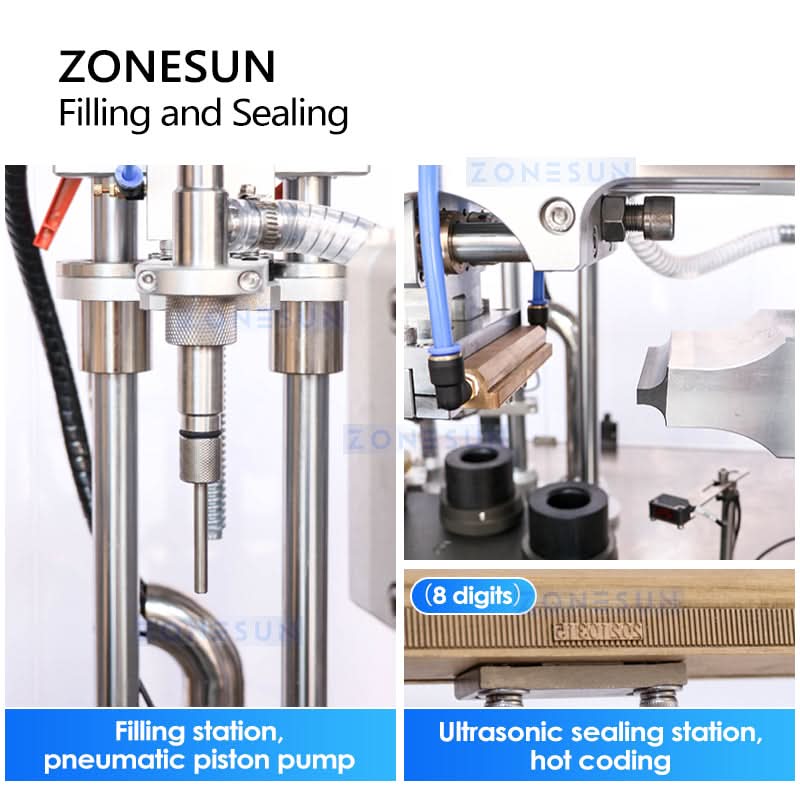

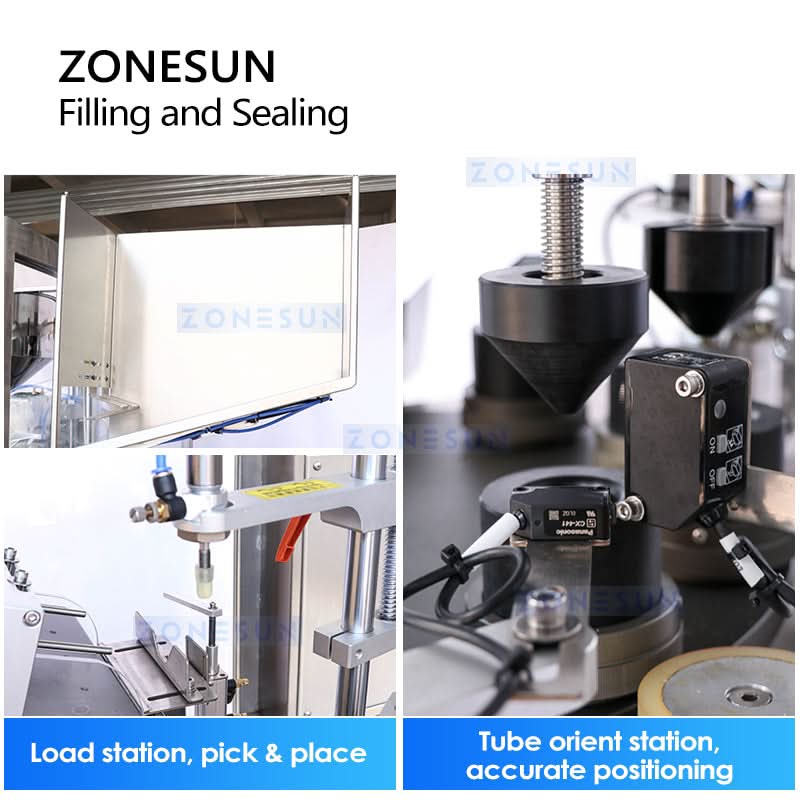

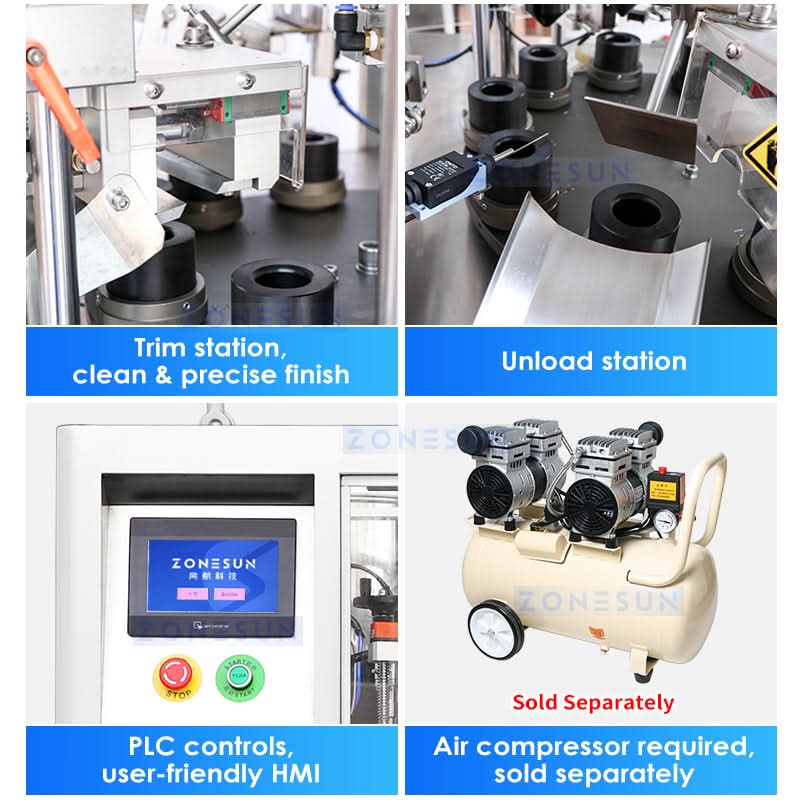

The ZONESUN ZS-FS009U is a fully automatic tube filling and ultrasonic sealing machine engineered for precision, speed, and reliability. Its integrated workflow includes tube loading, orientation via color mark detection, piston pump filling, ultrasonic sealing with date coding, pneumatic trimming, and final discharge—all within a compact monoblock system.
Designed for soft tubes made of plastic or aluminum-plastic laminate, this machine ensures accurate filling and a clean, professional seal. The ultrasonic technology delivers consistent sealing quality without the need for heat, making it ideal for temperature-sensitive products. With intuitive controls and high automation, the ZS-FS009U is a smart solution for businesses looking to streamline their packaging process and boost output.
Model ZS-FS009U
Voltage 220V/110V, 50/60Hz
Power 2.6kW
Hopper Capacity 30L
Filling Range 6–60ml / 10–120ml / 25–250ml
Filling Accuracy ±1%
Capacity 18–28 pcs/min
Tube Diameter 16–50 mm
Tube Height 70–210 mm
Cutting Method Ultrasonic, 20kHz
Air Pressure 0.6 Mpa
Application Aluminum-plastic soft tube, plastic soft tube
Machine Material Stainless Steel
Net Weight / Gross Weight Approx. 450 kg / 555 kg
Machine Size Approx. 1615 × 1400 × 1590 mm
Package Size Approx. 1610 × 1760 × 1860 mm
The ZONESUN ZS-FS009U is a fully automatic tube filling and ultrasonic sealing machine engineered for precision, speed, and reliability. Its integrated workflow includes tube loading, orientation via color mark detection, piston pump filling, ultrasonic sealing with date coding, pneumatic trimming, and final discharge—all within a compact monoblock system.
Designed for soft tubes made of plastic or aluminum-plastic laminate, this machine ensures accurate filling and a clean, professional seal. The ultrasonic technology delivers consistent sealing quality without the need for heat, making it ideal for temperature-sensitive products. With intuitive controls and high automation, the ZS-FS009U is a smart solution for businesses looking to streamline their packaging process and boost output.
Model ZS-FS009U
Voltage 220V/110V, 50/60Hz
Power 2.6kW
Hopper Capacity 30L
Filling Range 6–60ml / 10–120ml / 25–250ml
Filling Accuracy ±1%
Capacity 18–28 pcs/min
Tube Diameter 16–50 mm
Tube Height 70–210 mm
Cutting Method Ultrasonic, 20kHz
Air Pressure 0.6 Mpa
Application Aluminum-plastic soft tube, plastic soft tube
Machine Material Stainless Steel
Net Weight / Gross Weight Approx. 450 kg / 555 kg
Machine Size Approx. 1615 × 1400 × 1590 mm
Package Size Approx. 1610 × 1760 × 1860 mm
Original: $14,300.00
-70%$14,300.00
$4,290.00Description
The ZONESUN ZS-FS009U is a fully automatic tube filling and ultrasonic sealing machine engineered for precision, speed, and reliability. Its integrated workflow includes tube loading, orientation via color mark detection, piston pump filling, ultrasonic sealing with date coding, pneumatic trimming, and final discharge—all within a compact monoblock system.
Designed for soft tubes made of plastic or aluminum-plastic laminate, this machine ensures accurate filling and a clean, professional seal. The ultrasonic technology delivers consistent sealing quality without the need for heat, making it ideal for temperature-sensitive products. With intuitive controls and high automation, the ZS-FS009U is a smart solution for businesses looking to streamline their packaging process and boost output.
Model ZS-FS009U
Voltage 220V/110V, 50/60Hz
Power 2.6kW
Hopper Capacity 30L
Filling Range 6–60ml / 10–120ml / 25–250ml
Filling Accuracy ±1%
Capacity 18–28 pcs/min
Tube Diameter 16–50 mm
Tube Height 70–210 mm
Cutting Method Ultrasonic, 20kHz
Air Pressure 0.6 Mpa
Application Aluminum-plastic soft tube, plastic soft tube
Machine Material Stainless Steel
Net Weight / Gross Weight Approx. 450 kg / 555 kg
Machine Size Approx. 1615 × 1400 × 1590 mm
Package Size Approx. 1610 × 1760 × 1860 mm
