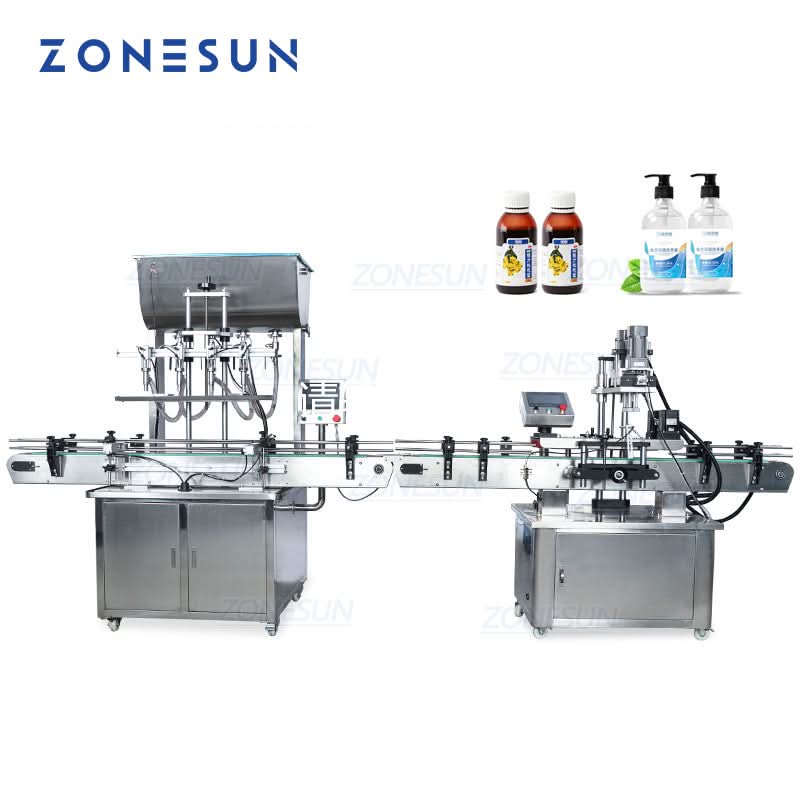

ZONESUN Pneumatic Honey Bottle Filling Capping Machine Line

The ZONESUN Pneumatic Automatic Filling and Capping Line is designed for bottling viscous liquids and pastes such as honey, shampoo, detergent, and hand wash. It supports various bottle shapes and cap types with no limitations. Featuring precise filling, smooth capping, and user-friendly operation, this system is ideal for pharmaceutical, chemical, pesticide, and daily-use product industries. Its pneumatic design ensures stable performance and high efficiency across diverse applications.

Filling Machine Specifications

Specification ZS-YT2T-2P ZS-YT4T-4P ZS-YT6T-6P ZS-YT8T-8P
Voltage 110/220V, 50–60Hz 110/220V, 50–60Hz 110/220V, 50–60Hz 110/220V, 50–60Hz
Filling Range 5–100 / 0–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml Same as left Same as left Same as left
Working Speed 10–40 bottles/min 20–50 bottles/min 30–70 bottles/min 40–80 bottles/min
Filling Accuracy ≤ ±1% ≤ ±1% ≤ ±1% ≤ ±1%
Air Pressure 0.5–0.7 MPa 0.5–0.7 MPa 0.5–0.7 MPa 0.5–0.7 MPa
Machine Weight 220 kg 260 kg 300 kg 600 kg
Power 800 W 800 W 800 W 800 W
Dimensions 200 × 120 × 230 cm 200 × 120 × 230 cm 250 × 130 × 230 cm 280 × 130 × 250 cm

Capping Machine Specifications
Specification Value
Bottle Height 50–350 mm
Bottle Cap Diameter 20–50 mm
Working Speed 0–40 bottles/min (depending on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz, 300W
Working Pressure 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Packing Size 1900 × 470 × 1240 mm

ZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping Machine



ZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping Machine




The ZONESUN Pneumatic Automatic Filling and Capping Line is designed for bottling viscous liquids and pastes such as honey, shampoo, detergent, and hand wash. It supports various bottle shapes and cap types with no limitations. Featuring precise filling, smooth capping, and user-friendly operation, this system is ideal for pharmaceutical, chemical, pesticide, and daily-use product industries. Its pneumatic design ensures stable performance and high efficiency across diverse applications.

Filling Machine Specifications

Specification ZS-YT2T-2P ZS-YT4T-4P ZS-YT6T-6P ZS-YT8T-8P
Voltage 110/220V, 50–60Hz 110/220V, 50–60Hz 110/220V, 50–60Hz 110/220V, 50–60Hz
Filling Range 5–100 / 0–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml Same as left Same as left Same as left
Working Speed 10–40 bottles/min 20–50 bottles/min 30–70 bottles/min 40–80 bottles/min
Filling Accuracy ≤ ±1% ≤ ±1% ≤ ±1% ≤ ±1%
Air Pressure 0.5–0.7 MPa 0.5–0.7 MPa 0.5–0.7 MPa 0.5–0.7 MPa
Machine Weight 220 kg 260 kg 300 kg 600 kg
Power 800 W 800 W 800 W 800 W
Dimensions 200 × 120 × 230 cm 200 × 120 × 230 cm 250 × 130 × 230 cm 280 × 130 × 250 cm

Capping Machine Specifications
Specification Value
Bottle Height 50–350 mm
Bottle Cap Diameter 20–50 mm
Working Speed 0–40 bottles/min (depending on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz, 300W
Working Pressure 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Packing Size 1900 × 470 × 1240 mm

ZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping Machine



ZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping MachineZONESUN Pneumatic Juice Disinfectant Oil Automatic Honey Plastic Round Bottle Liquid Screw Filling Capping Machine




$2,699.40

Original: $8,998.00

-70%
ZONESUN Pneumatic Honey Bottle Filling Capping Machine Line—

$8,998.00

$2,699.40

Description

The ZONESUN Pneumatic Automatic Filling and Capping Line is designed for bottling viscous liquids and pastes such as honey, shampoo, detergent, and hand wash. It supports various bottle shapes and cap types with no limitations. Featuring precise filling, smooth capping, and user-friendly operation, this system is ideal for pharmaceutical, chemical, pesticide, and daily-use product industries. Its pneumatic design ensures stable performance and high efficiency across diverse applications.
