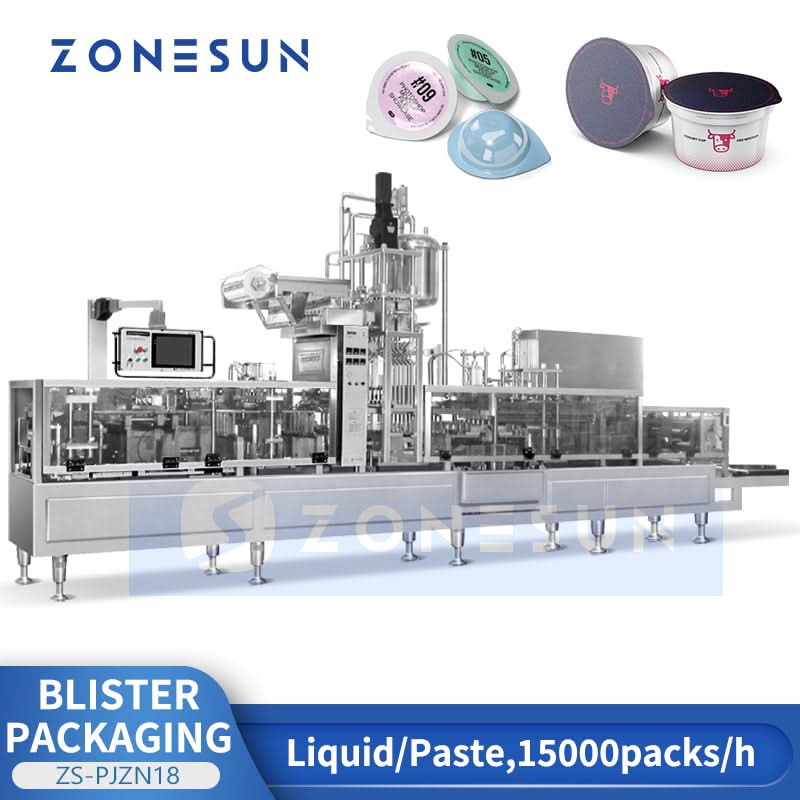

ZONESUN ZS-PJZN18 Automatic Yogurt Cup Forming and Filling Machine
The ZONESUN ZS-PJZN18 is a fully automated packaging system engineered for filling and sealing flowing liquids like water, yogurt, butter, and sauces. It integrates PLC control and variable speed adjustment for precise, reliable operation. From sheet feeding to cup forming, filling, sealing, and punching, every step is fully automated, optimizing efficiency and consistency. Compatible with PVC, PS, and PET sheet materials, this machine supports high-volume production with minimal error—ideal for dairy, beverage, and condiment manufacturers.
Parameter
Model ZS-PJZN18
Filling Capacity 200 ml
Production Capacity 15,000 cups/hour
Compressed Air Consumption 1.5 m³/min
Molding Air Pressure ≥ 0.6 MPa
Water Consumption 0.2 tons/hour (for mold cooling)
Filling Error ±2%
Sealing Acceptance Rate ≥ 99.9%
Total Power 23 KW
Electric Heating Power 18 KW
Motor Power 4 KW
Filling Material Purified Water
Power Supply 220V 50Hz (Three-phase, Five-wire system)
Dimensions Approx. 11350 × 920 × 2300 mm
The ZONESUN ZS-PJZN18 is a fully automated packaging system engineered for filling and sealing flowing liquids like water, yogurt, butter, and sauces. It integrates PLC control and variable speed adjustment for precise, reliable operation. From sheet feeding to cup forming, filling, sealing, and punching, every step is fully automated, optimizing efficiency and consistency. Compatible with PVC, PS, and PET sheet materials, this machine supports high-volume production with minimal error—ideal for dairy, beverage, and condiment manufacturers.
Parameter
Model ZS-PJZN18
Filling Capacity 200 ml
Production Capacity 15,000 cups/hour
Compressed Air Consumption 1.5 m³/min
Molding Air Pressure ≥ 0.6 MPa
Water Consumption 0.2 tons/hour (for mold cooling)
Filling Error ±2%
Sealing Acceptance Rate ≥ 99.9%
Total Power 23 KW
Electric Heating Power 18 KW
Motor Power 4 KW
Filling Material Purified Water
Power Supply 220V 50Hz (Three-phase, Five-wire system)
Dimensions Approx. 11350 × 920 × 2300 mm
Original: $390,000.00
-70%$390,000.00
$117,000.00Description
The ZONESUN ZS-PJZN18 is a fully automated packaging system engineered for filling and sealing flowing liquids like water, yogurt, butter, and sauces. It integrates PLC control and variable speed adjustment for precise, reliable operation. From sheet feeding to cup forming, filling, sealing, and punching, every step is fully automated, optimizing efficiency and consistency. Compatible with PVC, PS, and PET sheet materials, this machine supports high-volume production with minimal error—ideal for dairy, beverage, and condiment manufacturers.
Parameter
Model ZS-PJZN18
Filling Capacity 200 ml
Production Capacity 15,000 cups/hour
Compressed Air Consumption 1.5 m³/min
Molding Air Pressure ≥ 0.6 MPa
Water Consumption 0.2 tons/hour (for mold cooling)
Filling Error ±2%
Sealing Acceptance Rate ≥ 99.9%
Total Power 23 KW
Electric Heating Power 18 KW
Motor Power 4 KW
Filling Material Purified Water
Power Supply 220V 50Hz (Three-phase, Five-wire system)
Dimensions Approx. 11350 × 920 × 2300 mm
