Zonesun ZS-AFC9B Automatic Perfume Filling Crimping Production Line
DESCRIPTION
The ZONESUN ZS-AFC9B is a high-precision automatic perfume filling and capping machine designed for seamless integration into cosmetic and fragrance production lines. Equipped with six synchronized pneumatic filling nozzles, a vibratory bowl sorting system, and a dual-function capping and crimping station, it delivers consistent performance at speeds of 25–35 bottles per minute (≈1500–2100 BPH). With support for multiple bottle shapes and cap types, this system is ideal for scalable, hygienic, and efficient packaging of perfumes, essential oils, and cosmetic liquids.
Parameter
- Machine Model: ZS-AFC9B
- Bottle Type: Round bottles, Flat bottles
- Filling Volume Range: 10–200 ml
- Filling Nozzles: 6 Heads
- Production Speed: 25–35 bottles/min
- Applicable Bottle Size: Diameter 20–40 mm, Height 60–120 mm
- Power Supply: AC 220V / 50Hz
- Power Consumption: 2.8 kW
- Main Machine Dimensions: 202 × 158 × 194 cm
- Conveyor Dimensions: 331 × 58 × 52 cm
- Machine Weight: 1630 kg
- Applicable Neck Size for Crimping: 13 / 15 / 18 / 20 mm
- Applicable Cap Diameter for Capping: 15-50 mm
- Application: Perfume, Cosmetics, Essential Oils
- Optional Modules: Bottle Feeding, Capping, Crimping
control panel
Provides multilingual interface, precise parameter control, and emergency stop during operation.

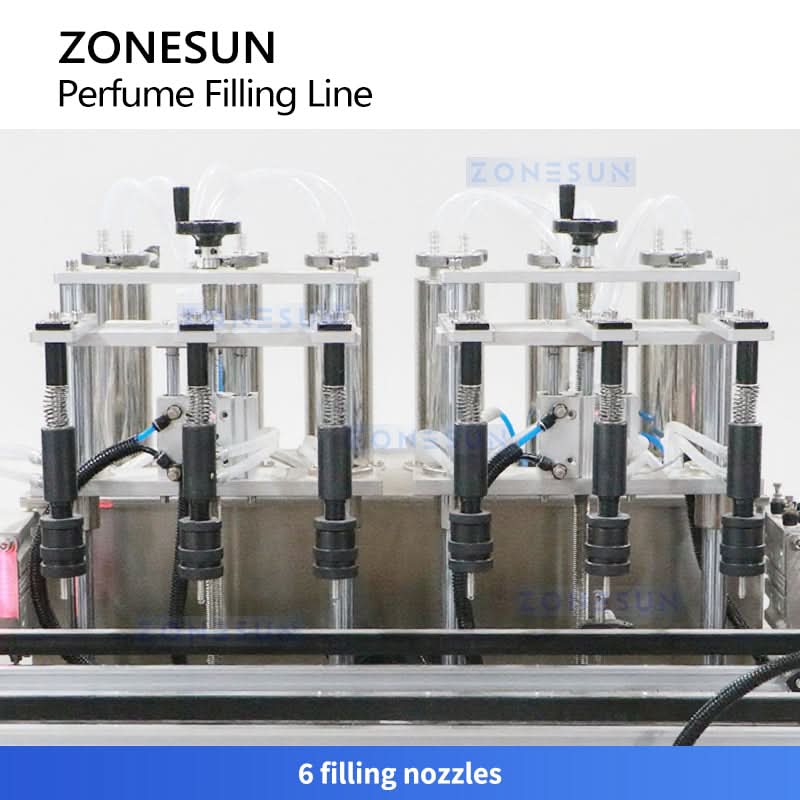

6 filling nozzles
Performs synchronized, high-precision liquid filling through six pneumatic nozzles for automated perfume bottling.

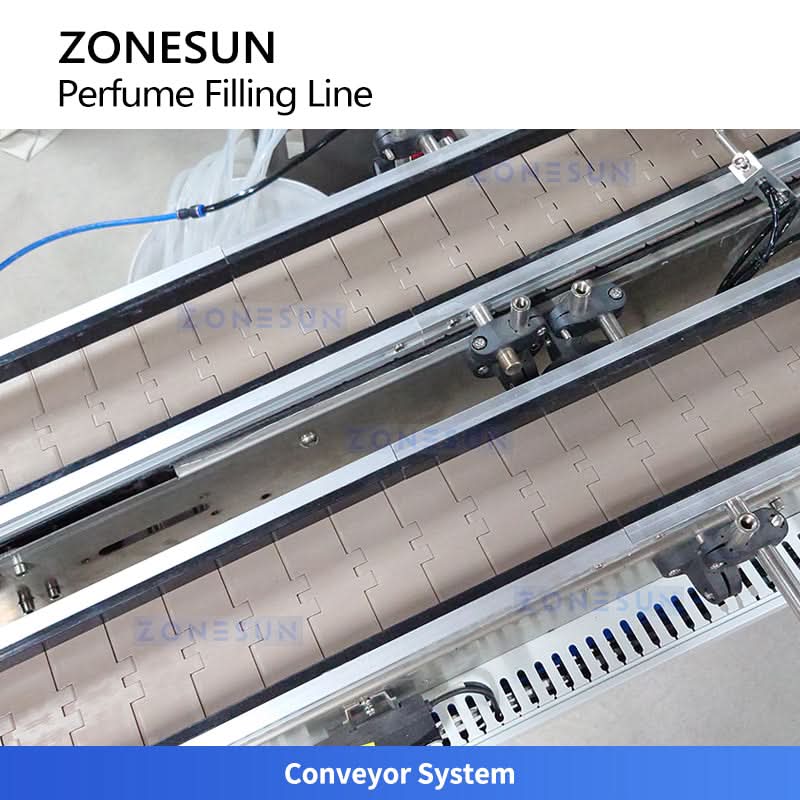

Conveyor System
Transfers empty bottles from the feeding section to filling, capping, and sealing stations, enabling continuous operation across all processing stages.

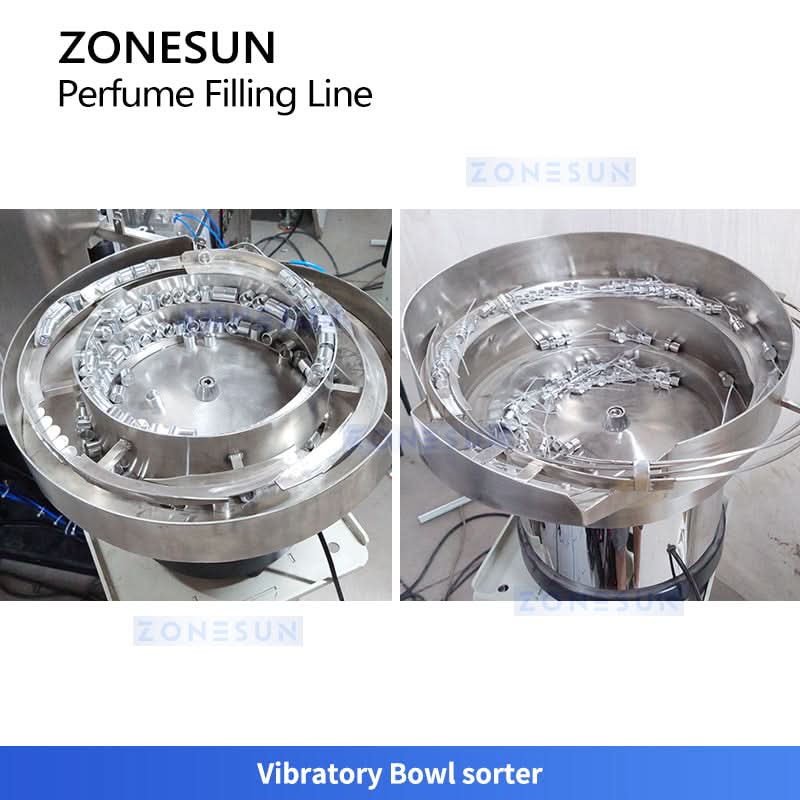

Vibratory Bowl sorter
Vibrates pump heads or caps along a spiral track to automatically sort and orient components before capping.
Capping and Crimping Station
Transfers filled perfume bottles to this station for pump head installation and cap sealing.
DESCRIPTION
The ZONESUN ZS-AFC9B is a high-precision automatic perfume filling and capping machine designed for seamless integration into cosmetic and fragrance production lines. Equipped with six synchronized pneumatic filling nozzles, a vibratory bowl sorting system, and a dual-function capping and crimping station, it delivers consistent performance at speeds of 25–35 bottles per minute (≈1500–2100 BPH). With support for multiple bottle shapes and cap types, this system is ideal for scalable, hygienic, and efficient packaging of perfumes, essential oils, and cosmetic liquids.
Parameter
- Machine Model: ZS-AFC9B
- Bottle Type: Round bottles, Flat bottles
- Filling Volume Range: 10–200 ml
- Filling Nozzles: 6 Heads
- Production Speed: 25–35 bottles/min
- Applicable Bottle Size: Diameter 20–40 mm, Height 60–120 mm
- Power Supply: AC 220V / 50Hz
- Power Consumption: 2.8 kW
- Main Machine Dimensions: 202 × 158 × 194 cm
- Conveyor Dimensions: 331 × 58 × 52 cm
- Machine Weight: 1630 kg
- Applicable Neck Size for Crimping: 13 / 15 / 18 / 20 mm
- Applicable Cap Diameter for Capping: 15-50 mm
- Application: Perfume, Cosmetics, Essential Oils
- Optional Modules: Bottle Feeding, Capping, Crimping
control panel
Provides multilingual interface, precise parameter control, and emergency stop during operation.
6 filling nozzles
Performs synchronized, high-precision liquid filling through six pneumatic nozzles for automated perfume bottling.
Conveyor System
Transfers empty bottles from the feeding section to filling, capping, and sealing stations, enabling continuous operation across all processing stages.
Vibratory Bowl sorter
Vibrates pump heads or caps along a spiral track to automatically sort and orient components before capping.
Capping and Crimping Station
Transfers filled perfume bottles to this station for pump head installation and cap sealing.
Original: $34,000.00
-70%$34,000.00
$10,200.00Description
DESCRIPTION
The ZONESUN ZS-AFC9B is a high-precision automatic perfume filling and capping machine designed for seamless integration into cosmetic and fragrance production lines. Equipped with six synchronized pneumatic filling nozzles, a vibratory bowl sorting system, and a dual-function capping and crimping station, it delivers consistent performance at speeds of 25–35 bottles per minute (≈1500–2100 BPH). With support for multiple bottle shapes and cap types, this system is ideal for scalable, hygienic, and efficient packaging of perfumes, essential oils, and cosmetic liquids.
Parameter
- Machine Model: ZS-AFC9B
- Bottle Type: Round bottles, Flat bottles
- Filling Volume Range: 10–200 ml
- Filling Nozzles: 6 Heads
- Production Speed: 25–35 bottles/min
- Applicable Bottle Size: Diameter 20–40 mm, Height 60–120 mm
- Power Supply: AC 220V / 50Hz
- Power Consumption: 2.8 kW
- Main Machine Dimensions: 202 × 158 × 194 cm
- Conveyor Dimensions: 331 × 58 × 52 cm
- Machine Weight: 1630 kg
- Applicable Neck Size for Crimping: 13 / 15 / 18 / 20 mm
- Applicable Cap Diameter for Capping: 15-50 mm
- Application: Perfume, Cosmetics, Essential Oils
- Optional Modules: Bottle Feeding, Capping, Crimping
control panel
Provides multilingual interface, precise parameter control, and emergency stop during operation.
6 filling nozzles
Performs synchronized, high-precision liquid filling through six pneumatic nozzles for automated perfume bottling.
Conveyor System
Transfers empty bottles from the feeding section to filling, capping, and sealing stations, enabling continuous operation across all processing stages.
Vibratory Bowl sorter
Vibrates pump heads or caps along a spiral track to automatically sort and orient components before capping.
Capping and Crimping Station
Transfers filled perfume bottles to this station for pump head installation and cap sealing.
