Description

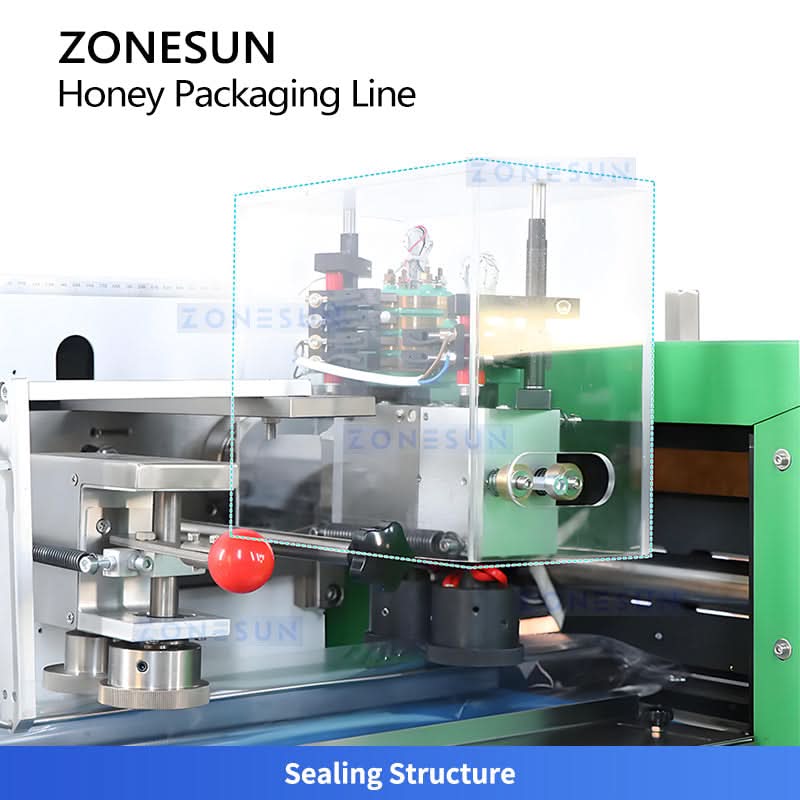

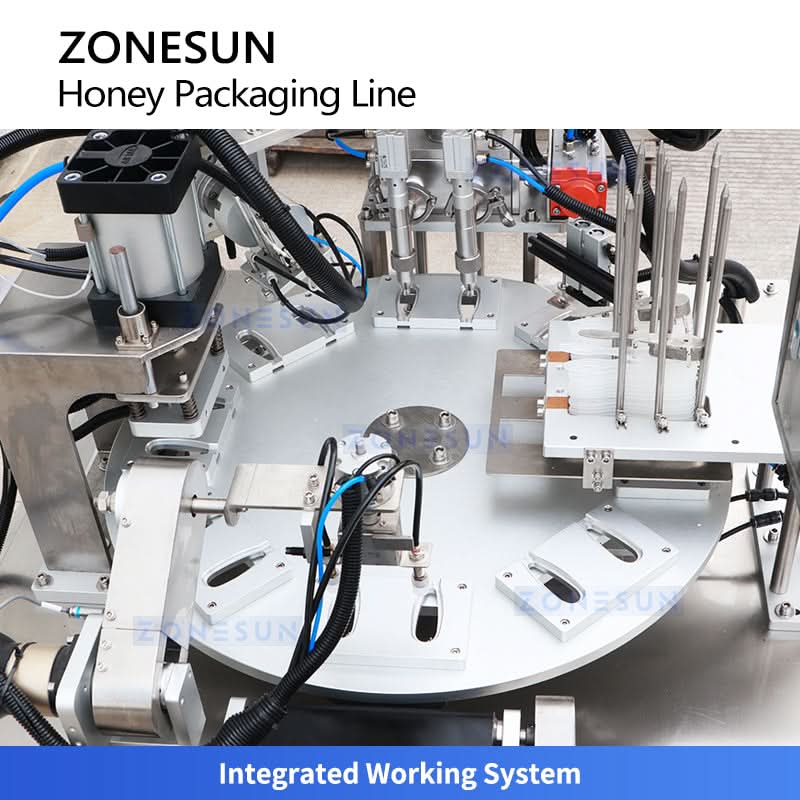

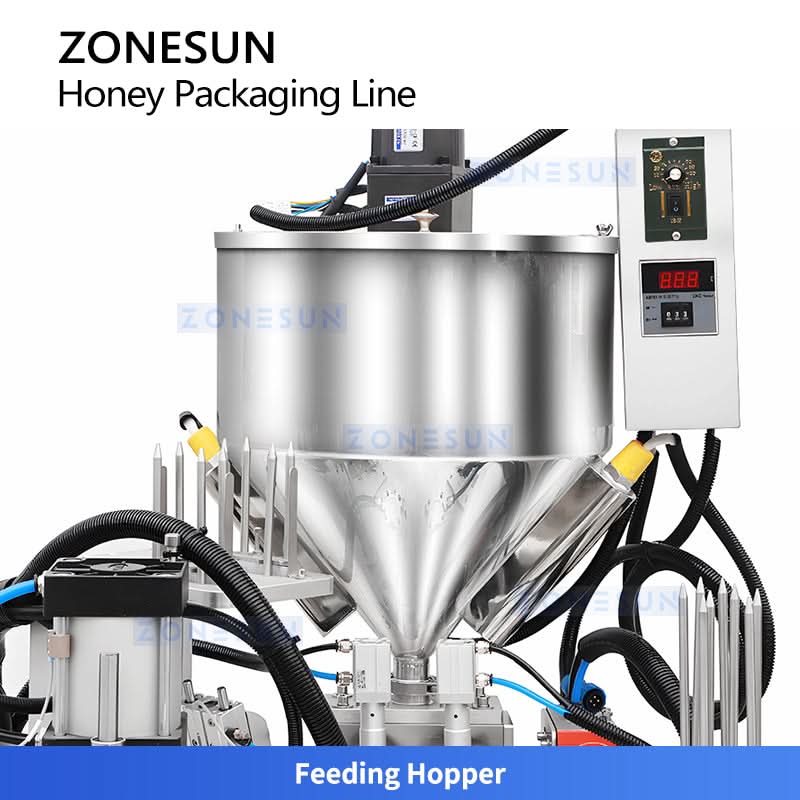

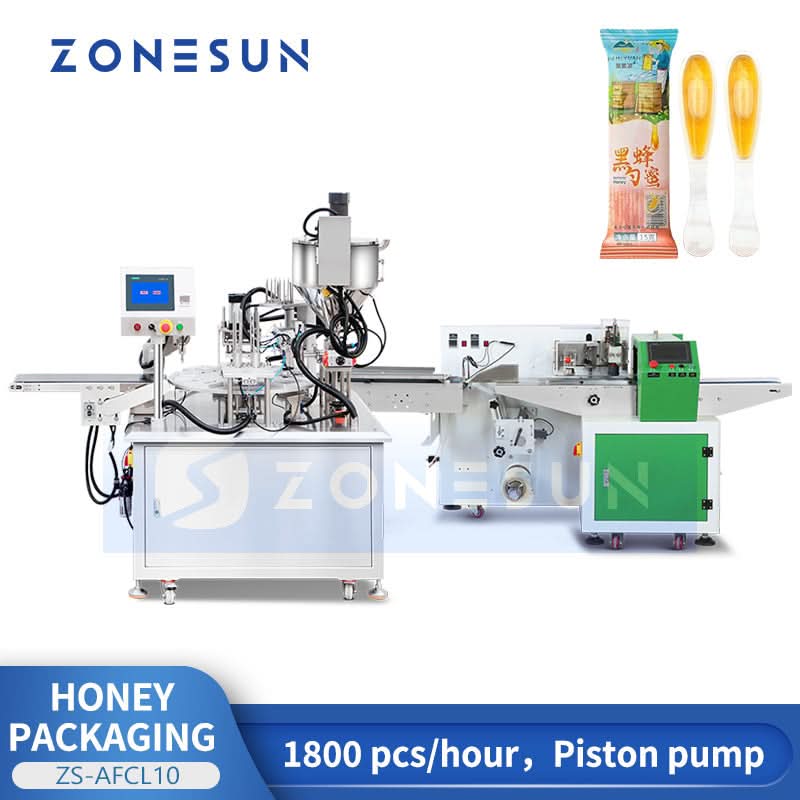

The ZONESUN ZS-AFCL10 is a full-automatic servo honey spoon filling and sealing production line designed for efficient and hygienic honey packaging. Operating at up to 1800 pcs/hour, it integrates spoon feeding, film feeding, filling, sealing, and cutting into a compact rotary system. Equipped with a piston pump, heating-mixing hopper, servo sealing structure, and customizable cutting blades, the machine ensures accurate filling, clean sealing, and neat cutting results. It can also be paired with a flow wrapping machine for complete downstream packaging automation.

ZS‑FSHS20

• Model: ZS‑FSHS20
• Type: Honey Spoon Filling Sealing Machine
• Power Supply: 110 V / 220 V, 50–60 Hz, 3.5 kW
• Production Speed: About 1000–1800 pcs/hour (depending on filling range)
• Filling Range: 5–300 ml (customizable)
• Filling Accuracy: ±1%
• Filling Pump: Piston pump
• Hopper Capacity: 30 L
• Sealing Temperature: 0–400 °C
• Suitable Product Size: Customizable
• Air Pressure: 0.5–0.8 MPa
• Machine Size: About 1806 × 1117 × 1722 mm
• Packing Size: About 1750 × 1120 × 1610 mm
• Package Weight: About 520 kg

ZS‑ZB350X

• Model: ZS‑ZB350X
• Type: Flow Wrapping Machine
• Power: 110 / 220 / 380 V, 50–60 Hz, 2.4 kW
• Film Width: Max. 350 mm (customizable)
• Bag Length: 90–6000 mm (customizable)
• Bag Width: 30–160 mm (customizable)
• Product Height: Max. 55 mm (customizable)
• Film Roll Diameter: Max. 320 mm
• Sealing Type: Top side sealing
• Packaging Speed: 30–120 bags/min
• Packaging Materials: OPP, OPP/CPP, KOP/CPP, Aluminum film
• Machine Size: About 3836 × 890 × 1079 mm
• Machine Weight: About 350 kg
• Packing Size: About 1950 × 1220 × 1220 mm + 2610 × 670 × 450 mm
• Package Weight: About 415 kg + 83 kg
