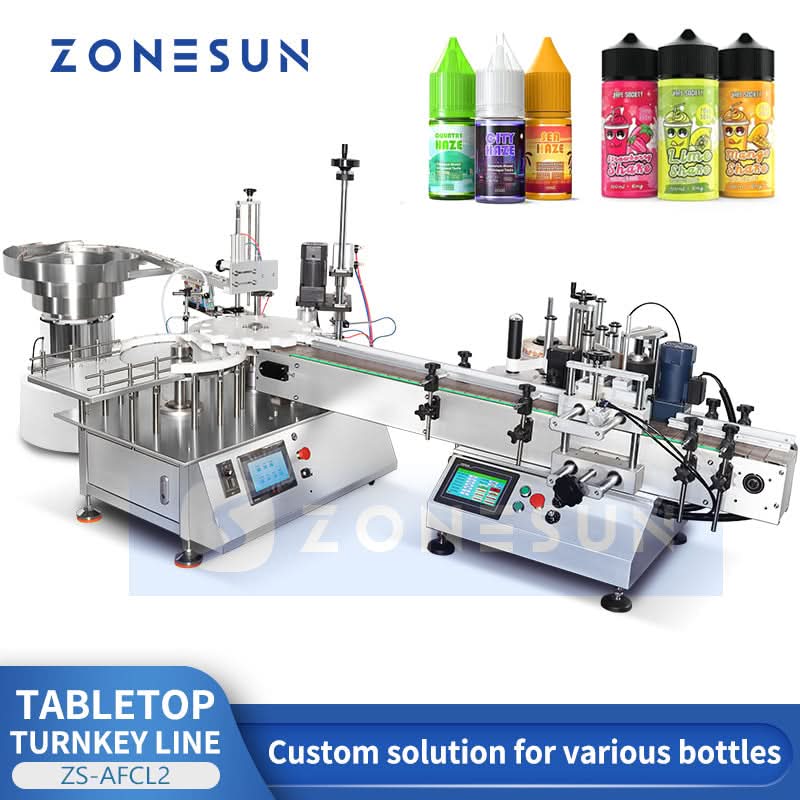

ZONESUN ZS-AFCL2 Desktop Liquid Filling Capping Labeling Production Line

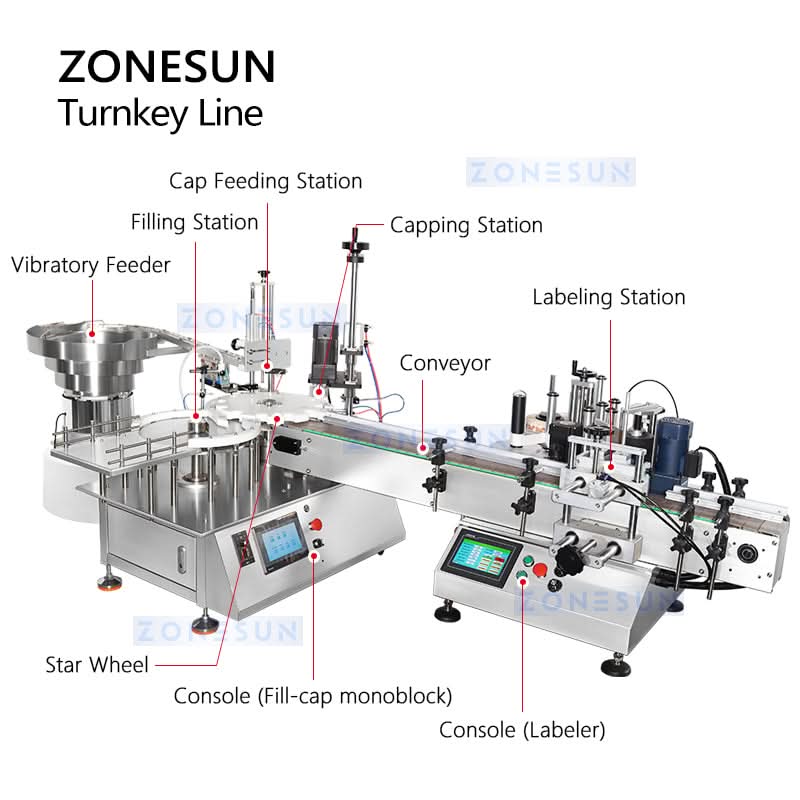

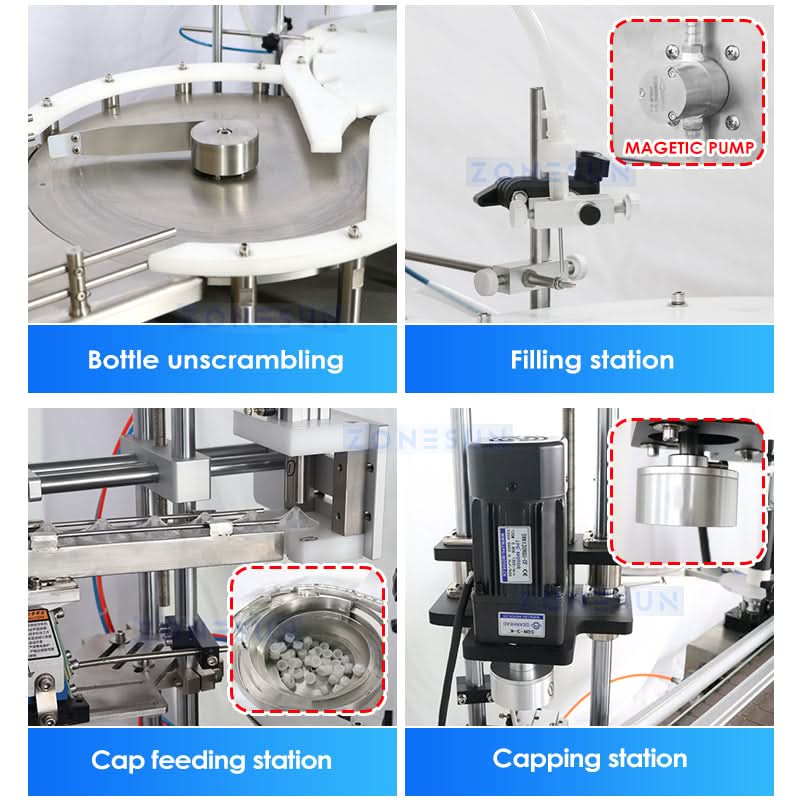

The ZONESUN ZS-AFCL2 is a compact desktop turnkey solution that integrates bottle unscrambling, magnetic pump filling, automatic capping, and precise round bottle labeling. Designed for small to medium-scale production, it features a star wheel conveyor and vibratory cap feeder for smooth, continuous operation. Ideal for liquids in bottles ranging from 10–100ml, this system boosts efficiency, reduces labor, and ensures consistent packaging quality. A smart choice for pharmaceuticals, cosmetics, essential oils, and more.
Parameter
Machine Model ZS-AFC7B Filling and Capping Machine
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Magnetic Pump
Working Capacity Approx. 20–30 bottles/min (depends on bottle size)
Filling Range 10–100ml
Suitable Bottle Height Approx. 30–60mm
Suitable Bottle Diameter Approx. 20–50mm
Bottle Cap Size Customizable
Max Flow Rate 3L/min (based on water)
Machine Model ZS-TB500 Labeling Machine
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1290 × 860 × 900mm
Package Weight Approx. 130kg
The ZONESUN ZS-AFCL2 is a compact desktop turnkey solution that integrates bottle unscrambling, magnetic pump filling, automatic capping, and precise round bottle labeling. Designed for small to medium-scale production, it features a star wheel conveyor and vibratory cap feeder for smooth, continuous operation. Ideal for liquids in bottles ranging from 10–100ml, this system boosts efficiency, reduces labor, and ensures consistent packaging quality. A smart choice for pharmaceuticals, cosmetics, essential oils, and more.
Parameter
Machine Model ZS-AFC7B Filling and Capping Machine
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Magnetic Pump
Working Capacity Approx. 20–30 bottles/min (depends on bottle size)
Filling Range 10–100ml
Suitable Bottle Height Approx. 30–60mm
Suitable Bottle Diameter Approx. 20–50mm
Bottle Cap Size Customizable
Max Flow Rate 3L/min (based on water)
Machine Model ZS-TB500 Labeling Machine
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1290 × 860 × 900mm
Package Weight Approx. 130kg
Original: $10,799.00
-70%$10,799.00
$3,239.70Description
The ZONESUN ZS-AFCL2 is a compact desktop turnkey solution that integrates bottle unscrambling, magnetic pump filling, automatic capping, and precise round bottle labeling. Designed for small to medium-scale production, it features a star wheel conveyor and vibratory cap feeder for smooth, continuous operation. Ideal for liquids in bottles ranging from 10–100ml, this system boosts efficiency, reduces labor, and ensures consistent packaging quality. A smart choice for pharmaceuticals, cosmetics, essential oils, and more.
Parameter
Machine Model ZS-AFC7B Filling and Capping Machine
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Magnetic Pump
Working Capacity Approx. 20–30 bottles/min (depends on bottle size)
Filling Range 10–100ml
Suitable Bottle Height Approx. 30–60mm
Suitable Bottle Diameter Approx. 20–50mm
Bottle Cap Size Customizable
Max Flow Rate 3L/min (based on water)
Machine Model ZS-TB500 Labeling Machine
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1290 × 860 × 900mm
Package Weight Approx. 130kg
