ZONESUN ZS-AFMC 24000BPH Full Automatic PET Bottle Carbonated Water Filling System
DESCRIPTION

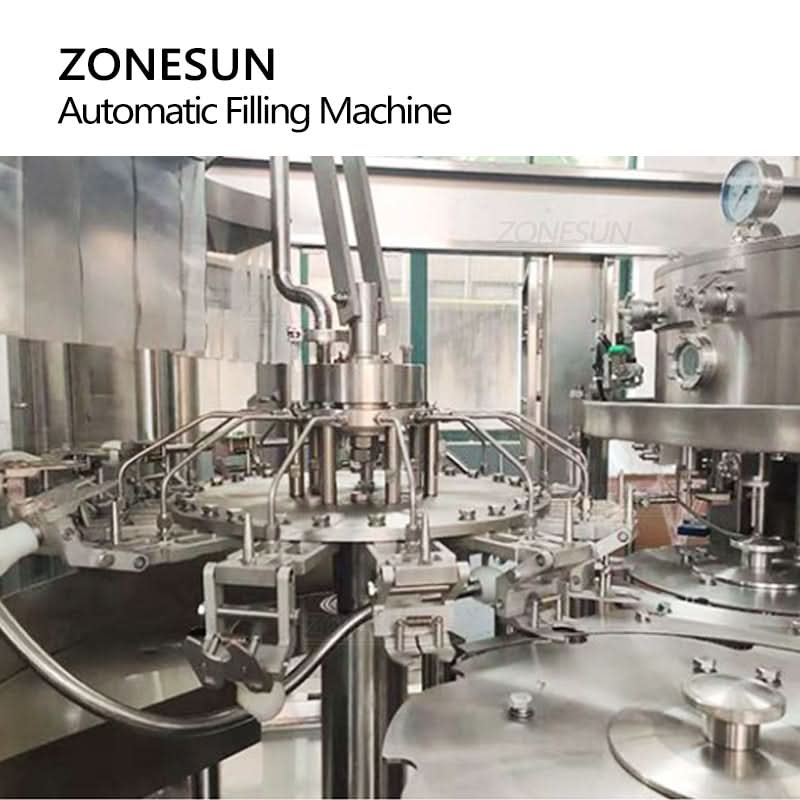

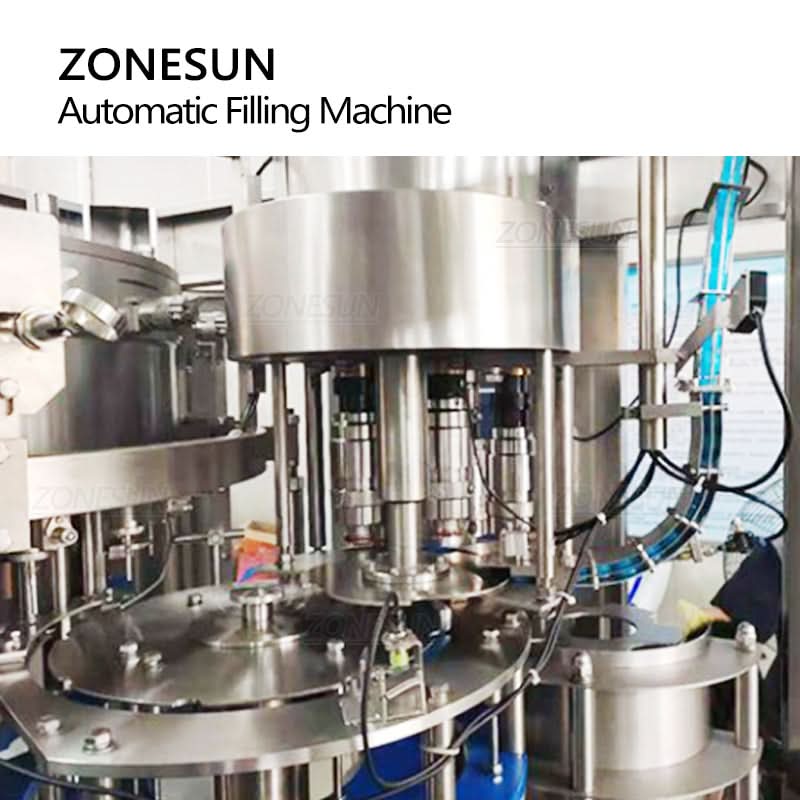

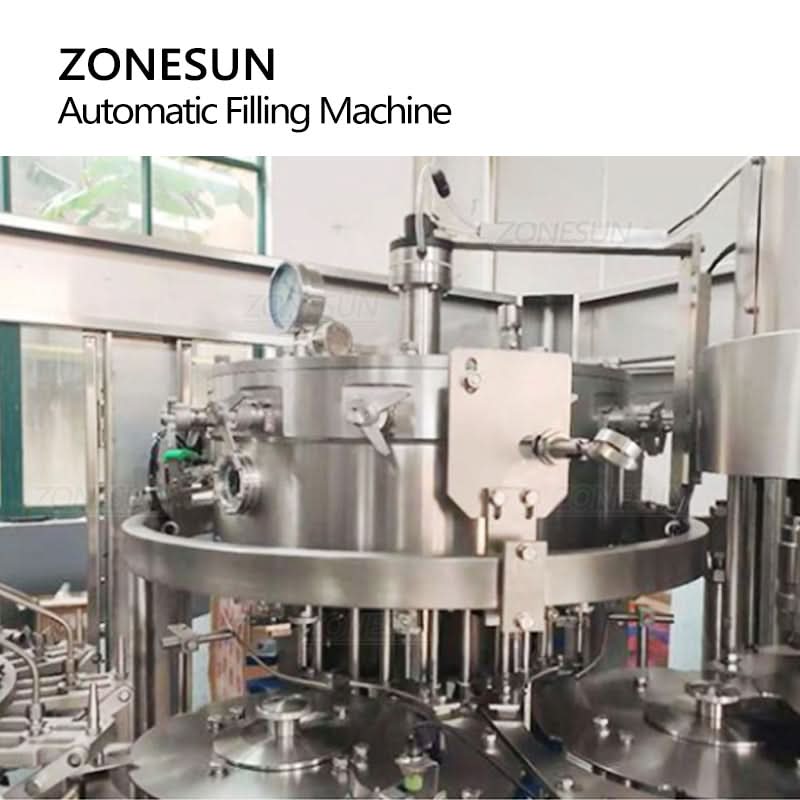

This fully automatic filling system integrates washing, filling, and sealing into one streamlined operation for carbonated beverages. Compatible with both PET plastic and glass bottles, it offers high-speed, efficient performance. Engineered with a scientifically sound design, it’s ideal for large-scale bottling in beverage production lines.
PARAMETERS
|
Model |
Capacity/500ml |
Bottle size |
Weight(KG) |
Dimensions(mm) |
|
ZS-AFMC 14-12-5 |
2000-3000bph |
200-2000ml |
3500 |
2516*2016*2700 |
|
ZS-AFMC 16-16-5 |
3000-4500bph |
200-2000ml |
5500 |
3000*2200*2800 |
|
ZS-AFMC 24-24-8 |
5000-6500bph |
200-2000ml |
8000 |
4150*2600*2900 |
|
ZS-AFMC 32-32-8 |
8000-10000bph |
200-2000ml |
10000 |
4550*2750*2900 |
|
ZS-AFMC 40-40-10 |
10000-12000bph |
200-2000ml |
12000 |
5450*3300*2900 |
|
ZS-AFMC 50-50-12 |
12000-24000bph |
200-2000ml |
14000 |
6500*3800*3200 |
|
Model |
ZS-AFMC 24-24-8 |
|
Output Capacity |
6500BPH on 500ml PET Bottle |
|
Rinsing /Filling / Capping heads Quantity |
24pcs/24pcs/8pcs |
|
PET bottle size |
Bottle Diameter Φ50~495mm Bottle Highness: 160~310mm, Bottle neck:28mm, for Bottle Volume 250-2000ml |
|
Suitable to fill |
Water & Carbonated drink |
|
Washing Water Required |
2000 liter per hour |
|
Washing Pressure |
0.4Mpa |
|
Required |
380V AC60HZ 3-phase (other power supply is available) |
|
Working Power |
24V DC |
|
Control Panel Power |
0.7MPa |
|
Compressed Air Pressure (for caps arranger) |
0.4m3/min |
|
Compressed Air Consumption(for caps arranger) |
2800x2400x2650mm |
|
Machine Dimension |
4000kg approximately |
DESCRIPTION
This fully automatic filling system integrates washing, filling, and sealing into one streamlined operation for carbonated beverages. Compatible with both PET plastic and glass bottles, it offers high-speed, efficient performance. Engineered with a scientifically sound design, it’s ideal for large-scale bottling in beverage production lines.
PARAMETERS
|
Model |
Capacity/500ml |
Bottle size |
Weight(KG) |
Dimensions(mm) |
|
ZS-AFMC 14-12-5 |
2000-3000bph |
200-2000ml |
3500 |
2516*2016*2700 |
|
ZS-AFMC 16-16-5 |
3000-4500bph |
200-2000ml |
5500 |
3000*2200*2800 |
|
ZS-AFMC 24-24-8 |
5000-6500bph |
200-2000ml |
8000 |
4150*2600*2900 |
|
ZS-AFMC 32-32-8 |
8000-10000bph |
200-2000ml |
10000 |
4550*2750*2900 |
|
ZS-AFMC 40-40-10 |
10000-12000bph |
200-2000ml |
12000 |
5450*3300*2900 |
|
ZS-AFMC 50-50-12 |
12000-24000bph |
200-2000ml |
14000 |
6500*3800*3200 |
|
Model |
ZS-AFMC 24-24-8 |
|
Output Capacity |
6500BPH on 500ml PET Bottle |
|
Rinsing /Filling / Capping heads Quantity |
24pcs/24pcs/8pcs |
|
PET bottle size |
Bottle Diameter Φ50~495mm Bottle Highness: 160~310mm, Bottle neck:28mm, for Bottle Volume 250-2000ml |
|
Suitable to fill |
Water & Carbonated drink |
|
Washing Water Required |
2000 liter per hour |
|
Washing Pressure |
0.4Mpa |
|
Required |
380V AC60HZ 3-phase (other power supply is available) |
|
Working Power |
24V DC |
|
Control Panel Power |
0.7MPa |
|
Compressed Air Pressure (for caps arranger) |
0.4m3/min |
|
Compressed Air Consumption(for caps arranger) |
2800x2400x2650mm |
|
Machine Dimension |
4000kg approximately |
Original: $82,400.00
-70%$82,400.00
$24,720.00Description
