ZONESUN ZS-DPP180H Automatic Soft Alu-Alu Strip Packaging Machine for Pharmaceuticals
Description

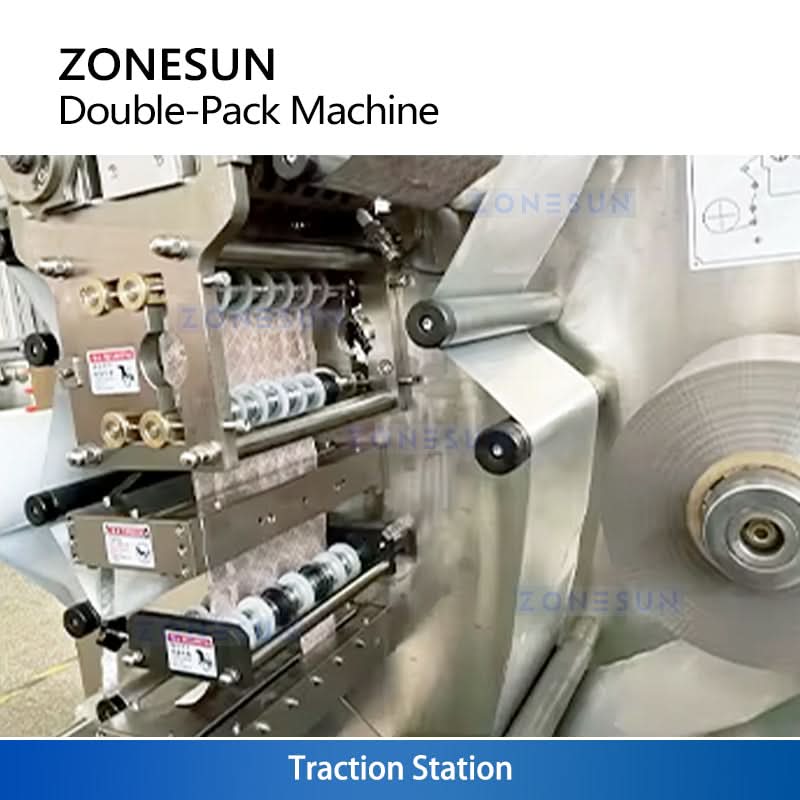

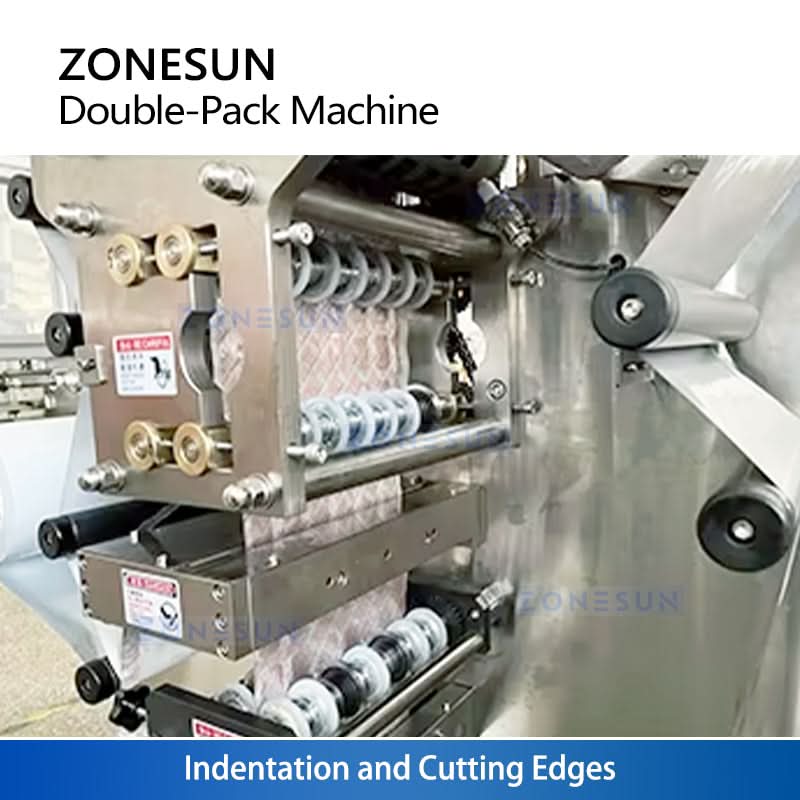

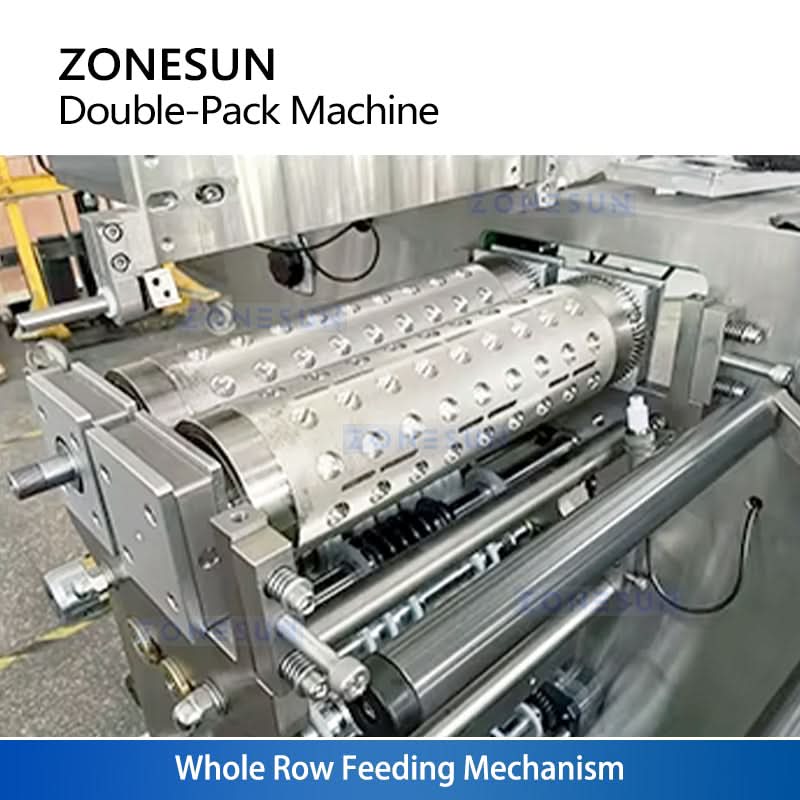

The ZONESUN ZS-DPP180H is an aluminum blister strip double packaging machine designed for candies and food applications. Running at up to 400 pieces per minute, it integrates vibration feeding, whole-row alignment, indentation and cutting, servo-driven traction, and finished product conveying. Built with a stainless steel shell, PLC touchscreen control, and advanced temperature regulation, it ensures precise placement, smooth tear lines, accurate cutting, and efficient throughput. Optional coding and defect detection functions make it versatile for different customer needs, while its compact design and stable operation provide reliable blister strip packaging for candies and other small food items.
Parameter
- Model: ZS‑DPP180H
- Production Capacity: ≤ 400 pcs/min
- Punching Frequency: 10–40 times/min
- Compressed Air: 0.6 MPa
- Max Packaging Material Width: 160 mm
- Roll Diameter: 300 mm
- Total Power: 2.75 kW
- Machine Weight: 700 kg
- Machine Dimensions: 1300 × 700 × 1800 mm
- Packing Box Dimensions: 1450 × 880 × 1800 mm
Description
The ZONESUN ZS-DPP180H is an aluminum blister strip double packaging machine designed for candies and food applications. Running at up to 400 pieces per minute, it integrates vibration feeding, whole-row alignment, indentation and cutting, servo-driven traction, and finished product conveying. Built with a stainless steel shell, PLC touchscreen control, and advanced temperature regulation, it ensures precise placement, smooth tear lines, accurate cutting, and efficient throughput. Optional coding and defect detection functions make it versatile for different customer needs, while its compact design and stable operation provide reliable blister strip packaging for candies and other small food items.
Parameter
- Model: ZS‑DPP180H
- Production Capacity: ≤ 400 pcs/min
- Punching Frequency: 10–40 times/min
- Compressed Air: 0.6 MPa
- Max Packaging Material Width: 160 mm
- Roll Diameter: 300 mm
- Total Power: 2.75 kW
- Machine Weight: 700 kg
- Machine Dimensions: 1300 × 700 × 1800 mm
- Packing Box Dimensions: 1450 × 880 × 1800 mm
Original: $22,000.00
-70%$22,000.00
$6,600.00Description
Description
The ZONESUN ZS-DPP180H is an aluminum blister strip double packaging machine designed for candies and food applications. Running at up to 400 pieces per minute, it integrates vibration feeding, whole-row alignment, indentation and cutting, servo-driven traction, and finished product conveying. Built with a stainless steel shell, PLC touchscreen control, and advanced temperature regulation, it ensures precise placement, smooth tear lines, accurate cutting, and efficient throughput. Optional coding and defect detection functions make it versatile for different customer needs, while its compact design and stable operation provide reliable blister strip packaging for candies and other small food items.
Parameter
- Model: ZS‑DPP180H
- Production Capacity: ≤ 400 pcs/min
- Punching Frequency: 10–40 times/min
- Compressed Air: 0.6 MPa
- Max Packaging Material Width: 160 mm
- Roll Diameter: 300 mm
- Total Power: 2.75 kW
- Machine Weight: 700 kg
- Machine Dimensions: 1300 × 700 × 1800 mm
- Packing Box Dimensions: 1450 × 880 × 1800 mm
