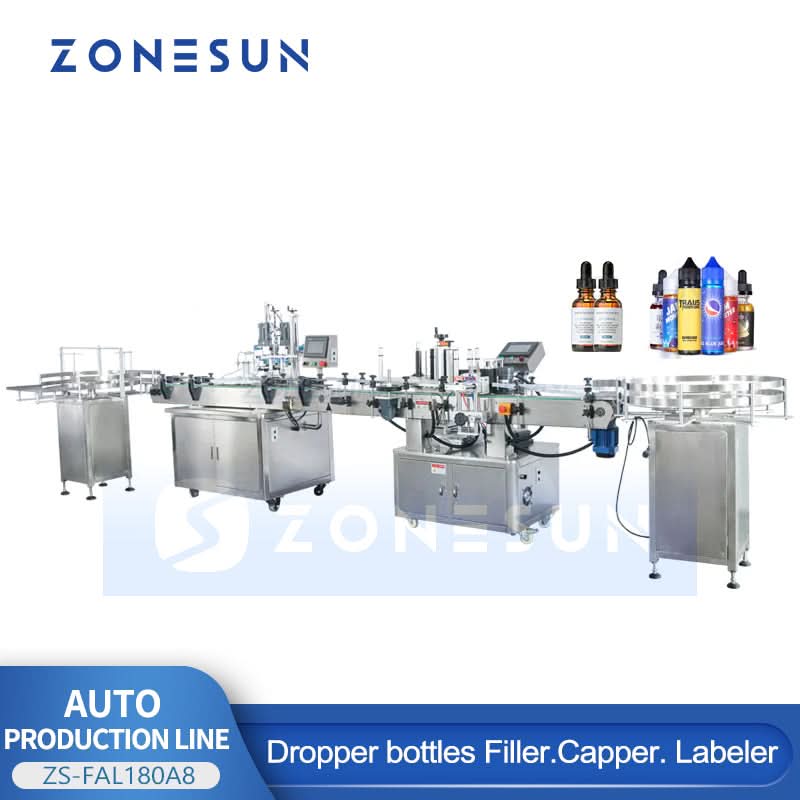

ZONESUN ZS-FAL180A8 Full Automatic Bottle Filling Capping Labeling Line
The ZONESUN ZS-FAL180A8 is a high-efficiency automatic production line designed for filling, capping, and labeling round bottles. Ideal for low-viscosity liquids like perfume, juice, and cosmetics, it integrates unscrambling, magnetic pump filling, precision capping, and single or double-sided labeling. With PLC control and customizable configuration, this line is perfect for pharmaceutical, chemical, and personal care manufacturing.
Bottle Turntable
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800 mm | 1000 mm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V/110V, 50–60Hz, 50W | 220V/110V, 50–60Hz, 50W |
| Package Size | Approx. 1150 × 1000 × 1320 mm | Approx. 1350 × 1315 × 1235 mm |
| Net Weight / Gross Weight | Approx. 50 kg / 65 kg | Approx. 135 kg / 180 kg |
Machine Model ZS-AFC1 filling machine
Power Supply AC220V / 110V, 50–60Hz
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle, and caps)
Maximum Power 300 W
Air Pressure 0.4–0.6 MPa
Capping Torque 4–9 kgf·cm
Conveyor Dimensions Approx. 2000 × 100 mm (L × W)
Machine Dimensions Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Package Dimensions Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (varies by bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm, Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Dimensions 1950 × 100 mm (L × W)
Machine Dimensions Approx. 2000 × 1400 × 1300 mm
Packing Dimensions Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
The ZONESUN ZS-FAL180A8 is a high-efficiency automatic production line designed for filling, capping, and labeling round bottles. Ideal for low-viscosity liquids like perfume, juice, and cosmetics, it integrates unscrambling, magnetic pump filling, precision capping, and single or double-sided labeling. With PLC control and customizable configuration, this line is perfect for pharmaceutical, chemical, and personal care manufacturing.
Bottle Turntable
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800 mm | 1000 mm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V/110V, 50–60Hz, 50W | 220V/110V, 50–60Hz, 50W |
| Package Size | Approx. 1150 × 1000 × 1320 mm | Approx. 1350 × 1315 × 1235 mm |
| Net Weight / Gross Weight | Approx. 50 kg / 65 kg | Approx. 135 kg / 180 kg |
Machine Model ZS-AFC1 filling machine
Power Supply AC220V / 110V, 50–60Hz
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle, and caps)
Maximum Power 300 W
Air Pressure 0.4–0.6 MPa
Capping Torque 4–9 kgf·cm
Conveyor Dimensions Approx. 2000 × 100 mm (L × W)
Machine Dimensions Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Package Dimensions Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (varies by bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm, Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Dimensions 1950 × 100 mm (L × W)
Machine Dimensions Approx. 2000 × 1400 × 1300 mm
Packing Dimensions Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
Original: $16,914.00
-70%$16,914.00
$5,074.20Description
The ZONESUN ZS-FAL180A8 is a high-efficiency automatic production line designed for filling, capping, and labeling round bottles. Ideal for low-viscosity liquids like perfume, juice, and cosmetics, it integrates unscrambling, magnetic pump filling, precision capping, and single or double-sided labeling. With PLC control and customizable configuration, this line is perfect for pharmaceutical, chemical, and personal care manufacturing.
Bottle Turntable
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800 mm | 1000 mm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V/110V, 50–60Hz, 50W | 220V/110V, 50–60Hz, 50W |
| Package Size | Approx. 1150 × 1000 × 1320 mm | Approx. 1350 × 1315 × 1235 mm |
| Net Weight / Gross Weight | Approx. 50 kg / 65 kg | Approx. 135 kg / 180 kg |
Machine Model ZS-AFC1 filling machine
Power Supply AC220V / 110V, 50–60Hz
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle, and caps)
Maximum Power 300 W
Air Pressure 0.4–0.6 MPa
Capping Torque 4–9 kgf·cm
Conveyor Dimensions Approx. 2000 × 100 mm (L × W)
Machine Dimensions Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Package Dimensions Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (varies by bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm, Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Dimensions 1950 × 100 mm (L × W)
Machine Dimensions Approx. 2000 × 1400 × 1300 mm
Packing Dimensions Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
