Zonesun ZS-FAL180C5 Automatic Production Line 4 Nozzles Liquid Filling Capping Labeling Machine With Vibratory Bowl
Description

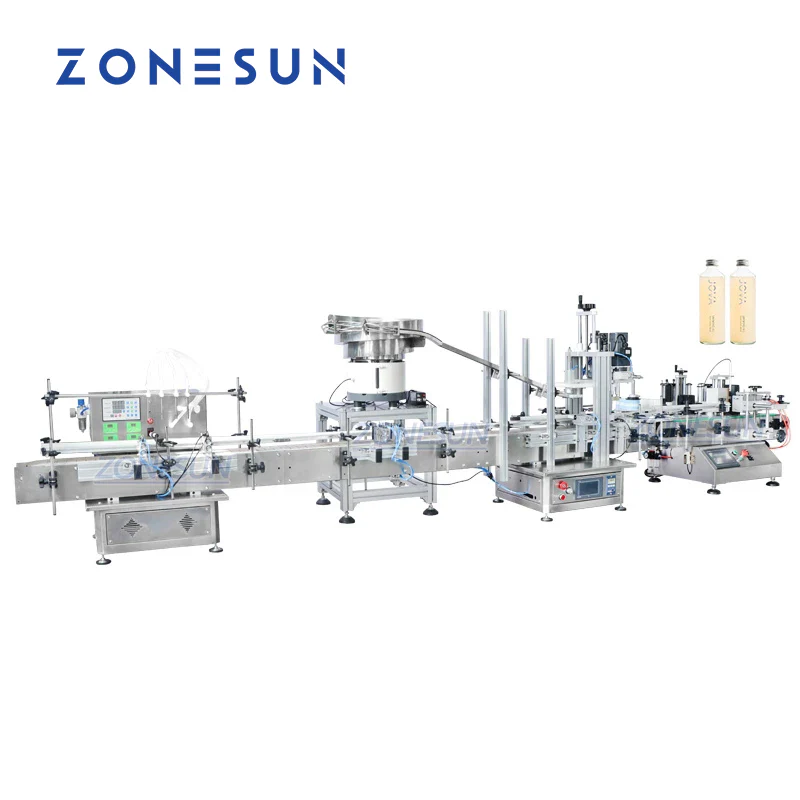

This small production line consists of liquid filling machine, cap feeding machine, capping machine and labeling machine.

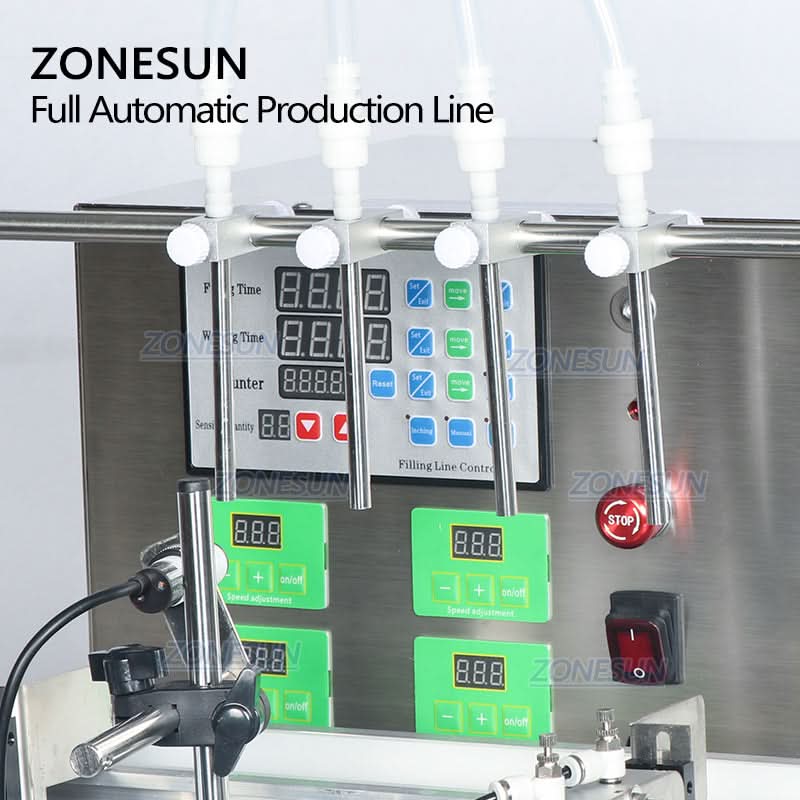

1.The filling speed of four nozzles can be controlled separately.
2.With vibratory bowl, it can feed caps automatically, saving labor cost.
3.The capping machine is with a wide scope of application, which is suitable for all shapes of caps.
4.Adopting the way of positioning and labeling, it can label bottles accurately. It can be used for single side or double sides labeling on round bottles.
5.With chain conveyor, it has a large bearing capacity, and it can transport bottles automatically.
6.Equipped with intelligent electric eye, it can work automatically, convenient and efficient.
7.This desktop production line is an ideal choise for small to medium production, which can help to save space.
Application
This machine can be used for filling liquid, like juice, water, essential oil, perfume, etc. It is suitable for round bottles.
The product can be widely used in daily chemical, cosmetic, beverage industries.
Attention
This production line will be shipped by sea. If you want a faster shipping, please contact us. Thank you!
Machine model: ZS-DTDP-4P
Voltage: 110/220V 50-60HZ
Power: 250W
Maximum flow velocity: 4000ml/min (Each nozzle and base on water)
Working speed: 1500-3000 bottles/hour (depends on bottle size and liquid)
Air pressure: 0.3-0.4MPa
Filling accuracy: ≤±1% (For water)
Bottle height: < 220mm (Can be customized, max height 300mm)
Diameter of filling nozzle: 6/8mm
Conveyor size: 1030115mm (LW)
Size of air compressor connector: OD 8mm
Machine size: About 1105x650x765mm
Package size: About 1145x610x800mm
Net weight/Gross weight: About 50kg/78kg
Vibratory Bowl
Machine Power: 110/220V 50-60HZ
Material: Stainless Steel
Suitable Caps Diameter:Customized
Working Speed: Customized
Machine Size:Customized

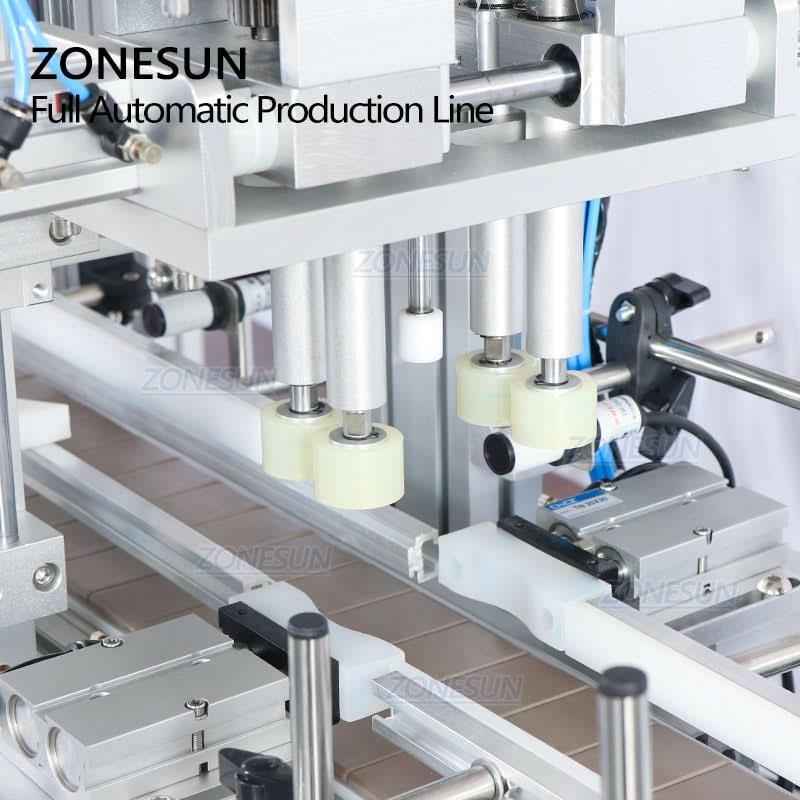

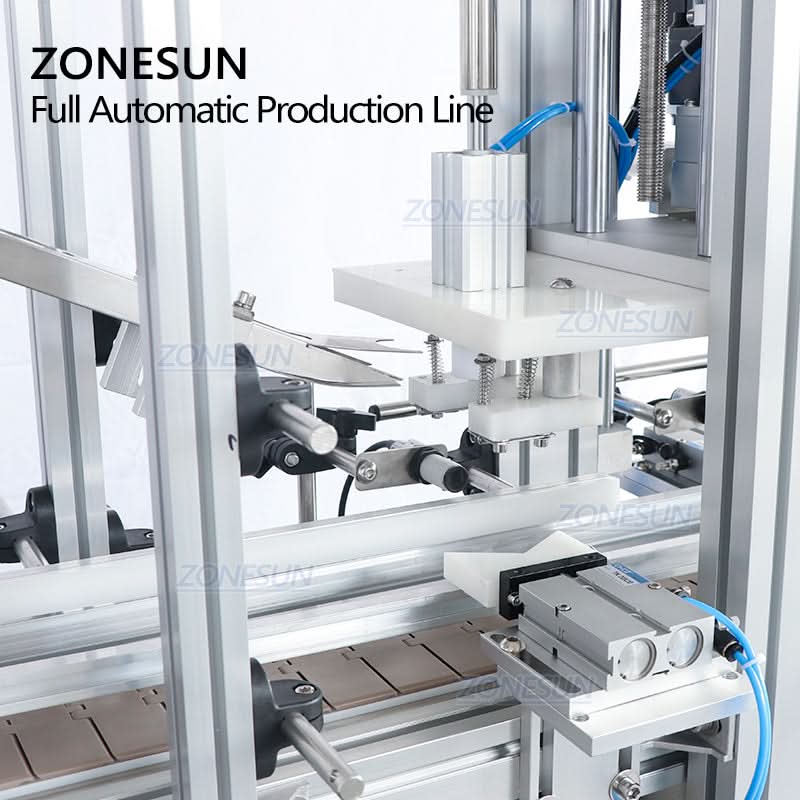

Capping Machine
Bottle height: 60-270mm
Bottle Caps Diameter: 18-70mm
Working speed: 20-40 bottles/minute (depending on bottle and caps)
Working voltage: AC220V/110V 50-60HZ
Working pressure: 0.4-0.6 MPa
Machine size: About 2130x1090x1040mm
Package size: About 1160x610x1140mm
Package weight: About 97.5kg
Conveyor length: 1117mm
Size of air compressor connector: OD 8mm

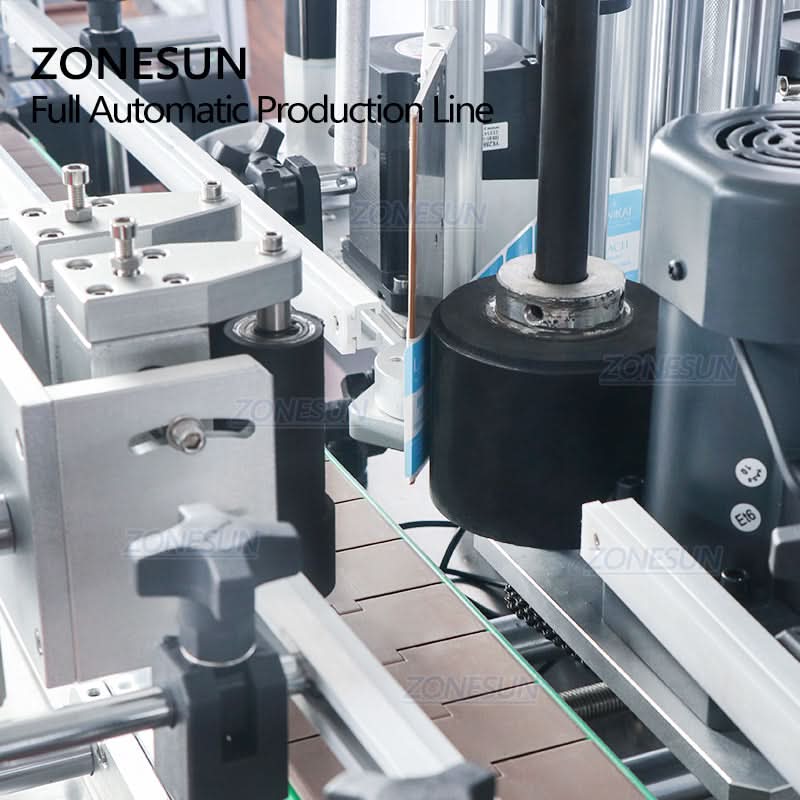

Labeling MachineVoltage: 110V-60HZ / 220V-50HZ
Working Speed: About 20-50 bottles/min
Suitable Labeling Size: 15-140mm (W) x 25-300mm (L)
Roll inside diameter (mm): φ76mm
Roll outside diameter (mm): φ350mm
Suitable Bottle Diameter: ≤100mm
Package Size: About 1270x530x820mm
Package Weight: About 125kg
