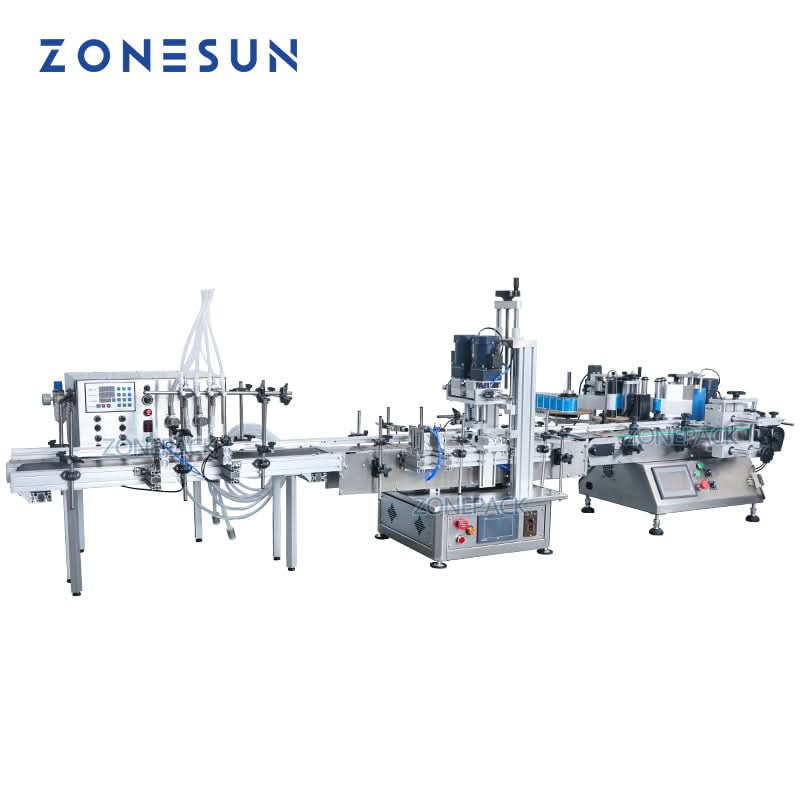

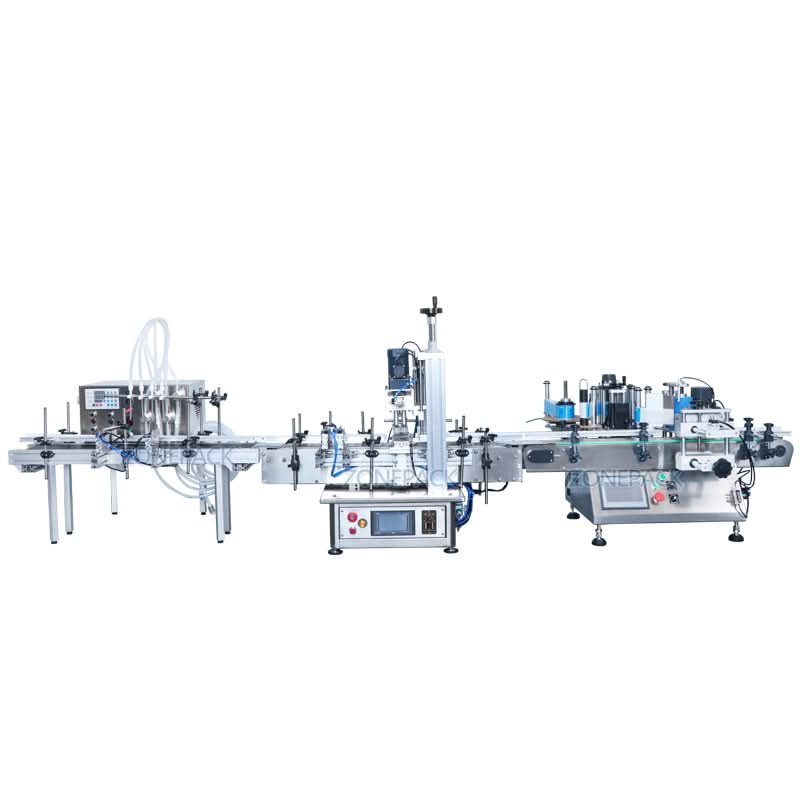

This automatic filling, capping, and labeling line is designed for efficient bottle packaging of liquids and pastes like shampoo, oil, and lotion. With servo control and customizable options, it's ideal for industries needing precise bottle filling, cap sealing, and label application. A perfect solution for cosmetics, food, and chemical production.

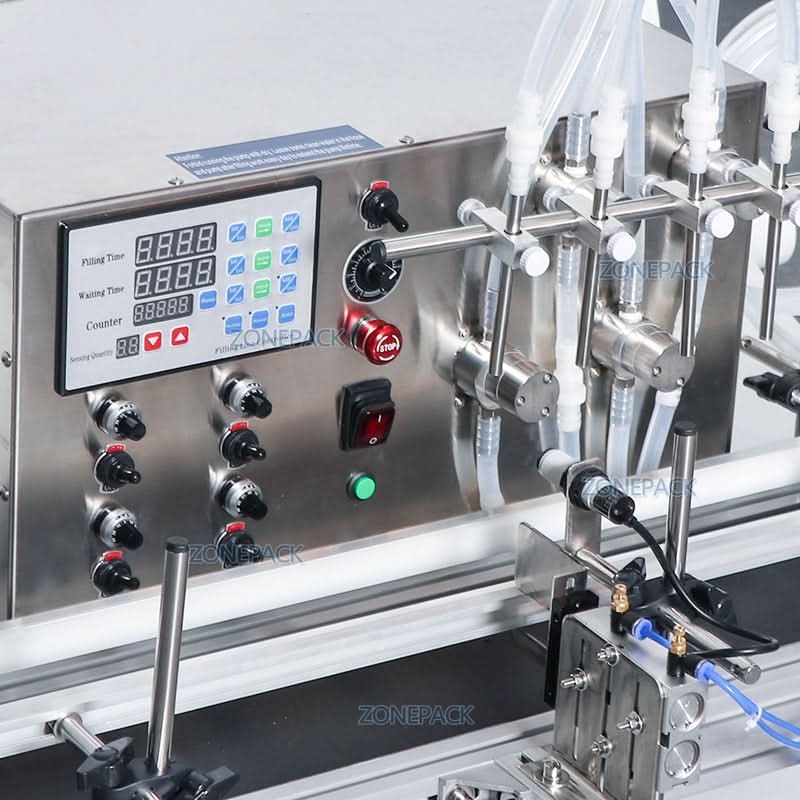

Filling Machine
Power Supply 110/220V 50–60Hz
Maximum Flow Velocity 5500ml/min (per nozzle, based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 6/8mm
Delay Range 0.01–999.9 seconds
Count Range 1–99999 times
Net Weight 37kg
Package Size 110×650×420mm
Gross Weight 50.5kg
Filling Volume 3–1000ml (220V) / 3–500ml (110V)
Air Compressor Connector Size OD8mm

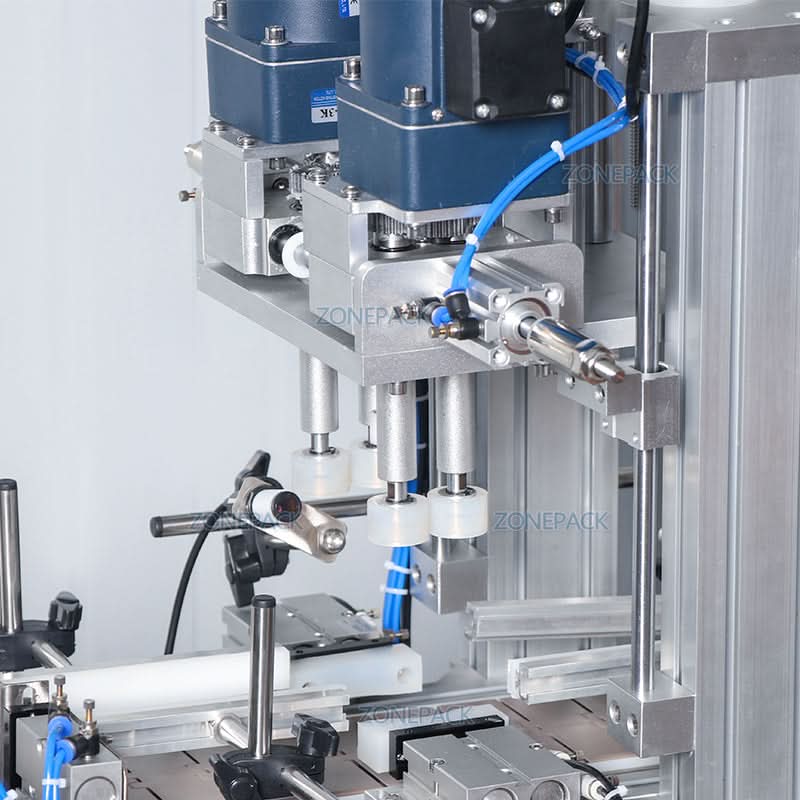

Capping Machine
Bottle Height 60–270mm
Bottle Cap Diameter 18–70mm
Working Speed 20–40 bottles/min (depends on bottle and cap size)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size 1120 × 580 × 1110mm
Net Weight 65.5kg
Conveyor Length 1110mm
Gross Weight 97.5kg
Package Size 1160 × 610 × 1140mm
Air Compressor Connector Size OD 8mm

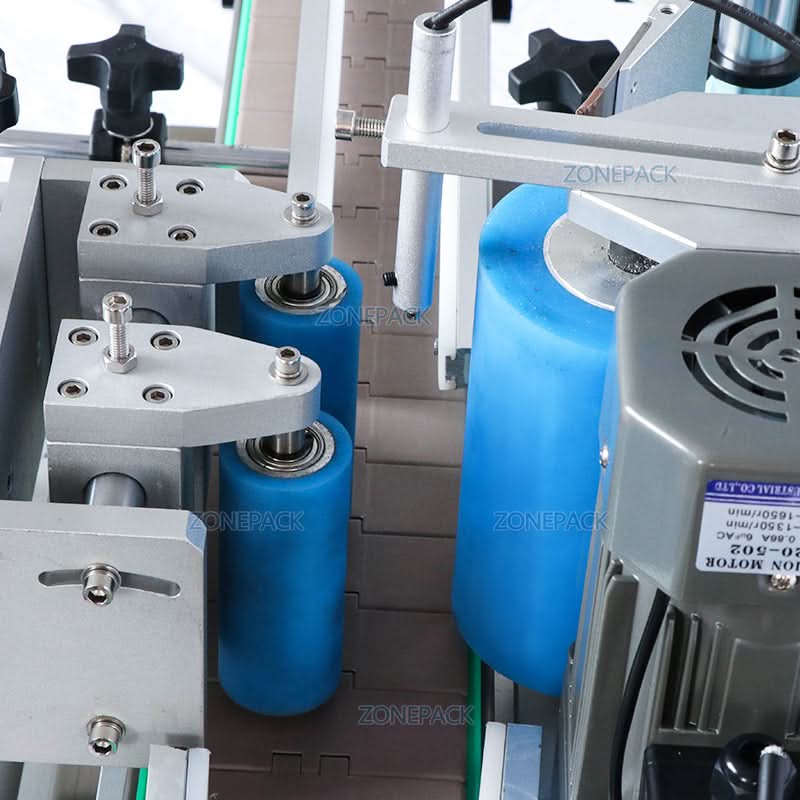

labeling machine
Voltage 110V-60Hz / 220V-50Hz
Working Speed 20–50 bottles/min
Applicable Label Size 15–140mm (W) × 25–300mm (L)
Roll Inner Diameter Φ76mm
Roll Outer Diameter Φ350mm
Suitable Bottle Diameter ≤100mm
Net Weight 95.5kg
Package Size 1270 × 530 × 820mm
Gross Weight 125kg
Air Compressor Connector Size
