Parameter
Machine Model ZS-LP750 bottle unscrambler machine
Voltage 110/220V, 50–60Hz
Machine Power < 500W

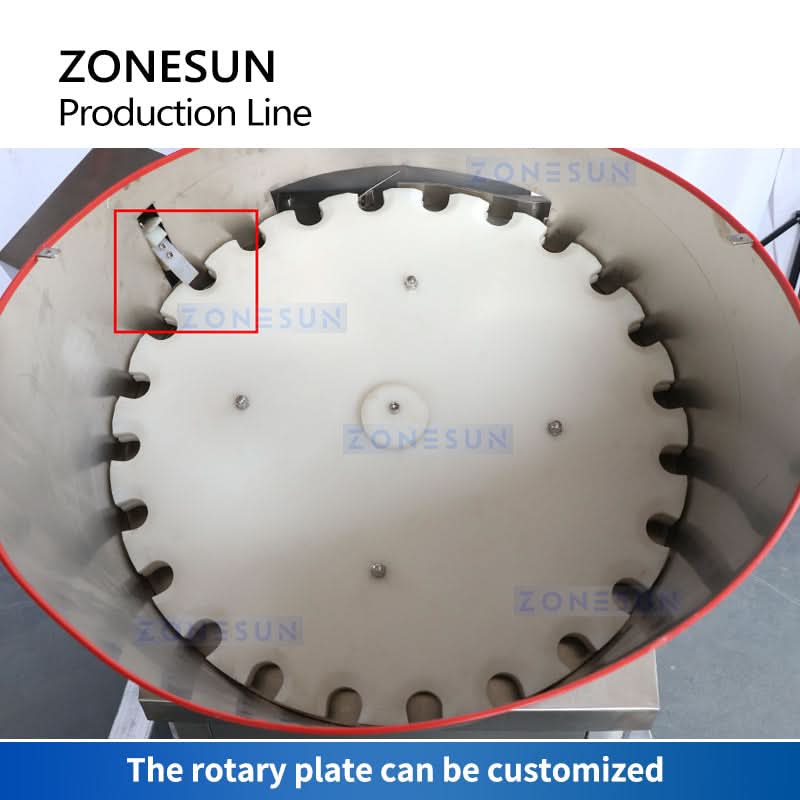

Rotary Plate Diameter 755 mm
Suitable Bottle Diameter Customized according to your bottles
Working Speed 20–80 bottles/min
Machine Size (L×W×H) Approx. 570 × 685 × 1325 mm
Machine Weight Approx. 177 kg
Package Size (L×W×H) Approx. 1110 × 1080 × 1490 mm
Package Weight Approx. 208 kg

FILLING MACHINE Details
Machine Model ZS-DTMP4AL
Power Supply 110/220V, 50–60Hz, 300W
Machine Pump Magnetic Pump
Filling Volume 3–1000 ml
Maximum Flow Velocity 6 L/min (per nozzle, based on water)
Working Speed 20–30 bottles/min (depends on bottle size & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)

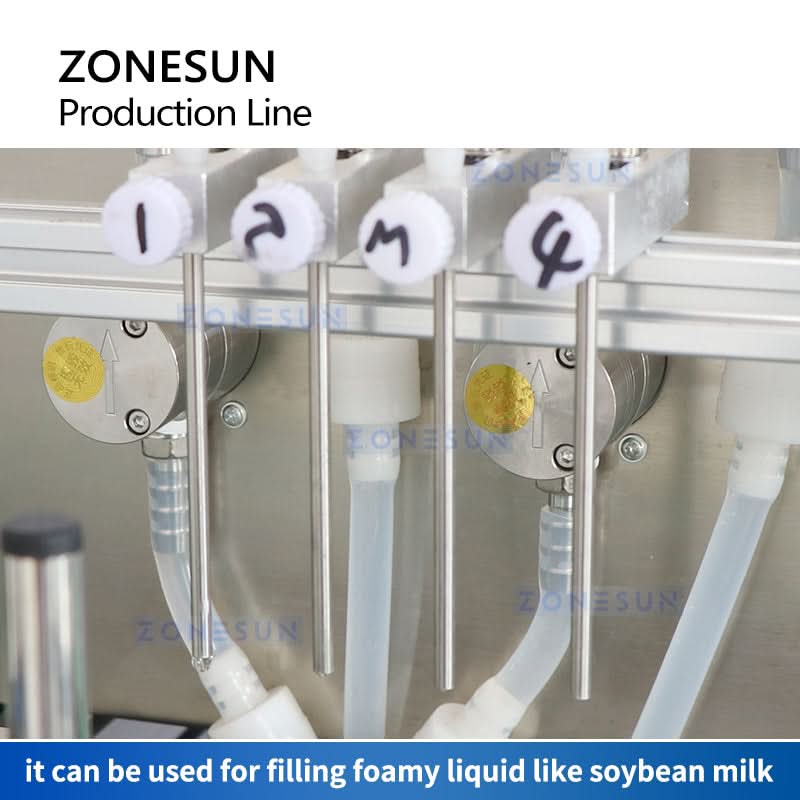

Diameter of Filling Nozzle 6/8 mm
Delay Range 0.01–999.9 s
Count Range 1–99,999 times
Air Compressor Connector Size OD 8 mm
Machine Size (L×W×H) Approx. 1115 × 650 × 1090 mm
Package Size (L×W×H) Approx. 1150 × 640 × 830 mm
Net/Gross Weight Approx. 55 kg / 84 kg

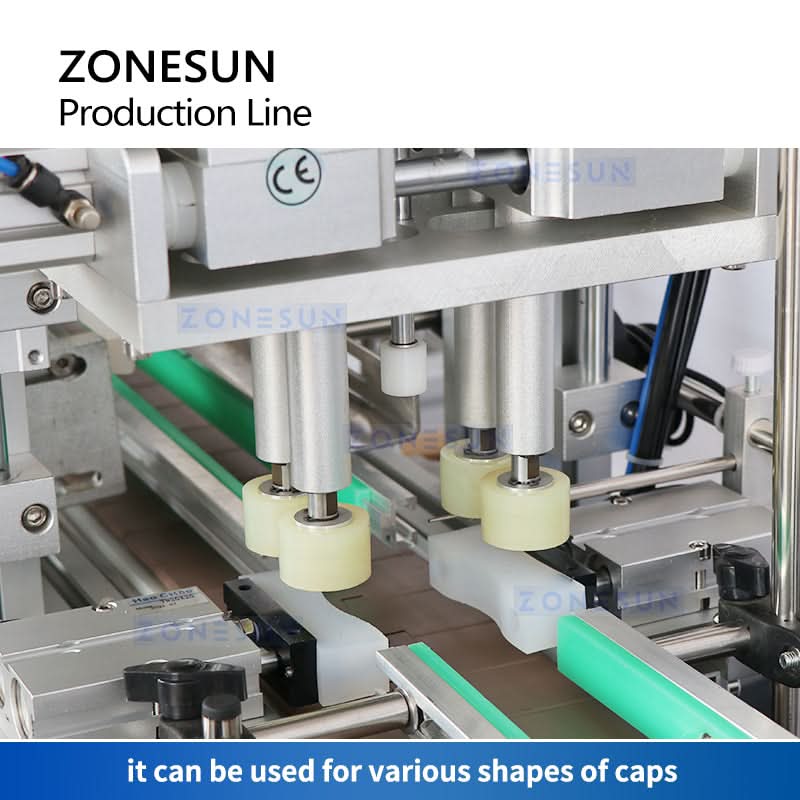

Capping Machine
Bottle Height 60–270 mm
Voltage AC 220V/110V, 50–60Hz
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle and caps)
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8 mm

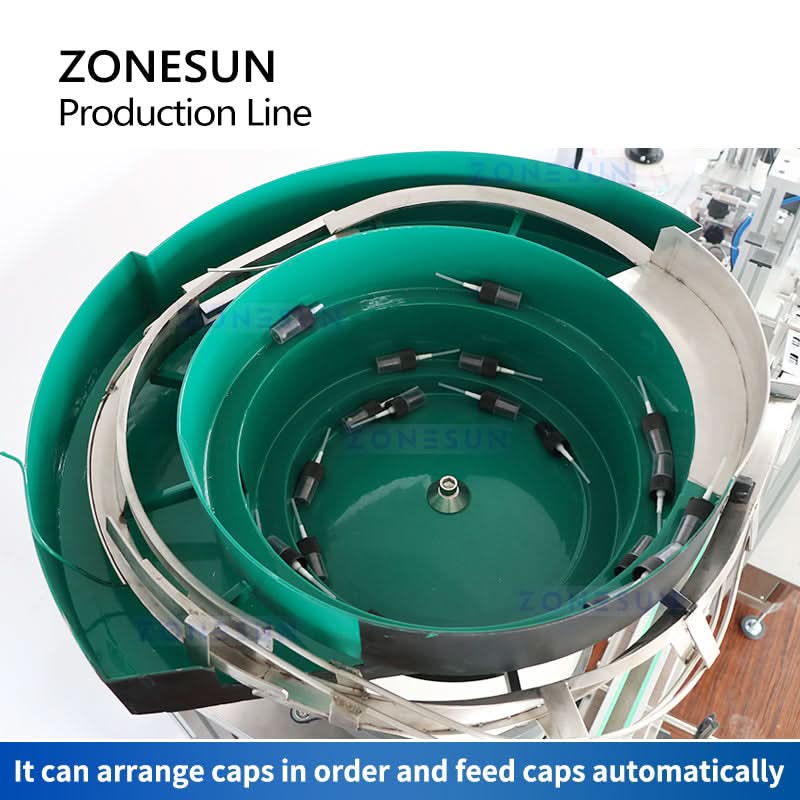

Machine Size 500 × 500 × 1300 mm (Vibratory Bowl)
2100 × 580 × 1150 mm (Capping Machine)
Package Size 1140 × 780 × 660 mm (Vibratory Bowl)
1150 × 690 × 1250 mm (Capping Machine)
Net/Gross Weight 91 kg / 125 kg (Vibratory Bowl)
87 kg / 127 kg (Capping Machine)

Machine Model ZS-TB500A Labeling machine
Voltage 110V-60Hz / 220V-50Hz
Working Speed About 20–60 bottles/min
Suitable Labeling Size 15–140 mm (W) × 25–300 mm (L)
Roll Inside Diameter φ75 mm
Roll Outside Diameter φ250 mm
Suitable Bottle Diameter About 30–100 mm
Conveyor Size About 1310 × 100 mm
Machine Size About 1240 × 680 × 890 mm
Package Size About 1390 × 690 × 910 mm
