ZONESUN ZS-FAL180D6 Automatic Liquid Bottle Packaging Line for Filling, Capping & Labeling
This automated bottling line integrates unscrambling, filling, capping, labeling, and collecting functions in one streamlined system. It’s designed to optimize packaging workflows for food, cosmetic, and daily chemical products. Compact and efficient, it significantly reduces labor costs and floor space while maintaining high productivity and adaptability across different bottle types.
Specification
Model ZS-LP600Z

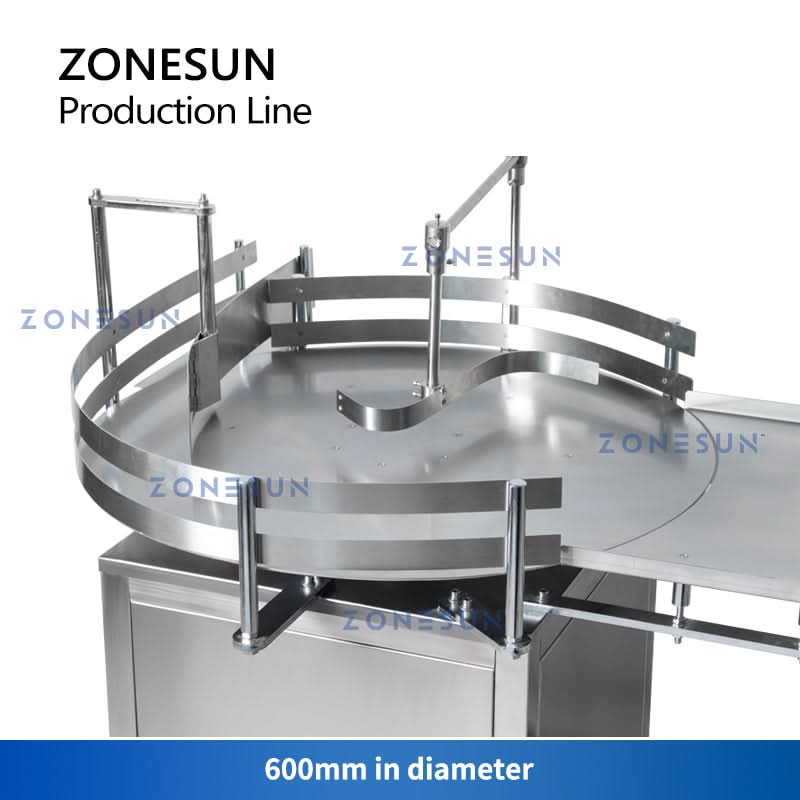

Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depending on bottle size)
Motor Power 40W
Power Supply 220V, 50–60Hz
Net Weight Approx. 27.5kg
Package Size Approx. 700×740×960mm
Gross Weight Approx. 60kg

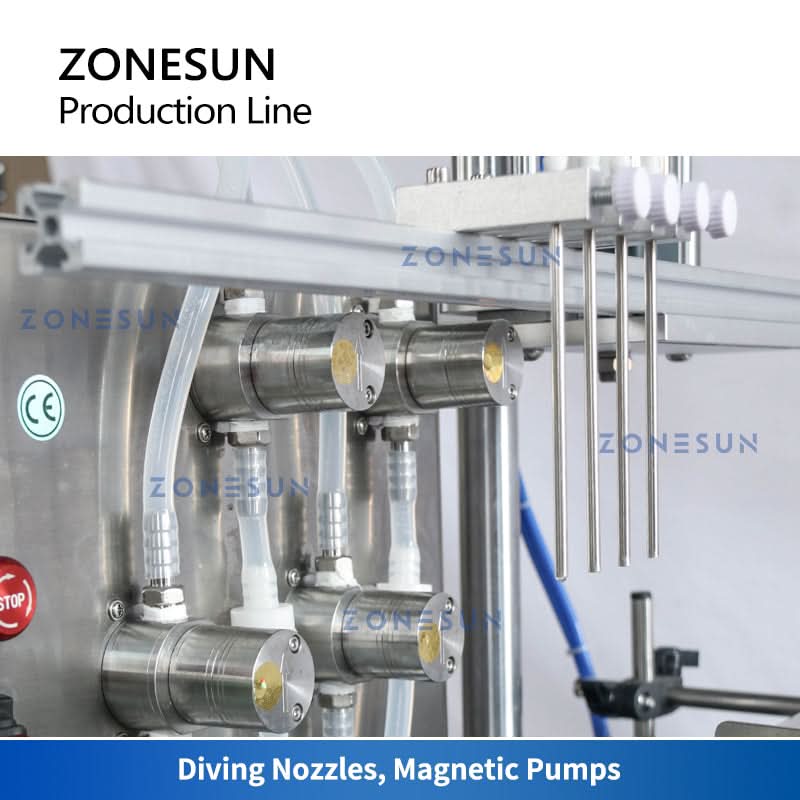

Machine Model ZS-DTMP4AL Filling Machine
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Velocity 6000ml/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD8mm
Machine Size Approx. 1100×580×1110mm
Package Size Approx. 1140×650×840mm
Net Weight / Gross Weight Approx. 74kg / 90kg
Machine Power 110/220V, 50–60Hz Vibratory Bowl Cap Sorting Machine
Material Stainless Steel
Suitable Caps Diameter Customizable
Working Speed Please specify or confirm
Machine Size Please specify or confirm
Model ZS-XG1870V Capping Machine
Bottle Height 60–270mm
Bottle Caps Diameter 18–70mm
Working Speed 20–40 bottles/min (depending on bottle & cap type)
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size Approx. 2130×1090×1040mm
Package Size Approx. 1160×610×1140mm
Package Weight Approx. 97.5kg
Conveyor Length 1117mm
Air Compressor Connector Size OD 8mm
Voltage 110V–60Hz / 220V–50Hz Labeling Machine
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1270×530×820mm
Package Weight Approx. 125kg
Model ZS-SP600Z Rotary Turntable
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 40W
Power Supply 220V, 50–60Hz
Package Size Approx. 700×740×740mm
Net Weight / Gross Weight Approx. 32.5kg / 50kg
This automated bottling line integrates unscrambling, filling, capping, labeling, and collecting functions in one streamlined system. It’s designed to optimize packaging workflows for food, cosmetic, and daily chemical products. Compact and efficient, it significantly reduces labor costs and floor space while maintaining high productivity and adaptability across different bottle types.
Specification
Model ZS-LP600Z
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depending on bottle size)
Motor Power 40W
Power Supply 220V, 50–60Hz
Net Weight Approx. 27.5kg
Package Size Approx. 700×740×960mm
Gross Weight Approx. 60kg
Machine Model ZS-DTMP4AL Filling Machine
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Velocity 6000ml/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD8mm
Machine Size Approx. 1100×580×1110mm
Package Size Approx. 1140×650×840mm
Net Weight / Gross Weight Approx. 74kg / 90kg
Machine Power 110/220V, 50–60Hz Vibratory Bowl Cap Sorting Machine
Material Stainless Steel
Suitable Caps Diameter Customizable
Working Speed Please specify or confirm
Machine Size Please specify or confirm
Model ZS-XG1870V Capping Machine
Bottle Height 60–270mm
Bottle Caps Diameter 18–70mm
Working Speed 20–40 bottles/min (depending on bottle & cap type)
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size Approx. 2130×1090×1040mm
Package Size Approx. 1160×610×1140mm
Package Weight Approx. 97.5kg
Conveyor Length 1117mm
Air Compressor Connector Size OD 8mm
Voltage 110V–60Hz / 220V–50Hz Labeling Machine
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1270×530×820mm
Package Weight Approx. 125kg
Model ZS-SP600Z Rotary Turntable
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 40W
Power Supply 220V, 50–60Hz
Package Size Approx. 700×740×740mm
Net Weight / Gross Weight Approx. 32.5kg / 50kg
Original: $14,344.00
-70%$14,344.00
$4,303.20Description
This automated bottling line integrates unscrambling, filling, capping, labeling, and collecting functions in one streamlined system. It’s designed to optimize packaging workflows for food, cosmetic, and daily chemical products. Compact and efficient, it significantly reduces labor costs and floor space while maintaining high productivity and adaptability across different bottle types.
Specification
Model ZS-LP600Z
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depending on bottle size)
Motor Power 40W
Power Supply 220V, 50–60Hz
Net Weight Approx. 27.5kg
Package Size Approx. 700×740×960mm
Gross Weight Approx. 60kg
Machine Model ZS-DTMP4AL Filling Machine
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Velocity 6000ml/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤±1% (for water)
Diameter of Filling Nozzle 6mm / 8mm
Delay Range 0.01–999.9s
Count Range 1–99999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD8mm
Machine Size Approx. 1100×580×1110mm
Package Size Approx. 1140×650×840mm
Net Weight / Gross Weight Approx. 74kg / 90kg
Machine Power 110/220V, 50–60Hz Vibratory Bowl Cap Sorting Machine
Material Stainless Steel
Suitable Caps Diameter Customizable
Working Speed Please specify or confirm
Machine Size Please specify or confirm
Model ZS-XG1870V Capping Machine
Bottle Height 60–270mm
Bottle Caps Diameter 18–70mm
Working Speed 20–40 bottles/min (depending on bottle & cap type)
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size Approx. 2130×1090×1040mm
Package Size Approx. 1160×610×1140mm
Package Weight Approx. 97.5kg
Conveyor Length 1117mm
Air Compressor Connector Size OD 8mm
Voltage 110V–60Hz / 220V–50Hz Labeling Machine
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1270×530×820mm
Package Weight Approx. 125kg
Model ZS-SP600Z Rotary Turntable
Turntable Diameter 600mm
Suitable Bottle Diameter 30–80mm
Suitable Bottle Height ≤2500mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 40W
Power Supply 220V, 50–60Hz
Package Size Approx. 700×740×740mm
Net Weight / Gross Weight Approx. 32.5kg / 50kg
