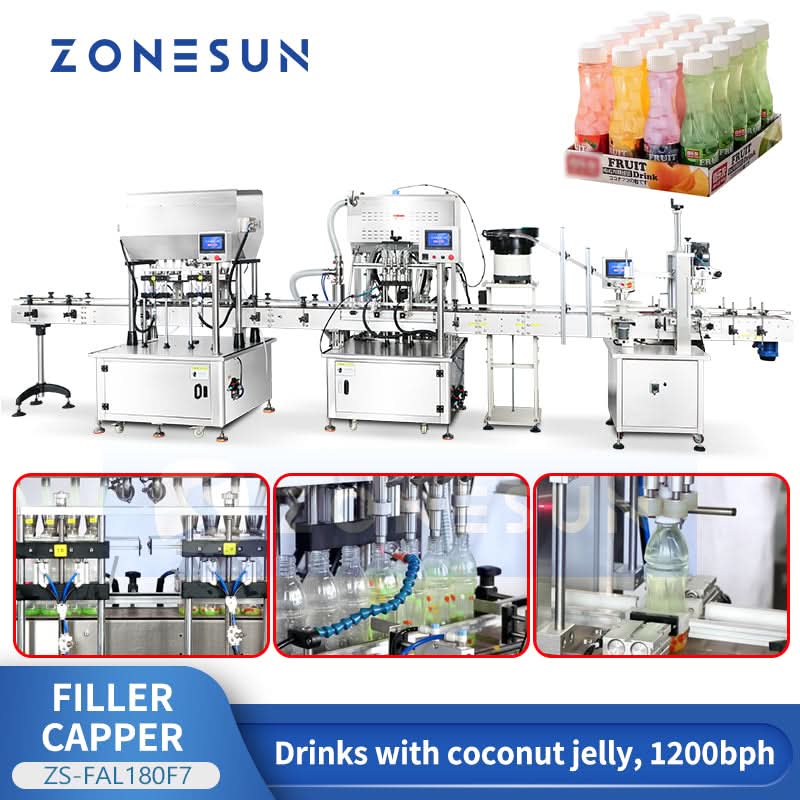

ZONESUN ZS-FAL180F7 Filling Juice with Granules Coconut Filling Production Line
This integrated packaging line is engineered for coconut jelly juice production, combining a jelly filler, piston filler, cap feeder, and screw capping system. Designed for high-speed and precise operation, it enhances productivity and ensures consistent quality across each processing stage. With user-friendly controls and hygienic construction, this solution meets the demands of food and beverage manufacturers seeking efficiency, reliability, and easy maintenance.
Parameter
Machine Model ZS-VTGT8 Coconut Jelly Filling Machine
Voltage 110/220V, 50–60Hz, 2kW
Working Speed 5–20 bottles/min
Filling Nozzle Quantity 4 × 2
Hopper Size 22.5L × 2
Package Size Approx. 1820 × 1030 × 2040mm
Package Weight Approx. 430kg
Machine Model ZS-YT4T-4PX Filling Machine
Voltage 110/220V, 50–60Hz, 1kW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed Approx. 30–50 bottles/min
Filling Pump Type Piston pump
Air Pressure 0.6–0.8MPa
Filling Accuracy ≤ ±1%
Suitable Temperature Range ≤80°C
Filling Nozzles 4 (Customizable)
Machine Size Approx. 2000 × 800 × 1800mm
Machine Weight Approx. 200kg
Packaging Size Approx. 2070 × 960 × 2010mm
Packaging Weight Approx. 392kg
Machine Model ZS-XG16V Capping Machine
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size Approx. 1930 × 740 × 1600mm
Package Size Approx. 2000 × 820 × 1760mm
Machine Weight Approx. 150kg
This integrated packaging line is engineered for coconut jelly juice production, combining a jelly filler, piston filler, cap feeder, and screw capping system. Designed for high-speed and precise operation, it enhances productivity and ensures consistent quality across each processing stage. With user-friendly controls and hygienic construction, this solution meets the demands of food and beverage manufacturers seeking efficiency, reliability, and easy maintenance.
Parameter
Machine Model ZS-VTGT8 Coconut Jelly Filling Machine
Voltage 110/220V, 50–60Hz, 2kW
Working Speed 5–20 bottles/min
Filling Nozzle Quantity 4 × 2
Hopper Size 22.5L × 2
Package Size Approx. 1820 × 1030 × 2040mm
Package Weight Approx. 430kg
Machine Model ZS-YT4T-4PX Filling Machine
Voltage 110/220V, 50–60Hz, 1kW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed Approx. 30–50 bottles/min
Filling Pump Type Piston pump
Air Pressure 0.6–0.8MPa
Filling Accuracy ≤ ±1%
Suitable Temperature Range ≤80°C
Filling Nozzles 4 (Customizable)
Machine Size Approx. 2000 × 800 × 1800mm
Machine Weight Approx. 200kg
Packaging Size Approx. 2070 × 960 × 2010mm
Packaging Weight Approx. 392kg
Machine Model ZS-XG16V Capping Machine
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size Approx. 1930 × 740 × 1600mm
Package Size Approx. 2000 × 820 × 1760mm
Machine Weight Approx. 150kg
Original: $12,999.00
-70%$12,999.00
$3,899.70Description
This integrated packaging line is engineered for coconut jelly juice production, combining a jelly filler, piston filler, cap feeder, and screw capping system. Designed for high-speed and precise operation, it enhances productivity and ensures consistent quality across each processing stage. With user-friendly controls and hygienic construction, this solution meets the demands of food and beverage manufacturers seeking efficiency, reliability, and easy maintenance.
Parameter
Machine Model ZS-VTGT8 Coconut Jelly Filling Machine
Voltage 110/220V, 50–60Hz, 2kW
Working Speed 5–20 bottles/min
Filling Nozzle Quantity 4 × 2
Hopper Size 22.5L × 2
Package Size Approx. 1820 × 1030 × 2040mm
Package Weight Approx. 430kg
Machine Model ZS-YT4T-4PX Filling Machine
Voltage 110/220V, 50–60Hz, 1kW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed Approx. 30–50 bottles/min
Filling Pump Type Piston pump
Air Pressure 0.6–0.8MPa
Filling Accuracy ≤ ±1%
Suitable Temperature Range ≤80°C
Filling Nozzles 4 (Customizable)
Machine Size Approx. 2000 × 800 × 1800mm
Machine Weight Approx. 200kg
Packaging Size Approx. 2070 × 960 × 2010mm
Packaging Weight Approx. 392kg
Machine Model ZS-XG16V Capping Machine
Bottle Height 30–300mm
Cap Diameter 18–70mm
Bottle Diameter 20–160mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC220V / 110V, 50–60Hz
Working Pressure 0.4–0.6MPa
Machine Size Approx. 1930 × 740 × 1600mm
Package Size Approx. 2000 × 820 × 1760mm
Machine Weight Approx. 150kg
