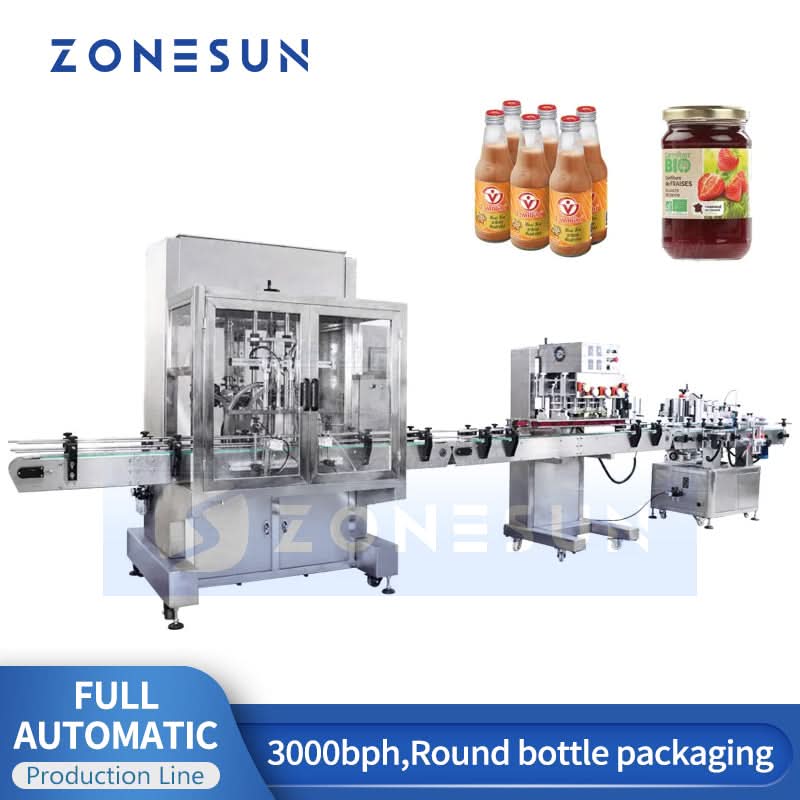

ZONESUN ZS-FAL180P8 4 Heads Servo Liquid Round Bottle Production Line
Description

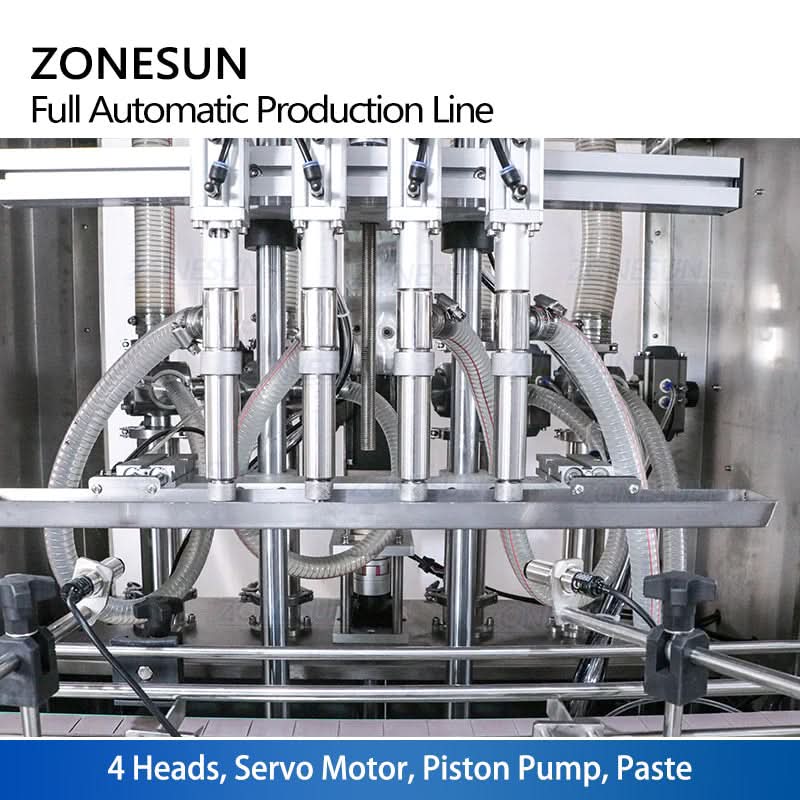

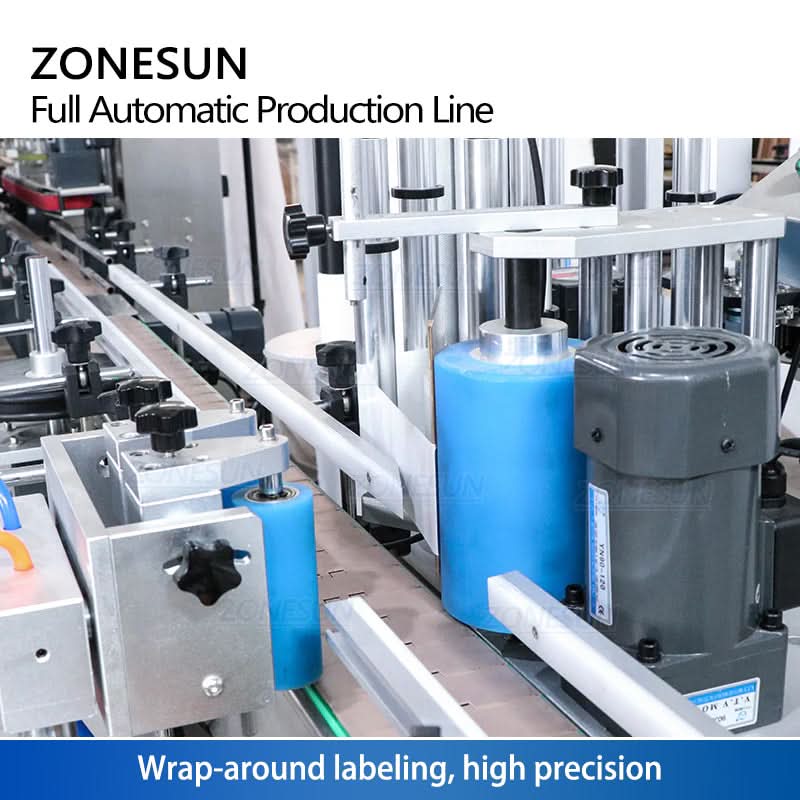

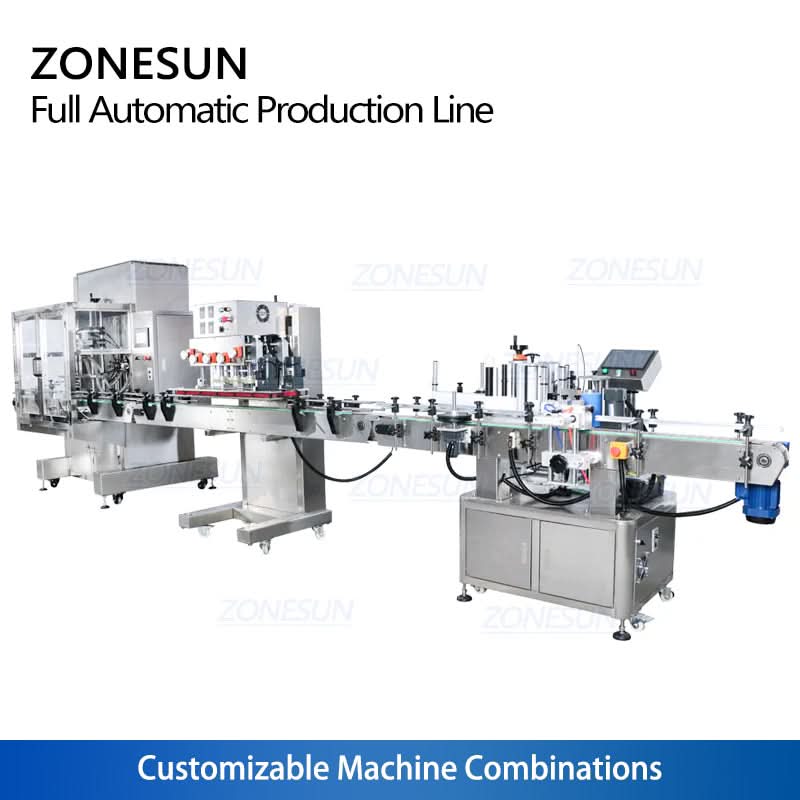

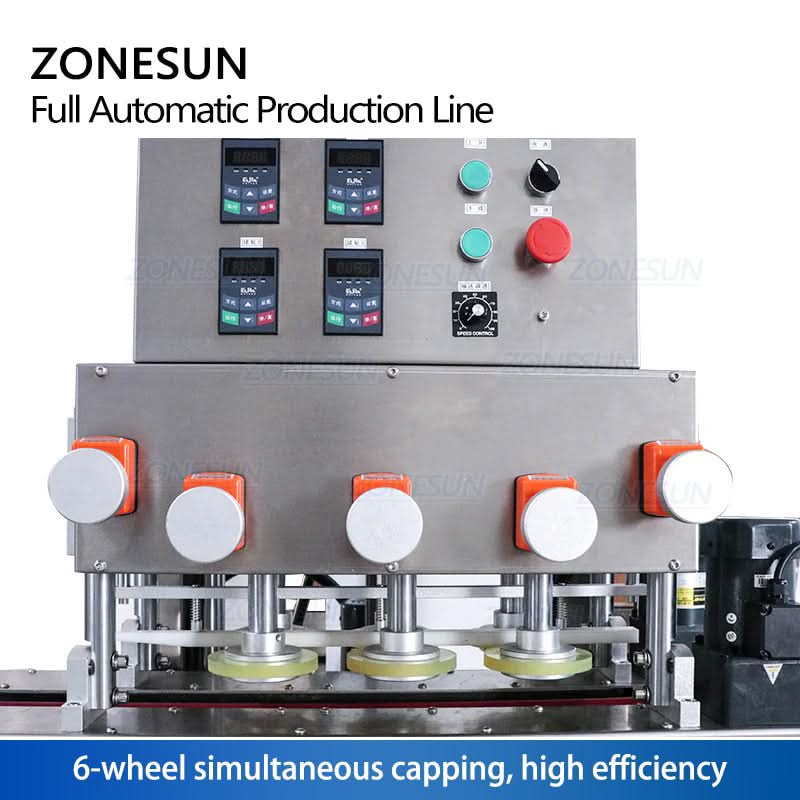

This full automatic production line consists of servo filling machine, capping machine and round bottle labeling machine. It can be used for filling liquid and paste like milk, oil, shampoo, cream, etc. Operator can fill bottles by setting filling volume directly, no need to set filling time. Save labor cost and improve work efficiency.
Notice
1. The machine can be customized as needed. If you need, please contact us. Thank you!
2. This production line is shipped by sea. If you want a faster shipping, please contact us!
Specification
Machine Model ZS-SV4G
Voltage 110V-60Hz / 220V-50Hz
Power 1500W
Air Consumption 0.4–0.6MPa
Filling Accuracy ±1%
Working Speed 20–50 bottles/min (depends on material)
Filling Nozzle Size φ10mm
Air Compressor Interface φ10mm
Filling Range 10–100ML / 30–300ML / 50–500ML / 100–1000ML / 500–3000ML / 1000–5000ML
Machine Dimensions Approx. 2500×1370×2070mm
Packing Dimensions Approx. 2105×1450×2300mm
Net Weight / Gross Weight Approx. 549.5kg / 650.5kg
Description
This full automatic production line consists of servo filling machine, capping machine and round bottle labeling machine. It can be used for filling liquid and paste like milk, oil, shampoo, cream, etc. Operator can fill bottles by setting filling volume directly, no need to set filling time. Save labor cost and improve work efficiency.
Notice
1. The machine can be customized as needed. If you need, please contact us. Thank you!
2. This production line is shipped by sea. If you want a faster shipping, please contact us!
Specification
Machine Model ZS-SV4G
Voltage 110V-60Hz / 220V-50Hz
Power 1500W
Air Consumption 0.4–0.6MPa
Filling Accuracy ±1%
Working Speed 20–50 bottles/min (depends on material)
Filling Nozzle Size φ10mm
Air Compressor Interface φ10mm
Filling Range 10–100ML / 30–300ML / 50–500ML / 100–1000ML / 500–3000ML / 1000–5000ML
Machine Dimensions Approx. 2500×1370×2070mm
Packing Dimensions Approx. 2105×1450×2300mm
Net Weight / Gross Weight Approx. 549.5kg / 650.5kg
Original: $23,769.00
-70%$23,769.00
$7,130.70Description
Description
This full automatic production line consists of servo filling machine, capping machine and round bottle labeling machine. It can be used for filling liquid and paste like milk, oil, shampoo, cream, etc. Operator can fill bottles by setting filling volume directly, no need to set filling time. Save labor cost and improve work efficiency.
Notice
1. The machine can be customized as needed. If you need, please contact us. Thank you!
2. This production line is shipped by sea. If you want a faster shipping, please contact us!
Specification
Machine Model ZS-SV4G
Voltage 110V-60Hz / 220V-50Hz
Power 1500W
Air Consumption 0.4–0.6MPa
Filling Accuracy ±1%
Working Speed 20–50 bottles/min (depends on material)
Filling Nozzle Size φ10mm
Air Compressor Interface φ10mm
Filling Range 10–100ML / 30–300ML / 50–500ML / 100–1000ML / 500–3000ML / 1000–5000ML
Machine Dimensions Approx. 2500×1370×2070mm
Packing Dimensions Approx. 2105×1450×2300mm
Net Weight / Gross Weight Approx. 549.5kg / 650.5kg
