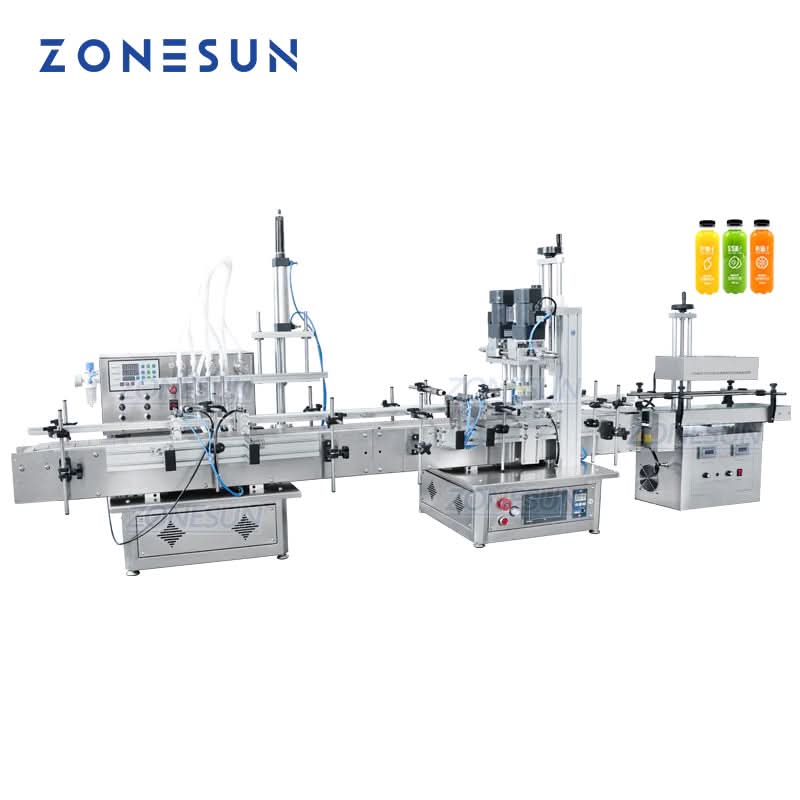

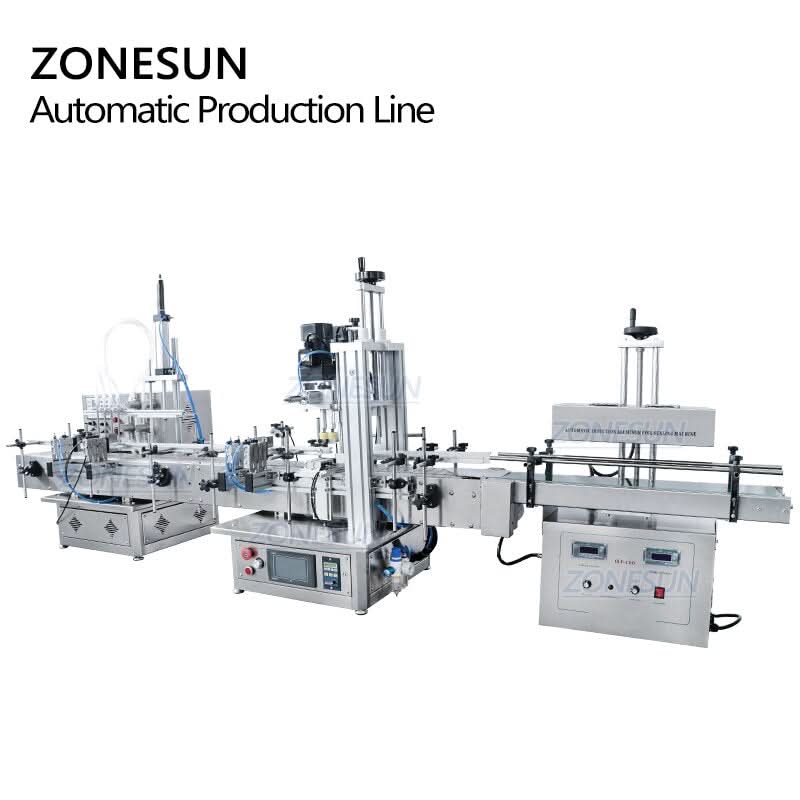

ZONESUN ZS-FAL180S Tabletop Bottle Filling Capping Sealing Machine Line

Product image 1
1 / 6
+1

ZONESUN ZS-FAL180S Tabletop Bottle Filling Capping Sealing Machine Line

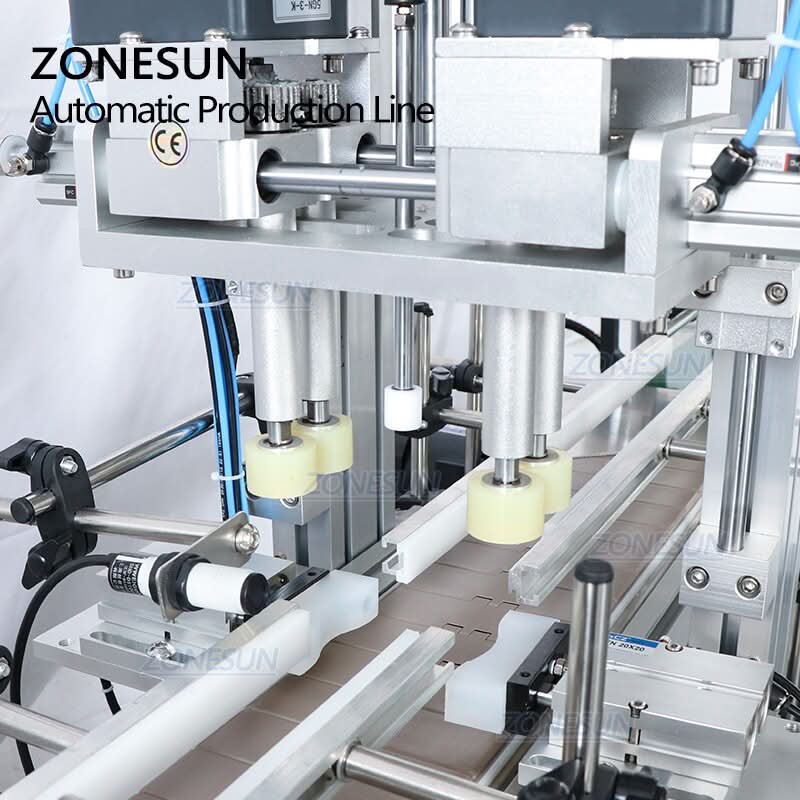

The ZS-FAL180S is a compact tabletop production line designed for filling, capping, and sealing bottles with foamy or low-viscosity liquids. Featuring four diving nozzles and magnetic pumps, it ensures clean and accurate filling. The intelligent capping unit handles caps of all shapes, while the induction sealing system securely seals aluminum foil lids. Ideal for essential oils, milk, juice, or ink, it supports fast, automated operation with electric eye detection, reducing labor and maximizing efficiency in pharmaceutical, cosmetic, and beverage industries.

Specification Details
Machine Model ZS-DTMP4AL Filling Machine
Power Supply 110/220V 50–60Hz, 300W
Max. Flow Velocity 5500 ml/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 sec
Count Range 1 – 99,999 times
Filling Volume 3 – 1000 ml
Air Compressor Connector Size OD 8 mm
Suitable Bottle Height < 220 mm (customizable up to 300 mm)
Machine Size Approx. 1110 × 580 × 1110 mm
Package Size Approx. 1150 × 610 × 1120 mm
Net Weight / Gross Weight Approx. 50 kg / 83 kg

Capping Machine
Bottle Height 60–270 mm
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & caps)
Working Voltage AC 220V/110V 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size OD 8 mm
Machine Size Approx. 1110 × 580 × 1070 mm
Package Size Approx. 1150 × 610 × 800 mm
Net Weight / Gross Weight Approx. 67 kg / 97 kg

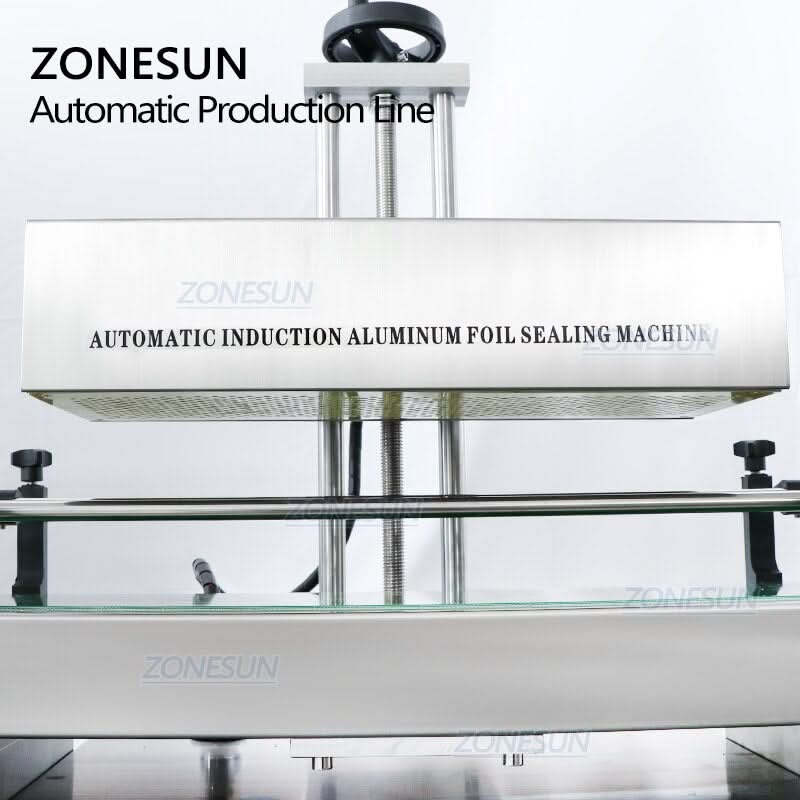

Machine Model ZS-FK1300 induction sealing machine
Voltage AC 220V/110V 50–60Hz
Max Power 1300W
Sealing Diameter φ10–70 mm
Suitable Bottle Height 20–300 mm
Suitable Bottle Diameter ≤ 150 mm
Max Sealing Speed 2400 bottles/hour (depends on bottle size and material)
Conveyor Size 150 mm (W) × 760 mm (L)
Cooling Method Air cooling
Machine Material Stainless steel
Machine Size Approx. 790 × 330 × 860 mm
Package Size Approx. 900 × 410 × 510 mm
Net Weight / Gross Weight Approx. 27 kg / 30 kg

ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer




ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer



The ZS-FAL180S is a compact tabletop production line designed for filling, capping, and sealing bottles with foamy or low-viscosity liquids. Featuring four diving nozzles and magnetic pumps, it ensures clean and accurate filling. The intelligent capping unit handles caps of all shapes, while the induction sealing system securely seals aluminum foil lids. Ideal for essential oils, milk, juice, or ink, it supports fast, automated operation with electric eye detection, reducing labor and maximizing efficiency in pharmaceutical, cosmetic, and beverage industries.

Specification Details
Machine Model ZS-DTMP4AL Filling Machine
Power Supply 110/220V 50–60Hz, 300W
Max. Flow Velocity 5500 ml/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 sec
Count Range 1 – 99,999 times
Filling Volume 3 – 1000 ml
Air Compressor Connector Size OD 8 mm
Suitable Bottle Height < 220 mm (customizable up to 300 mm)
Machine Size Approx. 1110 × 580 × 1110 mm
Package Size Approx. 1150 × 610 × 1120 mm
Net Weight / Gross Weight Approx. 50 kg / 83 kg

Capping Machine
Bottle Height 60–270 mm
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & caps)
Working Voltage AC 220V/110V 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size OD 8 mm
Machine Size Approx. 1110 × 580 × 1070 mm
Package Size Approx. 1150 × 610 × 800 mm
Net Weight / Gross Weight Approx. 67 kg / 97 kg

Machine Model ZS-FK1300 induction sealing machine
Voltage AC 220V/110V 50–60Hz
Max Power 1300W
Sealing Diameter φ10–70 mm
Suitable Bottle Height 20–300 mm
Suitable Bottle Diameter ≤ 150 mm
Max Sealing Speed 2400 bottles/hour (depends on bottle size and material)
Conveyor Size 150 mm (W) × 760 mm (L)
Cooling Method Air cooling
Machine Material Stainless steel
Machine Size Approx. 790 × 330 × 860 mm
Package Size Approx. 900 × 410 × 510 mm
Net Weight / Gross Weight Approx. 27 kg / 30 kg

ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical SealerZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer




ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer ZONESUN ZS-FAL180S Tabletop Automatic 4 Diving Heads Essential Oil Liquid Bottle Filling Capping Machine with Medical Sealer



Select 尺寸
From $1,999.80

Original: $6,666.00

-70%
ZONESUN ZS-FAL180S Tabletop Bottle Filling Capping Sealing Machine Line—

$6,666.00

$1,999.80

Description

The ZS-FAL180S is a compact tabletop production line designed for filling, capping, and sealing bottles with foamy or low-viscosity liquids. Featuring four diving nozzles and magnetic pumps, it ensures clean and accurate filling. The intelligent capping unit handles caps of all shapes, while the induction sealing system securely seals aluminum foil lids. Ideal for essential oils, milk, juice, or ink, it supports fast, automated operation with electric eye detection, reducing labor and maximizing efficiency in pharmaceutical, cosmetic, and beverage industries.

Specification Details
Machine Model ZS-DTMP4AL Filling Machine
Power Supply 110/220V 50–60Hz, 300W
Max. Flow Velocity 5500 ml/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 sec
Count Range 1 – 99,999 times
Filling Volume 3 – 1000 ml
Air Compressor Connector Size OD 8 mm
Suitable Bottle Height < 220 mm (customizable up to 300 mm)
Machine Size Approx. 1110 × 580 × 1110 mm
Package Size Approx. 1150 × 610 × 1120 mm
Net Weight / Gross Weight Approx. 50 kg / 83 kg

Capping Machine
Bottle Height 60–270 mm
Bottle Caps Diameter 18–70 mm
Working Speed 20–40 bottles/min (depends on bottle & caps)
Working Voltage AC 220V/110V 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size OD 8 mm
Machine Size Approx. 1110 × 580 × 1070 mm
Package Size Approx. 1150 × 610 × 800 mm
Net Weight / Gross Weight Approx. 67 kg / 97 kg

Machine Model ZS-FK1300 induction sealing machine
Voltage AC 220V/110V 50–60Hz
Max Power 1300W
Sealing Diameter φ10–70 mm
Suitable Bottle Height 20–300 mm
Suitable Bottle Diameter ≤ 150 mm
Max Sealing Speed 2400 bottles/hour (depends on bottle size and material)
Conveyor Size 150 mm (W) × 760 mm (L)
Cooling Method Air cooling
Machine Material Stainless steel
Machine Size Approx. 790 × 330 × 860 mm
Package Size Approx. 900 × 410 × 510 mm
Net Weight / Gross Weight Approx. 27 kg / 30 kg
