Zonesun ZS-FAL180V3 Inner Plug Outer Cover Filling Capping Labeling Bottling Line
DESCRIPTION
Streamline your ceramic coating production with our integrated packaging line. This system combines filling, capping, labeling, and bottle collecting into one efficient process. Designed for the automotive industry, it achieves a throughput of up to 2700 bottles per hour (BPH). The line includes a precision filling and capping monoblock, a high-speed labeler, and an automated bottle collecting system, ensuring consistent quality and maximum output.
PARAMETER
Machine model: ZS-AFC43
Working voltage: 110/220V 50-60HZ 3 KW

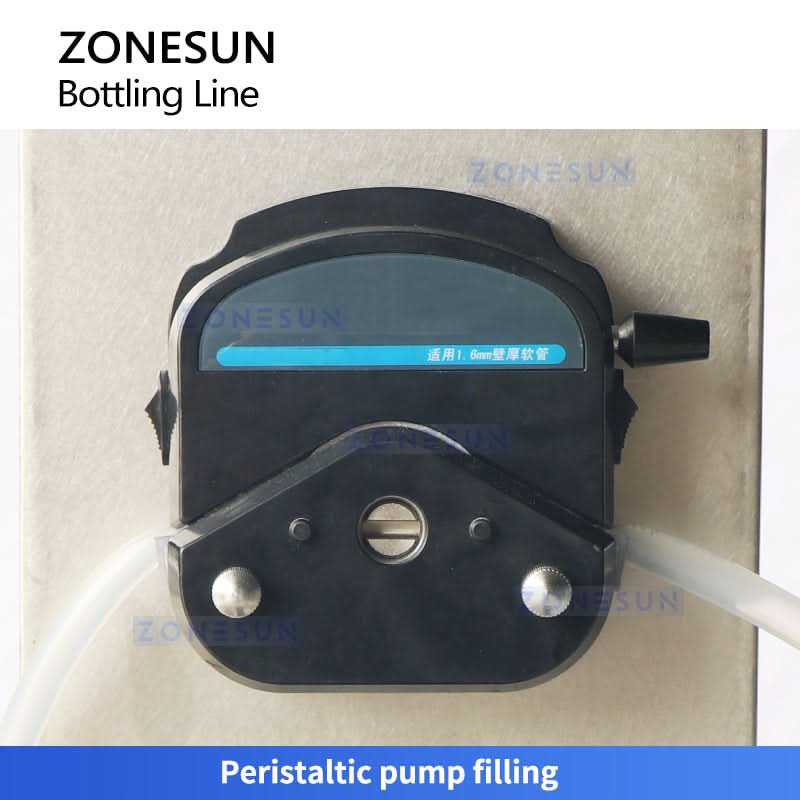

Filling pump: Peristaltic pump
Working capacity: 30-45 BPM(based on filling range)
Filling accuracy: ±1%
Suitable bottle size: Customizable
Suitable cap size: Customizable
Machine size: 2200*1630*1430 mm(Main Machine) 605*455*1040 mm(Vibratory Bowl Sorter For Stopper) 605*455*1070 mm(Vibratory Bowl Sorter For Caps)
Total Machine weight: ≤600 kg
LABELING MACHINE
Model: ZS-TB260R
Power supply: AC220V 50Hz/60Hz 1000W
Labeling capacity(bottles/min): 25-50 bottles/min(depends on bottle size)
Labeling accuracy(mm): ±1.0mm
Suitable bottle Diameter: Φ12-100mm
Label size(mm): (L)20-300mm (H)15-150mm(Can be customized)
Roll inside diameter(mm): Φ76mm
Roll outside diameter(mm): Φ350mm
Conveyor size: 112*2000mm(W)
Machine size: About (L)2000*(W)820(H)1380(mm)
Machine weight: About 180kg
Packing size: About (L)2100(W)890*(H)1520(mm)
Package weight: About 250kg
Bottle Turntable
Bottle Specifications: Square bottle/round bottle
Conveying Speed: 0-20 revolutions per minute(adjustable)
Voltage: 220V 50Hz (110V can be customized)
Power: 200W
Turntable Diameter: 800 mm Available
Machine Size: ABout 550×550×990mm
Package Size: About 1050×1000×1130mm
Net Weight/Gross Weight: About 93kg/120kg
Make bottles be in order before filling & capping work, saves working space.
Liquid only pass through filling hose, improves packaging quality.

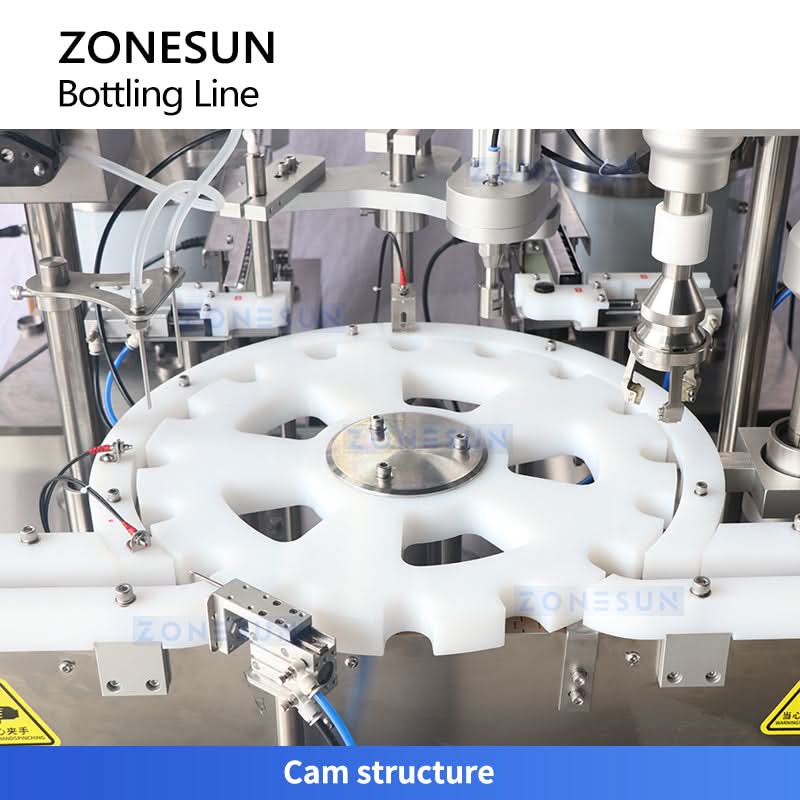

Use cam system to control filling & capping work, each working station can work at the same time to improve efficiency(35-40BPM).

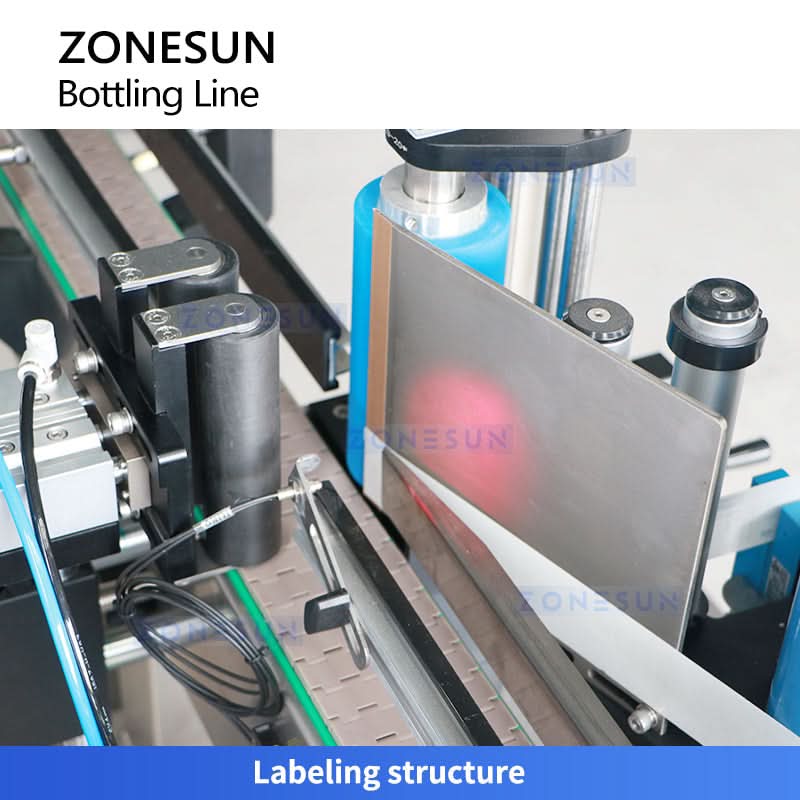

Using three roller labeling structure, this suits single side, double sides and wrap-around labeling.
Width and length are customizable based on product size, it ensures smooth conveying.
Can collect finished products and makes it easier to move to next production process.
