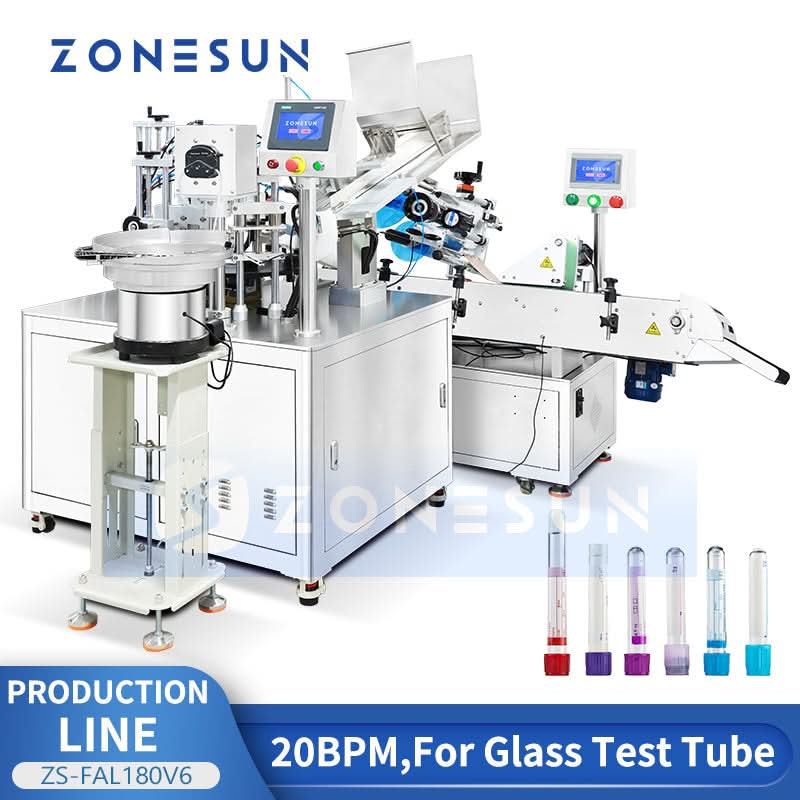

Zonesun ZS-FAL180V6 Automatic Glass Test Tube Packaging Machine
The ZONESUN ZS-FAL180V6 is a versatile monoblock machine designed to streamline your production process. It integrates bottle alignment, filling, capping, Labeling and torque adjustment into a single compact unit, suitable for glass test tube.
PARAMETER
Model: ZS-FAL180V6
Voltage: 110V/220V 50-60Hz
Machine Pump: Peristaltic pump
Bottle Diameter: Customized
Filling range: 10-30ml (Customizable)
Working Speed: 20 bottles/min(depends on liquid and tube size)
Machine size: About 2200*1200*1700mm(LWH) filler & capper 2400*850*1600mm (LWH) labeler
Package size: About 2430*1430*1920mm filler and capper 2500*900*1760mm labeler
Package weight: About 785kg filler and capper / 270kg labeler

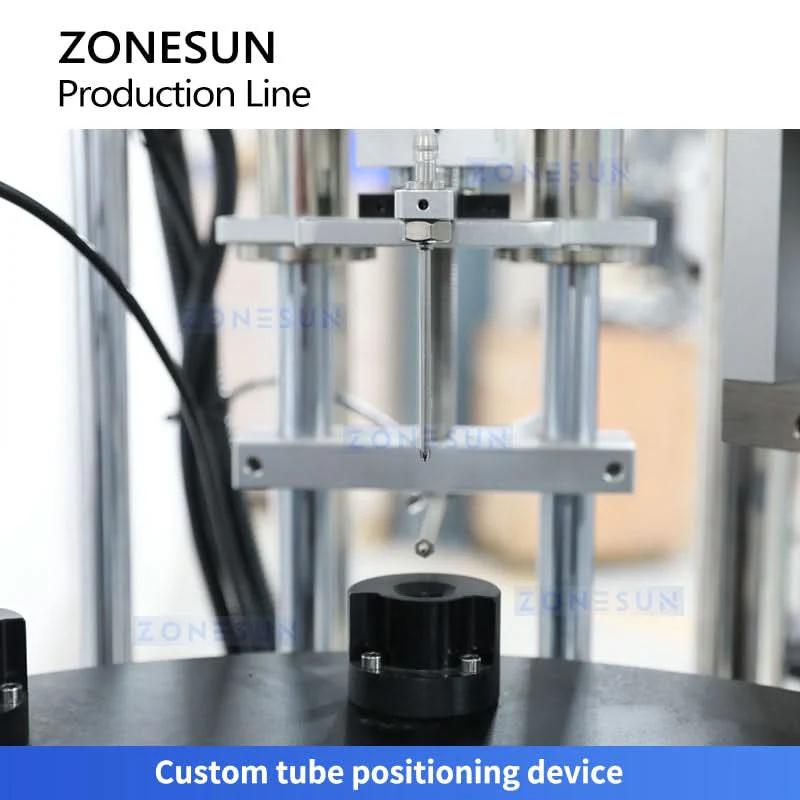

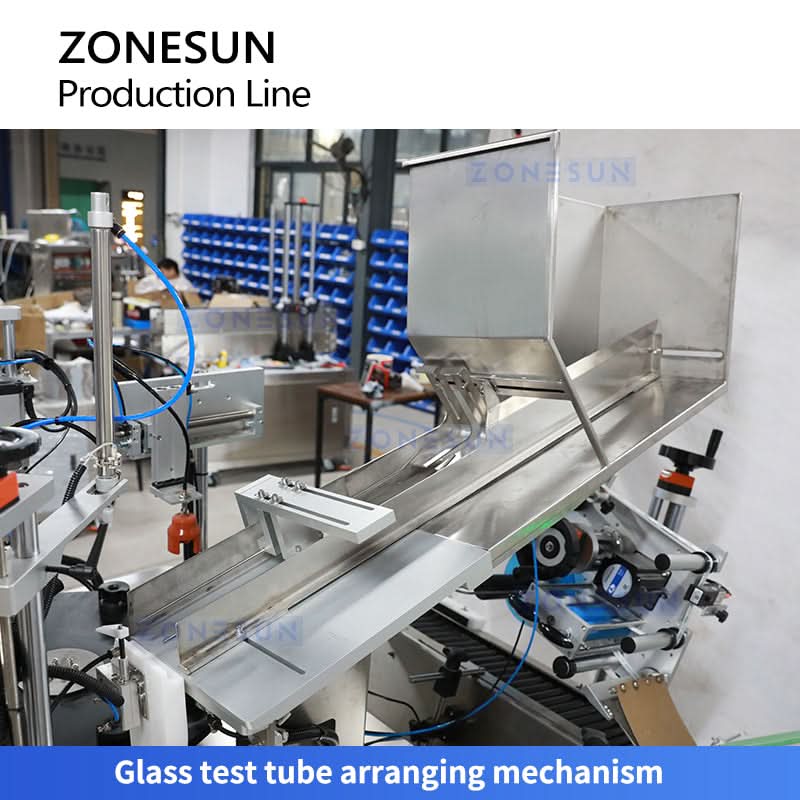

The machine is equipped with a specialized sorting unit for accurate glass tube insertion into positioning slots.
Peristaltic pump filling is utilized, with liquid passing only through tubing for easy cleaning.

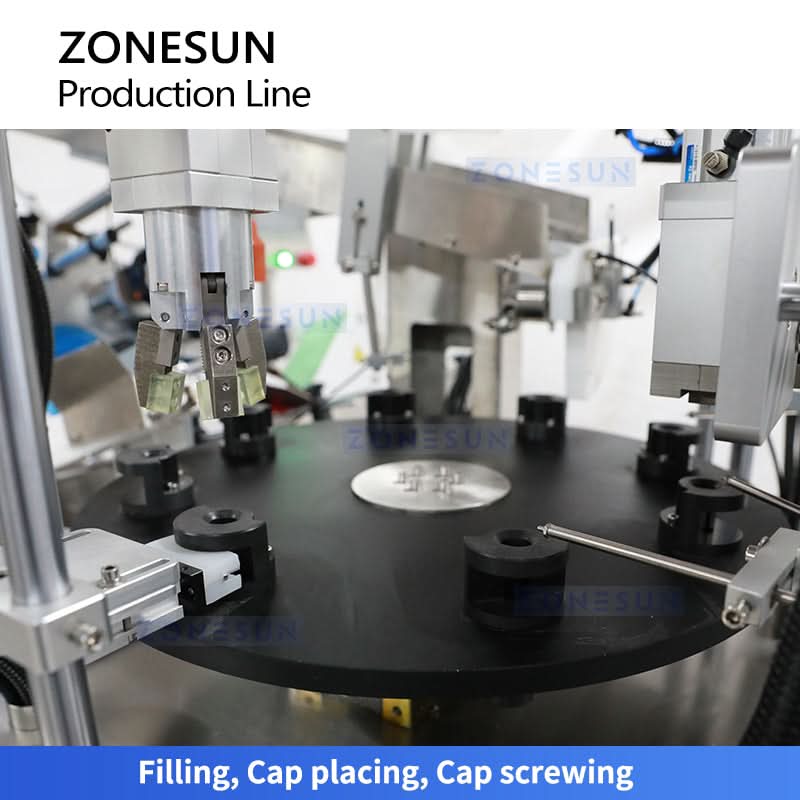

The star wheel turntable integrates filling, capping, and sealing stations, significantly improving production efficiency.
A claw-type structure ensures precise bottle gripping and smooth discharge.
With an intelligent electronic eye, it can detect accurately and label the tubes.
The rotor for labeling can be adjusted by the speed controller.
The ZONESUN ZS-FAL180V6 is a versatile monoblock machine designed to streamline your production process. It integrates bottle alignment, filling, capping, Labeling and torque adjustment into a single compact unit, suitable for glass test tube.
PARAMETER
Model: ZS-FAL180V6
Voltage: 110V/220V 50-60Hz
Machine Pump: Peristaltic pump
Bottle Diameter: Customized
Filling range: 10-30ml (Customizable)
Working Speed: 20 bottles/min(depends on liquid and tube size)
Machine size: About 2200*1200*1700mm(LWH) filler & capper 2400*850*1600mm (LWH) labeler
Package size: About 2430*1430*1920mm filler and capper 2500*900*1760mm labeler
Package weight: About 785kg filler and capper / 270kg labeler
The machine is equipped with a specialized sorting unit for accurate glass tube insertion into positioning slots.
Peristaltic pump filling is utilized, with liquid passing only through tubing for easy cleaning.
The star wheel turntable integrates filling, capping, and sealing stations, significantly improving production efficiency.
A claw-type structure ensures precise bottle gripping and smooth discharge.
With an intelligent electronic eye, it can detect accurately and label the tubes.
The rotor for labeling can be adjusted by the speed controller.
Original: $18,500.00
-70%$18,500.00
$5,550.00Description
The ZONESUN ZS-FAL180V6 is a versatile monoblock machine designed to streamline your production process. It integrates bottle alignment, filling, capping, Labeling and torque adjustment into a single compact unit, suitable for glass test tube.
PARAMETER
Model: ZS-FAL180V6
Voltage: 110V/220V 50-60Hz
Machine Pump: Peristaltic pump
Bottle Diameter: Customized
Filling range: 10-30ml (Customizable)
Working Speed: 20 bottles/min(depends on liquid and tube size)
Machine size: About 2200*1200*1700mm(LWH) filler & capper 2400*850*1600mm (LWH) labeler
Package size: About 2430*1430*1920mm filler and capper 2500*900*1760mm labeler
Package weight: About 785kg filler and capper / 270kg labeler
The machine is equipped with a specialized sorting unit for accurate glass tube insertion into positioning slots.
Peristaltic pump filling is utilized, with liquid passing only through tubing for easy cleaning.
The star wheel turntable integrates filling, capping, and sealing stations, significantly improving production efficiency.
A claw-type structure ensures precise bottle gripping and smooth discharge.
With an intelligent electronic eye, it can detect accurately and label the tubes.
The rotor for labeling can be adjusted by the speed controller.
