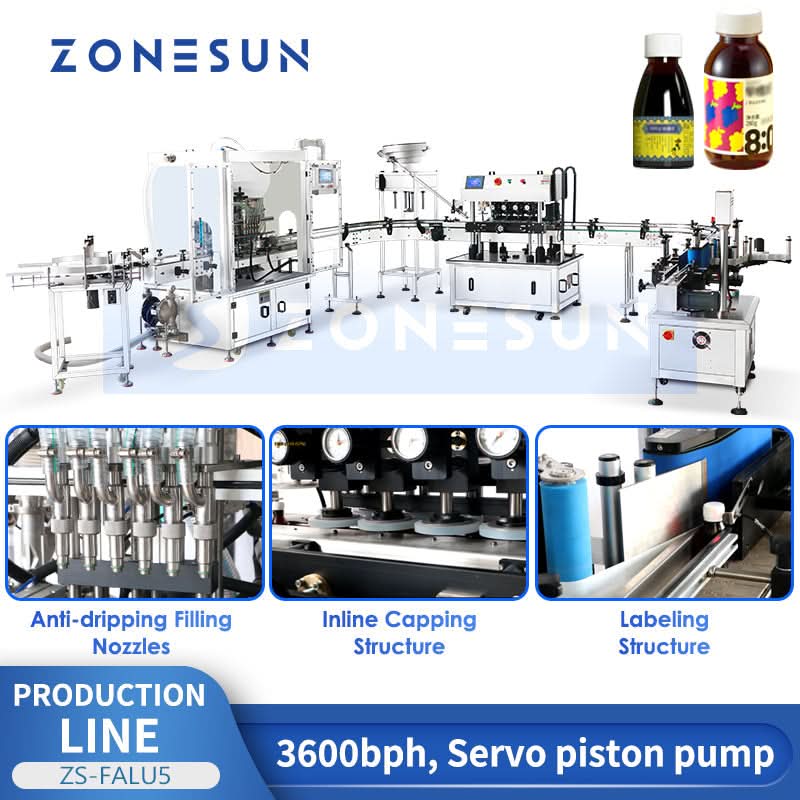

Zonesun ZS-FALU5 Automatic Syrup Bottling Line Honey Production Line

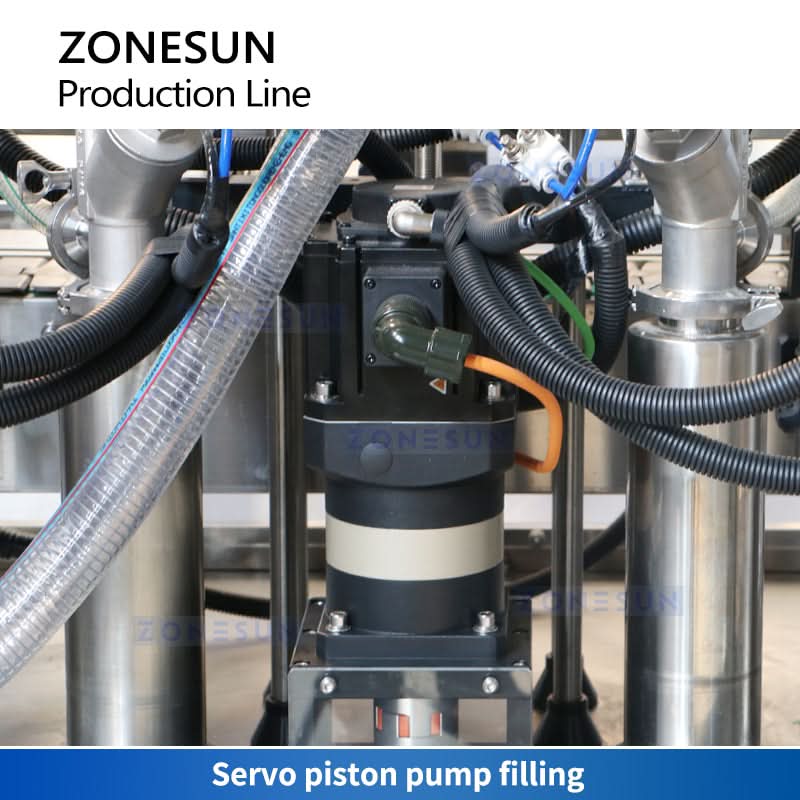

Revolutionize your honey syrup production with this fully automatic 6-head servo-controlled piston pump filling, capping, and labeling production line. Engineered for precision and efficiency, this system handles the entire packaging process from filling individual containers to applying tamper-evident labels. The servo-controlled piston pumps ensure consistent and accurate filling volumes, minimizing waste and maximizing output. Built for durability and easy maintenance, this line significantly increases production capacity and reduces labor costs, making it an ideal investment for honey producers of all sizes seeking to streamline their operations and enhance product quality. Increase your efficiency and profitability today!
Parameter
Filling Machine
Machine Model ZS-YT6T-6PXD
Voltage 110/220V, 50–60Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 50–500 ml (customizable)
Filling Speed Approx. 20–70 bottles/min (depending on material and bottle size)
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Memory Function Available
Machine Size (L × H × W) Approx. 2630 × 1000 × 2025 mm
Package Size (L × H × W) Approx. 1870 × 1030 × 2070 mm
Machine Weight Approx. 540 kg
Machine Model ZS-YT6T-6PXD
Voltage 110/220V, 50–60Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 50–500 ml (customizable)
Filling Speed Approx. 20–70 bottles/min (depending on material and bottle size)
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Memory Function Available
Machine Size (L × H × W) Approx. 2630 × 1000 × 2025 mm
Package Size (L × H × W) Approx. 1870 × 1030 × 2070 mm
Machine Weight Approx. 540 kg

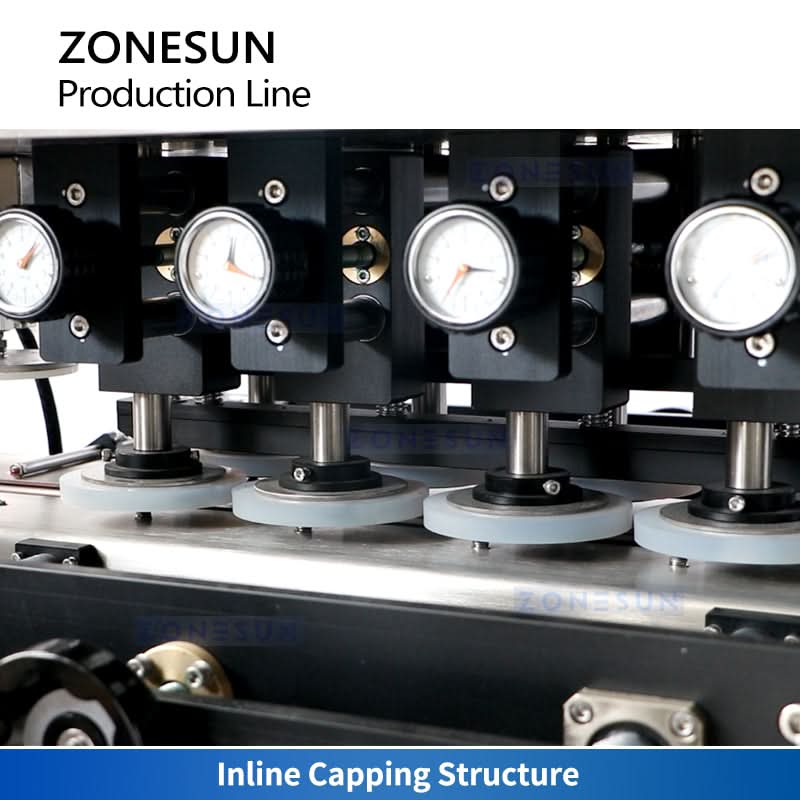

Capping Machine
Machine Model ZS-XG440B
Voltage 220V / 110V, 50–60Hz
Power 2 kW
Production Capacity 2000–5000 BPH (depends on bottle and cap size)
Suitable Cap Size Customized
Suitable Bottle Diameter 35–120 mm (customizable)
Suitable Bottle Height 60–200 mm (customizable)
Machine Size Approx. 2500 × 967 × 1686 mm (Main Machine) + 635 × 694 × 1976 mm (Bowl Sorter)
Package Size Approx. 2060 × 1070 × 1920 mm (Main Machine) + 1950 × 730 × 720 mm (Bowl Sorter)
Machine Weight Approx. 614 kg (Main Machine) + 165 kg (Bowl Sorter)
Voltage 220V / 110V, 50–60Hz
Power 2 kW
Production Capacity 2000–5000 BPH (depends on bottle and cap size)
Suitable Cap Size Customized
Suitable Bottle Diameter 35–120 mm (customizable)
Suitable Bottle Height 60–200 mm (customizable)
Machine Size Approx. 2500 × 967 × 1686 mm (Main Machine) + 635 × 694 × 1976 mm (Bowl Sorter)
Package Size Approx. 2060 × 1070 × 1920 mm (Main Machine) + 1950 × 730 × 720 mm (Bowl Sorter)
Machine Weight Approx. 614 kg (Main Machine) + 165 kg (Bowl Sorter)
Labeling Machine
Machine Model ZS-TB200R
Voltage 220V / 110V, 50–60Hz
Power 1200 W
Labeling Speed Approx. 40–150 bottles/min (depends on bottle and label size)
Suitable Bottle Diameter 30–100 mm
Suitable Bottle Height 30–200 mm
Label Size 15–130 mm (W) × 15–300 mm (L)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Machine Size (L × W × H) Approx. 2005 × 860 × 1355 mm
Machine Weight Approx. 200 kg
Voltage 220V / 110V, 50–60Hz
Power 1200 W
Labeling Speed Approx. 40–150 bottles/min (depends on bottle and label size)
Suitable Bottle Diameter 30–100 mm
Suitable Bottle Height 30–200 mm
Label Size 15–130 mm (W) × 15–300 mm (L)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Machine Size (L × W × H) Approx. 2005 × 860 × 1355 mm
Machine Weight Approx. 200 kg
Revolutionize your honey syrup production with this fully automatic 6-head servo-controlled piston pump filling, capping, and labeling production line. Engineered for precision and efficiency, this system handles the entire packaging process from filling individual containers to applying tamper-evident labels. The servo-controlled piston pumps ensure consistent and accurate filling volumes, minimizing waste and maximizing output. Built for durability and easy maintenance, this line significantly increases production capacity and reduces labor costs, making it an ideal investment for honey producers of all sizes seeking to streamline their operations and enhance product quality. Increase your efficiency and profitability today!
Parameter
Filling Machine
Machine Model ZS-YT6T-6PXD
Voltage 110/220V, 50–60Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 50–500 ml (customizable)
Filling Speed Approx. 20–70 bottles/min (depending on material and bottle size)
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Memory Function Available
Machine Size (L × H × W) Approx. 2630 × 1000 × 2025 mm
Package Size (L × H × W) Approx. 1870 × 1030 × 2070 mm
Machine Weight Approx. 540 kg
Machine Model ZS-YT6T-6PXD
Voltage 110/220V, 50–60Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 50–500 ml (customizable)
Filling Speed Approx. 20–70 bottles/min (depending on material and bottle size)
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Memory Function Available
Machine Size (L × H × W) Approx. 2630 × 1000 × 2025 mm
Package Size (L × H × W) Approx. 1870 × 1030 × 2070 mm
Machine Weight Approx. 540 kg
Capping Machine
Machine Model ZS-XG440B
Voltage 220V / 110V, 50–60Hz
Power 2 kW
Production Capacity 2000–5000 BPH (depends on bottle and cap size)
Suitable Cap Size Customized
Suitable Bottle Diameter 35–120 mm (customizable)
Suitable Bottle Height 60–200 mm (customizable)
Machine Size Approx. 2500 × 967 × 1686 mm (Main Machine) + 635 × 694 × 1976 mm (Bowl Sorter)
Package Size Approx. 2060 × 1070 × 1920 mm (Main Machine) + 1950 × 730 × 720 mm (Bowl Sorter)
Machine Weight Approx. 614 kg (Main Machine) + 165 kg (Bowl Sorter)
Voltage 220V / 110V, 50–60Hz
Power 2 kW
Production Capacity 2000–5000 BPH (depends on bottle and cap size)
Suitable Cap Size Customized
Suitable Bottle Diameter 35–120 mm (customizable)
Suitable Bottle Height 60–200 mm (customizable)
Machine Size Approx. 2500 × 967 × 1686 mm (Main Machine) + 635 × 694 × 1976 mm (Bowl Sorter)
Package Size Approx. 2060 × 1070 × 1920 mm (Main Machine) + 1950 × 730 × 720 mm (Bowl Sorter)
Machine Weight Approx. 614 kg (Main Machine) + 165 kg (Bowl Sorter)
Labeling Machine
Machine Model ZS-TB200R
Voltage 220V / 110V, 50–60Hz
Power 1200 W
Labeling Speed Approx. 40–150 bottles/min (depends on bottle and label size)
Suitable Bottle Diameter 30–100 mm
Suitable Bottle Height 30–200 mm
Label Size 15–130 mm (W) × 15–300 mm (L)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Machine Size (L × W × H) Approx. 2005 × 860 × 1355 mm
Machine Weight Approx. 200 kg
Voltage 220V / 110V, 50–60Hz
Power 1200 W
Labeling Speed Approx. 40–150 bottles/min (depends on bottle and label size)
Suitable Bottle Diameter 30–100 mm
Suitable Bottle Height 30–200 mm
Label Size 15–130 mm (W) × 15–300 mm (L)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Machine Size (L × W × H) Approx. 2005 × 860 × 1355 mm
Machine Weight Approx. 200 kg
$7,574.70
Original: $25,249.00
-70%Zonesun ZS-FALU5 Automatic Syrup Bottling Line Honey Production Line—
$25,249.00
$7,574.70Description
Revolutionize your honey syrup production with this fully automatic 6-head servo-controlled piston pump filling, capping, and labeling production line. Engineered for precision and efficiency, this system handles the entire packaging process from filling individual containers to applying tamper-evident labels. The servo-controlled piston pumps ensure consistent and accurate filling volumes, minimizing waste and maximizing output. Built for durability and easy maintenance, this line significantly increases production capacity and reduces labor costs, making it an ideal investment for honey producers of all sizes seeking to streamline their operations and enhance product quality. Increase your efficiency and profitability today!
Parameter
Filling Machine
Machine Model ZS-YT6T-6PXD
Voltage 110/220V, 50–60Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 50–500 ml (customizable)
Filling Speed Approx. 20–70 bottles/min (depending on material and bottle size)
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Memory Function Available
Machine Size (L × H × W) Approx. 2630 × 1000 × 2025 mm
Package Size (L × H × W) Approx. 1870 × 1030 × 2070 mm
Machine Weight Approx. 540 kg
Machine Model ZS-YT6T-6PXD
Voltage 110/220V, 50–60Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 50–500 ml (customizable)
Filling Speed Approx. 20–70 bottles/min (depending on material and bottle size)
Filling Accuracy ±1%
Air Pressure 0.5–0.8 MPa
Memory Function Available
Machine Size (L × H × W) Approx. 2630 × 1000 × 2025 mm
Package Size (L × H × W) Approx. 1870 × 1030 × 2070 mm
Machine Weight Approx. 540 kg
Capping Machine
Machine Model ZS-XG440B
Voltage 220V / 110V, 50–60Hz
Power 2 kW
Production Capacity 2000–5000 BPH (depends on bottle and cap size)
Suitable Cap Size Customized
Suitable Bottle Diameter 35–120 mm (customizable)
Suitable Bottle Height 60–200 mm (customizable)
Machine Size Approx. 2500 × 967 × 1686 mm (Main Machine) + 635 × 694 × 1976 mm (Bowl Sorter)
Package Size Approx. 2060 × 1070 × 1920 mm (Main Machine) + 1950 × 730 × 720 mm (Bowl Sorter)
Machine Weight Approx. 614 kg (Main Machine) + 165 kg (Bowl Sorter)
Voltage 220V / 110V, 50–60Hz
Power 2 kW
Production Capacity 2000–5000 BPH (depends on bottle and cap size)
Suitable Cap Size Customized
Suitable Bottle Diameter 35–120 mm (customizable)
Suitable Bottle Height 60–200 mm (customizable)
Machine Size Approx. 2500 × 967 × 1686 mm (Main Machine) + 635 × 694 × 1976 mm (Bowl Sorter)
Package Size Approx. 2060 × 1070 × 1920 mm (Main Machine) + 1950 × 730 × 720 mm (Bowl Sorter)
Machine Weight Approx. 614 kg (Main Machine) + 165 kg (Bowl Sorter)
Labeling Machine
Machine Model ZS-TB200R
Voltage 220V / 110V, 50–60Hz
Power 1200 W
Labeling Speed Approx. 40–150 bottles/min (depends on bottle and label size)
Suitable Bottle Diameter 30–100 mm
Suitable Bottle Height 30–200 mm
Label Size 15–130 mm (W) × 15–300 mm (L)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Machine Size (L × W × H) Approx. 2005 × 860 × 1355 mm
Machine Weight Approx. 200 kg
Voltage 220V / 110V, 50–60Hz
Power 1200 W
Labeling Speed Approx. 40–150 bottles/min (depends on bottle and label size)
Suitable Bottle Diameter 30–100 mm
Suitable Bottle Height 30–200 mm
Label Size 15–130 mm (W) × 15–300 mm (L)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ350 mm
Machine Size (L × W × H) Approx. 2005 × 860 × 1355 mm
Machine Weight Approx. 200 kg
