Zonesun ZS-FS008U Ultrasonic Tube Filling & Sealing Machine for Plastic Packaging
The ZS-FS008U is a fully automatic tube filling and sealing machine designed to streamline packaging operations for plastic and aluminum-plastic tubes. It integrates piston pump filling, ultrasonic sealing, and trimming into one efficient workflow, minimizing manual labor and maximizing output. With intuitive operation and consistent performance, it’s ideal for cosmetics, pharmaceuticals, and food industries requiring precise, hygienic tube packaging.
Parameter
Machine Model ZS-FS008U
Voltage 220V / 110V, 50–60Hz
Power 4 kW
Production Speed Approx. 15 pcs/min (depending on tube size and material)

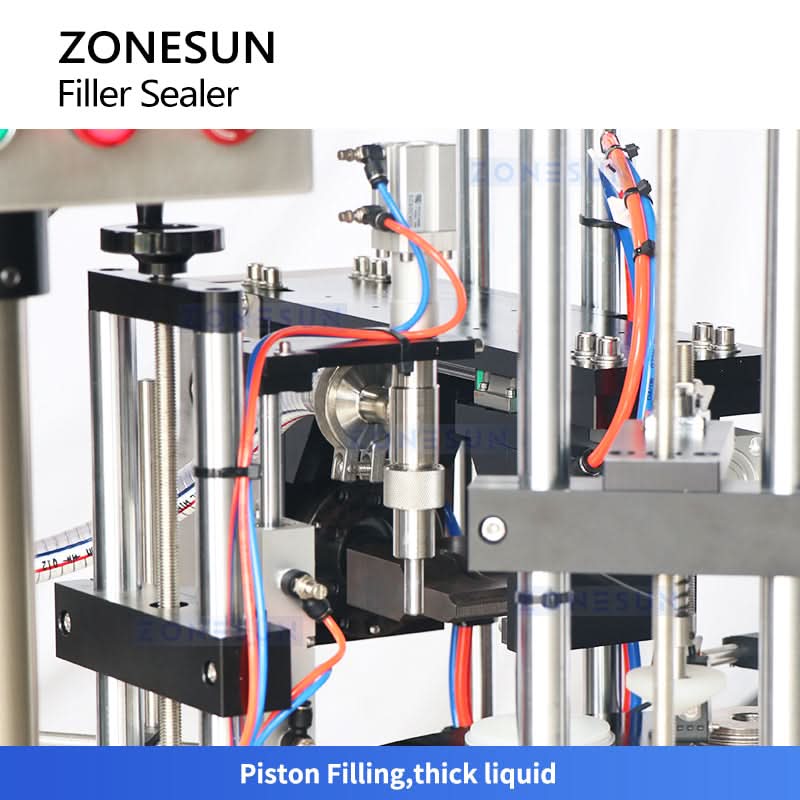

Filling Pump Piston pump
Filling Range 6–60 ml / 10–120 ml / 25–250 ml (customizable)
Filling Accuracy ±1%

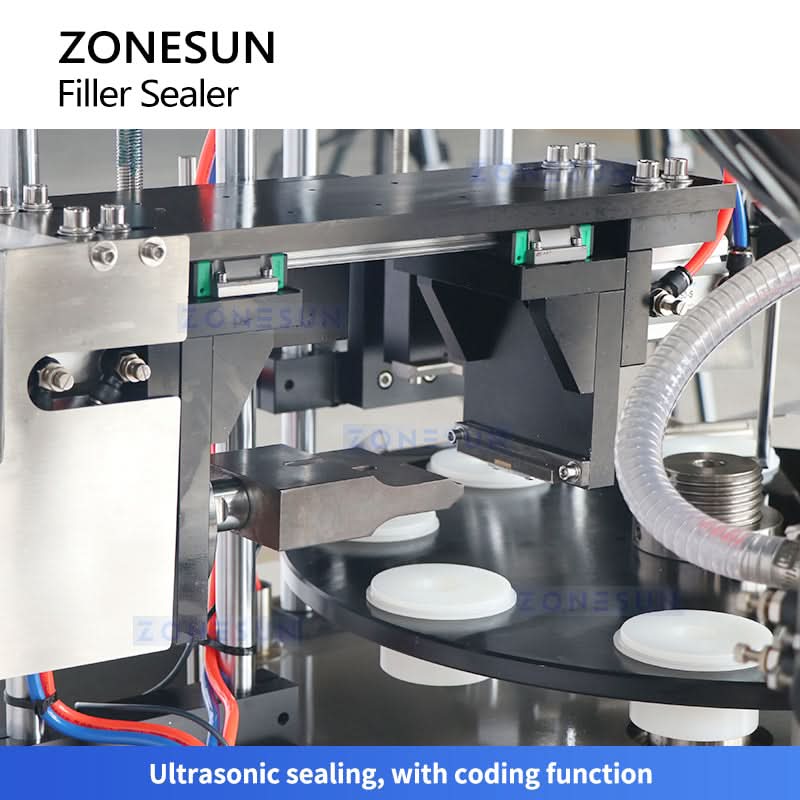

Sealing Method Ultrasonic sealing
Ultrasonic Frequency 20 KHz
Suitable Tubes Plastic tubes & aluminum-plastic tubes
Applicable Tube Size Customizable
Air Pressure 0.4–1.6 MPa
The ZS-FS008U is a fully automatic tube filling and sealing machine designed to streamline packaging operations for plastic and aluminum-plastic tubes. It integrates piston pump filling, ultrasonic sealing, and trimming into one efficient workflow, minimizing manual labor and maximizing output. With intuitive operation and consistent performance, it’s ideal for cosmetics, pharmaceuticals, and food industries requiring precise, hygienic tube packaging.
Parameter
Machine Model ZS-FS008U
Voltage 220V / 110V, 50–60Hz
Power 4 kW
Production Speed Approx. 15 pcs/min (depending on tube size and material)
Filling Pump Piston pump
Filling Range 6–60 ml / 10–120 ml / 25–250 ml (customizable)
Filling Accuracy ±1%
Sealing Method Ultrasonic sealing
Ultrasonic Frequency 20 KHz
Suitable Tubes Plastic tubes & aluminum-plastic tubes
Applicable Tube Size Customizable
Air Pressure 0.4–1.6 MPa
Original: $7,599.00
-70%$7,599.00
$2,279.70Description
The ZS-FS008U is a fully automatic tube filling and sealing machine designed to streamline packaging operations for plastic and aluminum-plastic tubes. It integrates piston pump filling, ultrasonic sealing, and trimming into one efficient workflow, minimizing manual labor and maximizing output. With intuitive operation and consistent performance, it’s ideal for cosmetics, pharmaceuticals, and food industries requiring precise, hygienic tube packaging.
Parameter
Machine Model ZS-FS008U
Voltage 220V / 110V, 50–60Hz
Power 4 kW
Production Speed Approx. 15 pcs/min (depending on tube size and material)
Filling Pump Piston pump
Filling Range 6–60 ml / 10–120 ml / 25–250 ml (customizable)
Filling Accuracy ±1%
Sealing Method Ultrasonic sealing
Ultrasonic Frequency 20 KHz
Suitable Tubes Plastic tubes & aluminum-plastic tubes
Applicable Tube Size Customizable
Air Pressure 0.4–1.6 MPa
