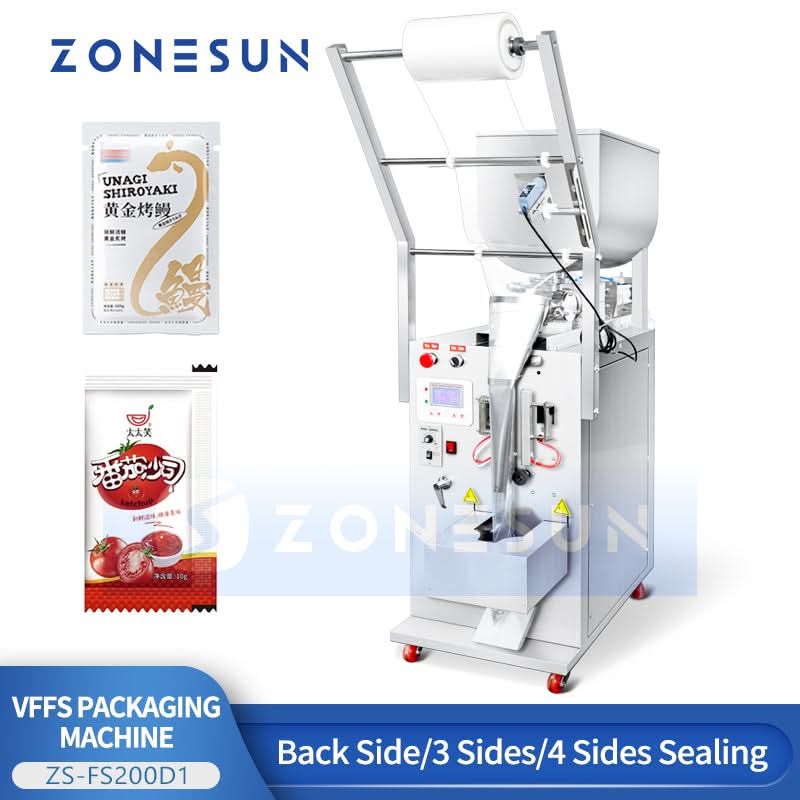

Zonesun ZS-FS200D1 Automatic Vertical Piston Pump Paste Filling and Sealing Machine Honey Cream Sachet

Product image 1
1 / 8
+3

Zonesun ZS-FS200D1 Automatic Vertical Piston Pump Paste Filling and Sealing Machine Honey Cream Sachet

This paste sachet packaging machine is designed for filling paste or liquid products, such as sauce, honey, and similar materials into sachets. It features a large-capacity hopper with a mixing function to ensure uniform consistency of the filling material. Various sealing types are customizable, including back seal, three-side seal, and four-side seal, to meet different packaging needs.

Paste Sachet Packaging Machine Parameter

  • Machine Model: ZS-FS200D1
  • Machine Voltage: 110/220V 50-60HZ 650W
  • Recommend Filling Volume: 5-100ml (Customizable)
  • Filling Accuracy: ±1-2 ml
  • Hopper Size: 80L (With Mixer, Optional Heater)
  • Machine Size: 580*1100*1750 mm
  • Machine Weight: About 95 kg
  • Package Size: About 940*550*1150 mm(Main Machine) About 590*510*660 mm(Hopper)
  • Package Weight: About 82 kg(Main Machine)+34 kg(Hopper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

features of ZS-FS200D1 automatic paste sachet packaging machine with mixer
application of ZS-FS200D1 paste pouch filling and sealing machine
main component of ZS-FS200D1 automatic paste sachet packaging machine with agitated tank

navigation

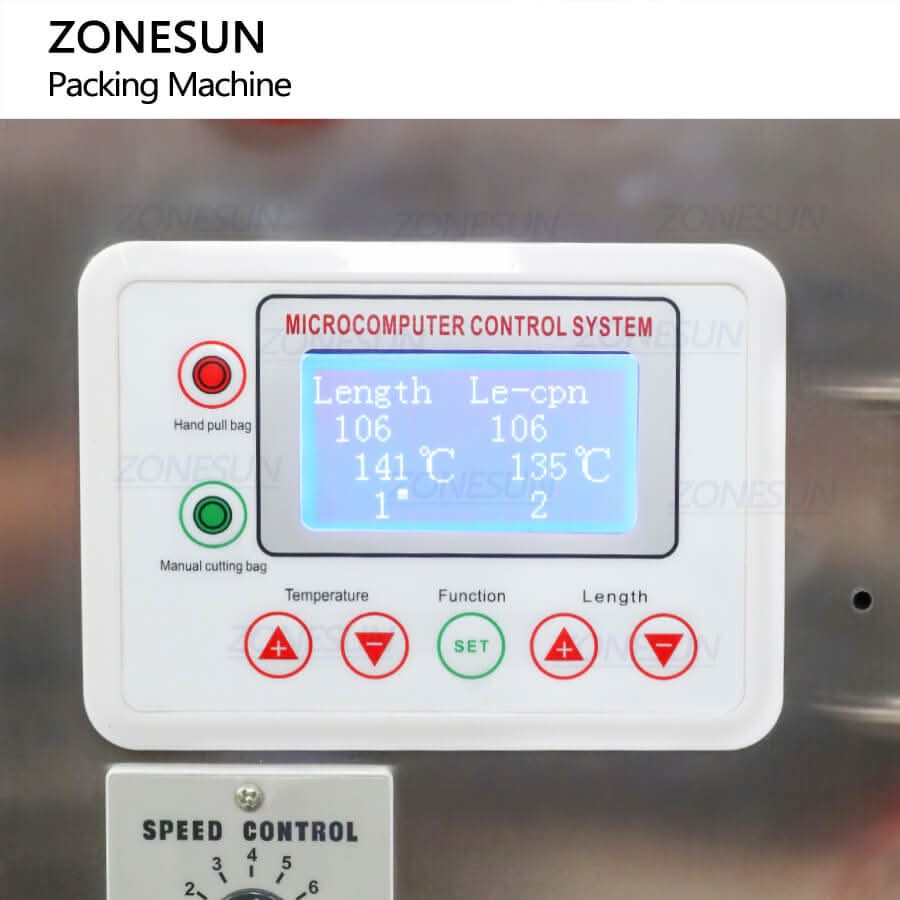

control panel of ZS-FS200D1 seasoning sauce paste filling sealing machine

Paste Sachet Packaging Machine Simple Control Panel

Intuitive interface allows for easy operation and quick parameter adjustments.

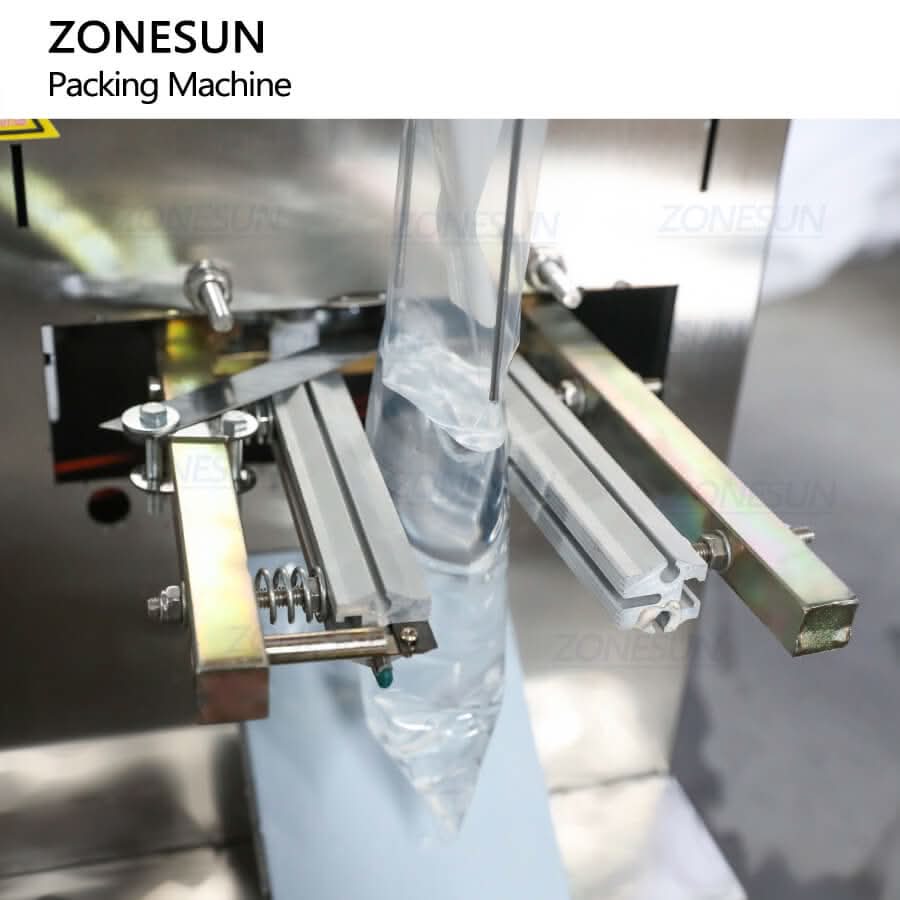

sealing structure of ZS-FS200D1 piston pump paste filling sealing machine

Sealing Structure

Compatible with PE/PP and laminated films. Sealing temperature is adjustable to suit different materials.
bag cutting structure of ZS-FS200D1 paste pouch packaging machine for food package

Bag Cutting Structure

Supports tear notch customization with flexible sealing formats: back seal, three-side seal, or four-side seal.
stirring hopper of ZS-FS200D1 paste sauce filling and sealing machine

Hopper with Stirrer

80L hopper equipped with a stirrer for pre-processing of materials. Optional heating function available for temperature-sensitive products.
piston pump of ZS-FS200D1 automatic paste packing machine for ketchup

Piston Pump

Filling volume is controlled by piston stroke. Air inlet/outlet valves adjust filling speed. Rotary valve available for handling viscous pastes with soft particles.

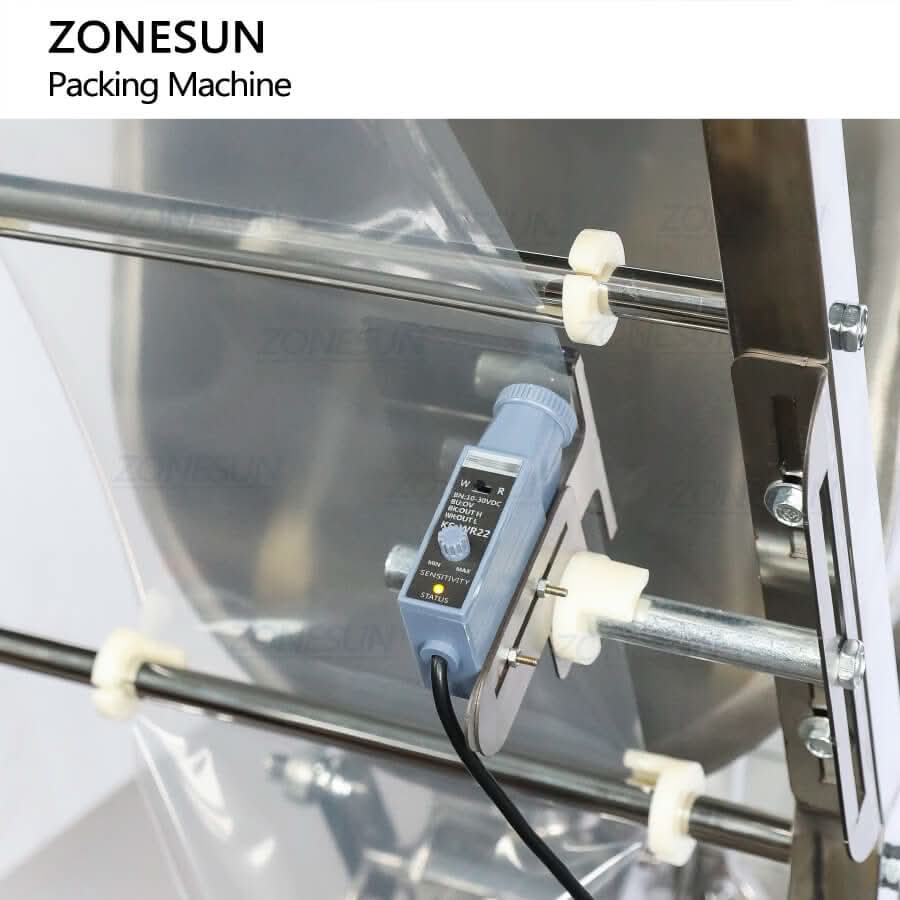

color mark sensor of ZS-FS200D1 VFFS packaging machine

Color Mark Sensor

Detects color marks on film to ensure precise cutting and consistent packaging alignment.

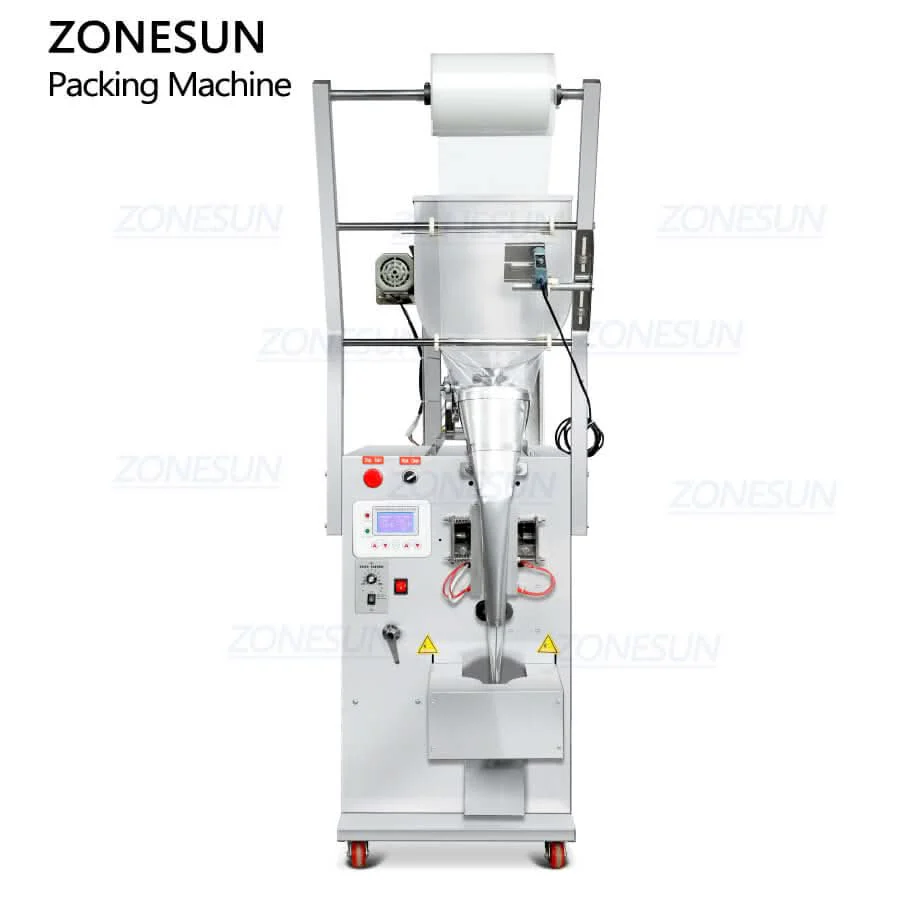

ZS-FS200D1 automatic filling and sealing machine for sauce

This paste sachet packaging machine is designed for filling paste or liquid products, such as sauce, honey, and similar materials into sachets. It features a large-capacity hopper with a mixing function to ensure uniform consistency of the filling material. Various sealing types are customizable, including back seal, three-side seal, and four-side seal, to meet different packaging needs.

Paste Sachet Packaging Machine Parameter

  • Machine Model: ZS-FS200D1
  • Machine Voltage: 110/220V 50-60HZ 650W
  • Recommend Filling Volume: 5-100ml (Customizable)
  • Filling Accuracy: ±1-2 ml
  • Hopper Size: 80L (With Mixer, Optional Heater)
  • Machine Size: 580*1100*1750 mm
  • Machine Weight: About 95 kg
  • Package Size: About 940*550*1150 mm(Main Machine) About 590*510*660 mm(Hopper)
  • Package Weight: About 82 kg(Main Machine)+34 kg(Hopper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

features of ZS-FS200D1 automatic paste sachet packaging machine with mixer
application of ZS-FS200D1 paste pouch filling and sealing machine
main component of ZS-FS200D1 automatic paste sachet packaging machine with agitated tank

navigation
control panel of ZS-FS200D1 seasoning sauce paste filling sealing machine

Paste Sachet Packaging Machine Simple Control Panel

Intuitive interface allows for easy operation and quick parameter adjustments.
sealing structure of ZS-FS200D1 piston pump paste filling sealing machine

Sealing Structure

Compatible with PE/PP and laminated films. Sealing temperature is adjustable to suit different materials.
bag cutting structure of ZS-FS200D1 paste pouch packaging machine for food package

Bag Cutting Structure

Supports tear notch customization with flexible sealing formats: back seal, three-side seal, or four-side seal.
stirring hopper of ZS-FS200D1 paste sauce filling and sealing machine

Hopper with Stirrer

80L hopper equipped with a stirrer for pre-processing of materials. Optional heating function available for temperature-sensitive products.
piston pump of ZS-FS200D1 automatic paste packing machine for ketchup

Piston Pump

Filling volume is controlled by piston stroke. Air inlet/outlet valves adjust filling speed. Rotary valve available for handling viscous pastes with soft particles.
color mark sensor of ZS-FS200D1 VFFS packaging machine

Color Mark Sensor

Detects color marks on film to ensure precise cutting and consistent packaging alignment.
ZS-FS200D1 automatic filling and sealing machine for sauce
$659.70

Original: $2,199.00

-70%
Zonesun ZS-FS200D1 Automatic Vertical Piston Pump Paste Filling and Sealing Machine Honey Cream Sachet—

$2,199.00

$659.70

Description

This paste sachet packaging machine is designed for filling paste or liquid products, such as sauce, honey, and similar materials into sachets. It features a large-capacity hopper with a mixing function to ensure uniform consistency of the filling material. Various sealing types are customizable, including back seal, three-side seal, and four-side seal, to meet different packaging needs.

Paste Sachet Packaging Machine Parameter

  • Machine Model: ZS-FS200D1
  • Machine Voltage: 110/220V 50-60HZ 650W
  • Recommend Filling Volume: 5-100ml (Customizable)
  • Filling Accuracy: ±1-2 ml
  • Hopper Size: 80L (With Mixer, Optional Heater)
  • Machine Size: 580*1100*1750 mm
  • Machine Weight: About 95 kg
  • Package Size: About 940*550*1150 mm(Main Machine) About 590*510*660 mm(Hopper)
  • Package Weight: About 82 kg(Main Machine)+34 kg(Hopper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

features of ZS-FS200D1 automatic paste sachet packaging machine with mixer
application of ZS-FS200D1 paste pouch filling and sealing machine
main component of ZS-FS200D1 automatic paste sachet packaging machine with agitated tank

navigation
control panel of ZS-FS200D1 seasoning sauce paste filling sealing machine

Paste Sachet Packaging Machine Simple Control Panel

Intuitive interface allows for easy operation and quick parameter adjustments.
sealing structure of ZS-FS200D1 piston pump paste filling sealing machine

Sealing Structure

Compatible with PE/PP and laminated films. Sealing temperature is adjustable to suit different materials.
bag cutting structure of ZS-FS200D1 paste pouch packaging machine for food package

Bag Cutting Structure

Supports tear notch customization with flexible sealing formats: back seal, three-side seal, or four-side seal.
stirring hopper of ZS-FS200D1 paste sauce filling and sealing machine

Hopper with Stirrer

80L hopper equipped with a stirrer for pre-processing of materials. Optional heating function available for temperature-sensitive products.
piston pump of ZS-FS200D1 automatic paste packing machine for ketchup

Piston Pump

Filling volume is controlled by piston stroke. Air inlet/outlet valves adjust filling speed. Rotary valve available for handling viscous pastes with soft particles.
color mark sensor of ZS-FS200D1 VFFS packaging machine

Color Mark Sensor

Detects color marks on film to ensure precise cutting and consistent packaging alignment.
ZS-FS200D1 automatic filling and sealing machine for sauce
