ZONESUN ZS-FS420E Automatic Powder Bag Filling & Sealing Machine

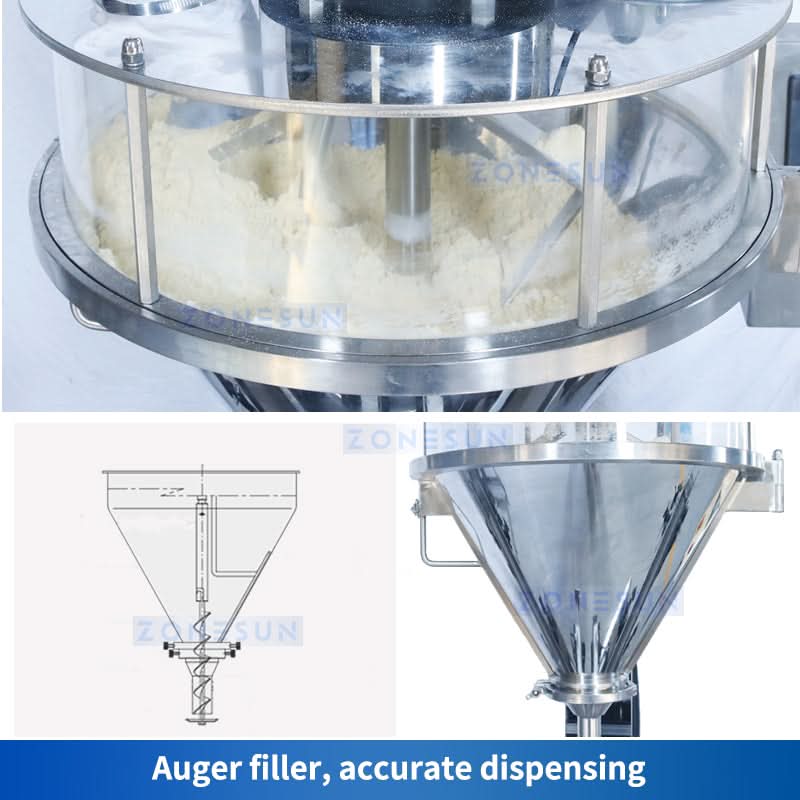

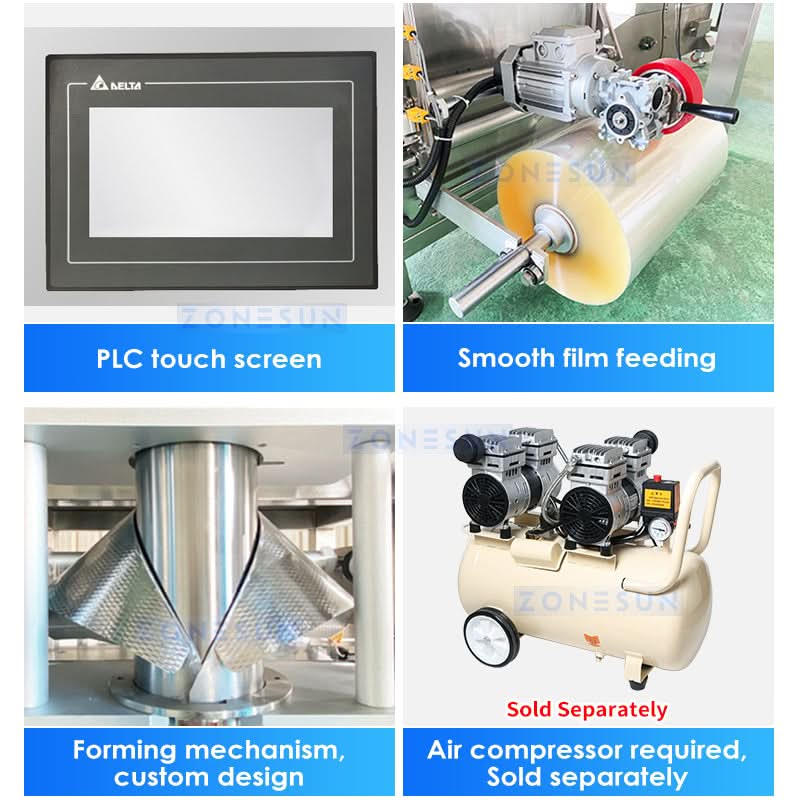

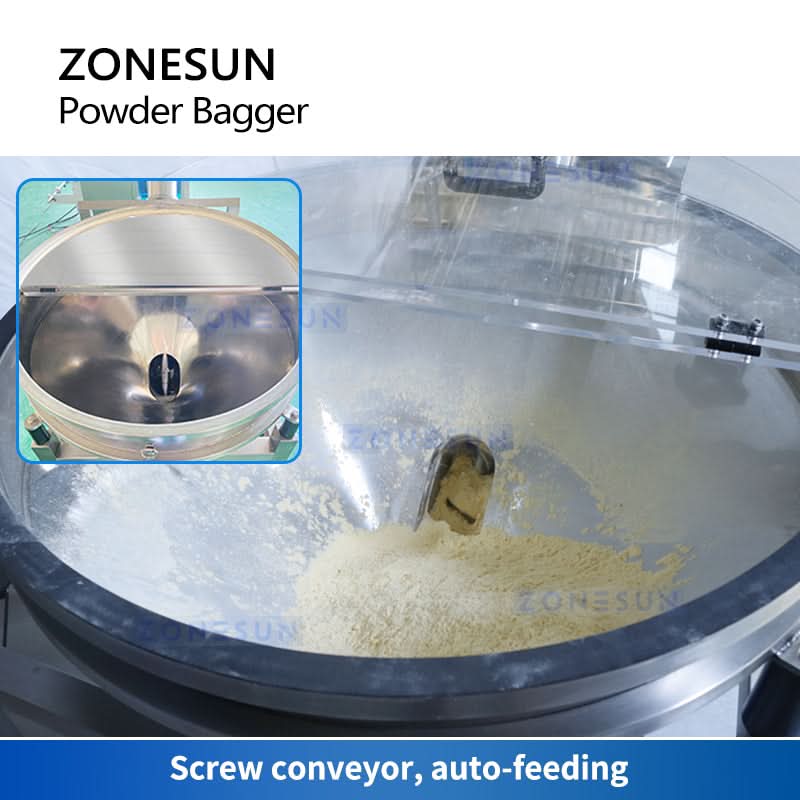

The ZONESUN ZS-FS420E is a vertical form-fill-seal machine designed for packaging powdered products with precision and efficiency. Equipped with an auger-feeding elevator and PLC-controlled automation, it forms bags from film, fills them with powder, and seals them—all in one streamlined process. Ideal for food, chemical, and pharmaceutical industries, this machine ensures consistent fill volumes and clean seals, making it a reliable solution for high-volume powder packaging.
Parameter Specification
Model ZS-FS420E
Power 220V, 60Hz, 3kW
Filling Range 500–2000ml
Packaging Capacity 25–60 bags/min
Bagging Size Width: 100–250mm, Length: 50–300mm
Film Size Width ≤ 420mm, Thickness: 0.03–0.12mm
Air Consumption 0.8MPa, 0.7m³/min
Machine Weight 380kg
Machine Dimensions 1088 × 1080 × 1290mm
The ZONESUN ZS-FS420E is a vertical form-fill-seal machine designed for packaging powdered products with precision and efficiency. Equipped with an auger-feeding elevator and PLC-controlled automation, it forms bags from film, fills them with powder, and seals them—all in one streamlined process. Ideal for food, chemical, and pharmaceutical industries, this machine ensures consistent fill volumes and clean seals, making it a reliable solution for high-volume powder packaging.
Parameter Specification
Model ZS-FS420E
Power 220V, 60Hz, 3kW
Filling Range 500–2000ml
Packaging Capacity 25–60 bags/min
Bagging Size Width: 100–250mm, Length: 50–300mm
Film Size Width ≤ 420mm, Thickness: 0.03–0.12mm
Air Consumption 0.8MPa, 0.7m³/min
Machine Weight 380kg
Machine Dimensions 1088 × 1080 × 1290mm
Original: $11,200.00
-70%$11,200.00
$3,360.00Description
The ZONESUN ZS-FS420E is a vertical form-fill-seal machine designed for packaging powdered products with precision and efficiency. Equipped with an auger-feeding elevator and PLC-controlled automation, it forms bags from film, fills them with powder, and seals them—all in one streamlined process. Ideal for food, chemical, and pharmaceutical industries, this machine ensures consistent fill volumes and clean seals, making it a reliable solution for high-volume powder packaging.
Parameter Specification
Model ZS-FS420E
Power 220V, 60Hz, 3kW
Filling Range 500–2000ml
Packaging Capacity 25–60 bags/min
Bagging Size Width: 100–250mm, Length: 50–300mm
Film Size Width ≤ 420mm, Thickness: 0.03–0.12mm
Air Consumption 0.8MPa, 0.7m³/min
Machine Weight 380kg
Machine Dimensions 1088 × 1080 × 1290mm
