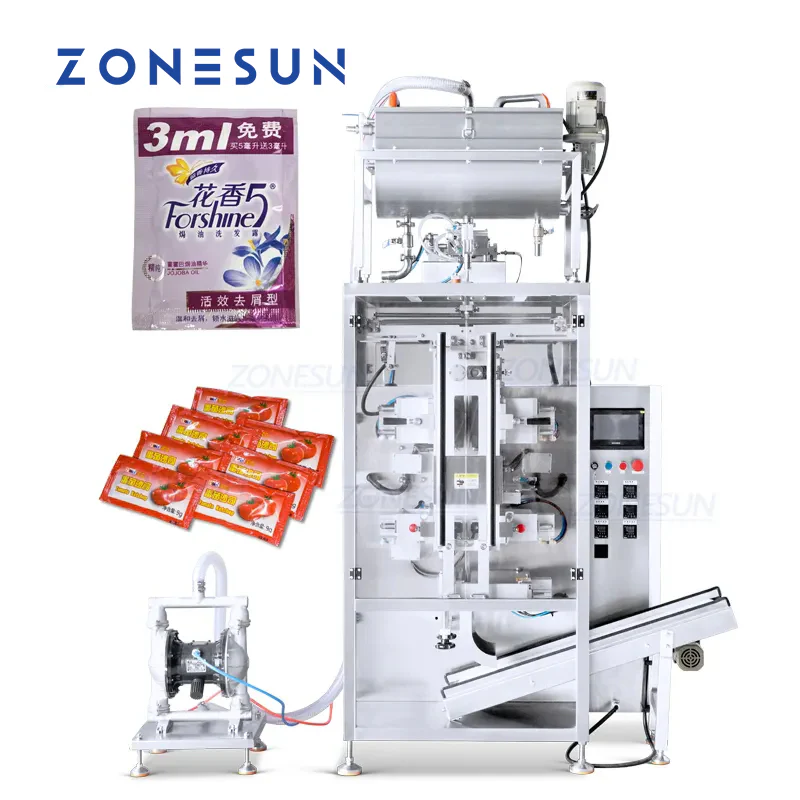

ZONESUN ZS-FS500Y-2 Double Lane Servo Paste Filling Sealing Machine
Engineered for high-efficiency pouch packaging, this servo-driven VFFS machine automates the entire workflow—from material feeding to sealing. Its dual-lane design significantly increases output while maintaining precise control over product handling. Ideal for packaging thick liquids like shampoo, sauces, and jams, it delivers consistent performance with customizable sealing options to fit a range of production demands. Reliable, flexible, and built for speed, it's the ultimate solution for paste product manufacturers aiming to scale efficiently.
Parameter
Machine Model ZS-FS500Y-2
Machine Voltage 110/220V, 50–60Hz, 7kW
Suitable Film OPP/CPP, OPP/CE, MST/PE, PET/PE
Filling Range Customized
Filling Pump Type Piston pump (filling), Diaphragm pump (feeding)
Lanes Quantity 2 (customizable)
Film Thickness 0.05–0.09mm
Sealing Type 4-sided sealing (customizable)
Film Width 280–500mm
Film Roll Size Inner Diameter: 75mm, Outer Diameter ≤ 320mm
Finished Bag Size (Single Lane) Width: 35–60mm, Length: 35–160mm
Working Speed 30–35 bags/min × 2 lanes
Machine Size Approx. 1700 × 1350 × 2350mm (L × W × H)
Machine Weight Approx. 350kg
Engineered for high-efficiency pouch packaging, this servo-driven VFFS machine automates the entire workflow—from material feeding to sealing. Its dual-lane design significantly increases output while maintaining precise control over product handling. Ideal for packaging thick liquids like shampoo, sauces, and jams, it delivers consistent performance with customizable sealing options to fit a range of production demands. Reliable, flexible, and built for speed, it's the ultimate solution for paste product manufacturers aiming to scale efficiently.
Parameter
Machine Model ZS-FS500Y-2
Machine Voltage 110/220V, 50–60Hz, 7kW
Suitable Film OPP/CPP, OPP/CE, MST/PE, PET/PE
Filling Range Customized
Filling Pump Type Piston pump (filling), Diaphragm pump (feeding)
Lanes Quantity 2 (customizable)
Film Thickness 0.05–0.09mm
Sealing Type 4-sided sealing (customizable)
Film Width 280–500mm
Film Roll Size Inner Diameter: 75mm, Outer Diameter ≤ 320mm
Finished Bag Size (Single Lane) Width: 35–60mm, Length: 35–160mm
Working Speed 30–35 bags/min × 2 lanes
Machine Size Approx. 1700 × 1350 × 2350mm (L × W × H)
Machine Weight Approx. 350kg
Original: $20,499.00
-70%$20,499.00
$6,149.70Description
Engineered for high-efficiency pouch packaging, this servo-driven VFFS machine automates the entire workflow—from material feeding to sealing. Its dual-lane design significantly increases output while maintaining precise control over product handling. Ideal for packaging thick liquids like shampoo, sauces, and jams, it delivers consistent performance with customizable sealing options to fit a range of production demands. Reliable, flexible, and built for speed, it's the ultimate solution for paste product manufacturers aiming to scale efficiently.
Parameter
Machine Model ZS-FS500Y-2
Machine Voltage 110/220V, 50–60Hz, 7kW
Suitable Film OPP/CPP, OPP/CE, MST/PE, PET/PE
Filling Range Customized
Filling Pump Type Piston pump (filling), Diaphragm pump (feeding)
Lanes Quantity 2 (customizable)
Film Thickness 0.05–0.09mm
Sealing Type 4-sided sealing (customizable)
Film Width 280–500mm
Film Roll Size Inner Diameter: 75mm, Outer Diameter ≤ 320mm
Finished Bag Size (Single Lane) Width: 35–60mm, Length: 35–160mm
Working Speed 30–35 bags/min × 2 lanes
Machine Size Approx. 1700 × 1350 × 2350mm (L × W × H)
Machine Weight Approx. 350kg
