Zonesun ZS-KCFC6 4-Lane K-Cup Coffee Capsule Packaging Machine
Description

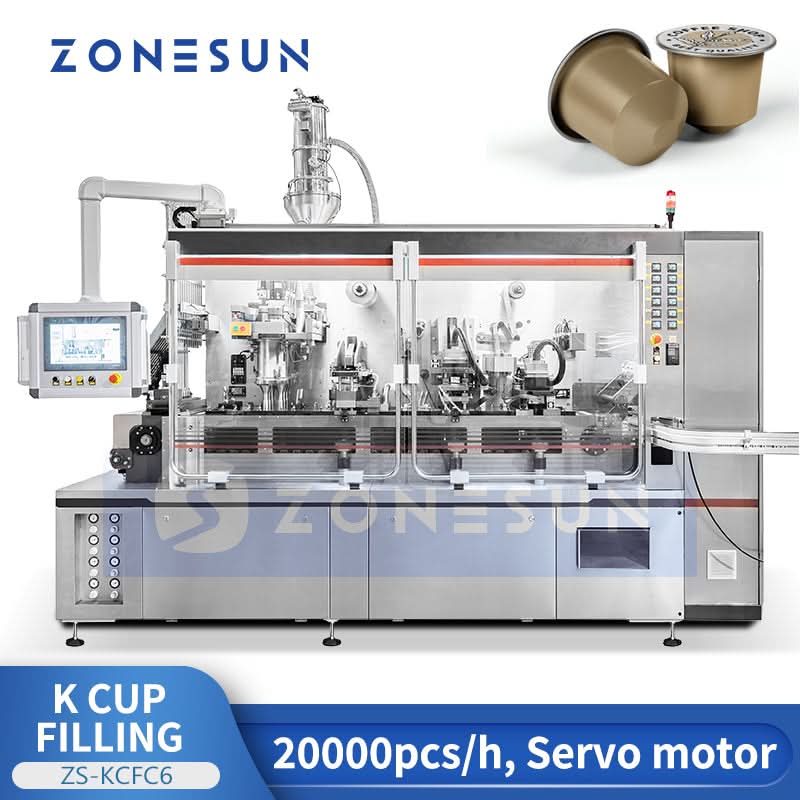

Introducing the ZONESUN ZS-KCFC6 high-speed rotary K-Cup filling and sealing machine, engineered for outstanding efficiency and precision in modern coffee production. This advanced coffee capsule filling machine features a robust cam-driven structure that guarantees stable operation, while allowing quick mold changes to accommodate various capsule types—including K-Cups, Nespresso-style capsules, and other single serve coffee pods.
Designed as a multi-lane rotary filler and sealer, this K-Cup packaging equipment is ideal for businesses seeking reliable performance and fast output. Whether you're producing flavored coffees, teas, or functional beverages, the ZS-KCFC6 delivers consistent filling accuracy and sealing quality across every cup.
PARAMETER
Model: ZS-HKCF6
power supply: 380V, 50/60Hz
Compressed air pressure (bar): 0.6Mpa-0.8Mpa
production capacity: 20,000 pieces/hour
Filling weight: 5-5.5g
Filling accuracy: ±0.2g (average. W.t. of 10,000 data)
Compressed air consumption: 0.9m3/min

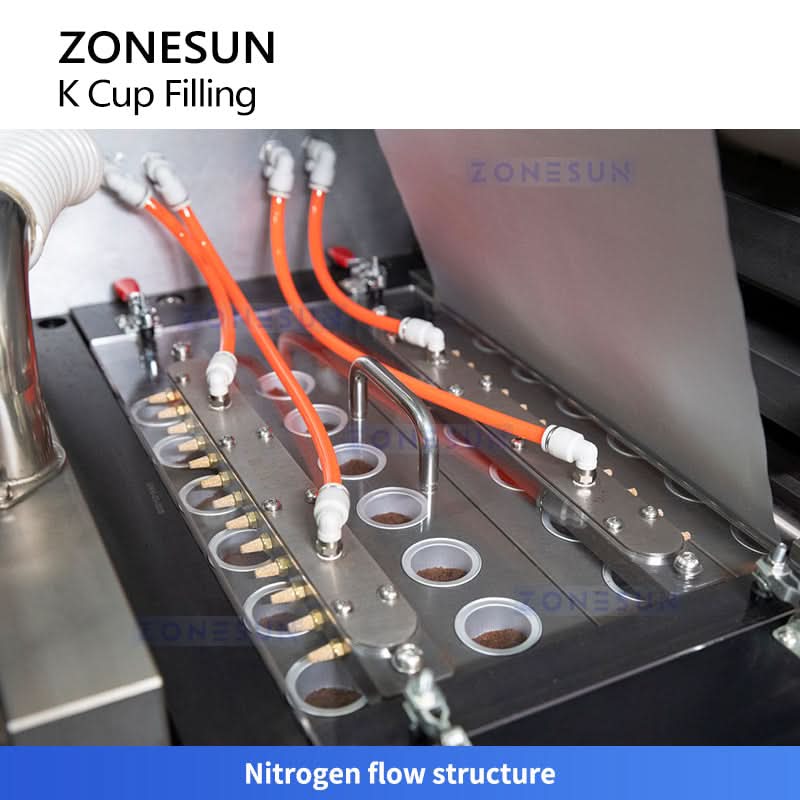

Nitrogen consumption (Nm3/h): 65-80
Dimensions: 5300mm1760mm3230mm (based on actual size)
Gross weight: 1800kg
PLC touch screen interface, parameter adjustment is quick and convenient, and the operation is intuitive and efficient.
An automatic vacuum feeder or screw feeder with a hopper made of food-safe materials to ensure compliance with health and safety standards.
Driven by a servo motor, it accurately mixes the powder to provide consistent and efficient filling for each capsule.

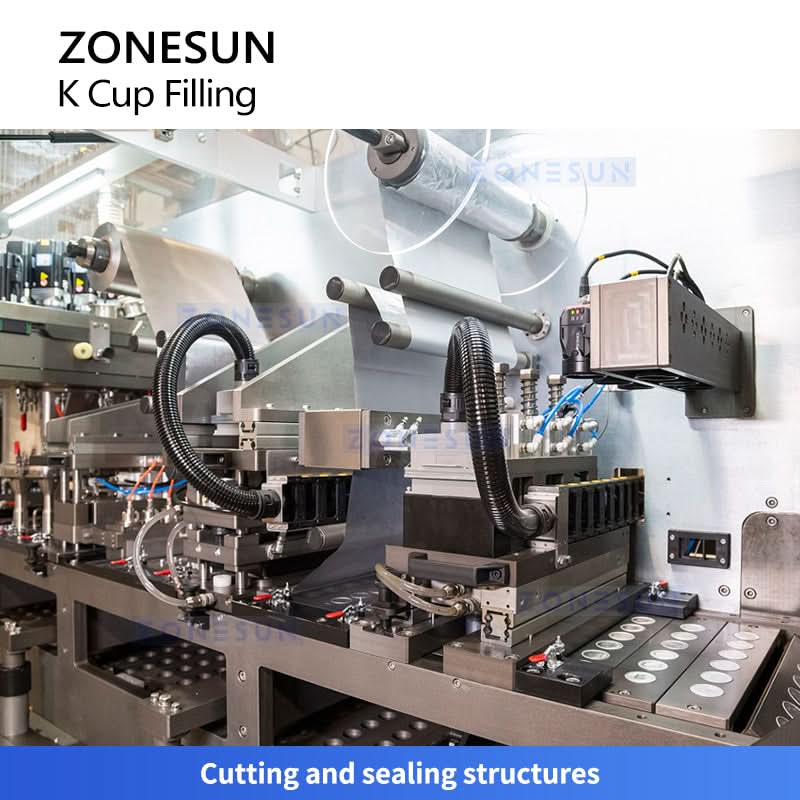

Neat cutting and sealing temperature can be set according to the material used.
Detects whether there is a cup on the track. If no cup is detected, the machine will trigger an alarm and stop operation, ensuring safety and preventing waste.
