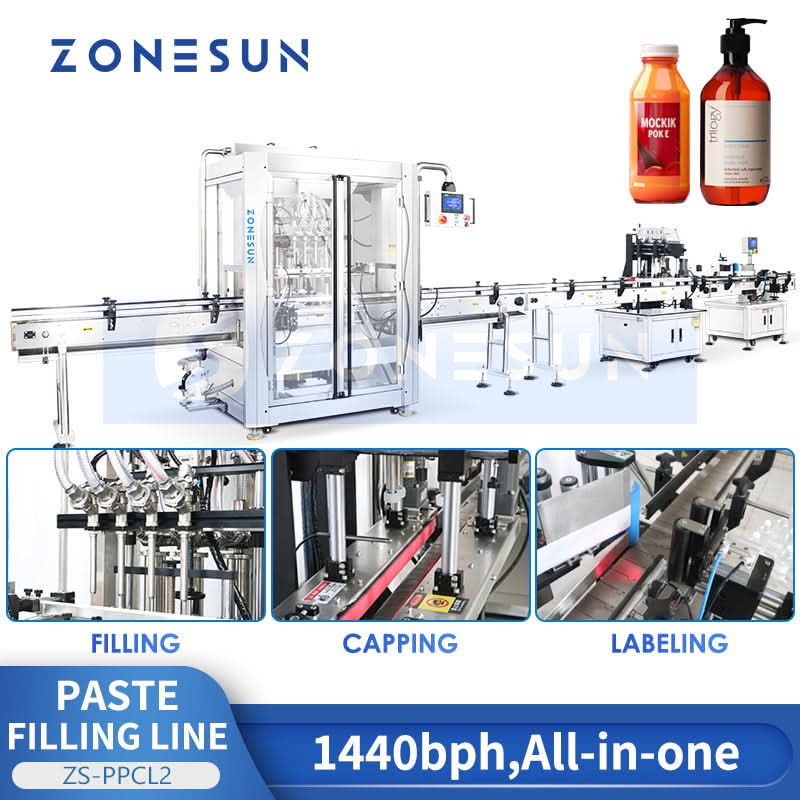

Zonesun ZS-PPCL2 Automatic Bottling Line Packaging Assembly Line
DESCRIPTION
Revolutionize your production with our all-in-one packaging line! This complete system seamlessly integrates a servo-motor driven filling machine, a servo-motor driven capping machine, and a high-speed labeling machine, streamlining your entire packaging process. Enjoy increased efficiency, reduced labor costs, and consistent, high-quality results. Built with durable, industrial-grade components, this line is designed for long-lasting performance and minimal downtime. Perfect for food, beverage, and cosmetic manufacturers seeking to optimize their production workflow. Contact us today for a personalized consultation and to learn more about our financing options.
PARAMETER
Filling MACHINE PARAMETER (ZS-SV4R）
- Capacity: 100-1000ml (customizable)
- Speed: 16-24 bottles/min (material dependent)
- Power: 220V/380V, 2.5KW
- Air Consumption: 1KGS * 30L/min
- Dimensions: 2000×1000×2200mm
- Weight: 450kg
Filling Machine Configuration:
| Component | Brand | Origin |
|---|---|---|
| PLC | Mitsubishi/Siemens | Japan/Germany |
| Servo Indexer | HMI | China |
| Photoelectric | Panasonic | Japan |
| Intermediate Relay | Omron | Japan |
| Touchscreen | HMI/Siemens | China/Germany |
| Pneumatic Element | Panasonic | Japan |
CAPPING MACHINE PARAMETER (ZS-XG440R)
- Power: AC 110/220V 50-60HZ, 2KW
- Cap Diameter: 30-80mm (customizable)
- Pressure: 0.5-0.7MPa
- Speed: 25-60 bottles/min
- Dimensions: 2000×900×1600mm
- Weight: 250kg
Configuration:
| Component | Brand | Origin |
|---|---|---|
| PLC | Mitsubishi/Siemens | Japan/Germany |
| Motor | ZD | China |
| Switch | Meanwell/CHNT | China |
| Intermediate Relay | Omron | Japan |
| Touchscreen | Siemens | Germany |
| Pneumatic Element | AirTAC | Taiwan, China |
LABELING MACHINE (ZS-TB260R)
- Power: AC220V 50/60Hz, 1000W
- Capacity: 25-50 bottles/min (size dependent)
- Accuracy: ±1.0mm
- Bottle Diameter: Φ12-100mm
- Label Size: (L)20-300mm × (H)15-150mm (customizable)
- Roll Sizes: Φ76mm (inner), Φ350mm (outer)
- Conveyor: 112×2000mm (W)
- Dimensions: 2000×820×1380mm
- Weight: 180kg (Machine), 250kg (Packed)
Configuration:
| Component | Brand | Origin |
|---|---|---|
| PLC | Siemens | Germany |
| Motor | ZD/GPG | China |
| Switch | Meanwell/CHNT | China |
| Intermediate Relay | Omron | Japan |
| Touchscreen | Siemens | Germany |
| Pneumatic Element | AirTAC | Taiwan, China |
| Label Output Motor | XFOYO/VILAIFA | China |
| Label Photoelectric | Sick | Germany |
| Bottle Electric Eye | Panasonic | Japan |
| Frequency Changer | Coreken | Guangzhou, China |

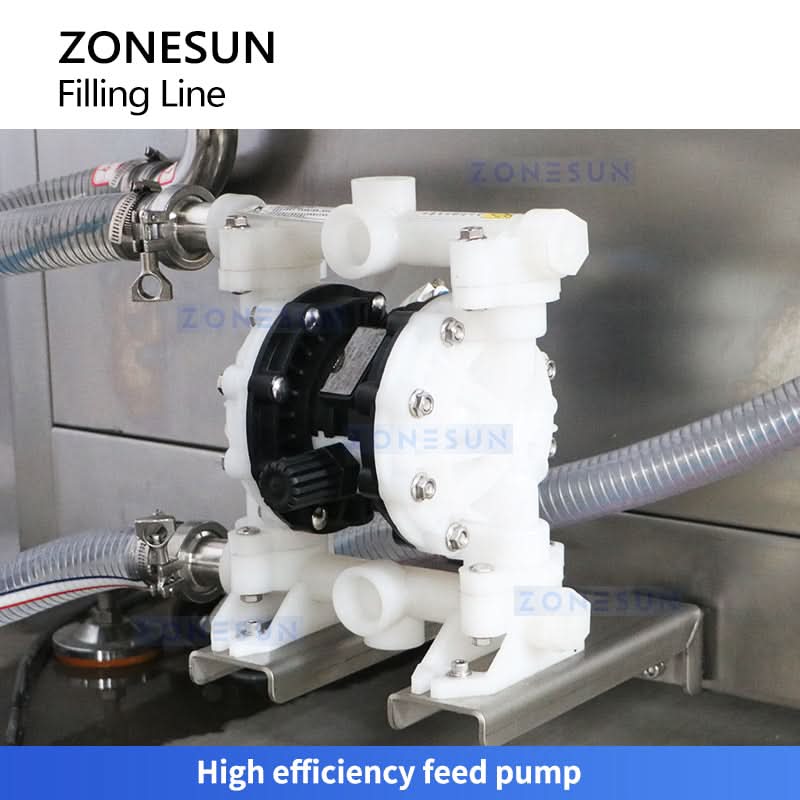

FEEDING PUMP
Equipped with feeding pump, this is used for supplying filling material in time, saves working labor to frequently pour filling material into filling machine.
Equipped with feeding pump, this is used for supplying filling material in time, saves working labor to frequently pour filling material into filling machine.

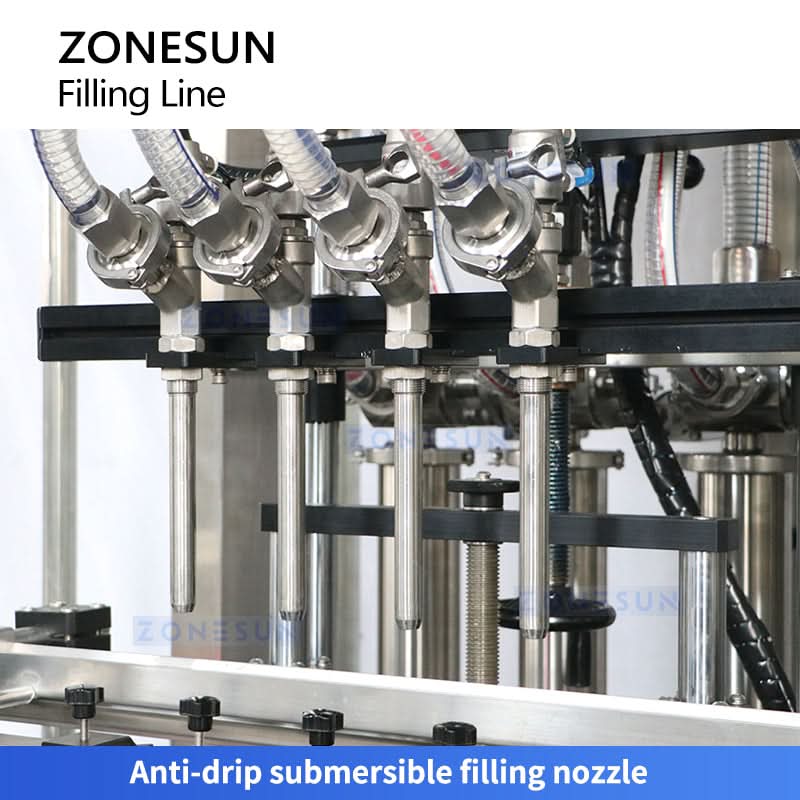

FILLING NOZZLES
The diving nozzles make filling material be filled from bottle bottom to the top, this is suitable for foamy liquid, can improves production quality and prevent filling material spraying out.
The diving nozzles make filling material be filled from bottle bottom to the top, this is suitable for foamy liquid, can improves production quality and prevent filling material spraying out.

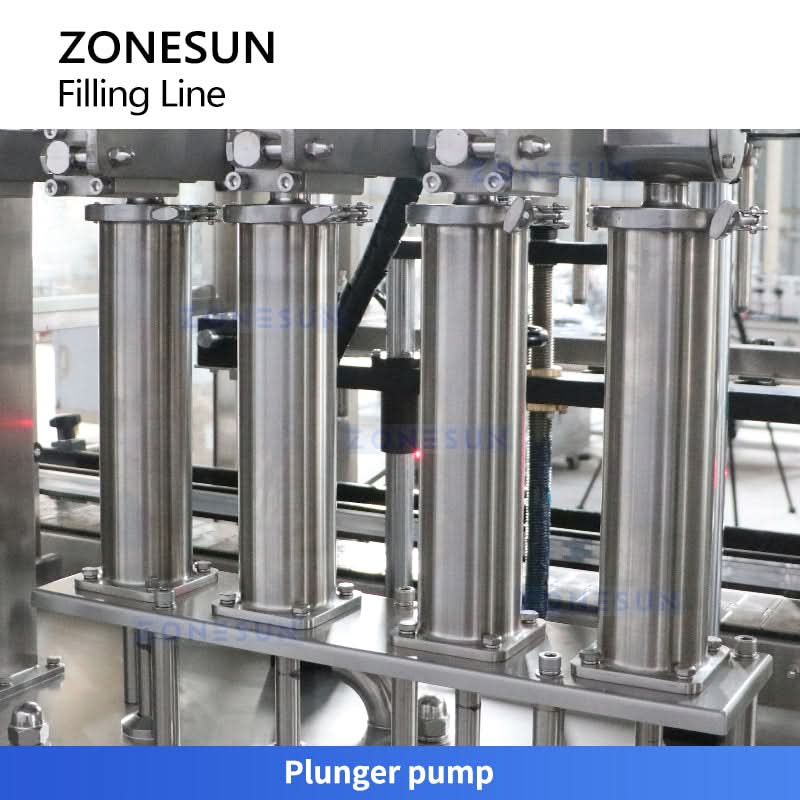

PISTON PUMP
Equipped with piston pump, different filling range can be chosen according to production need. The rotary valve of piston pump can be customized for filling material with soft granule like jam, juice.
Equipped with piston pump, different filling range can be chosen according to production need. The rotary valve of piston pump can be customized for filling material with soft granule like jam, juice.
CAPPING STRUCTURE
The capping structure is consist of 4 rubber wheels, this kind of capping method is suitable for various kinds of caps includes spray bottle caps, pump head bottle caps, dropper bottle caps etc. It widens application range and improves working efficiency.
The capping structure is consist of 4 rubber wheels, this kind of capping method is suitable for various kinds of caps includes spray bottle caps, pump head bottle caps, dropper bottle caps etc. It widens application range and improves working efficiency.

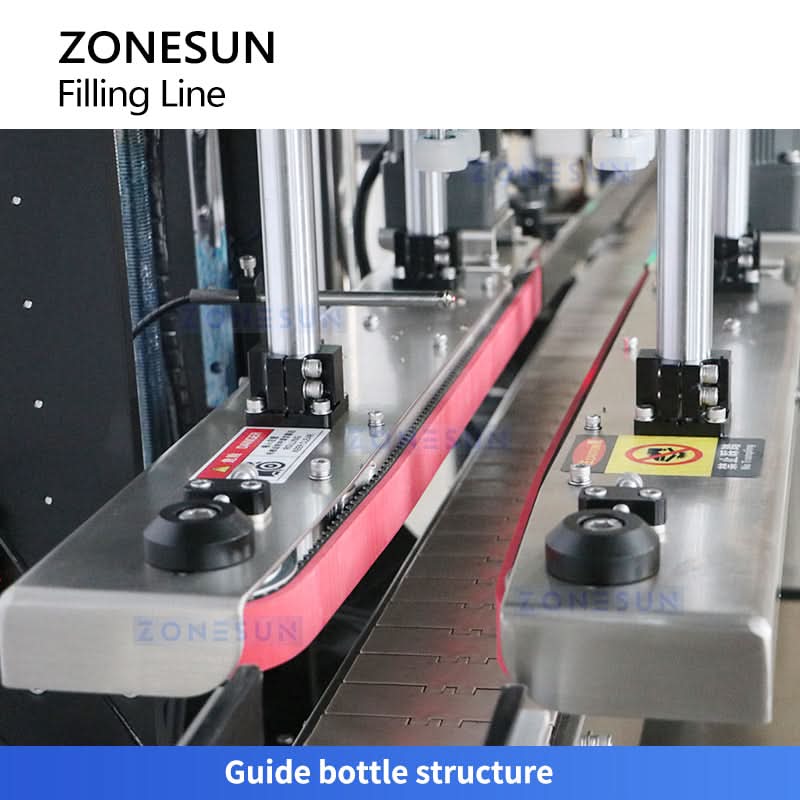

GUIDING STRUCTURE
The bottle guiding structure can help to transport bottles. There are some kinds of bottles is easier to fall down during transporting like the felt bottles, this structure can ensure bottles can be transported smoothly, reduce production error.
The bottle guiding structure can help to transport bottles. There are some kinds of bottles is easier to fall down during transporting like the felt bottles, this structure can ensure bottles can be transported smoothly, reduce production error.
LABELING STRUCTURE
High quality labeling component, the height of labeling rolls can be adjusted according to labeling position, this can improve labeling accuracy, makes sure there is no bubble under label stickers.
High quality labeling component, the height of labeling rolls can be adjusted according to labeling position, this can improve labeling accuracy, makes sure there is no bubble under label stickers.
ELECTRIC EYE
The electric eye can detect bottles according to light transmittance, and the sensitivity can be adjusted if you need to label stickers on bottles which are in different kinds of colors. This ensures labeling quality.
The electric eye can detect bottles according to light transmittance, and the sensitivity can be adjusted if you need to label stickers on bottles which are in different kinds of colors. This ensures labeling quality.
CONVEYOR BELT
High quality conveyor belt can help to transport bottle faster and more smooth, improve working speed and reduce production error.
High quality conveyor belt can help to transport bottle faster and more smooth, improve working speed and reduce production error.
