Zonesun ZS-SBM2A UV Heating Bottle Blow Molding Machine Bottle Making Machine
Description:
Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.
PARAMETER
Model: ZS-SBM2A
Cavity: 2
Output: 1200-1300bph
Max.volume: 5L
Bottle mouth maximum overall diameter: 150mm
Bottle biggest diameter: 180mm
Bottle maximum height: 400mm
Light tube quantity: 32pcs
Light tube power: 1.5KW
Maximum heating power: 48KW
All electric machine installation: 51KW
Actual consumption: 35.7KW
Work pressure: 5-6 kg/cm2
Temperature range: 10°C
Size: 4700x1600x1900mm
Weight: 3000KG
Adopt PLC touch screen control panel, parameters can be easily set and adjusted, simplifying operation.

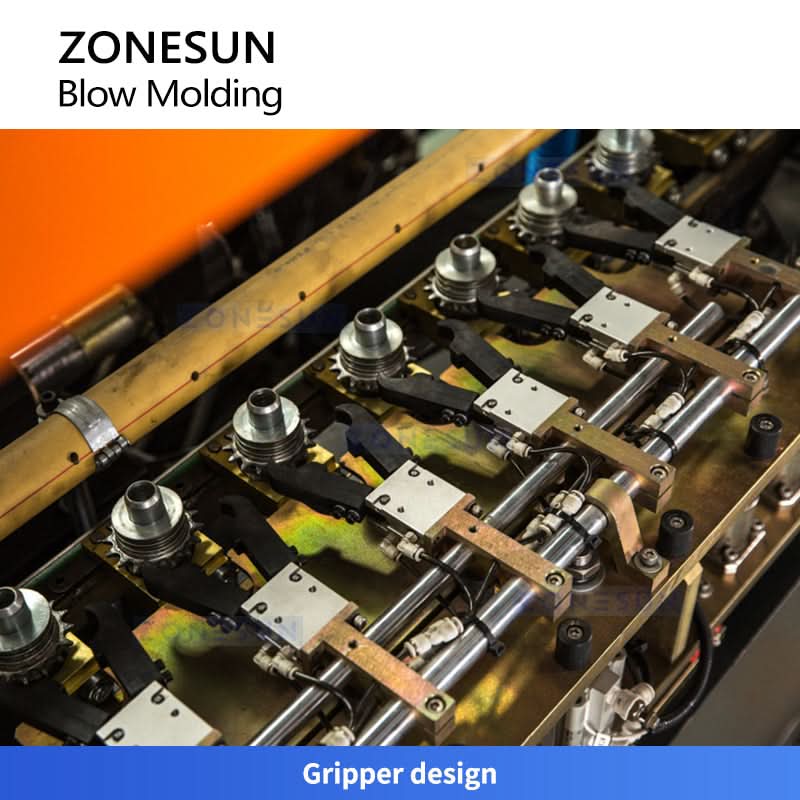

It can safely and stably clamp finished products for transfer.

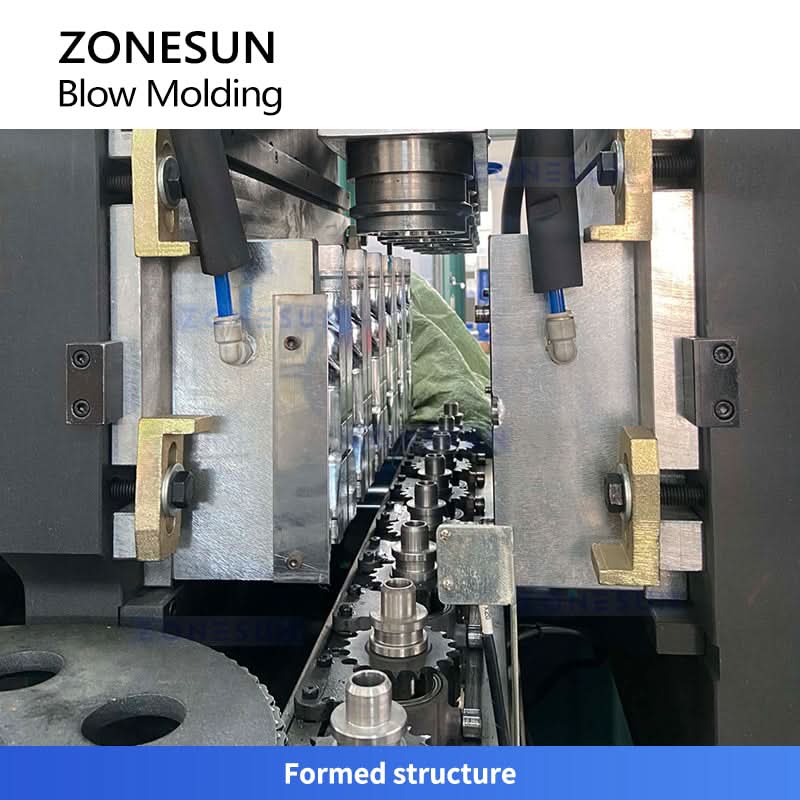

The shape and quantity of cavities can be customized according to production requirements.

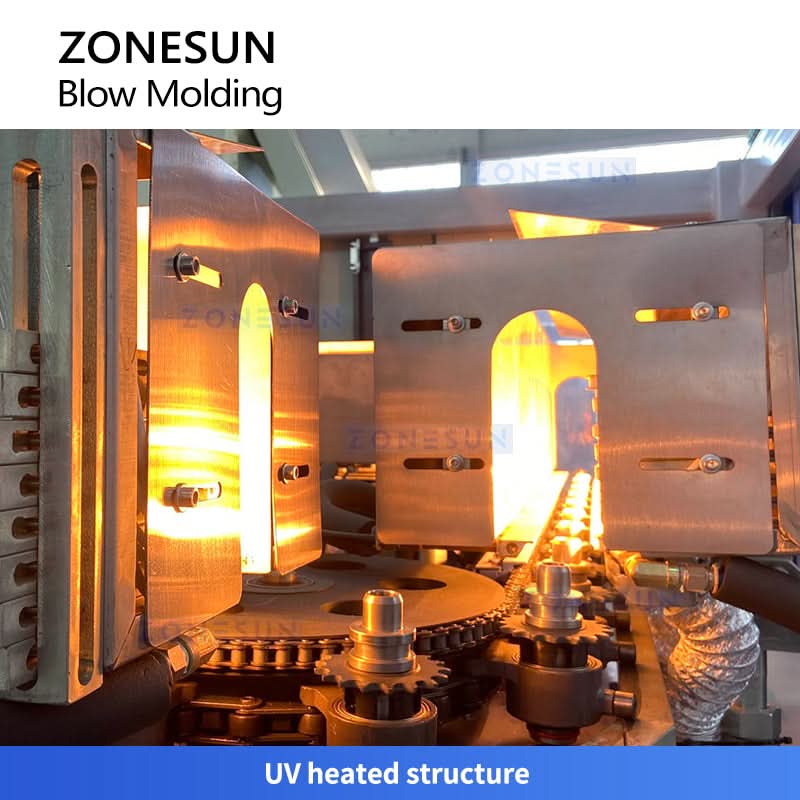

Use infrared lamps for heating, with strong penetrating power and uniform heating.
Description:
Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.
PARAMETER
Model: ZS-SBM2A
Cavity: 2
Output: 1200-1300bph
Max.volume: 5L
Bottle mouth maximum overall diameter: 150mm
Bottle biggest diameter: 180mm
Bottle maximum height: 400mm
Light tube quantity: 32pcs
Light tube power: 1.5KW
Maximum heating power: 48KW
All electric machine installation: 51KW
Actual consumption: 35.7KW
Work pressure: 5-6 kg/cm2
Temperature range: 10°C
Size: 4700x1600x1900mm
Weight: 3000KG
Adopt PLC touch screen control panel, parameters can be easily set and adjusted, simplifying operation.
It can safely and stably clamp finished products for transfer.
The shape and quantity of cavities can be customized according to production requirements.
Use infrared lamps for heating, with strong penetrating power and uniform heating.
Original: $89,000.00
-70%$89,000.00
$26,700.00Description
Description:
Fully automatic PET bottle blow molding machine equipped with advanced UV heating technology, designed for energy-efficient and fast preform heating. The 2-cavity stretch blow molding machine is capable of producing a wide range of PET plastic containers and bottles, including wide-mouth jars and custom-shaped bottles. The system supports customizable cavity shapes and quantities, making it ideal for flexible, high-speed production (up to 1200–1300 bottles per hour). Its compact design and automatic operation ensure maximum versatility, reliability, and efficiency in your bottle manufacturing line.
PARAMETER
Model: ZS-SBM2A
Cavity: 2
Output: 1200-1300bph
Max.volume: 5L
Bottle mouth maximum overall diameter: 150mm
Bottle biggest diameter: 180mm
Bottle maximum height: 400mm
Light tube quantity: 32pcs
Light tube power: 1.5KW
Maximum heating power: 48KW
All electric machine installation: 51KW
Actual consumption: 35.7KW
Work pressure: 5-6 kg/cm2
Temperature range: 10°C
Size: 4700x1600x1900mm
Weight: 3000KG
Adopt PLC touch screen control panel, parameters can be easily set and adjusted, simplifying operation.
It can safely and stably clamp finished products for transfer.
The shape and quantity of cavities can be customized according to production requirements.
Use infrared lamps for heating, with strong penetrating power and uniform heating.
