Introducing our fully automatic PET blow molding machine, a high-speed blow molding machine built for efficient PET bottle manufacturing up to 750 ml. Ideal for edible oil bottles, cosmetic containers, juice, and mineral water bottle manufacturing.This plastic blow molding machine uses advanced servo blow molding technology with a fully electric molding machine design. It features intelligent temperature control and a cooling system to ensure high output, energy saving, and stable operation—perfect for modern bottle production.

PARAMETER
Model: ZS-SBM6A
Production Capacity: 9000-10000BPH
Max. Bottle Size: 750 ml
Max. Bottle Diameter: 70mm
Max. Bottle Height: 260mm
Mold Cavity Pitch: 76.2mm
Mold Cavity: 6 cavities
Heating Power: 65 KW
General Power: 70 KW
Blow Air: 2.5 - 4.0 MPa
Drive Air: 0.8 - 1.2 MPa
Main Machine Dimensions: 4300*2150*2250 mm
Preform-Unscrambler Dimensions: 1300*600*2750 mm
Auto-loader Dimensions: 1160*1600*3300 mm
Main Machine Weight: 5500KG







CONTROL PANEL
Easily monitor and adjust equipment settings in real time, ensuring precise control of the entire blowing process.

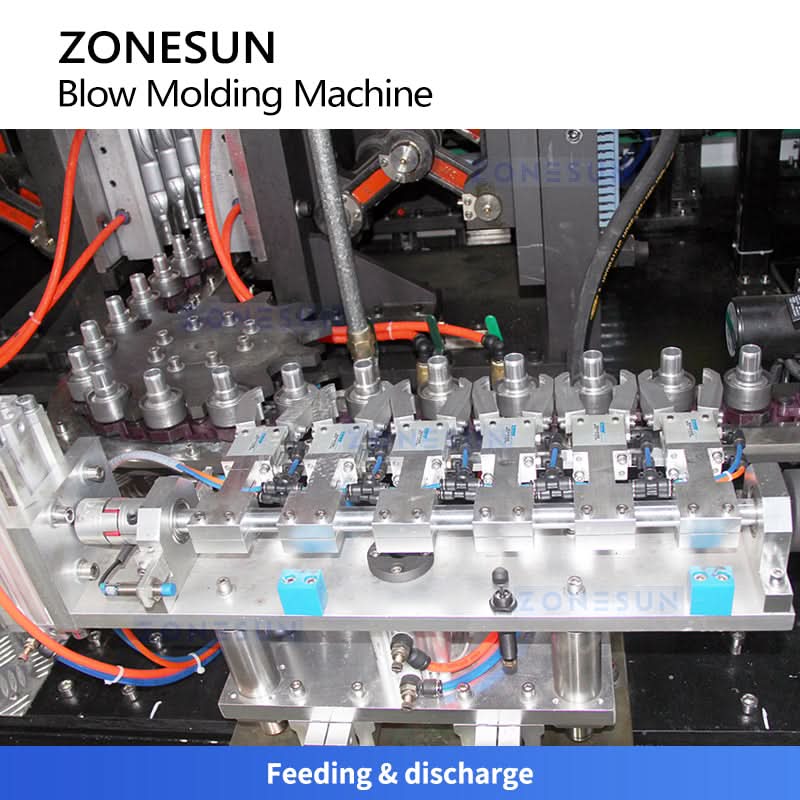

FEEDING & DISCHARGE
Designed for efficient feeding and discharging, it simplifies the bottle production process by reducing manual intervention and optimizing material flow.

HEATING OVEN
Maintains stable and uniform heating of the preform. Ensures that the material remains soft at all times to achieve the best blowing quality.
