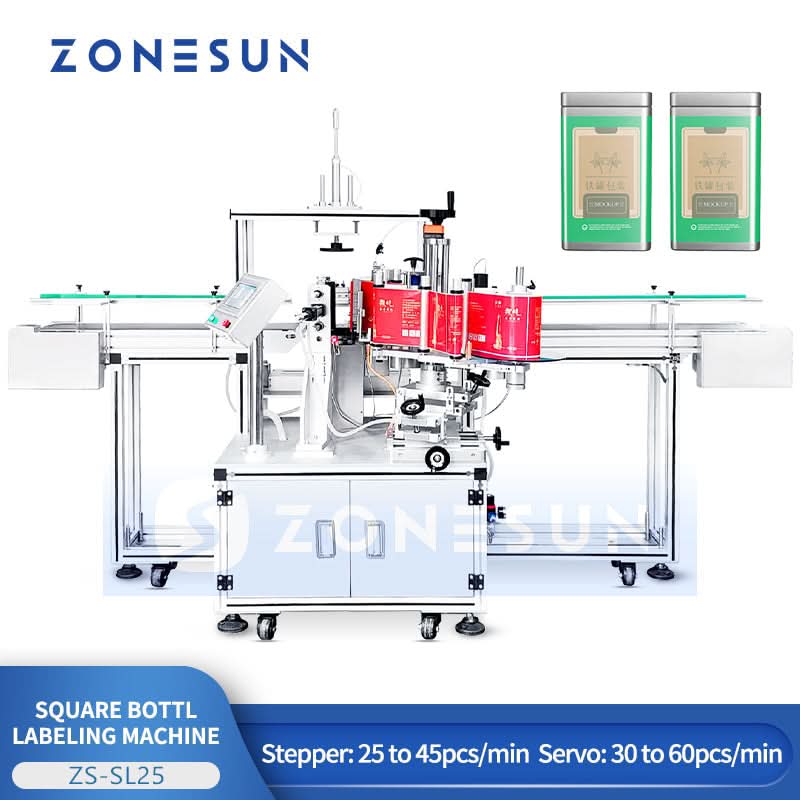

ZONESUN ZS-SL25 Square Flat Bottle Wrap-around One Circle Labeling Machine
Introducing our advanced labeler, designed for efficient and precise labeling of large containers, including jars, bottles, and cans. This machine features a robust conveyor system that transports containers to a specialized gripper mechanism. The gripper securely holds the container and positions it within a rotating mold. As the mold rotates, the label is dispensed and applied to the container using a wrap-around application roller, ensuring a clean and accurate label placement. The gripper then releases the labeled container onto a downstream conveyor for further processing.
Parameter
Model ZS-SL25
Voltage 220V
Stepper Traction Power 570W
Frequency 50Hz
Weight Approx. 200 kg
Labeling Accuracy ±1 mm
Labeling Speed (m/min) Stepper: 5–19 m/min; Servo: 5–25 m/min
Labeling Speed (pcs/min) Stepper: 25–45 pcs/min; Servo: 30–60 pcs/min
Conveying Speed 5–18 m/min
Applicable Label Length 20–290 mm
Applicable Label Width (liner width) 20–130 mm
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ280 mm
Applicable Product Dimensions Diameter: Φ25–Φ110 mm; Height: 25–150 mm (customizable)
Introducing our advanced labeler, designed for efficient and precise labeling of large containers, including jars, bottles, and cans. This machine features a robust conveyor system that transports containers to a specialized gripper mechanism. The gripper securely holds the container and positions it within a rotating mold. As the mold rotates, the label is dispensed and applied to the container using a wrap-around application roller, ensuring a clean and accurate label placement. The gripper then releases the labeled container onto a downstream conveyor for further processing.
Parameter
Model ZS-SL25
Voltage 220V
Stepper Traction Power 570W
Frequency 50Hz
Weight Approx. 200 kg
Labeling Accuracy ±1 mm
Labeling Speed (m/min) Stepper: 5–19 m/min; Servo: 5–25 m/min
Labeling Speed (pcs/min) Stepper: 25–45 pcs/min; Servo: 30–60 pcs/min
Conveying Speed 5–18 m/min
Applicable Label Length 20–290 mm
Applicable Label Width (liner width) 20–130 mm
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ280 mm
Applicable Product Dimensions Diameter: Φ25–Φ110 mm; Height: 25–150 mm (customizable)
Original: $9,799.00
-70%$9,799.00
$2,939.70Description
Introducing our advanced labeler, designed for efficient and precise labeling of large containers, including jars, bottles, and cans. This machine features a robust conveyor system that transports containers to a specialized gripper mechanism. The gripper securely holds the container and positions it within a rotating mold. As the mold rotates, the label is dispensed and applied to the container using a wrap-around application roller, ensuring a clean and accurate label placement. The gripper then releases the labeled container onto a downstream conveyor for further processing.
Parameter
Model ZS-SL25
Voltage 220V
Stepper Traction Power 570W
Frequency 50Hz
Weight Approx. 200 kg
Labeling Accuracy ±1 mm
Labeling Speed (m/min) Stepper: 5–19 m/min; Servo: 5–25 m/min
Labeling Speed (pcs/min) Stepper: 25–45 pcs/min; Servo: 30–60 pcs/min
Conveying Speed 5–18 m/min
Applicable Label Length 20–290 mm
Applicable Label Width (liner width) 20–130 mm
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ280 mm
Applicable Product Dimensions Diameter: Φ25–Φ110 mm; Height: 25–150 mm (customizable)
