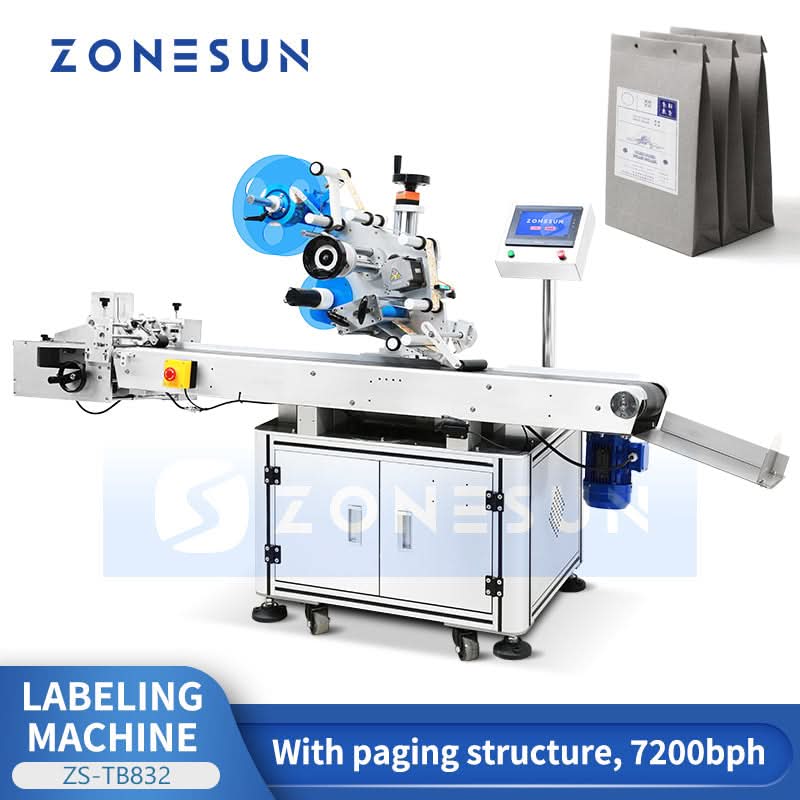

ZONESUN ZS-TB832 Automatic Flat Page Card Plastic Bag Labeling Machine
Application
It is suitable for labeling or self-adhesive film on the upper surface of various articles, such as books, folders, boxes, cartons, etc. The replacement labeling mechanism can be applied to uneven surface labeling, which is widely used for flat labeling of large products.
Notice
1.Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.
2.We can custom the machine to apply your label and bottle . please contact with us
3.If you want cheaper shipping cost .please contact with us .
Parameter
Model ZS-TB832
Power Supply 110V/220V 50–60Hz, 820W
Labeling Accuracy ±1.0 mm (depends on product and label size)
Labeling Speed 40–120 pieces/min (depends on product size)
Suitable Product Size 40–300 mm × 40–200 mm × 0.2–5 mm (L × W × H)
Suitable Label Size 6–300 mm × 15–130 mm (L × W)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ300 mm
Machine Dimensions (L×W×H) Approx. 2440 × 830 × 1350 mm
Package Size (L×W×H) Approx. 2145 × 900 × 1460 mm
Net Weight / Gross Weight Approx. 224 kg / 325 kg
Application
It is suitable for labeling or self-adhesive film on the upper surface of various articles, such as books, folders, boxes, cartons, etc. The replacement labeling mechanism can be applied to uneven surface labeling, which is widely used for flat labeling of large products.
Notice
1.Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.
2.We can custom the machine to apply your label and bottle . please contact with us
3.If you want cheaper shipping cost .please contact with us .
Parameter
Model ZS-TB832
Power Supply 110V/220V 50–60Hz, 820W
Labeling Accuracy ±1.0 mm (depends on product and label size)
Labeling Speed 40–120 pieces/min (depends on product size)
Suitable Product Size 40–300 mm × 40–200 mm × 0.2–5 mm (L × W × H)
Suitable Label Size 6–300 mm × 15–130 mm (L × W)
Label Roll Inner Diameter Φ76 mm
Label Roll Outer Diameter Φ300 mm
Machine Dimensions (L×W×H) Approx. 2440 × 830 × 1350 mm
Package Size (L×W×H) Approx. 2145 × 900 × 1460 mm
Net Weight / Gross Weight Approx. 224 kg / 325 kg
