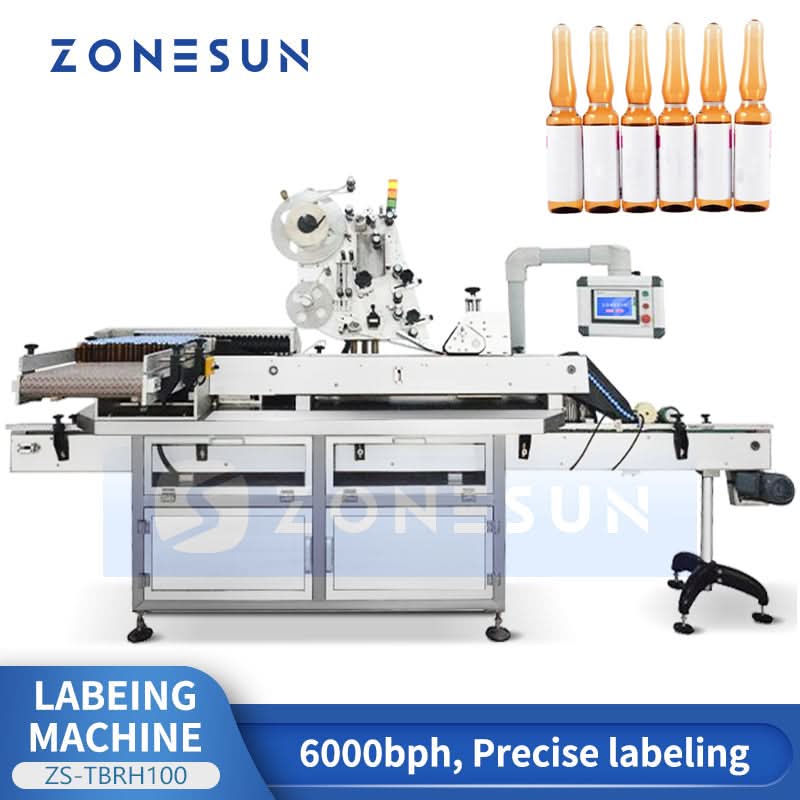

Zonesun ZS-TBRH100 Horizontal Small BottleTube Labeler with Traying System
This labeling machine features a unique design that accommodates upright bottles. A specialized infeed mechanism gently inverts the bottles, transferring them horizontally onto a roller conveyor for labeling. After labeling, a diverting mechanism guides the bottles onto a lower conveyor belt carrying trays. A motor-driven starwheel then precisely positions the labeled bottles into the trays.
Parameter
Model ZS-TBRH100
Voltage AC 220V 50/60Hz
Power Consumption 1.5KW
Labeling Speed 0–100 bottles/min
Labeling Accuracy ±1mm (excluding errors from bottle or label irregularity)

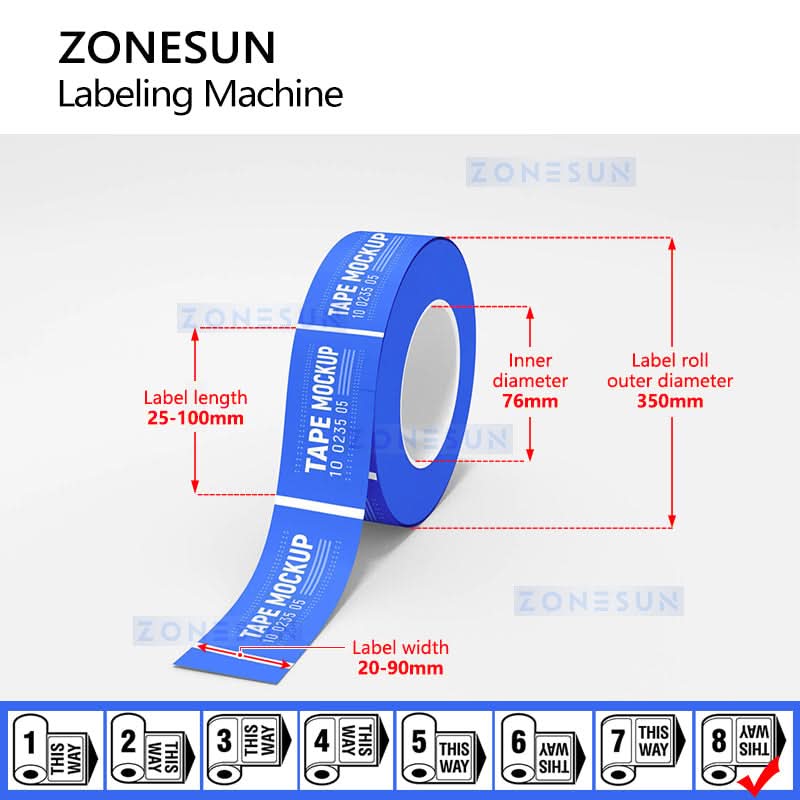

Label Supply Outer diameter: 350mm; Inner paper roll diameter: 76mm
Printer Speed 0–400 times/min (synchronized with labeling)
Applicable Label Size Height: 20–90mm; Length: 25–100mm
Applicable Container Size Length: 25–120mm; Diameter: 10–30mm
This labeling machine features a unique design that accommodates upright bottles. A specialized infeed mechanism gently inverts the bottles, transferring them horizontally onto a roller conveyor for labeling. After labeling, a diverting mechanism guides the bottles onto a lower conveyor belt carrying trays. A motor-driven starwheel then precisely positions the labeled bottles into the trays.
Parameter
Model ZS-TBRH100
Voltage AC 220V 50/60Hz
Power Consumption 1.5KW
Labeling Speed 0–100 bottles/min
Labeling Accuracy ±1mm (excluding errors from bottle or label irregularity)
Label Supply Outer diameter: 350mm; Inner paper roll diameter: 76mm
Printer Speed 0–400 times/min (synchronized with labeling)
Applicable Label Size Height: 20–90mm; Length: 25–100mm
Applicable Container Size Length: 25–120mm; Diameter: 10–30mm
Description
This labeling machine features a unique design that accommodates upright bottles. A specialized infeed mechanism gently inverts the bottles, transferring them horizontally onto a roller conveyor for labeling. After labeling, a diverting mechanism guides the bottles onto a lower conveyor belt carrying trays. A motor-driven starwheel then precisely positions the labeled bottles into the trays.
Parameter
Model ZS-TBRH100
Voltage AC 220V 50/60Hz
Power Consumption 1.5KW
Labeling Speed 0–100 bottles/min
Labeling Accuracy ±1mm (excluding errors from bottle or label irregularity)
Label Supply Outer diameter: 350mm; Inner paper roll diameter: 76mm
Printer Speed 0–400 times/min (synchronized with labeling)
Applicable Label Size Height: 20–90mm; Length: 25–100mm
Applicable Container Size Length: 25–120mm; Diameter: 10–30mm
