Zonesun ZS-TFS6 Linear Ultrasonic Soft Tube Filling and Sealing Machine
Introducing our state-of-the-art Ultrasonic Tube Filling and Sealing Machine, designed for the cosmetics, adhesives, shoe polish, and food industries. This advanced machine features six workstations powered by a servo motor, enabling intermittent motion of a circular chain. The 14 fixtures on the chain perform equidistant movements, ensuring efficient automatic filling, sealing, coding, edge trimming, and product ejection. With its smooth and reliable operation, this machine is the perfect solution for high-quality packaging needs across various sectors.
Model ZS-TFS6
Hose Material Composite Tube, Plastic Tube
Hose Diameter Φ16 mm – Φ50 mm
Hose Length 50 mm – 250 mm (customizable)
Filling Capacity 20 ml – 300 ml/piece (adjustable)
Filling Accuracy ±1%
Benchmarking Method Servo Benchmarking

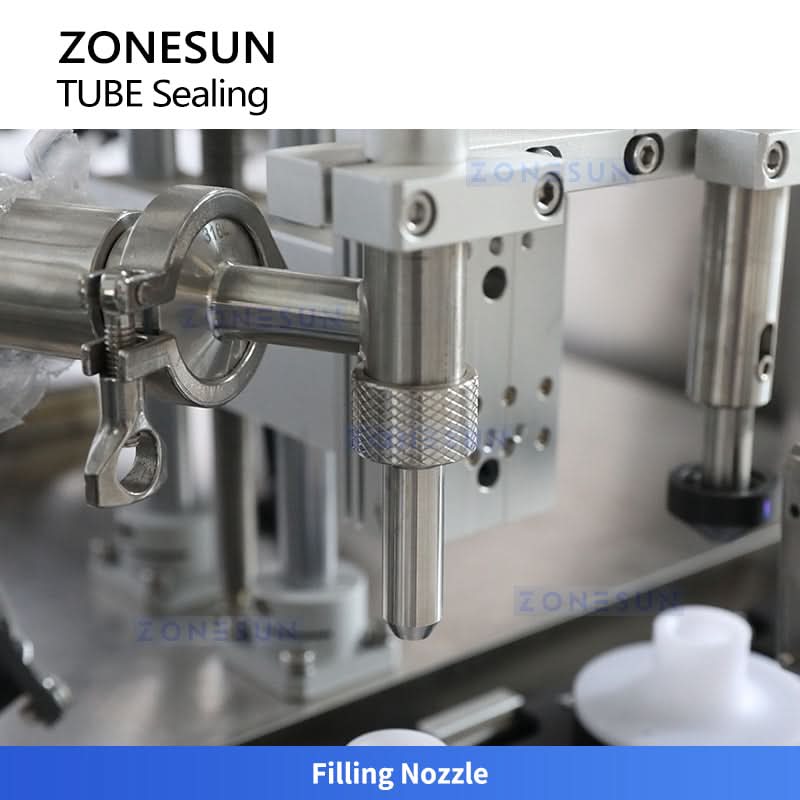

Filling Method Pneumatic Piston Filling
Sealing Method Ultrasonic Welding
Production Capacity 20–30 pieces/minute
Compressed Air 0.5–0.8 MPa
Power 4.5 kW (220V, 50Hz)
Ultrasonic Power 2 kW
Machine Dimensions 120 × 80 × 150 cm (L × W × H)
Main Unit Weight Approx. 220 kg
