Zonesun ZS-ZJL1 Facial Tissue Production Line

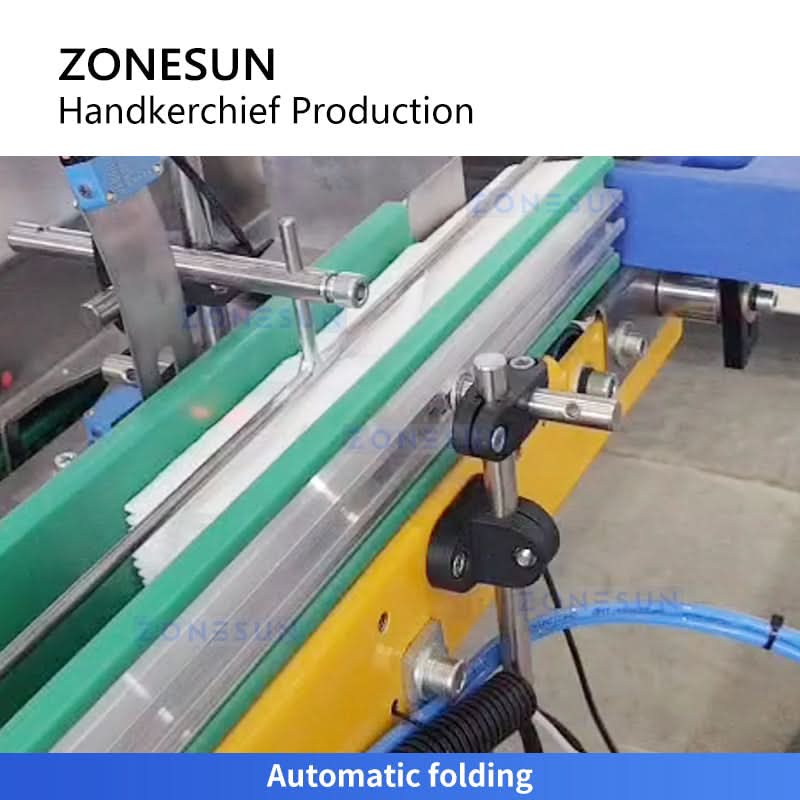

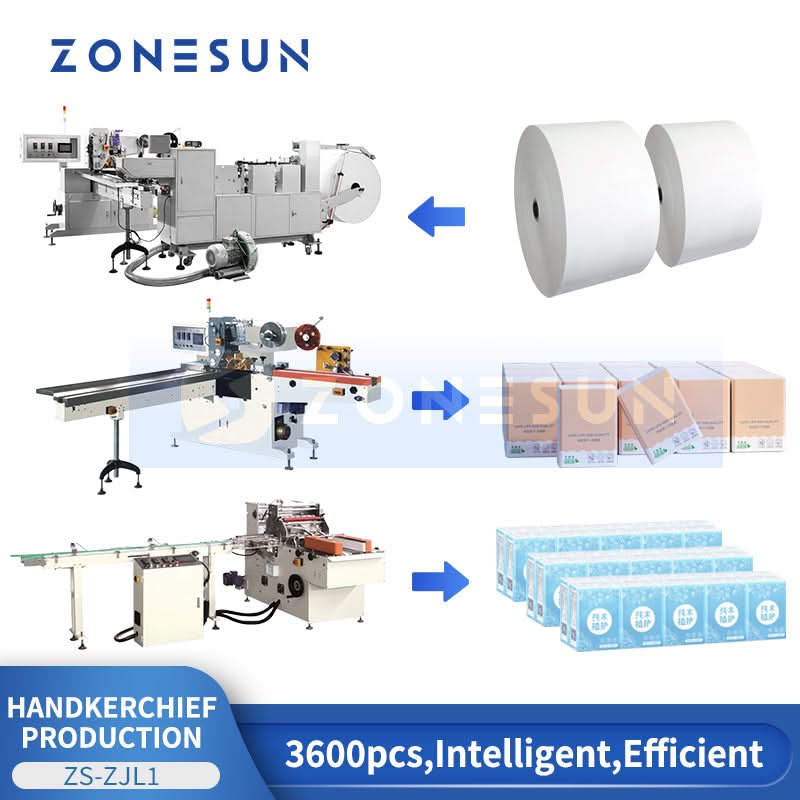

Introducing our fully automatic tissue production line, featuring a folding machine, single-pack sealing machine, and multi-pack machine. This advanced system utilizes an intelligent feeding mechanism to significantly enhance production efficiency. By reducing labor requirements, this automated line greatly lowers production and management costs. It employs vacuum suction and high-speed folding for optimal paper handling. With non-stepping speed adjustment, the machine operates smoothly, making it the ideal equipment for producing four-fold tissues.
Parameter
Power Supply 380V 50Hz
Voltage Change ±10%
Air Source Pressure Above 0.4 MPa
Product Speed Max. 80 packages/min<br>Stable: ~75 packages/min
Dimensions (L×W×H) 4580 × 2430 × 1510 mm
Introducing our fully automatic tissue production line, featuring a folding machine, single-pack sealing machine, and multi-pack machine. This advanced system utilizes an intelligent feeding mechanism to significantly enhance production efficiency. By reducing labor requirements, this automated line greatly lowers production and management costs. It employs vacuum suction and high-speed folding for optimal paper handling. With non-stepping speed adjustment, the machine operates smoothly, making it the ideal equipment for producing four-fold tissues.
Parameter
Power Supply 380V 50Hz
Voltage Change ±10%
Air Source Pressure Above 0.4 MPa
Product Speed Max. 80 packages/min<br>Stable: ~75 packages/min
Dimensions (L×W×H) 4580 × 2430 × 1510 mm
Description
Introducing our fully automatic tissue production line, featuring a folding machine, single-pack sealing machine, and multi-pack machine. This advanced system utilizes an intelligent feeding mechanism to significantly enhance production efficiency. By reducing labor requirements, this automated line greatly lowers production and management costs. It employs vacuum suction and high-speed folding for optimal paper handling. With non-stepping speed adjustment, the machine operates smoothly, making it the ideal equipment for producing four-fold tissues.
Parameter
Power Supply 380V 50Hz
Voltage Change ±10%
Air Source Pressure Above 0.4 MPa
Product Speed Max. 80 packages/min<br>Stable: ~75 packages/min
Dimensions (L×W×H) 4580 × 2430 × 1510 mm
