ZONESUN ZS-FAL180Z2 Automatic Liquid Filling, Capping & Labeling Production Line

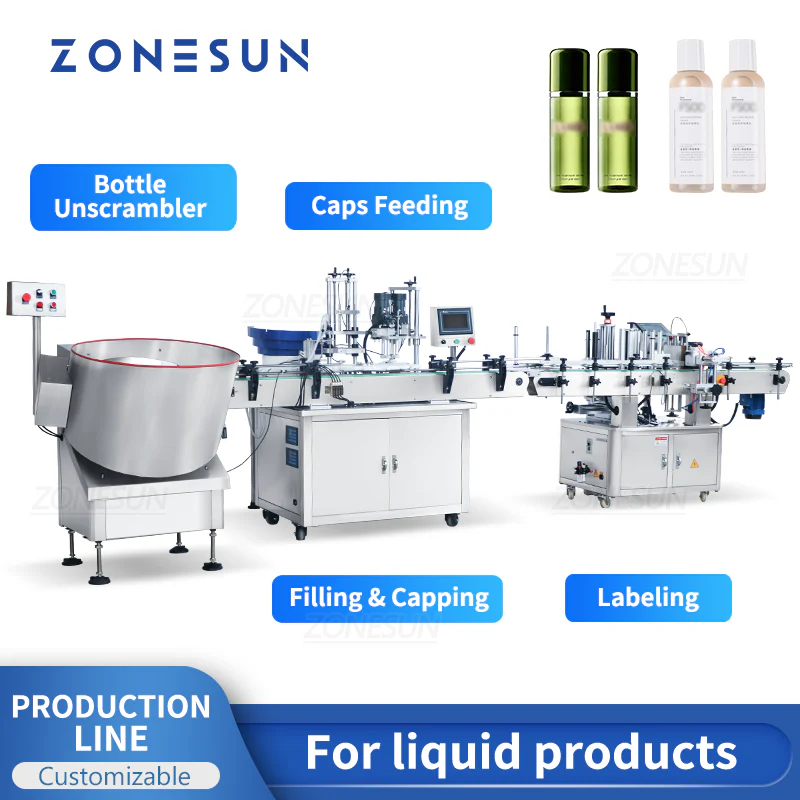

This automatic packaging line integrates a bottle unscrambler, filling and capping machine, and labeling machine to streamline liquid product bottling. Designed for daily chemicals, skincare, and healthcare liquids, it offers precise filling, secure capping, and accurate labeling. The system boosts production efficiency, reduces labor costs, and supports a wide range of bottle sizes and product types. Ideal for small to medium-scale manufacturers seeking automation and consistency.
Parameter
Model ZS-LP750 Bottle Turntable Specifications
Voltage & Power 110/220V, 50–60Hz, 500W
Rotary Plate Diameter 755 mm
Suitable Bottle Diameter Customized according to your bottles
Working Speed 20–80 bottles/min
Machine Size Approx. 570 × 685 × 1325 mm
Machine Weight Approx. 177 kg
Package Size Approx. 1110 × 1080 × 1490 mm
Package Weight Approx. 208 kg
Model ZS-AFC1 Filling and Capping Machine
Voltage & Power AC220V, 50/60Hz, 300W
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 30–40 bottles/min (depends on liquid, bottle, and caps)
Air Pressure 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Conveyor Size Approx. 2000 × 100 mm (L×W)
Machine Size Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Packing Size Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
Model ZS-TB260 Labeling Machine
Power Supply AC220V, 50/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm / Height: 15–150 mm
Roll Inside Diameter φ76 mm
Roll Outside Diameter φ350 mm
Conveyor Size 1950 × 100 mm (L×W)
Machine Size Approx. 2000 × 1400 × 1300 mm
Packing Size Approx. 2120 × 940 × 1500 mm
Net/Gross Weight Approx. 226 kg / 290 kg
