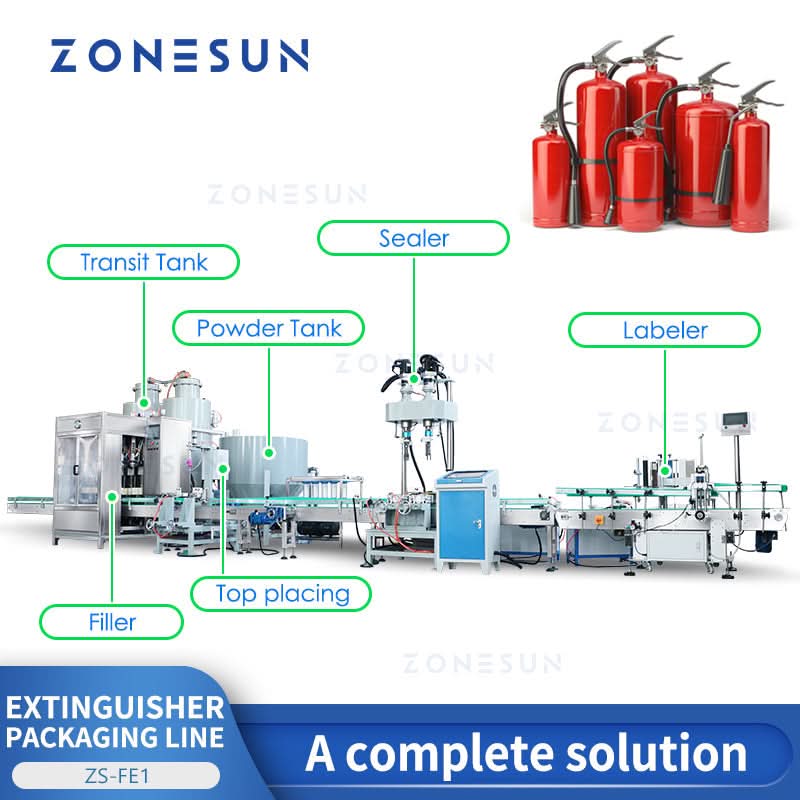

The ZS-FE1 is a fully automated production line designed for dry powder fire extinguishers. It handles every step—from powder feeding and filling to oil greasing, top placement, body rotation, sealing, and labeling. Built for precision and efficiency, it ensures consistent packaging with customizable configurations. Ideal for manufacturers seeking a complete, high-performance solution.

PARAMETER

Filling Machine
Model	ZS-FM6A
Power	About 4KW
Filling range	6-8kg each head (Customizable)
Quantity of filling head	4
Working speed	About 500 bottles/hour
Machine size	About 1300*1300*2000mm
Sealing Machine
Model	ZS-XG22
Power	About 3.5KW
Quantity of capping head	2
Working speed	About 500 bottles/hour
Machine size	About 900*900*1850mm
Labeling Machine
Capacity	15pcs/min
Applicable Product Size	Custom
Label Size	Custom
Size	215*110*144cm











PRODUCT DETAILS

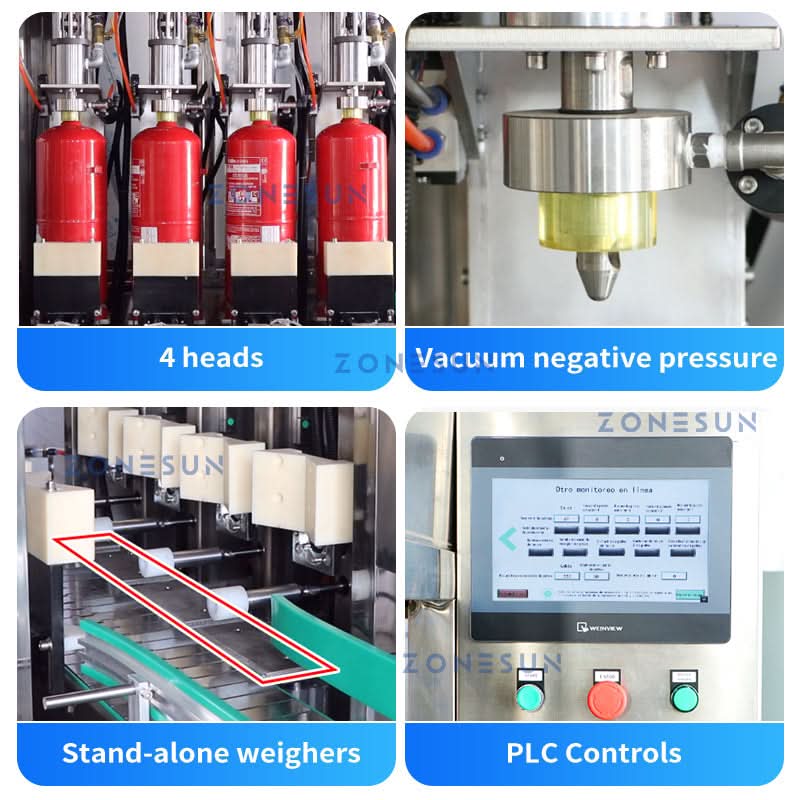

FILLER



4 heads, 4 stand-alone weighers, PLC controls. Vacuum negative pressure method, weigh-to-fill.

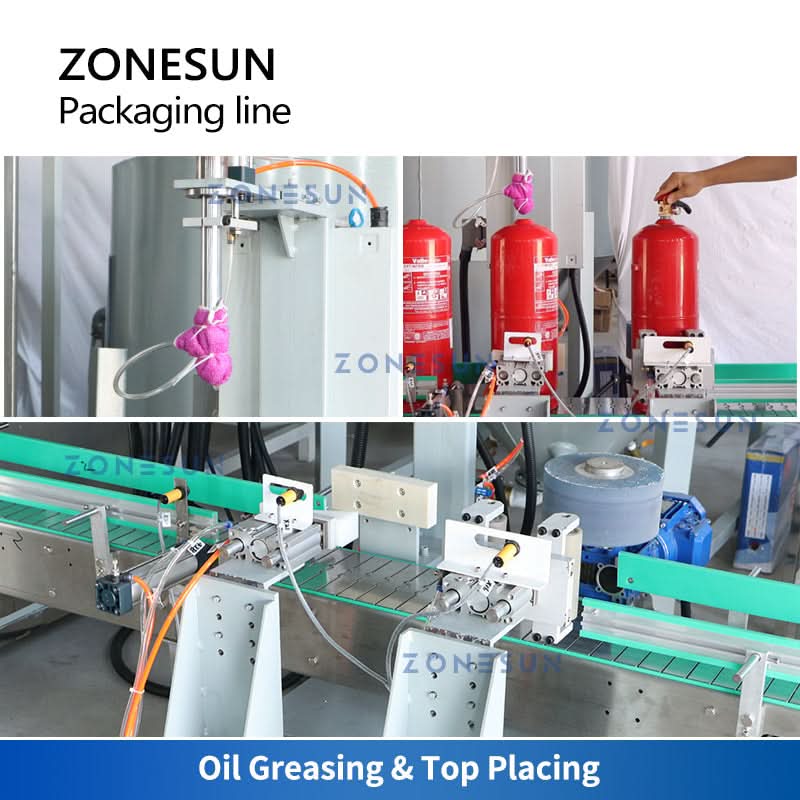

OIL GREASING & TOP PLACING



Automatically grease the opening, manually place the top with a footswitch.

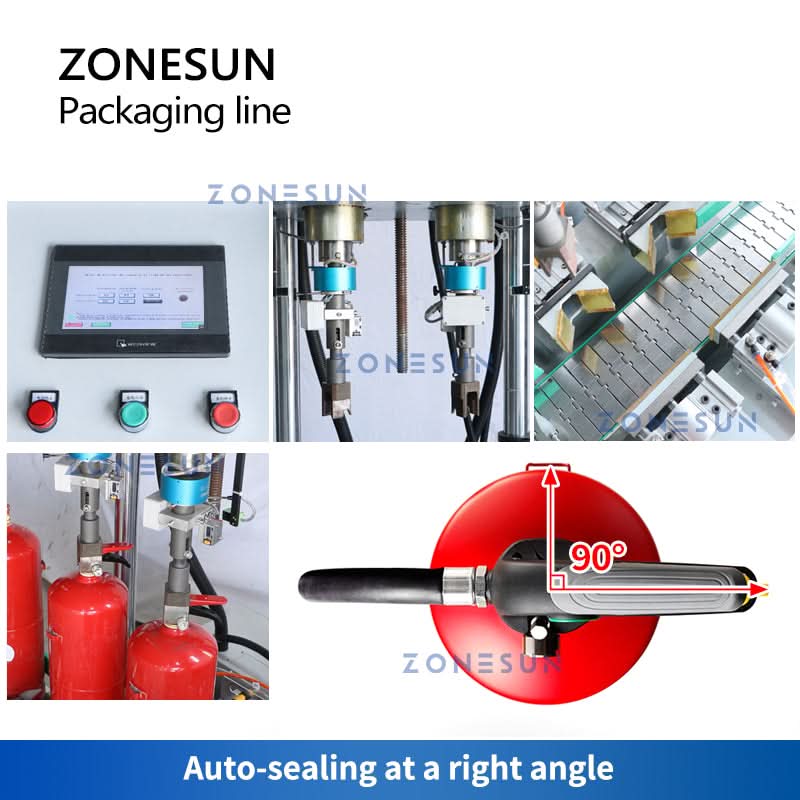

SEALING



Automatically detect the handles, clamp them and screw them to seal. The angle between the handles and the wall hook can be 90 degrees.

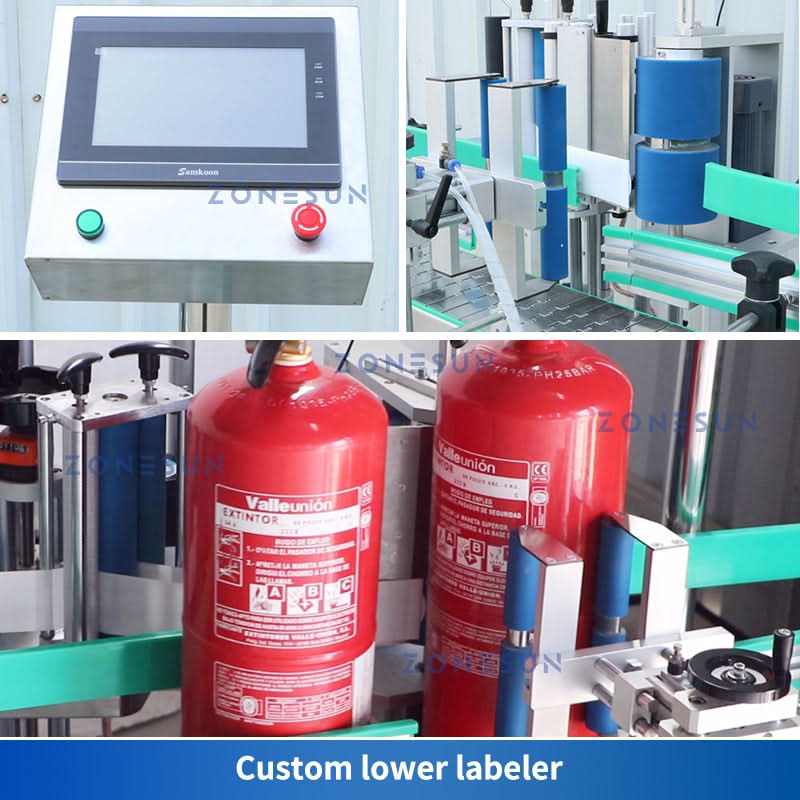

LABELING



Custom lower labeler, date coder as an optional extra.
