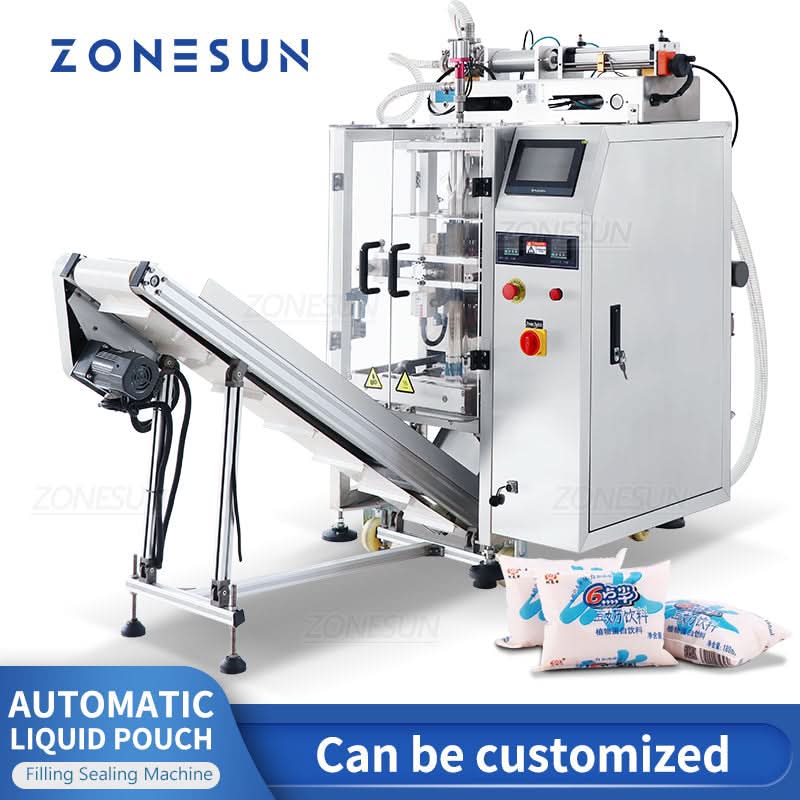

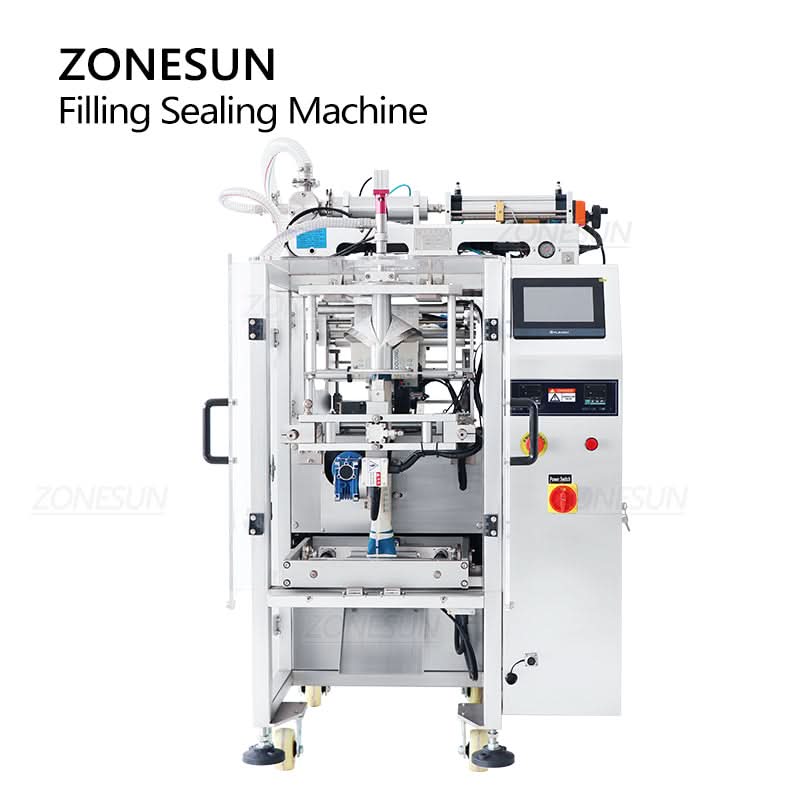

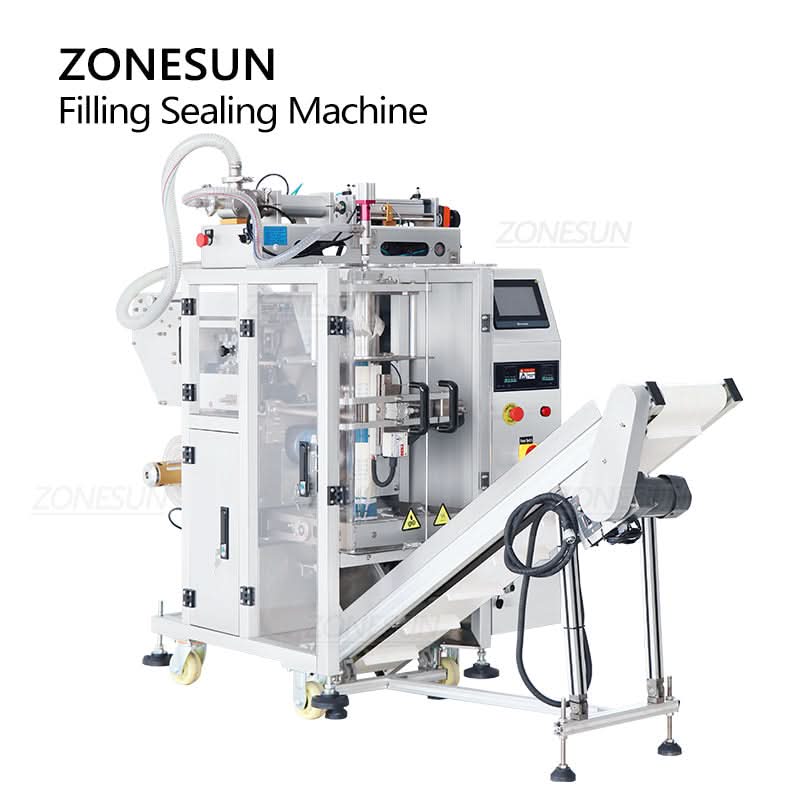

ZONESUN ZS-GFYT320 Liquid Pouch Filling & Back Seal Machine for Food & Beverage Use
This machine streamlines the process of filling liquids into pouch-style bags and sealing them from the back, offering high-speed performance with adjustable volume and sealing options. Perfectly suited for products like milk, water, and other fluid packaging, it's widely adopted across food, beverage, and chemical industries. With flexible film compatibility and customizable sealing formats, it ensures reliable operation and clean, professional packaging every time.
Parameter
Model ZS-GFYT320
Voltage 110/220/380V, 50–60Hz
Power 4kW
Suitable Film OPP/CPP, OPP/PE, NILO PE
Filling Range 50–500ml (Customizable)
Package Speed 5–60 bags/min (varies by liquid & bag size)
Max Film Width 320mm
Bag Size (W × L) 50–150mm × 50–400mm
Sealing Method Back/Three/Four-side sealing (Customizable)
Filling Accuracy ≤ 0.3–1%
Film Thickness 0.06–0.12mm
Air Pressure 0.65Mpa, 0.7m³/min
Lifting Height Approx. 1200mm
Conveying Speed 50–300mm/s (Adjustable)
Machine Size (L × W × H) Approx. 830 × 1080 × 1450mm
Machine Weight Approx. 289kg
This machine streamlines the process of filling liquids into pouch-style bags and sealing them from the back, offering high-speed performance with adjustable volume and sealing options. Perfectly suited for products like milk, water, and other fluid packaging, it's widely adopted across food, beverage, and chemical industries. With flexible film compatibility and customizable sealing formats, it ensures reliable operation and clean, professional packaging every time.
Parameter
Model ZS-GFYT320
Voltage 110/220/380V, 50–60Hz
Power 4kW
Suitable Film OPP/CPP, OPP/PE, NILO PE
Filling Range 50–500ml (Customizable)
Package Speed 5–60 bags/min (varies by liquid & bag size)
Max Film Width 320mm
Bag Size (W × L) 50–150mm × 50–400mm
Sealing Method Back/Three/Four-side sealing (Customizable)
Filling Accuracy ≤ 0.3–1%
Film Thickness 0.06–0.12mm
Air Pressure 0.65Mpa, 0.7m³/min
Lifting Height Approx. 1200mm
Conveying Speed 50–300mm/s (Adjustable)
Machine Size (L × W × H) Approx. 830 × 1080 × 1450mm
Machine Weight Approx. 289kg
Original: $9,899.00
-70%$9,899.00
$2,969.70Description
This machine streamlines the process of filling liquids into pouch-style bags and sealing them from the back, offering high-speed performance with adjustable volume and sealing options. Perfectly suited for products like milk, water, and other fluid packaging, it's widely adopted across food, beverage, and chemical industries. With flexible film compatibility and customizable sealing formats, it ensures reliable operation and clean, professional packaging every time.
Parameter
Model ZS-GFYT320
Voltage 110/220/380V, 50–60Hz
Power 4kW
Suitable Film OPP/CPP, OPP/PE, NILO PE
Filling Range 50–500ml (Customizable)
Package Speed 5–60 bags/min (varies by liquid & bag size)
Max Film Width 320mm
Bag Size (W × L) 50–150mm × 50–400mm
Sealing Method Back/Three/Four-side sealing (Customizable)
Filling Accuracy ≤ 0.3–1%
Film Thickness 0.06–0.12mm
Air Pressure 0.65Mpa, 0.7m³/min
Lifting Height Approx. 1200mm
Conveying Speed 50–300mm/s (Adjustable)
Machine Size (L × W × H) Approx. 830 × 1080 × 1450mm
Machine Weight Approx. 289kg
