ZONESUN ZS-AFC9 Rotary Perfume Bottle Liquid Filling Capping Machine

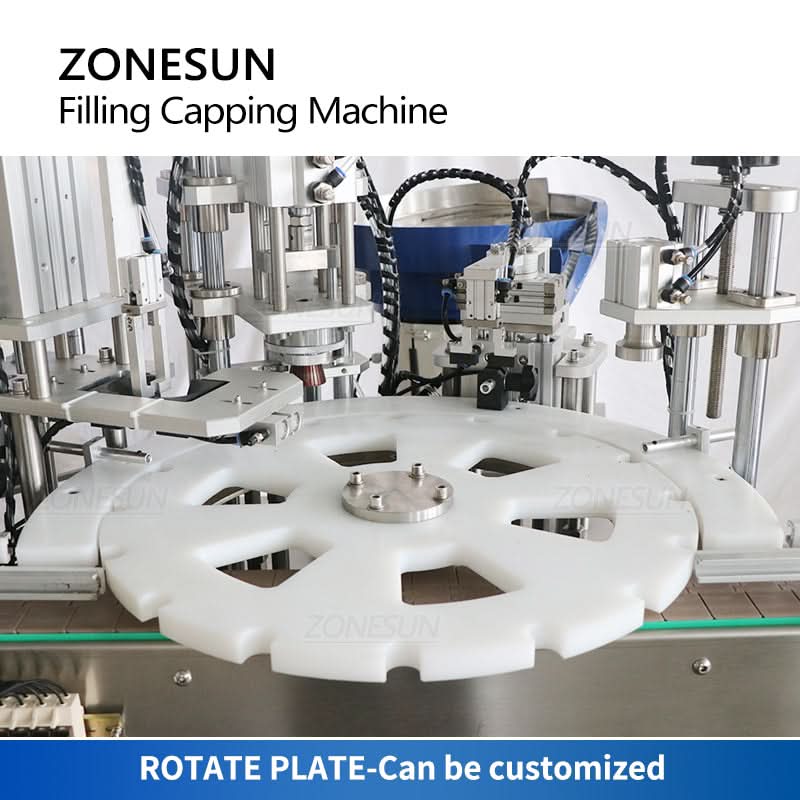

The ZS-AFC9 is an all-in-one automatic machine that integrates liquid filling, cap feeding, bottle capping, and outer cover pressing—ideal for perfume and cosmetic bottles. Its rotary plate can be customized to accommodate various bottle shapes and sizes, ensuring precise and stable operation. Widely used in the cosmetics industry, this machine streamlines production with reliable speed, adjustable fill range, and compatibility with multiple cap types.
Specification Details
Machine Model ZS-AFC9
Voltage 220V / 110V, 50–60Hz
Power 2500W
Machine Pump 316 Stainless Steel Magnetic Pump
Filling Heads 2 Heads (Customizable)
Production Capacity Approx. 20–30 bottles/min (varies by material & size)
Filling Range 5–3000ml (Customizable)
Max Flow Rate 4L/min per head (based on water)
Applicable Bottle Size Customizable
Applicable Cap Diameter Customizable

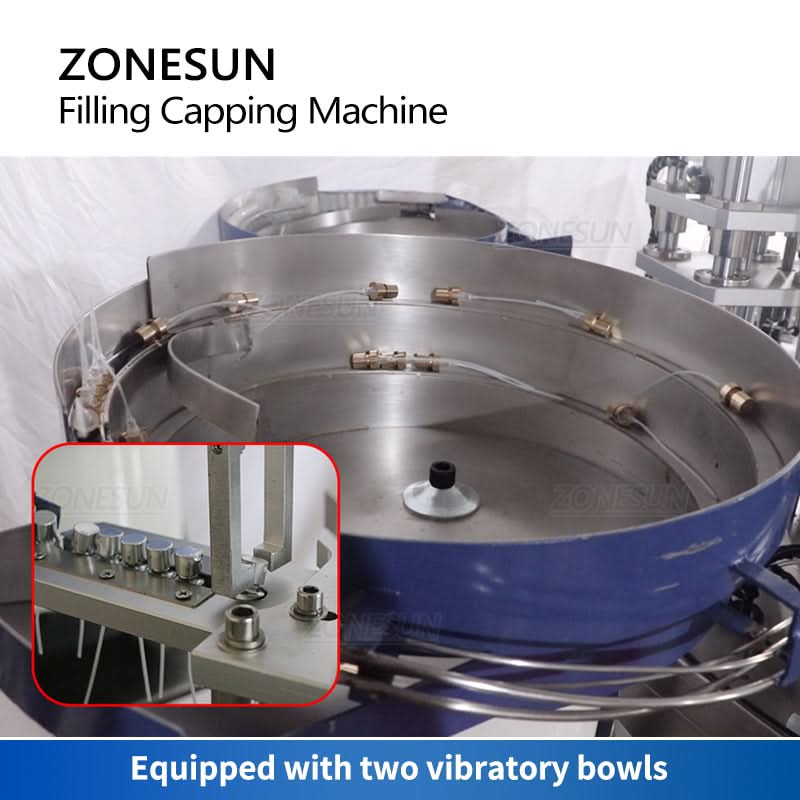

Package Size Vibratory Bowl Sorter: 970 × 510 × 850mm <br> Bracket: 670 × 540 × 590mm <br> Machine: 1760 × 1000 × 1640mm
Package Weight Vibratory Bowl Sorter: 58kg <br> Bracket: 65kg <br> Machine: 425kg
The ZS-AFC9 is an all-in-one automatic machine that integrates liquid filling, cap feeding, bottle capping, and outer cover pressing—ideal for perfume and cosmetic bottles. Its rotary plate can be customized to accommodate various bottle shapes and sizes, ensuring precise and stable operation. Widely used in the cosmetics industry, this machine streamlines production with reliable speed, adjustable fill range, and compatibility with multiple cap types.
Specification Details
Machine Model ZS-AFC9
Voltage 220V / 110V, 50–60Hz
Power 2500W
Machine Pump 316 Stainless Steel Magnetic Pump
Filling Heads 2 Heads (Customizable)
Production Capacity Approx. 20–30 bottles/min (varies by material & size)
Filling Range 5–3000ml (Customizable)
Max Flow Rate 4L/min per head (based on water)
Applicable Bottle Size Customizable
Applicable Cap Diameter Customizable
Package Size Vibratory Bowl Sorter: 970 × 510 × 850mm <br> Bracket: 670 × 540 × 590mm <br> Machine: 1760 × 1000 × 1640mm
Package Weight Vibratory Bowl Sorter: 58kg <br> Bracket: 65kg <br> Machine: 425kg
Original: $15,598.99
-70%$15,598.99
$4,679.70Description
The ZS-AFC9 is an all-in-one automatic machine that integrates liquid filling, cap feeding, bottle capping, and outer cover pressing—ideal for perfume and cosmetic bottles. Its rotary plate can be customized to accommodate various bottle shapes and sizes, ensuring precise and stable operation. Widely used in the cosmetics industry, this machine streamlines production with reliable speed, adjustable fill range, and compatibility with multiple cap types.
Specification Details
Machine Model ZS-AFC9
Voltage 220V / 110V, 50–60Hz
Power 2500W
Machine Pump 316 Stainless Steel Magnetic Pump
Filling Heads 2 Heads (Customizable)
Production Capacity Approx. 20–30 bottles/min (varies by material & size)
Filling Range 5–3000ml (Customizable)
Max Flow Rate 4L/min per head (based on water)
Applicable Bottle Size Customizable
Applicable Cap Diameter Customizable
Package Size Vibratory Bowl Sorter: 970 × 510 × 850mm <br> Bracket: 670 × 540 × 590mm <br> Machine: 1760 × 1000 × 1640mm
Package Weight Vibratory Bowl Sorter: 58kg <br> Bracket: 65kg <br> Machine: 425kg
